مميزات خاصة

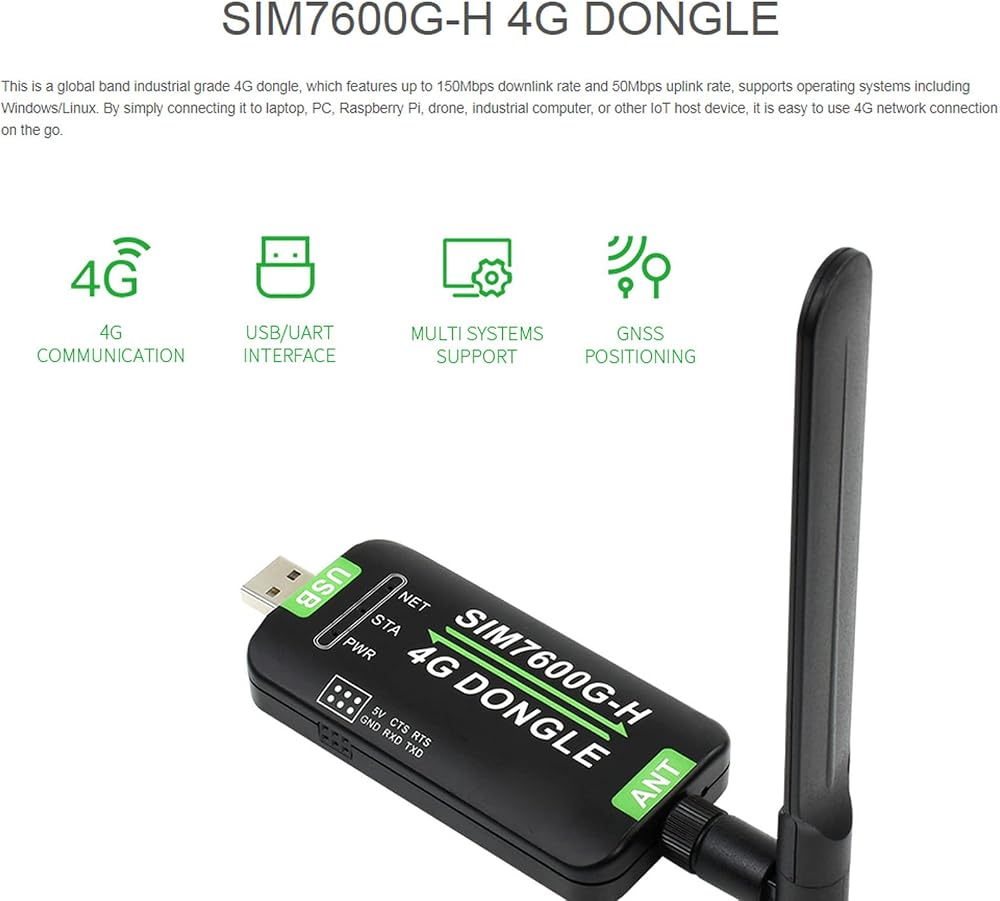

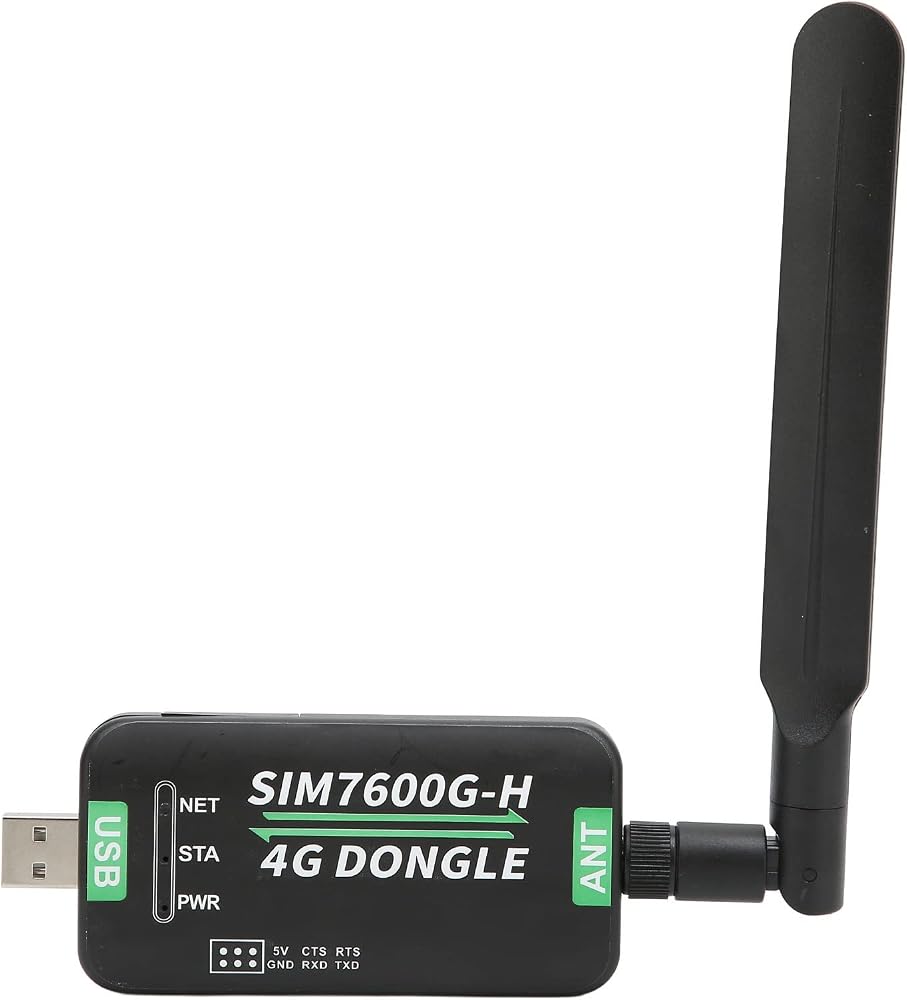

Industrial Grade Design: SIM7600G‑H 4G DONGLE LTE USB adapter adopts industrial grade 4G communication solution, equipped with SIM7600G‑H module, which makes the communication stable and . LTE USB adapter with SIM card slot, support Nano SIM card,(not include ) Driver download site : www..net/wiki/SIM7600G-H_4G_DONGLE
Need Driver : USB network module compatible with Windows/Linux systems, just plug in the USB port, install the driver for configuration, and you can achieve high-speed 4G networking. (Please customer service to send the driver), LTE USB modem with rotatable antenna, the antenna adopts a flexible structure design and supports multi dimensional rotation.
Three Indicator Lights: SIM7600G‑H 4G DONGLE Module has three data indicator lights, you can easily see the working status, NET: internet indicator, SAT: status indicator, PWR: power indicator.
2 Interface Communication: 4G DONGLE module supports cloud communication, supports USB and UART two interface communication, supports TCP/UDP/FTP/FTPS/HTTP/HTTPS and other communication protocols.

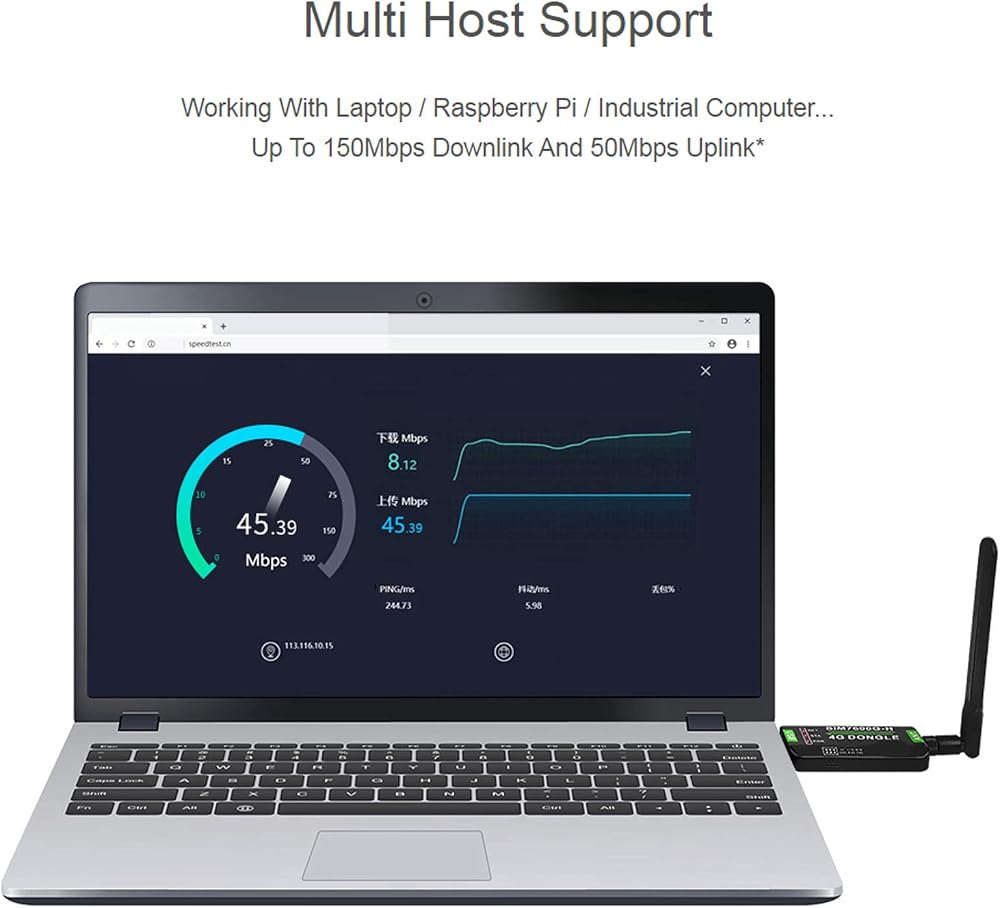

Application Scenario: SIM7600G‑H 4G DONGLE can be used for industrial computer networking, PC Internet access, shared/unmanned self service equipment, open source hardware networking, industrial Internet of Things.

وصف

Specification:
Item Type: SIM7600G‑H 4G DONGLE
Product Parameters
Material: ABS
Model: SIM7600G-H
LTE-TDD: B34/B38/B39/B40/B4l
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
3G Frequency Band: UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G Frequency Band: GSM/GPRS/: 850/900/1800/1900MHz
GNSS: Support GPS, Beidou, Glonass, LBS base station positioning
Applicable Area: Universal
Data :
LTE Cat-4：150Mbps(DL)/50Mbps(UL)
3G(HSPA+)：42Mbps(DL)/5.76Mbps(UL)
2G()：236.8Kbps(DL)/236.8Kbps(UL)
2G(GPRS)：85.6Kbps(DL)/85.6Kbps(UL)
Software Function:

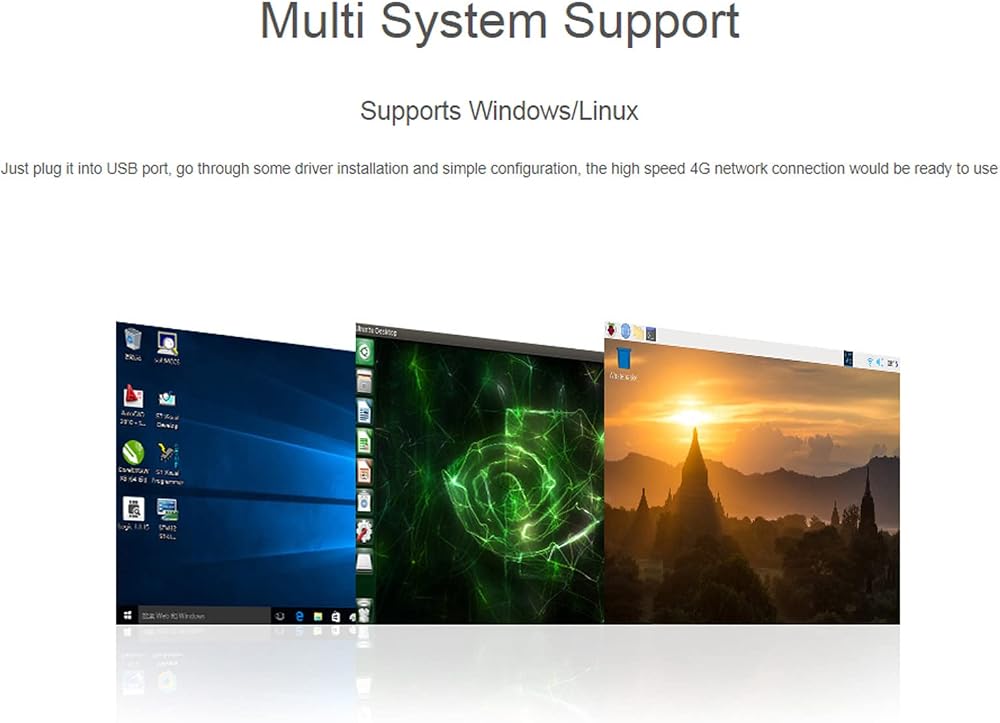

Operating System:For Windows,for Linux
Letter of Agreement:
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
Internet Access: NDIS/RNDIS/PPP
Short Message (SMS): Support MT, MO, CB, Text, PDU
Hardware Description:

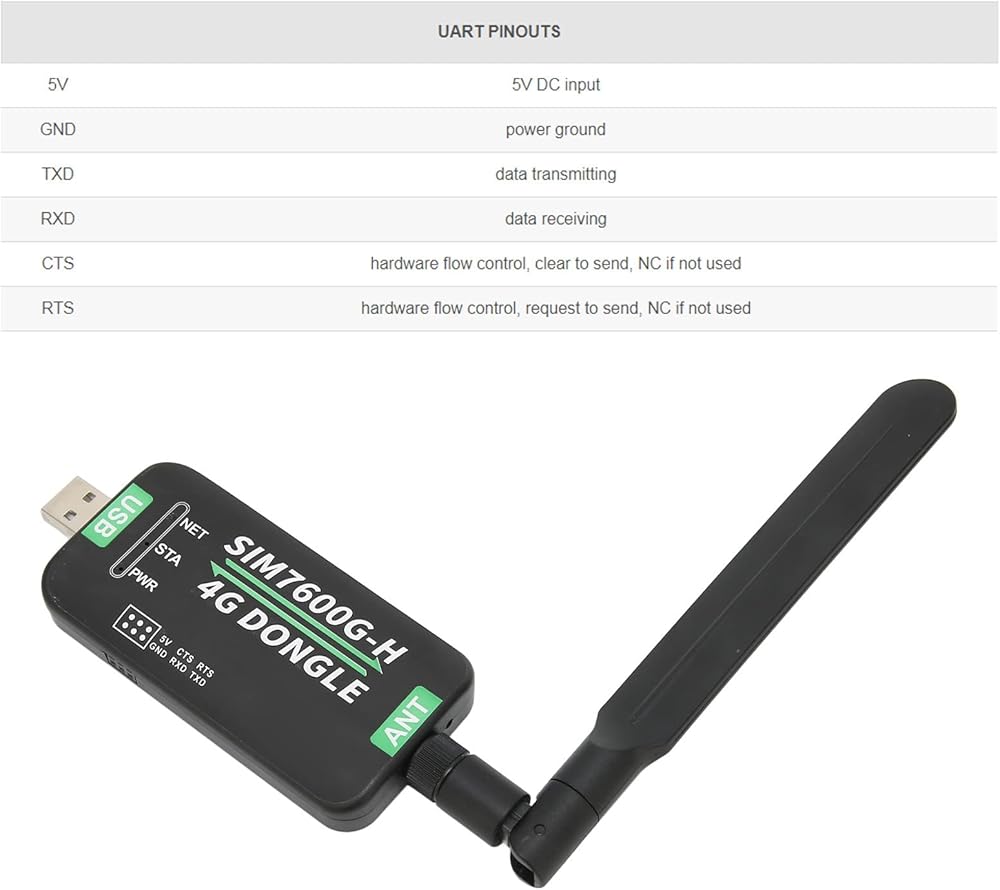

Communication Interface: USB/UART
UART Communication Baud Rate: 300bps-4mbps (default is L15200bps)

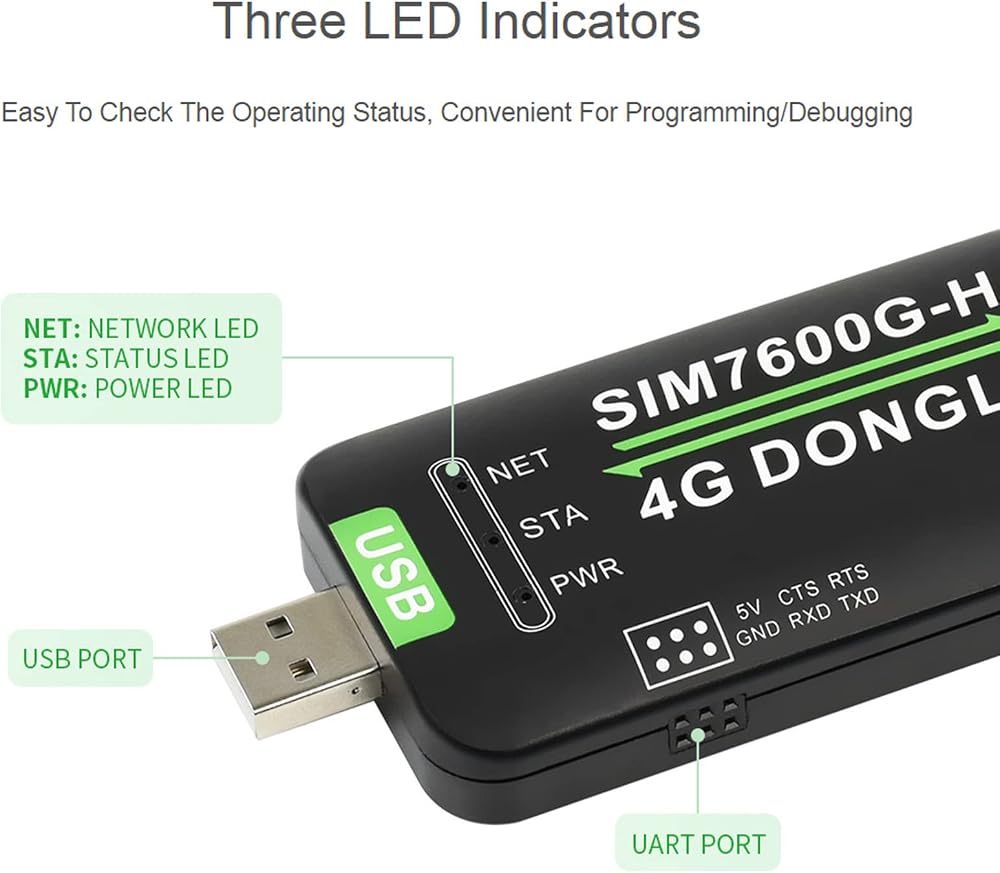

Indicator:
NET: Internet Indicator
STA: Status Indicator
PWR: Power Indicator

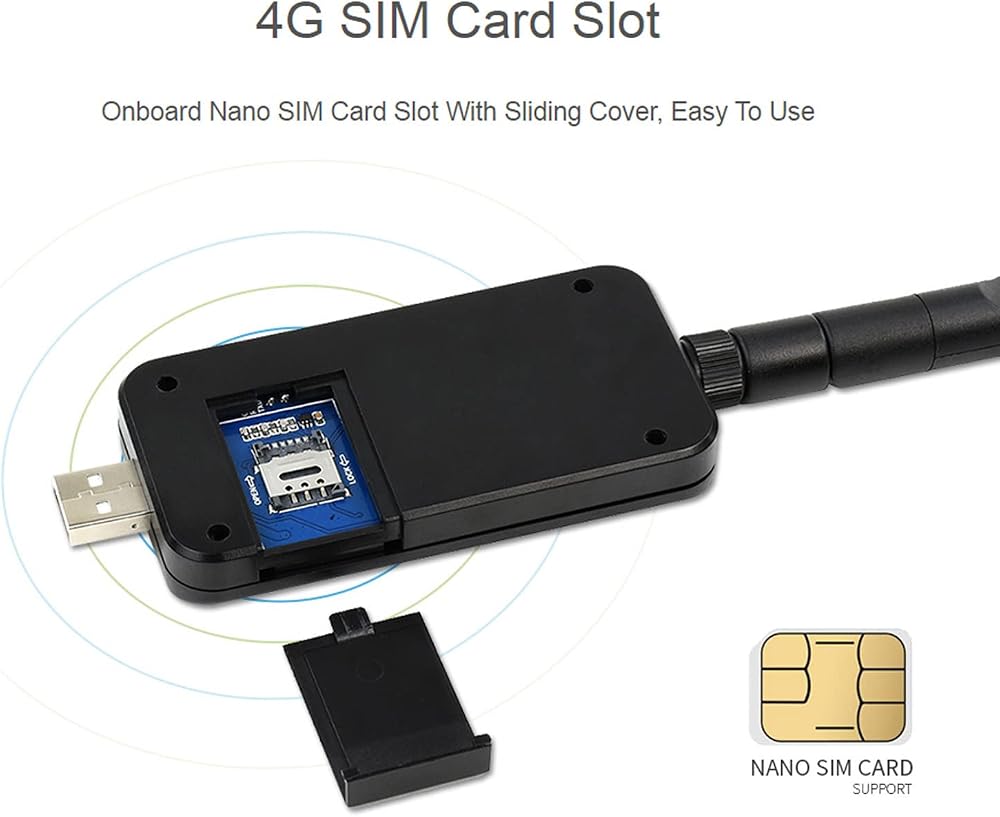

Support SIM Card: Nano SIM Card (1.8V / 3V) (Card Not Included)
Antenna Interface: LTE
Supply Voltage: 5V
Logic Voltage: 3.3V

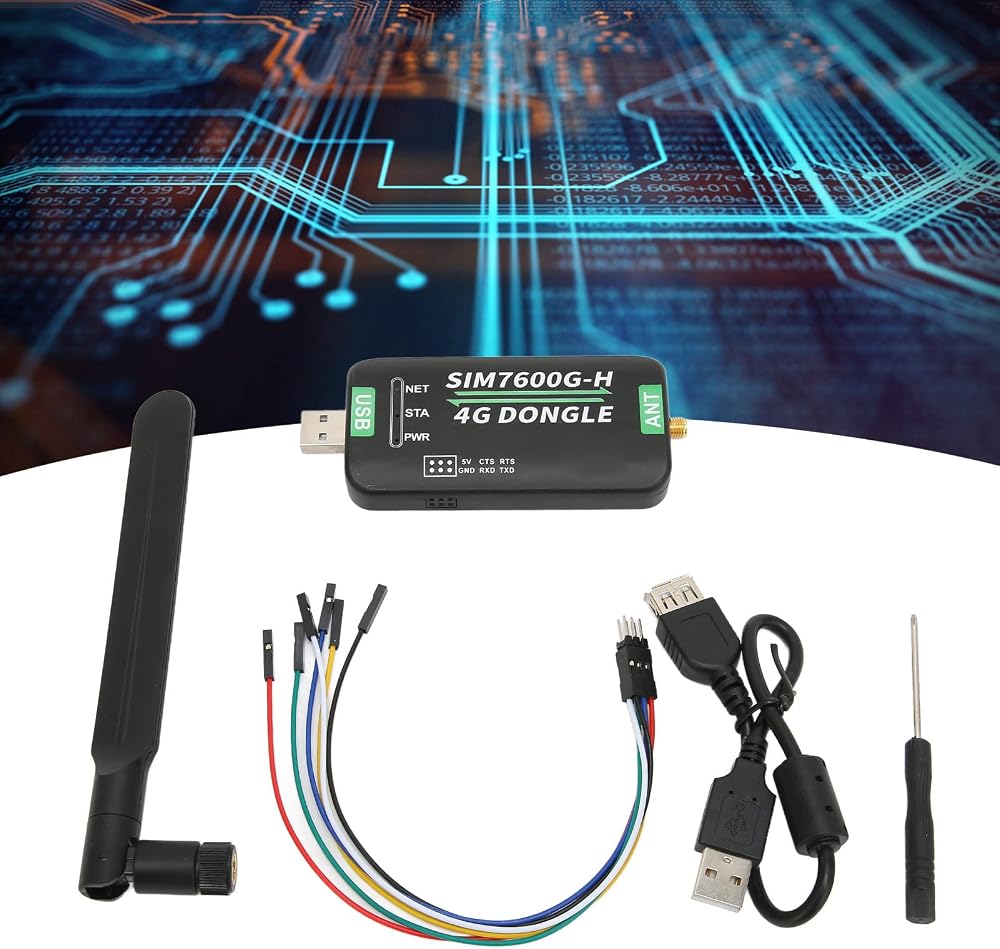

Package List:
1 x SIM7600G‑H 4G DONGLE
1 x LTE Antenna
1 x USB Extension Cable
5 x Screws
1 x Screwdriver
1 x Connection Line
