CAT5E-G Bulk Ethernet Cable ، U/UTP ، النحاس العاري الصلب ، صندوق سحب 1000 قدم ، عزل HDPE ، سترة PVC ، UL مدرج ، أخضر ، 24AWG ، CMR مصنفة in Saudi Arabia CAT5E-G Bulk Ethernet Cable ، U/UTP ، النحاس العاري الصلب ، صندوق سحب 1000 قدم ، عزل HDPE ، سترة PVC ، UL مدرج ، أخضر ، 24AWG ، CMR مصنفة in Saudi Arabia

CAT5E-G Bulk Ethernet Cable ، U/UTP ، النحاس العاري الصلب ، صندوق سحب 1000 قدم ، عزل HDPE ، سترة PVC ، UL مدرج ، أخضر ، 24AWG ، CMR مصنفة

SAR 1,897
– 1 +

مميزات خاصة

  • Type: Category 5E U/UTP Cable for high-speed Ethernet, voice, and data transmission.
  • Conductor Material: Solid Bare Copper (BC), 24AWG, 0.49 mm ±0.01 for high signal fidelity and low resistance.
  • Insulation: High-Density Polyethylene (HDPE) insulation with 0.89 mm ±0.05 diameter for enhanced dielectric strength.

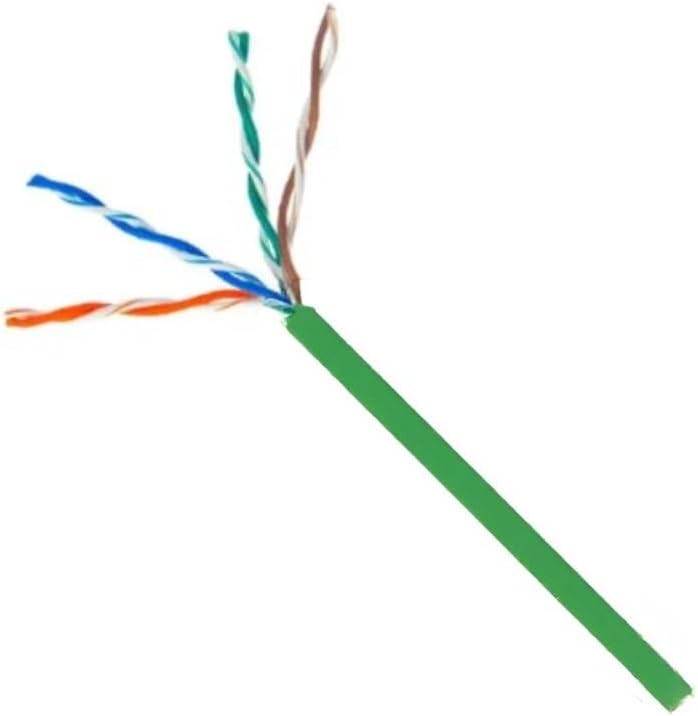

  • Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown for correct pair alignment.
  • Jacket Material: Durable PVC outer jacket, 5.0 mm ±0.3 diameter with 0.50 mm average thickness for mechanical protection and easy handling.
  • Rip-Cord: Included for fast and efficient cable jacket removal without damaging the internal conductors.
  • Electrical Characteristics: Conductor DC Resistance ≤93.8Ω/km @ 20°C for reliable electrical performance.
  • Impedance: 100±15 Ohm nominal characteristic impedance, optimized for data transmission.
  • Temperature Rating: Operates in a wide range from -20°C to +75°C for both indoor and semi-industrial use.
  • Fire Rating: CMR (riser rated), suitable for vertical runs in building riser shafts.

وصف

The CAT5E-G is a high-performance Category 5E U/UTP bulk Ethernet cable featuring 1000 feet of solid bare copper (BC) conductors designed to deliver superior conductivity and signal integrity for voice, video, and data transmission. Each conductor is constructed with a 0.49 mm ±0.01 diameter and insulated using high-density polyethylene (HDPE), providing uniform insulation diameter of 0.89 mm ±0.05 mm for consistent performance and crosstalk reduction. The cable contains four twisted pairs in standard color coding for easy identification and accurate terminations. A durable polyvinyl chloride (PVC) outer jacket offers a 5.0 mm ±0.3 mm diameter and flame-retardant CMR rating for safe vertical installations in riser applications. The cable includes a rip-cord for quick and clean jacket stripping, and is UL Listed and tested for conformance to ANSI/TIA-568-C.2 specifications. Operating across a wide temperature range, this cable ensures stable performance in demanding network deployments.
