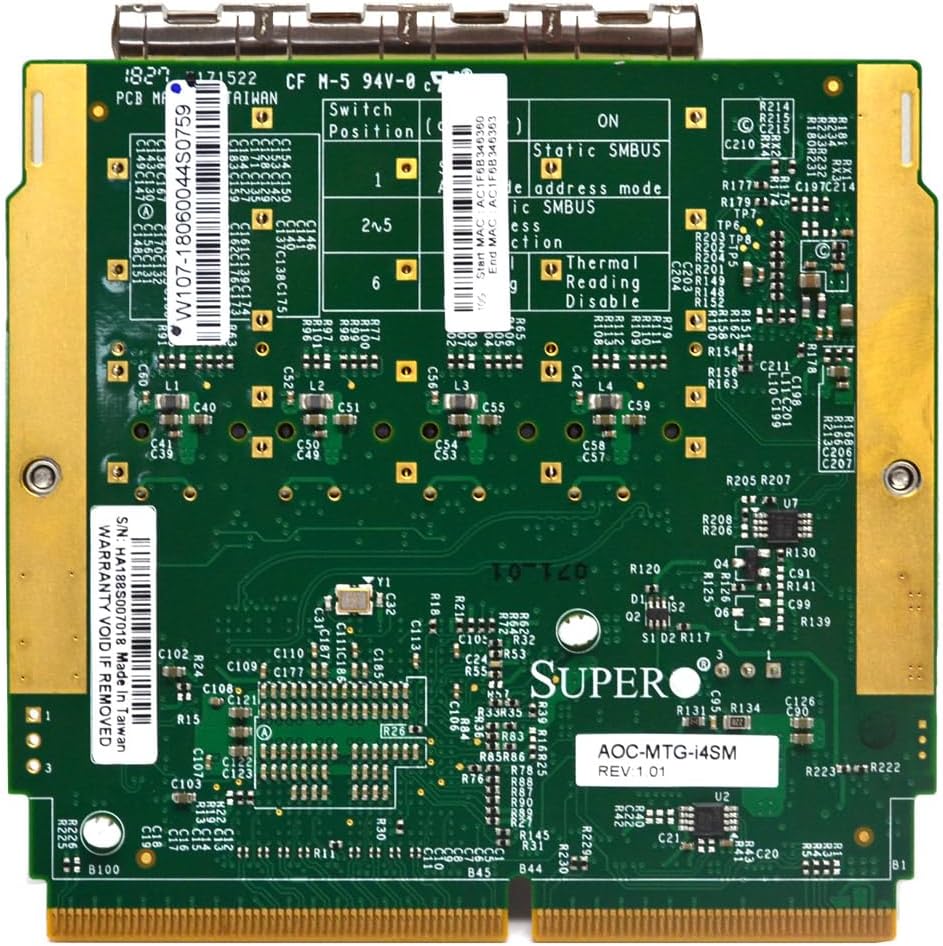

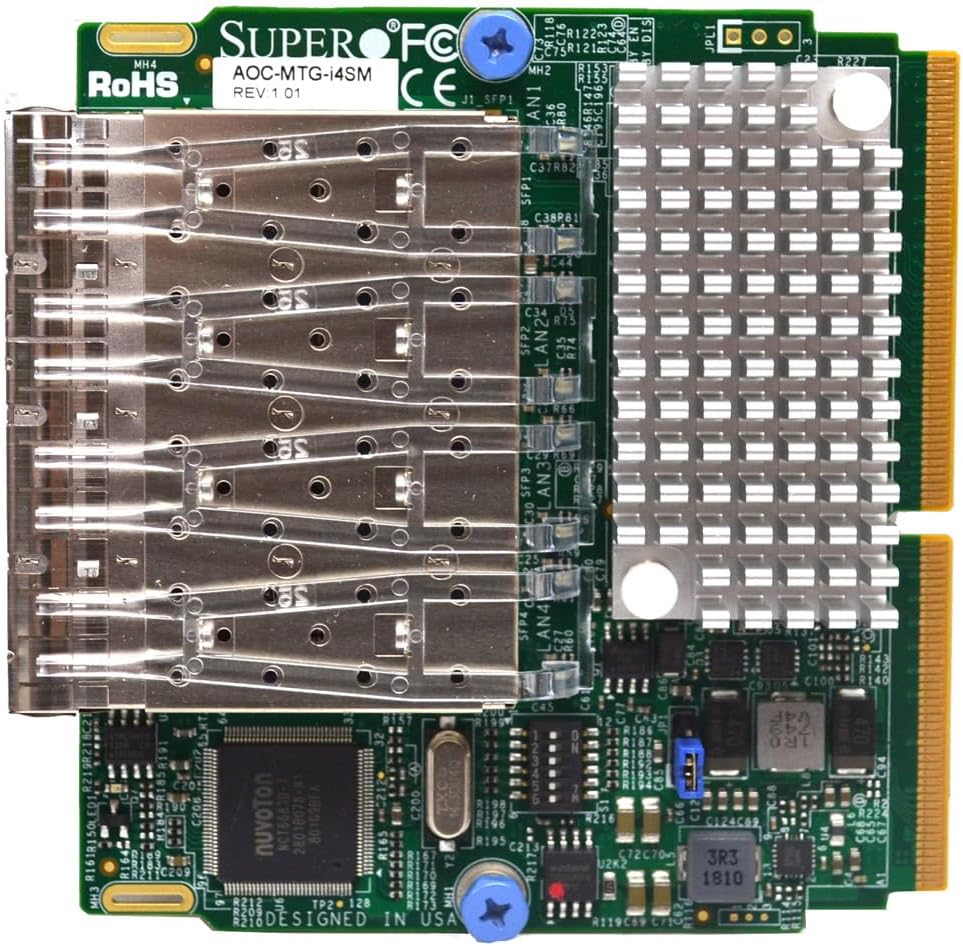

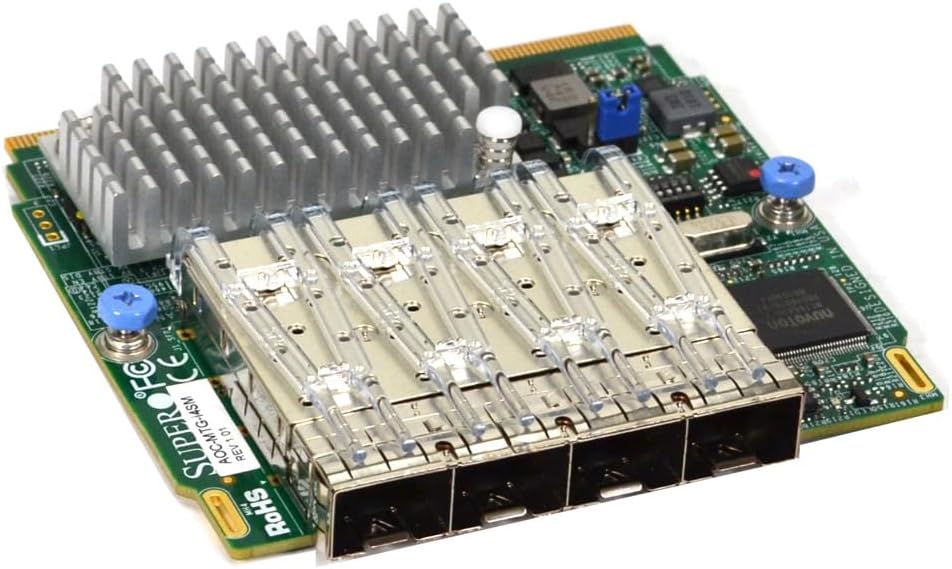

SpecificationsMfr Part Number: AOC-MTG-I4SM
Features:Quad SFP+ Connectors
Super I/O Module (SIOM) Form Factor
Network Virtualization Offloads including VXLAN and NVGRE
Small Packet Performance
Data Plane Developer Kit for efficient packet processing
Low Power Consumption
Intel Flow Director
Intelligent Offloads
Unified networking providing a single wire support for LAN and storage
Asset Management Features
NC-SI for Remote Management
RoHS compliant 6/6
Supports Both Direct Attach Copper and Fiber Cables
General:Intel X710 controller
Super I/O Module (SIOM) Form Factor
Quad SFP+ connectors with speed up to 10Gbps per port
Load balancing on multiple CPUs
Intel PROSet Utility for Windows Device Manager
Time Sync (IEEE 1588)
Energy Efficient Ethernet (EEE)
Virtualization Features:Next-Generation VMDq with up to 256 VMDq VMs supported
PCI-SIG SR-IOV with up to 128 virtual ports
Virtual Machine Load Balancing (VMLB)
Advanced Packet Filtering
VLAN support for up to 4096 VLAN tags
VXLAN and NVGRE support
Storage Interface Features:Preboot eXecution Environment (PXE) support
iSCSI remote boot
Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) static counters
Management Features:Asset Management support on Supermicro platforms
Controller asset tags such as part number, revision, serial number, and MAC addresses
Controller thermal sensor
NC-SI for remote management
Advanced Software Features:Teaming support
IEEE 802.3ad (link aggregation control protocol)
IEEE 802.1Q VLANs
IEEE 802.3 2005 flow control support
TCP segmentation/large send offload
Interrupt moderation
OS Support: Windows Server 2012 R2, 2012, 2008 R2 X86-64
Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
FreeBSD 9 a
