Product Description

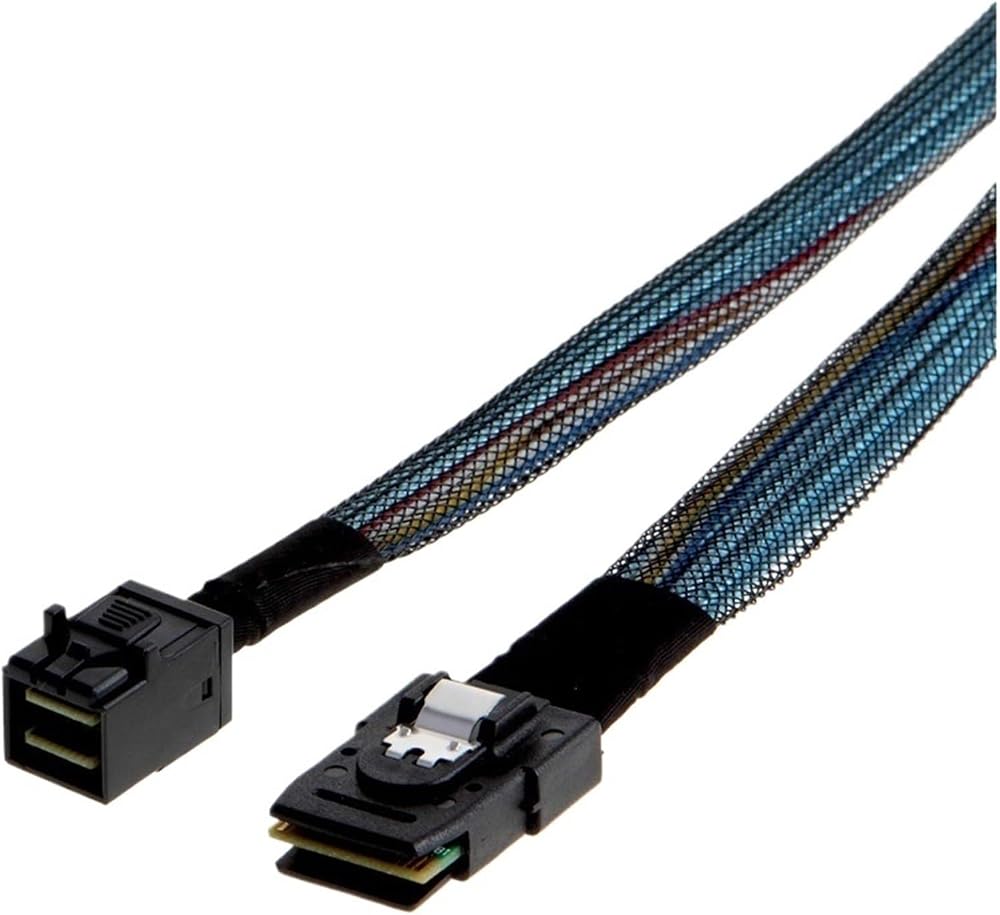

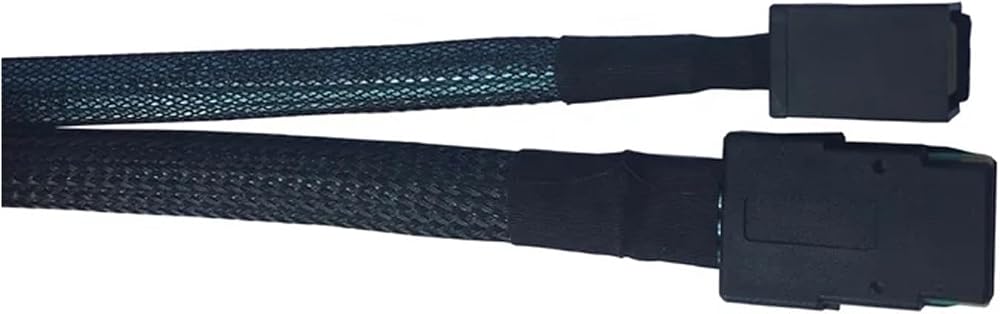

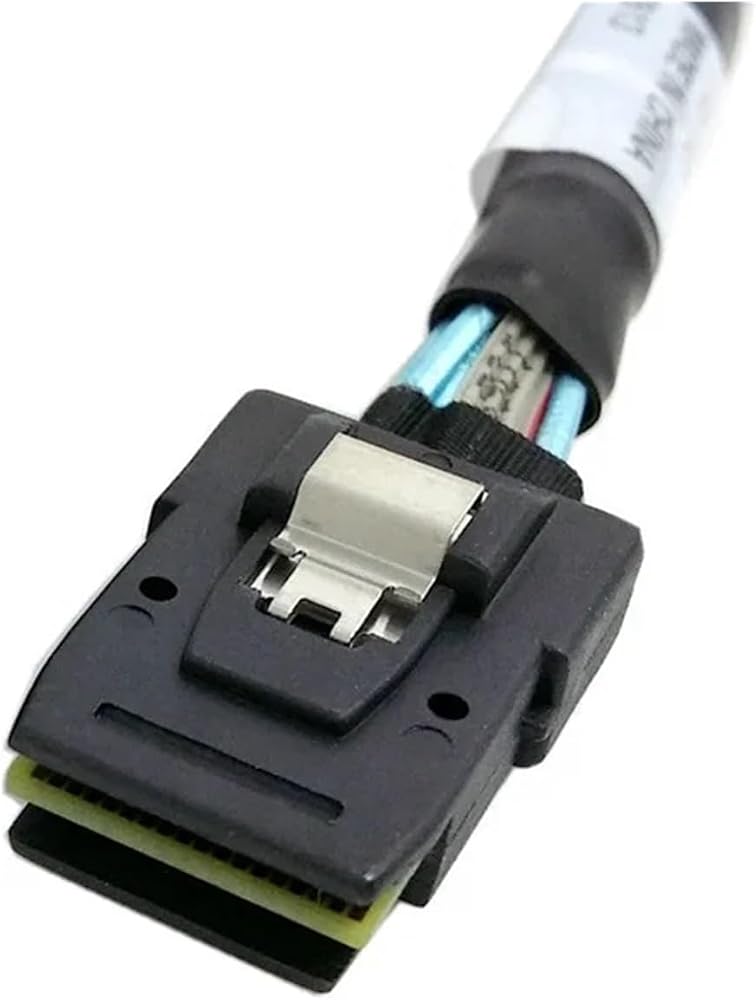

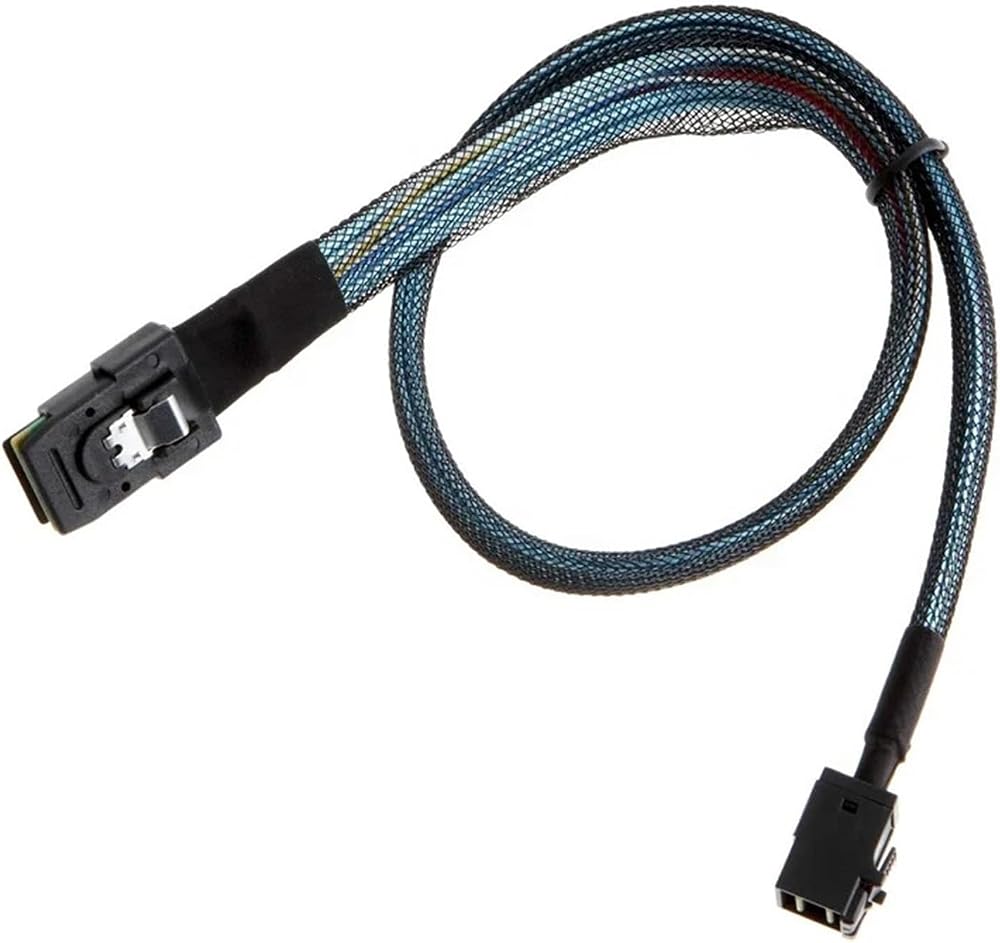

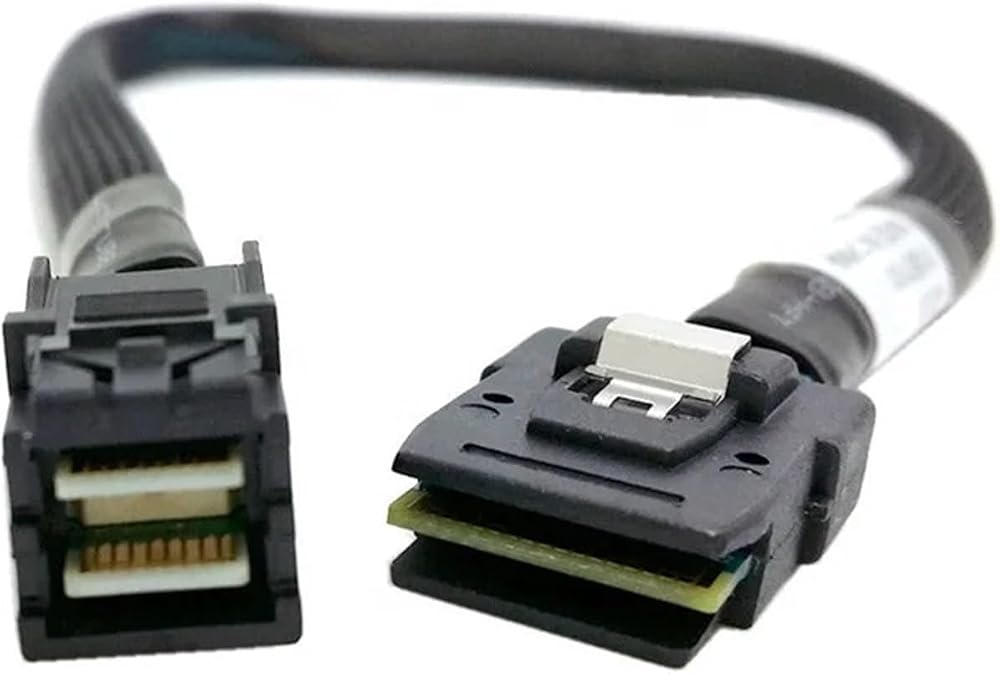

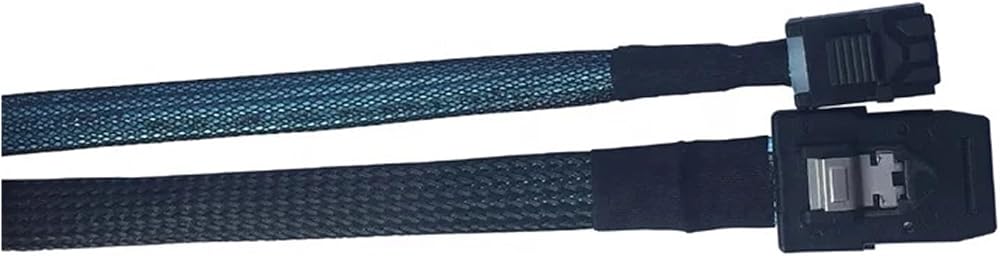

High Density M1ni S-AS 36P Straight to M1ni S-AS 36P Straight
Part Number: LRSAS 8087 to 8643
Product Description: s-as sff-8087and 8643
Series: High Density M1ni S-AS
Cable Length: 1.0 meters
Signal Wire Size: 30AWG, Tinned Copper, OD: 0. 9*2.3,MM
Plating: Au 3u' min over Ni 100u' min
Color: Over Black
Feature
High Density (High Density) M1ni S-AS SFF-8643 Internal cable assemblies are available for S-AS 4.0, 12Gb/s and S-AS 4.0, 12Gb/s specification; SFF-8643 is the connector uses less PCB real estate and allows higher port density for internal hosts and devices;Hybrid versions of these cables will allow for a smooth transition from 6Gb to 12Gb
Compliance
RoHSCable Horizontal flame, PCB 94V-0, PBT 94V-0
Applications
Data/Communications
1. (Redundant Array of Independent Disks)
2. Workstations
3. Rack-mount server
4. Servers
5. Storage rack
Features and Benefits
1. Transmission rate 12 Gbps.
2. Meet SAS4.0 Rev. 5a specification.
Mechanical Performance
Mating Force and Unmating Force
Condition: EIA 364-13. Insert and extract at a speed of 25mm/minute.
Mating Force: 100 N maximum.
Unmating Force: 50 N maximum.
Electrical Performance
1. Current Rating
0.5Amperes maximum per pin when mated.
2. Voltage Rating
30VAC per when mated or unmated.
3. Resistance
30mohm max. initial, 15mohm maximum after stress test.
4. Dielectric Withstanding Voltage
500 VAC for 1 minute no breakdown.
5. Insulation Resistance
1000 Mohm minimum.
Signal Integrity
1. Mated Connector Impedance: 100 Ω±15%
2. Cable Absolute Impedance: 100 Ω±10%
3. Cable Pair Matching: ±5 Ω
4. Common Impedance: 25 to 40 ohms
5. Insertion loss: -6dB maximum up to 4.5Ghz;11dB maximum up to 9Ghz.
6. Crosstalk: -35 dB Max up to 6Ghz
Product Compliance
TY>pe : Transfer Cable
TY>pe : Elbow Data Cable, M1ni S-
