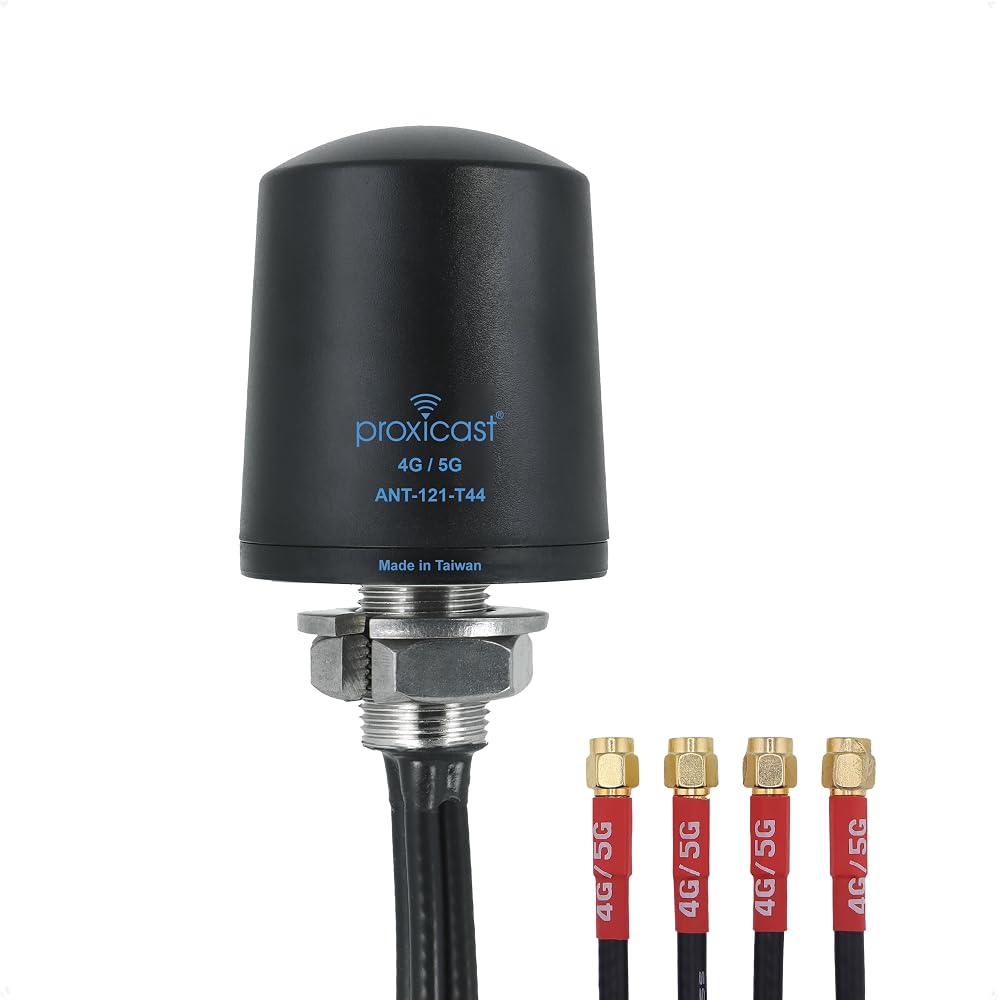

Omnidirectional MIMO antenna for indoor / outdoor applications. Excellent MIMO 4x4 antenna for hotspots, kiosks, M2M, IoT, telemetry and vehicle applications. Connect this antenna to existing 5G MIMO-capable cellular modems, routers or other 4G LTE 5G enabled devices which have 4 SMA external antenna connectors. Can be used as a 5G external antenna T-Mobile Home Internet gateways with SMA jacks. This low profile (~ 2.4 inches tall) fixed mount omni-directional 5G external antenna provides 3 to 5 dBi of gain and supports all cellular frequency bands for AT&T, Verizon, T-Mobile, Bell, Rogers, Telus and other carriers worldwide. Permanently mounts via a 7/8 in. (20 mm) hole with internal nut. Resists vandalism with no exposed coax cable, high impact ABS radome shell and an extra thick stainless steel threaded mounting post and hardware. Includes low-loss CFD195 coax fed through sealed center mounting post. Ideal for use in vending machines, meter housings, equipment sheds, cabinets or other locations requiring a low-profile vandal resistant external 4x4 MIMO antenna 5G. Also suitable for vehicle mounting on buses, vans, trucks or other mobile installations. Completely waterproof (IP67). Integrated SMA male plug connectors mate with SMA female jacks found on most cellular modems and routers.* For optimum performance this antenna should be mounted on a flat, horizontal metal surface at least 8 inches in diameter.
Specifications:
• Frequency Range: 600~6000
• Impedance: 50 ohm
• VSWR: • Gain: 3-5 dBi
• Radiation: Omni
• Polarization: Vertical
• Connector: SMA plug (male)
• Material: UV stabilized ABS plastic (black)
• Connector: Gold-plated Brass
• Height: 2.4 in (60 mm)
• Diameter: 2.15 in (54.7 mm)
• Weight: 7.8 oz (221 g)
• Op. Temp.: -40C to +80C
