PCIe 3.0 M.2 B+M Key to 8-Port SATA3 6Gbps Expansion Card – Dual Mini-SAS Connectors, RAID Support for Desktop/Server

SAR 405
Brand
AoQhir
Category
Internal Cards
– 1 +

Special Features

  • 8-Port SATA 6Gbps Expansion:Instantly adds 8 independent SATA III ports to your system using Mini-SAS breakout cables,2 x MINI SAS to 4*SATA Cable for Expansion— perfect for connecting SSDs or HDDs.

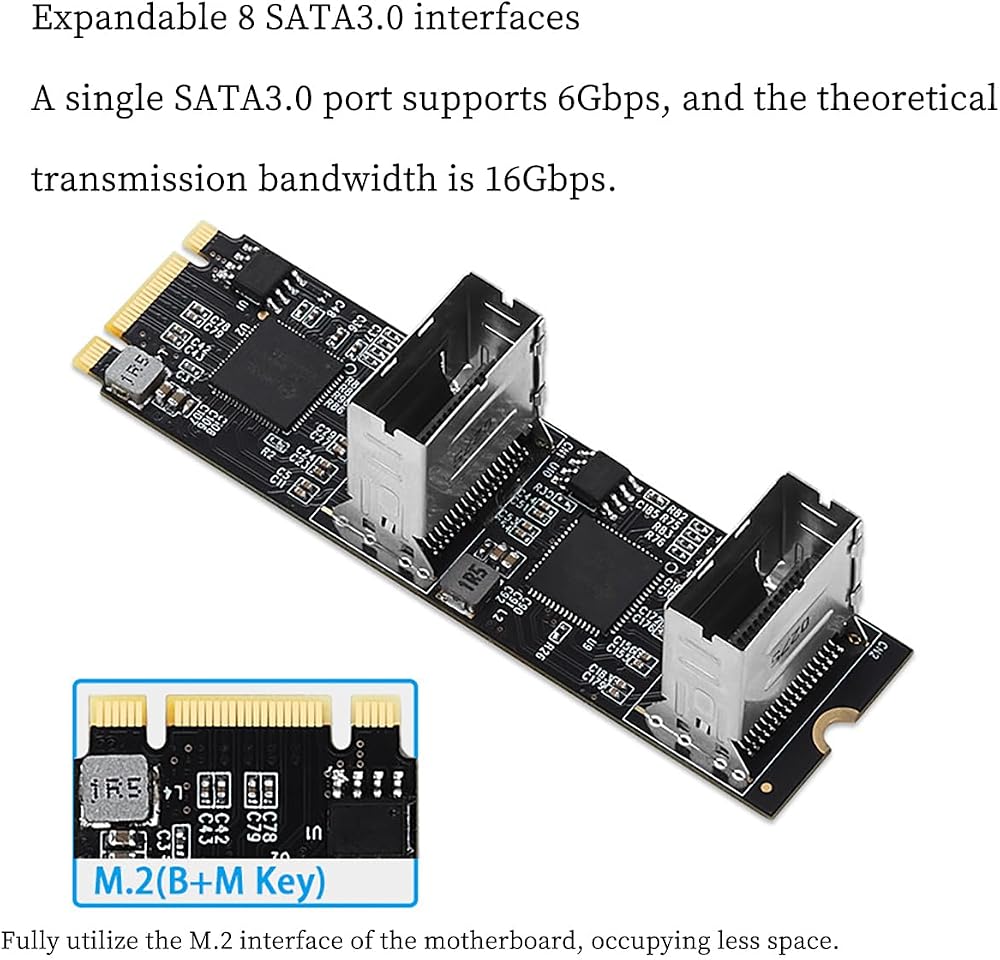

  • M.2 B+M Key to PCIe 3.0 x2 Interface:Uses an M.2 B+M Key slot with PCIe 3.0 x2 bandwidth (up to 16Gbps total), ensuring fast data access for large storage.
  • Supports Software RAID Configurations:Compatible with soft RAID setups (RAID 0/1/5/10 depending on OS), Compatible with Windows, Linux, and NAS environments.

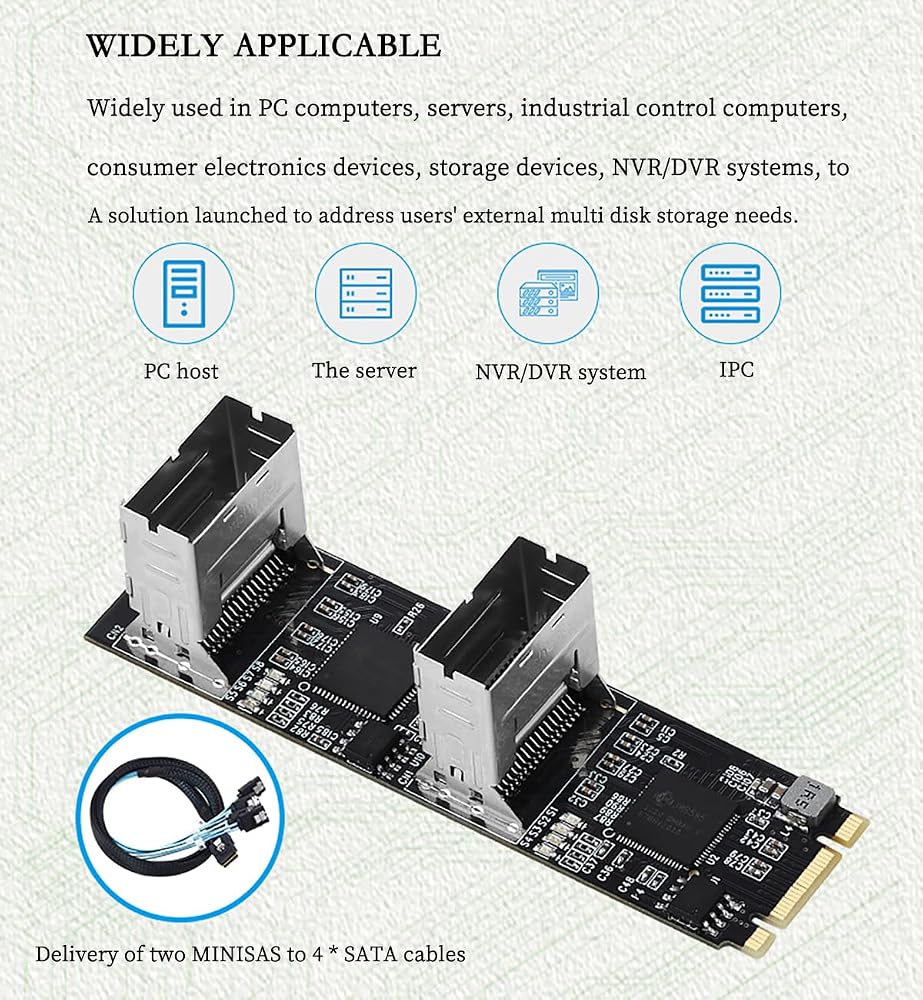

  • Wide Application Scope:Ideal for desktops, servers, industrial PCs, DVR/NVR systems, and external storage expansions — tailored for multitaskers and prosumers.
  • Compact & High Reliability Design:Designed for low power use and high signal integrity, this card ensures stable long-term operation in high-performance computing setups.
  • Attention：The standard M.2 board is 0.8mm thick, please connect all cables first and then insert them into the M.2 slot; Under Win system, Only 5 ports can be recognized, and all ports can be recognized after entering the system and installing the driver.

Description

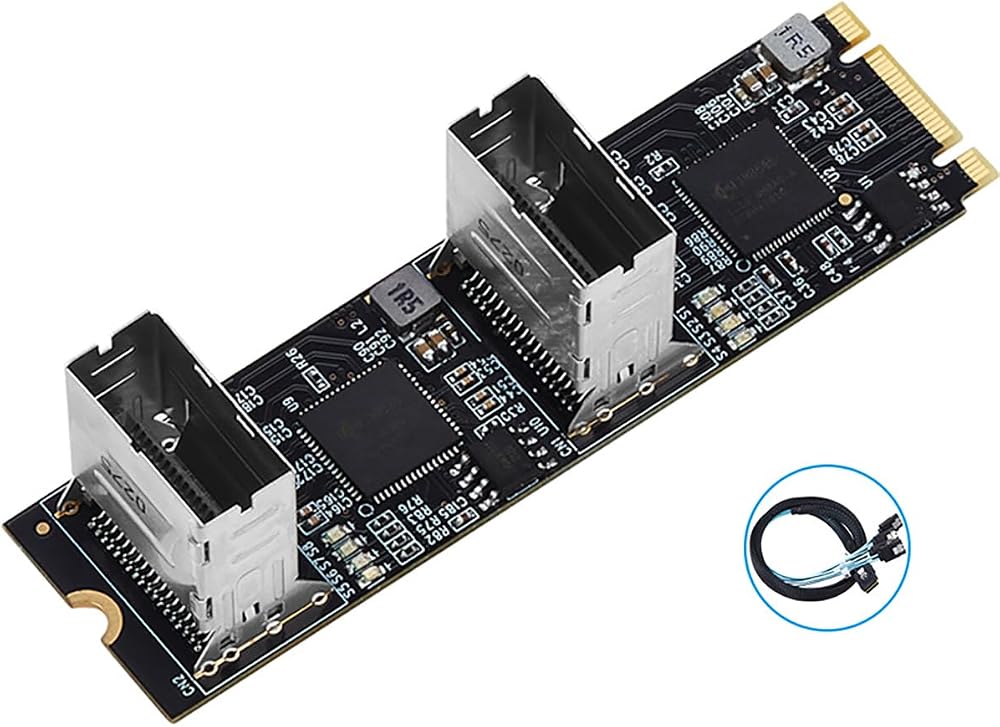

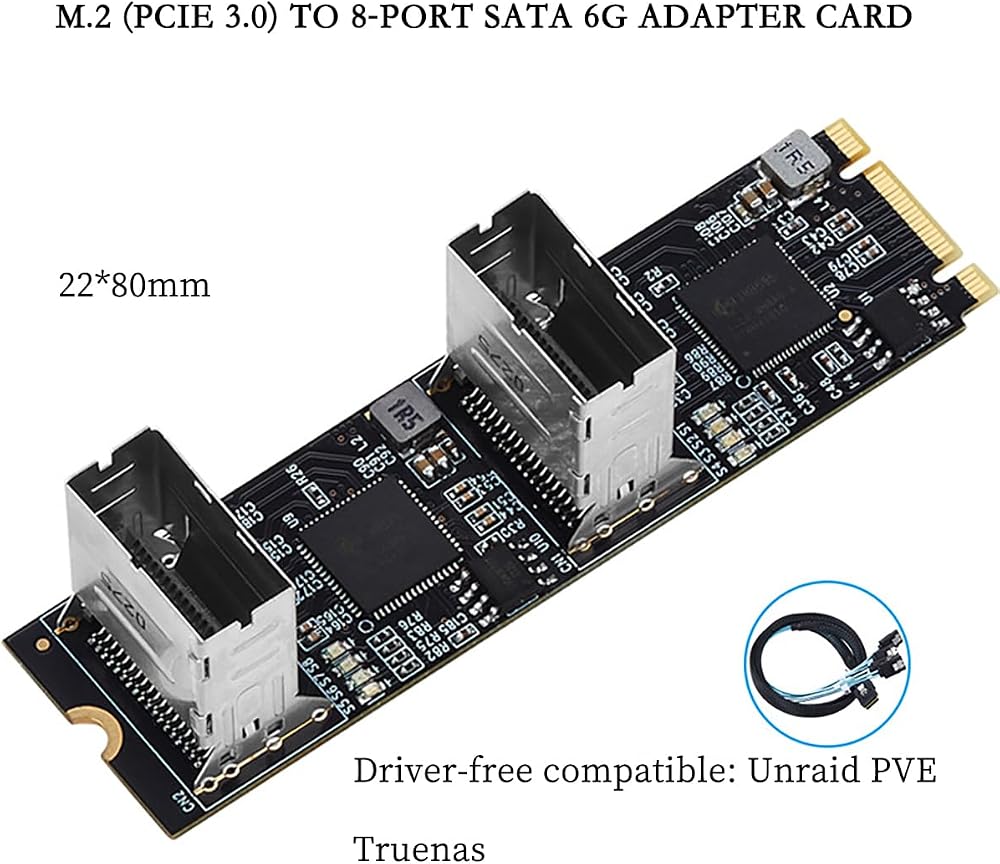

This high-performance SATA expansion card enables users to add 8 independent SATA 6Gbps ports to their desktop PCs, servers, or storage systems via an M.2 (B+M Key) interface. Utilizing PCIe 3.0 x2 lanes, the adapter delivers up to 16Gbps of total bandwidth, ensuring fast, reliable connectivity for SSDs or HDDs in high-demand applications.

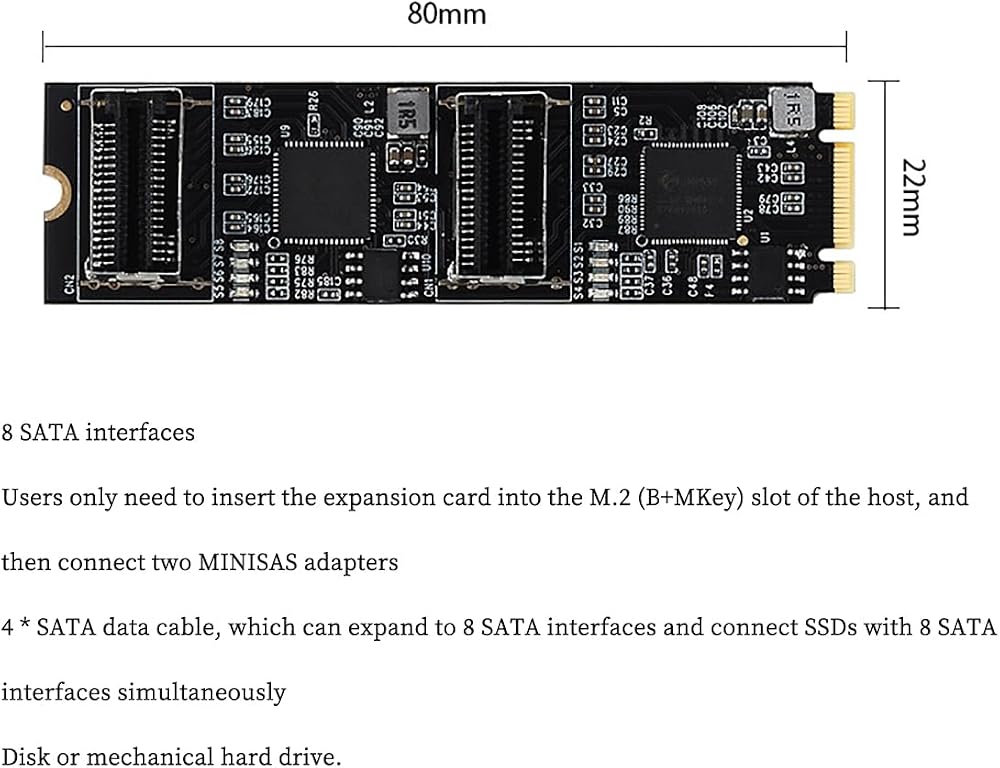

Built with 2 onboard Mini-SAS connectors, it supports 8 SATA drives using two Mini-SAS to 4×SATA breakout cables. Designed for wide compatibility, this expansion card is ideal for data-intensive environments such as NVR/DVR setups, industrial control systems, consumer electronics, and DIY NAS or RAID storage.
Whether you're a PC enthusiast, data hoarder, or enterprise user, this card offers low power consumption, high throughput, and robust reliability for demanding multi-disk storage needs.

System Requirements:
Compatible with Windows 7 (X86/X64)
Compatible with Windows 8/8.x / 10 (X86/X64) (Win in-box driver)
Compatible with Linux-base OS

Attention：
The standard M.2 board is 0.8mm thick, please connect all cables first and then insert them into the M.2 slot;
Under Win system, Only 5 ports can be recognized, and all ports can be recognized after entering the system and installing the driver.

Features

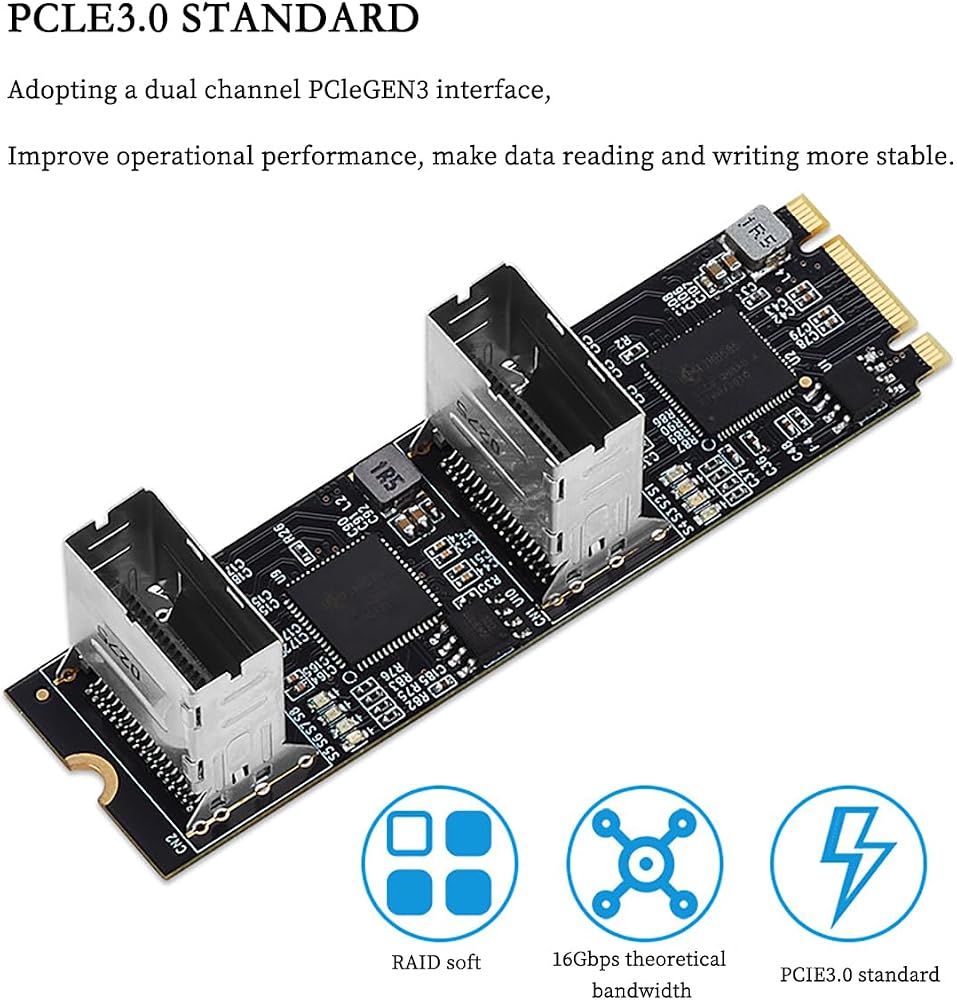

PCle 3.0 x2 bandwidth
Dual Channel PCle Interface
2-Lane M.2 PCI-Express 3.0 interface (B & M Key).
Complies with PCI Express Base Specification Revision 3.1a.
Supports PCIe link layer power saving mode.
Supports command-based and FIS-based for Port Multiplier.
Complies with SATA Specification Revision 3.2.
Supports 8 SATA port.
Supports Port Multiplier
Supports AHCI mode and IDE programming interface.
Supports Native Command Queue (NCQ).
Supports SATA link power saving mode (partial and slumber)
Supports SATA plug-in detection capable.
Supports drive power control and staggered spin-up.
Supports SATA Partial / Slumber power management state.
Note: Does not support RAID on Port Multiplier.

Package Contents
1 x M.2(PCIe3.0) to 8 SATA 6G Adapter
1 x User Manual
2 x MINI SAS to 4*SATA Cable
