Product Specifications:
Amplifier
Number of Amp. Channels: 5
Number of Decodable Channels: 5.1 ch
Power Output: 145 W (6 ohms, 1 kHz, 1ch THD 0.9 percent)
Speaker Impedance: 6-16 ohms
Sound Field: 2ch Stereo, Direct, Multi Ch Stereo, HD-D.C.S., Hall (Large Hall), PLII Movie,
Front Surround, Jazz Club, Live Concert (Live House), Stadium, Sports, Audio Enhancer, PLII Music, Headphone 2ch
Video Features
HDR (High Dynamic Range): Yes (HDR10, HLG, Dolby Vision Compatible)
Audio Return Channel: Yes
HDMI Pass Through: Yes
3D Over HDMI: Yes
4K 60P 4:4:4 Support: Yes
A/V Sync: Yes (Fixed)
Bravia Sync (CEC Control): Yes
Audio Features
TV Volume Offset: Yes
Auto Speaker Calibration
Calibration Features: D.C.A.C., Calibration Mic (Mono)
Tuner Features
FM/AM: Yes / No
Preset Channel (FM/AM): TTL30 (30/-) Interface
HDMI Supporting HDCP2.2 In/Out: 4/1

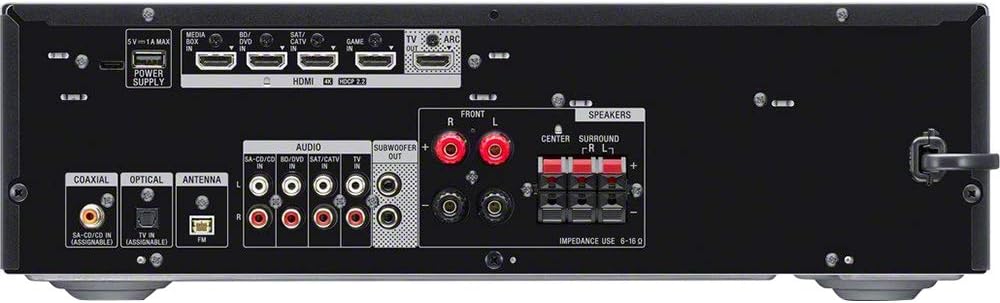

Input and Output Terminals: Audio Input Opt (1), Audio Input Coax (1), Analog Audio Input (4), Pre Out Subwoofer (2), Headphone Output (1), USB (for power supply only)
Speaker Output Terminals: Front, Center, Surround
Decoding Format for HDMI
Decoding Format for HDMI: DSD, Dolby Digital, Dolby Dual Mono, DTS-HD Master Audio, DTS-HD High-Resolution Audio, DTS, DTS 96/24
Network Connectivity
Network Features: Bluetooth Receiver
General Features
Auto Standby: Yes
GUI (Graphical User Interface): Yes
Power Requirement: AC 120 V 60 Hz
Size and Weight
Dimensions (W X H X D In): 17" x 5-1/4" x 11-3/4" (430 x 133 x 297 mm)
Weight (LB): 15 lb 11 oz (7.1 kg)
