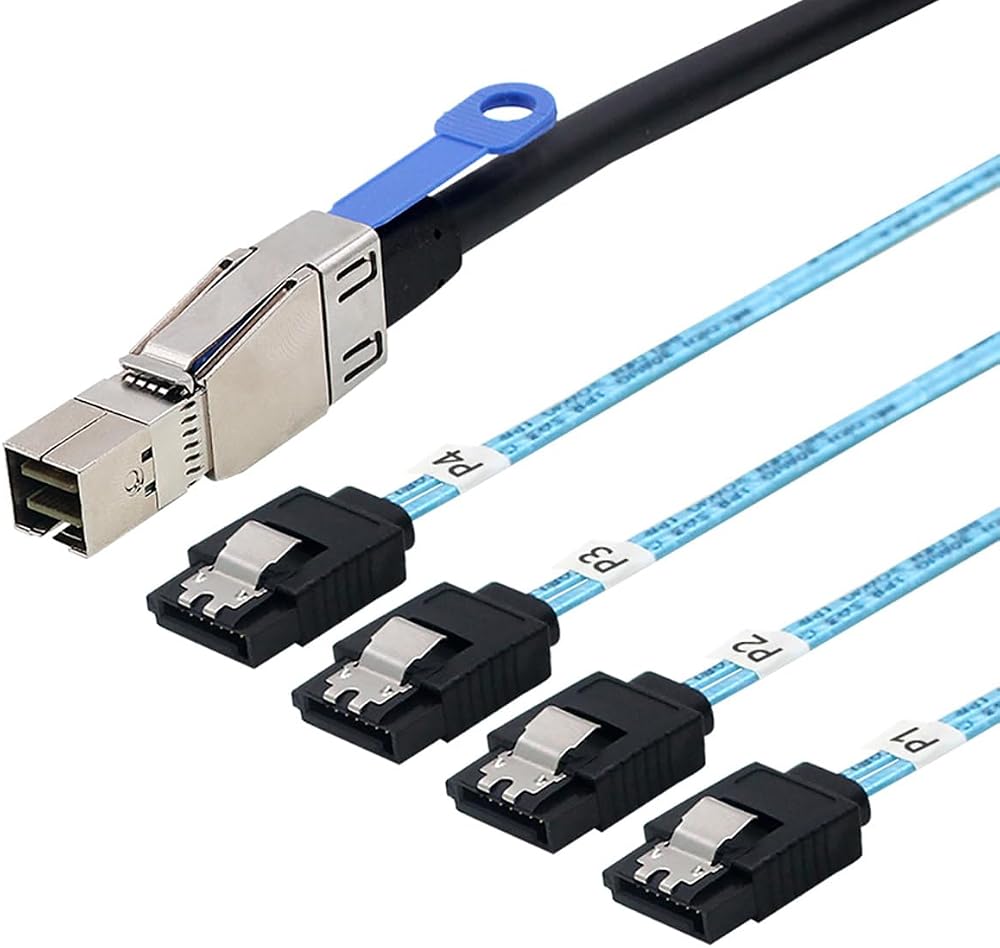

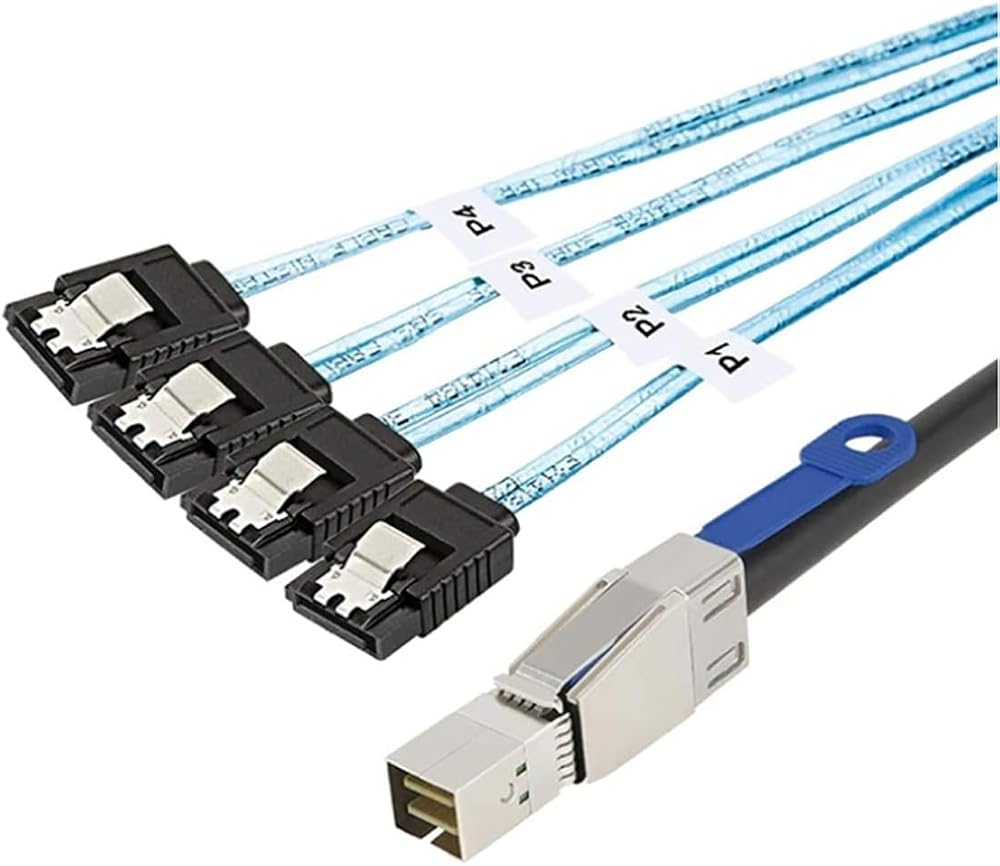

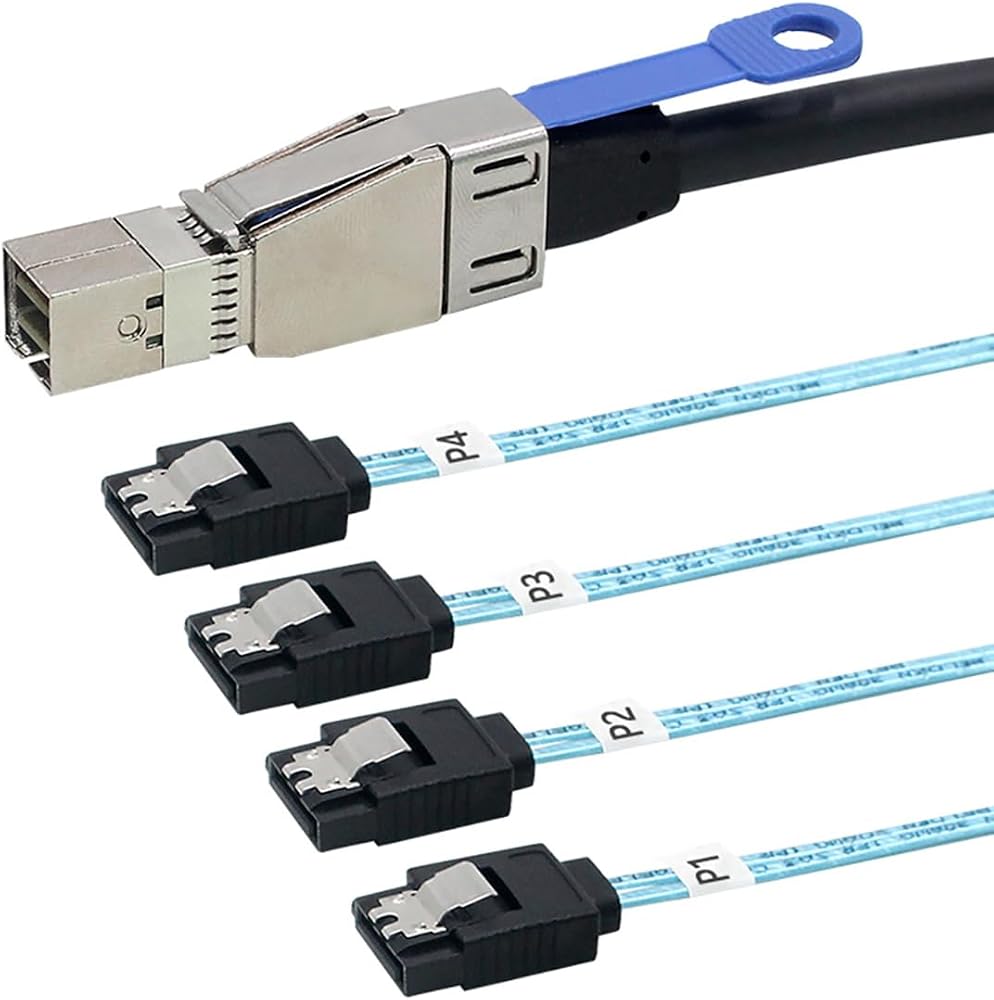

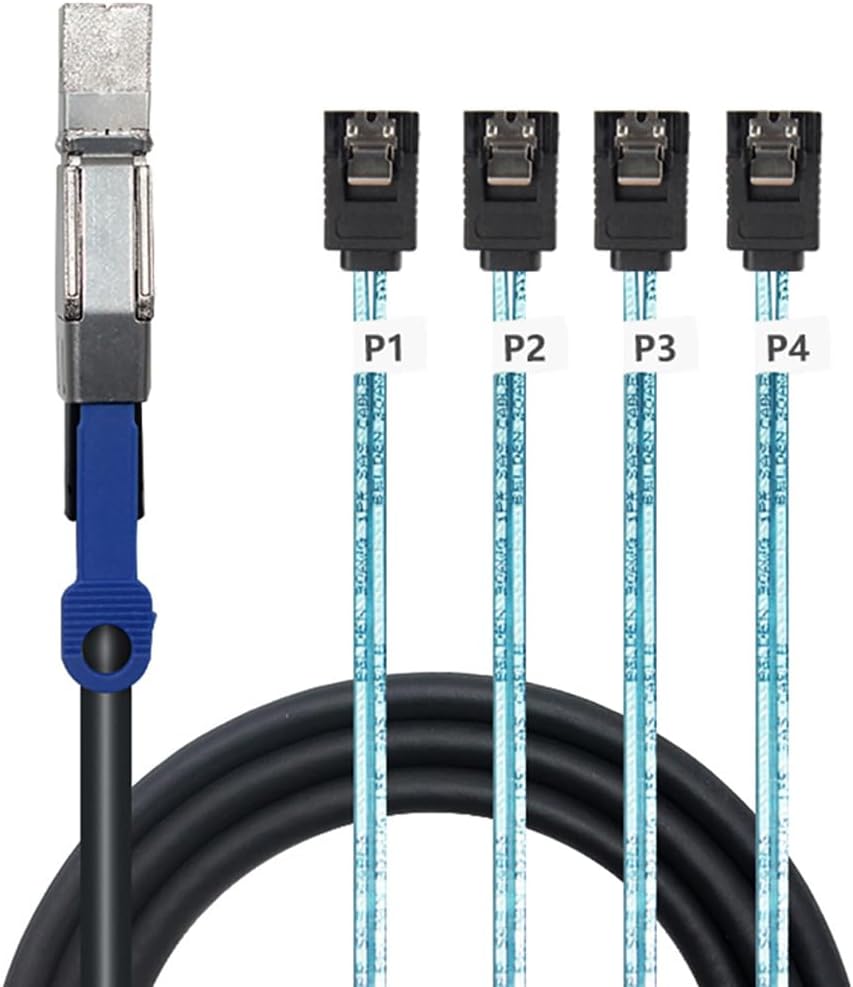

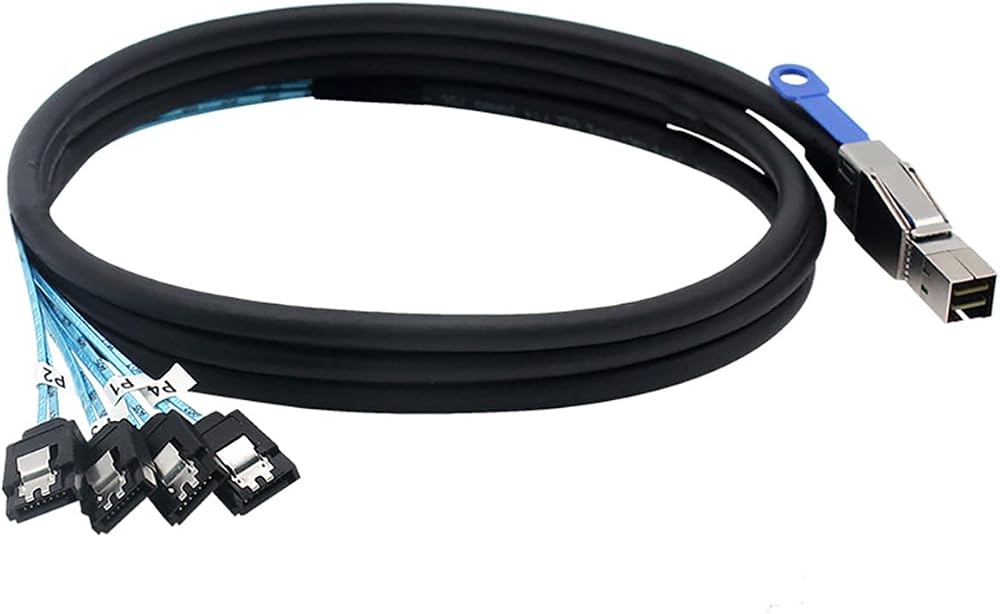

AoQhir Mini SAS HD SFF-8644 with IC to 4 x SATA 7-Pin Cable – 6Gbps High-Speed Server Hard Drive Interconnect, 28AWG Copper Wire
Product DescriptionThis Mini SAS HD SFF-8644 with IC to 4 x SATA 7-pin cable is designed for connecting servers and storage systems with multiple SATA hard drives. Supporting 6Gbps single-channel transmission, it provides reliable and efficient data transfer for enterprise IT environments. Built with 28AWG copper wire and a durable UL20276 cable jacket, it ensures low signal loss, strong conductivity, and long service life. Each unit undergoes 100% open and short testing, with an insulation resistance of ≥10MΩ and conductive resistance of ≤2Ω. Available in 0.5m, 1m, 2m, and 3m, this cable is ideal for data centers, RAID controllers, and system builders requiring high-performance interconnect solutions.
Product AttributesProduct Performance: 6G Single-Channel High-Speed Cable
Cable Specification: 28AWG
Electrical Performance: 10 Ohms
Connection Type: Server Cable
Conductor Material: Copper
Cable Length: 0.5m, 1m, 2m, 3m (optional)

MATERIAL DESCRIPTION:
1. CABLE: UL20276 (2C+0+AL+ML)*8C+ML+AB+P OD: 7.6mm BLACK
2. MINI SAS 4X CONNECTOR SHELL
3. INNER MOLD: PE LOW DESIGN

ELECTRICAL CHARACTERISTICS:
a. 100% OPEN & SHORT TESTING:
b. WITHSTANDING VOLTAGE: DC 300V 0.01Sec:
c. INSULATION RESISTANCE: 10M Ohm (Min);
d. CONDUCTANCE RESISTANCE: 2 Ohm (Max).
