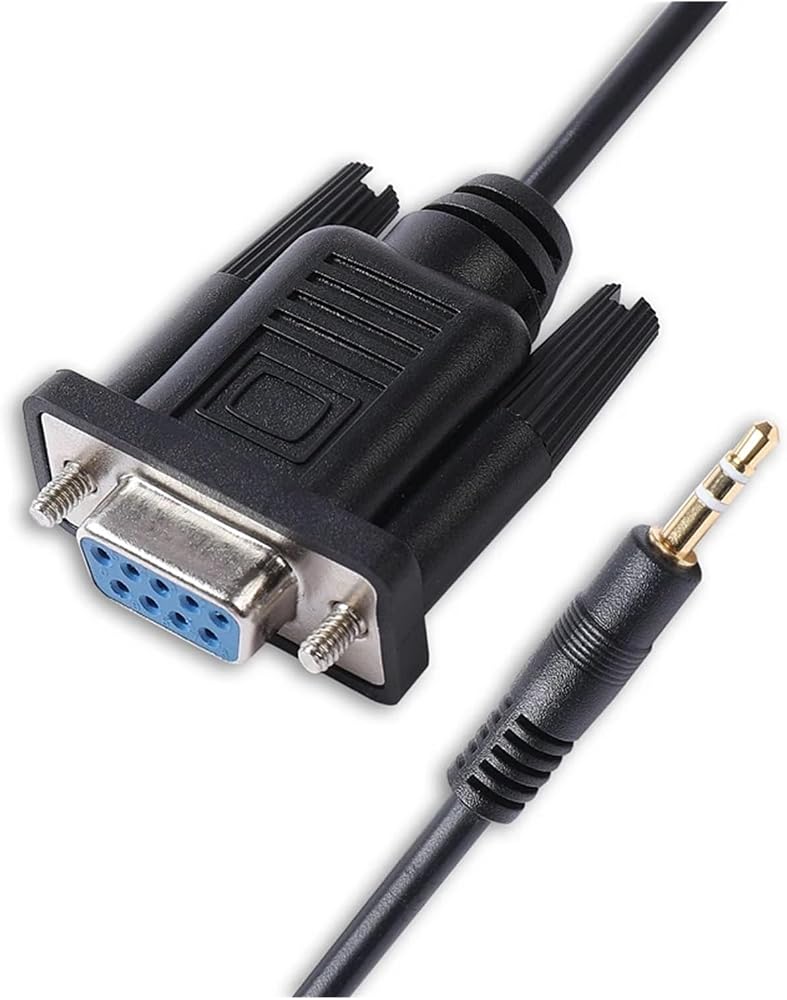

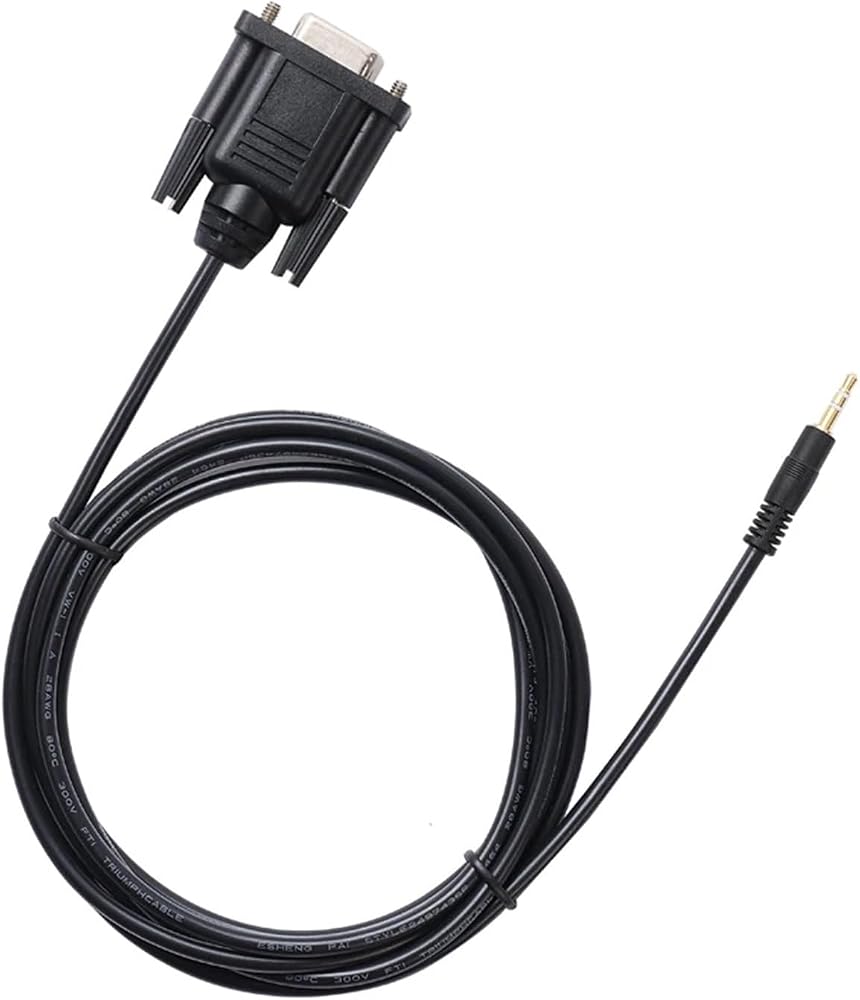

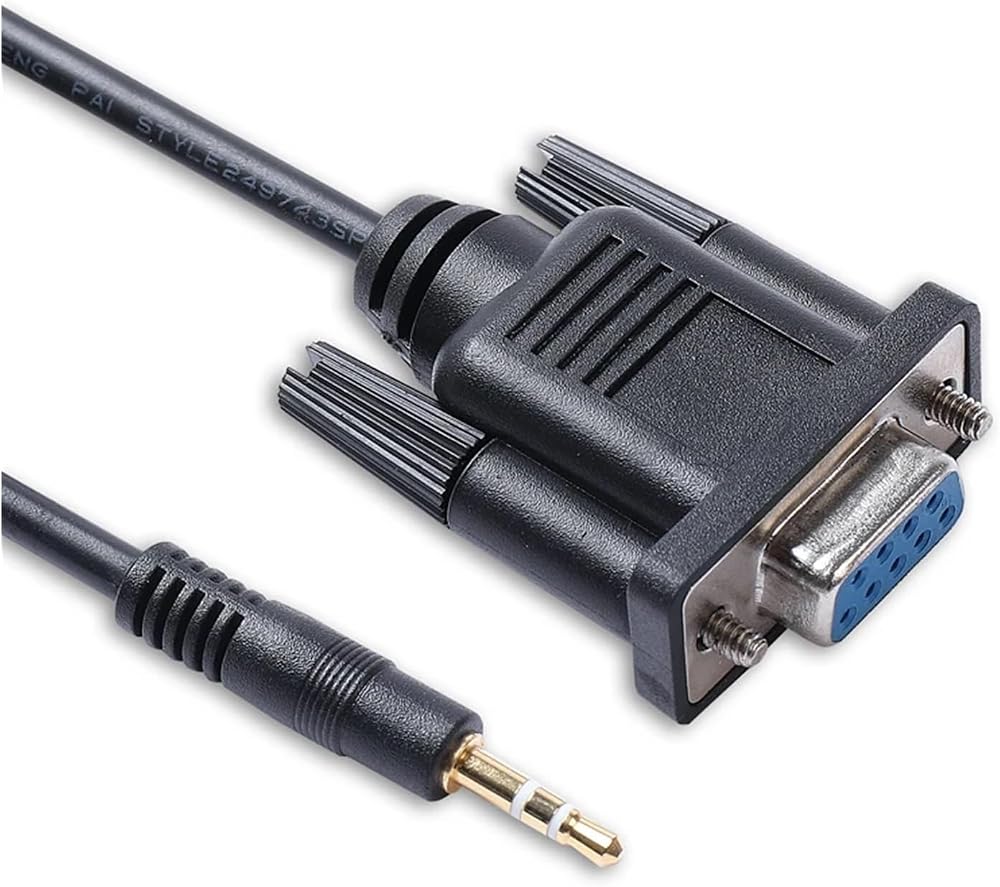

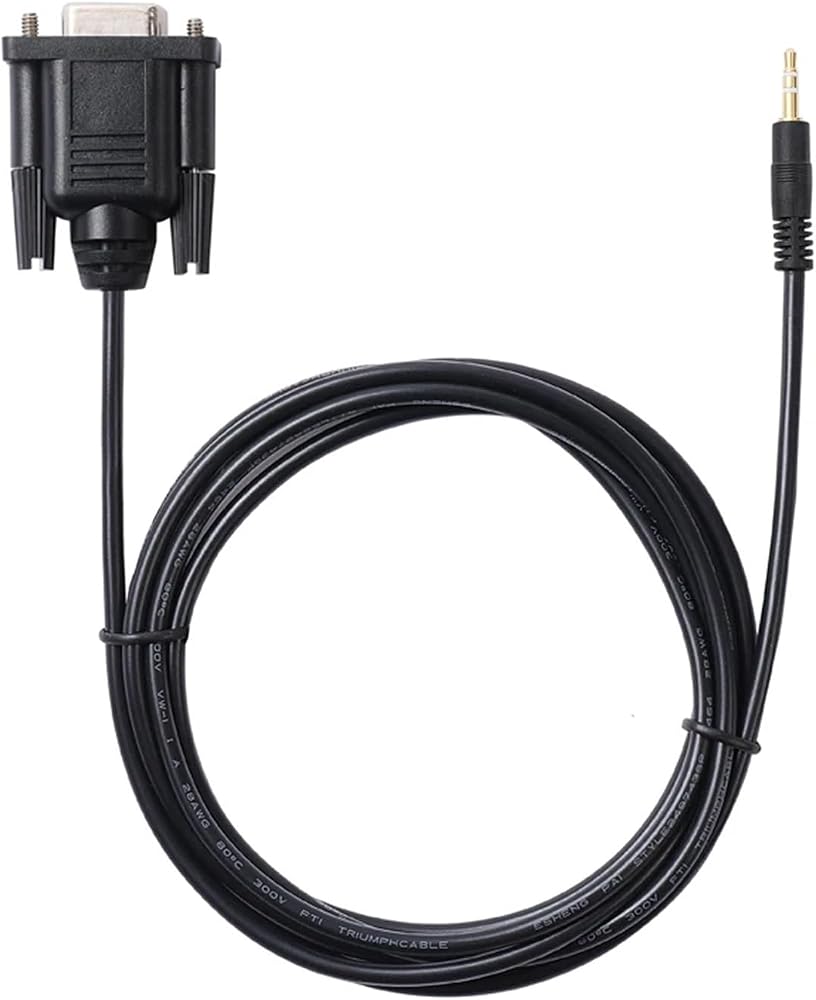

Network Management Card AP9631 AP9630 DB9 Female RS232 Serial to 2.5mm TRS pl-ug PC Cable 940-0299A
Material: P-VC outer jacket
Cable: 28AWG*3C, OD3.5 Bare Copper
Cable length: 1.8M optional, other length can be customized
Connector A: 9 Pin D-sub female
Connector B: 2.5mm 3P pl-ug
Pinout wiring: DB9#2-Tip, DB9#3-Ring,DB9#5-GND
Application: for Network Management Card AP9631 AP9630
==========
Package : Yes
Model Number : BE-202207
TY>pe : Serial Cable
Color : Black
Connector A : 9 Pin D-sub Female
Connector B : 2.5mm TRS pl-ug
Cable Length : 6FT/1.8M
