Features: Clear three-dimensional erection in a wide field of vision. The standard working distance is 110mm, creating enough space for 45-degree tilt and 360-degree swivel binocular head. Interpupillary distance is between 54-75mm.

The observation head is tilted at 45°, and the diopter of the two tubes is adjusted, which is easy to operate and not fatigued after long-term use. Wide-angle high-field eyepiece WF10X/22mm 10X wide-angle eyepiece, FOV 22mm, flat high-angle design, more suitable for search and observation Ergonomic design, shift handwheel horizontal (axial) bilateral setting, high repeatability.

Optimal eye point height to ensure users can get clear images under different visions : 110mm Installation diameter: 76mm Adjustable program mirror: Standard WF10X22, high-angle wide-angle eyepiece, convenient for observers wearing glasses.

Support parameters
Column aperture: 32mm
Lens aperture: 76mm
Center distance: 155mm
Lifting range: 50mm
The base parameters
Column height: 240mm
Diameter:32mm
Equipped with pressing tablet and 95mm black and white plate
Base: 200 x255x22mm

Magnification Ratio : 7-50X

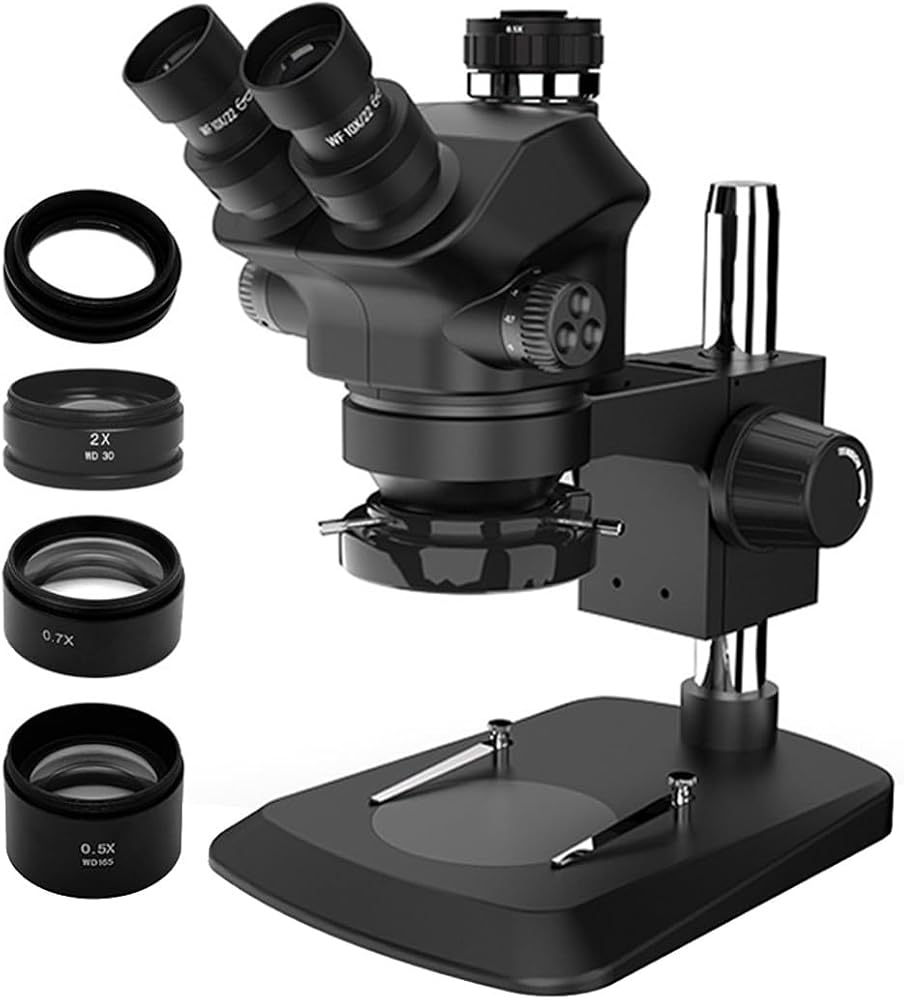

Product name : Trinocular Stereo Microscope
standard magnification : 7X-50X
Application : mobile phone electronic repair
Function : for Soldering/motherboard CPU PCB Repair
size : 36*34*29cm
Weight : 5kg
Illumination : Brightness Adjustable
Light source : Adjustable LED Lights
