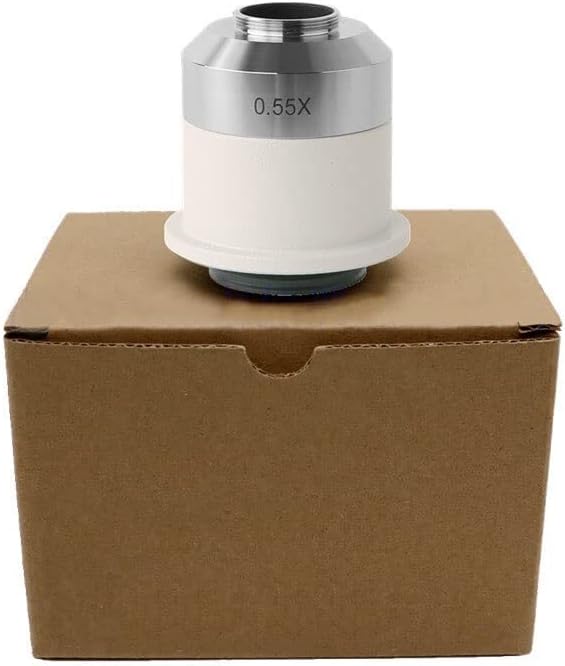

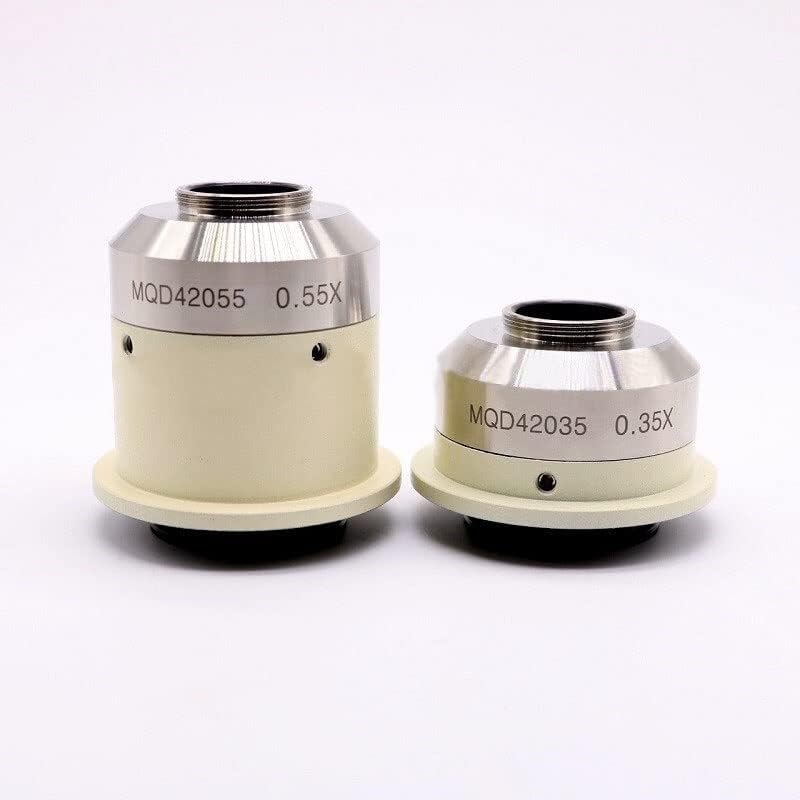

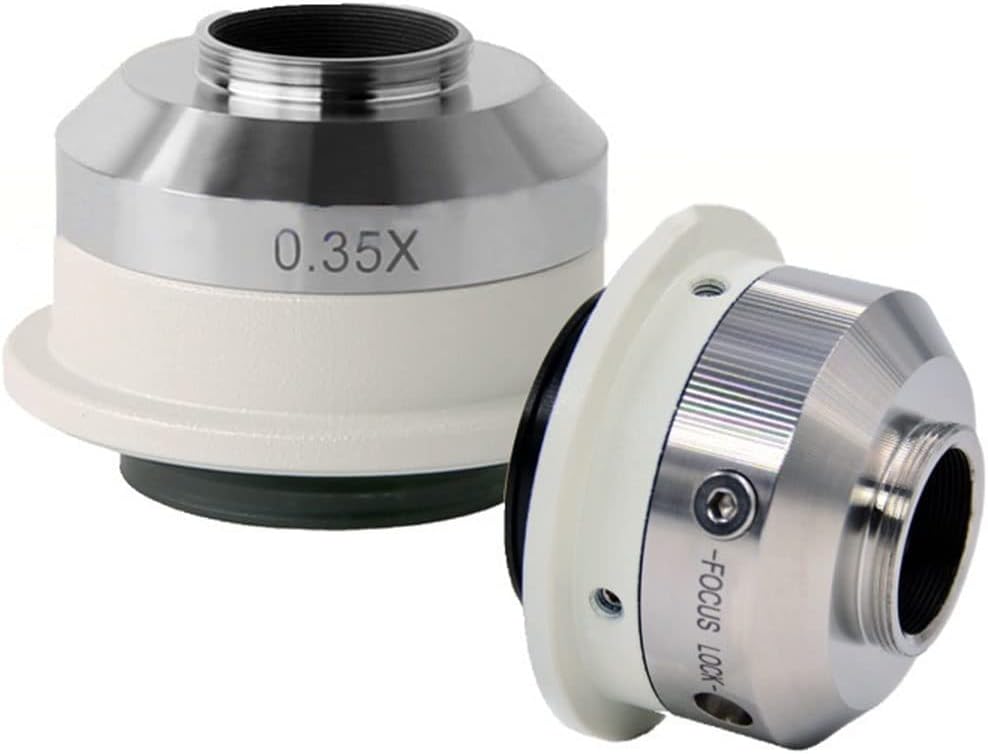

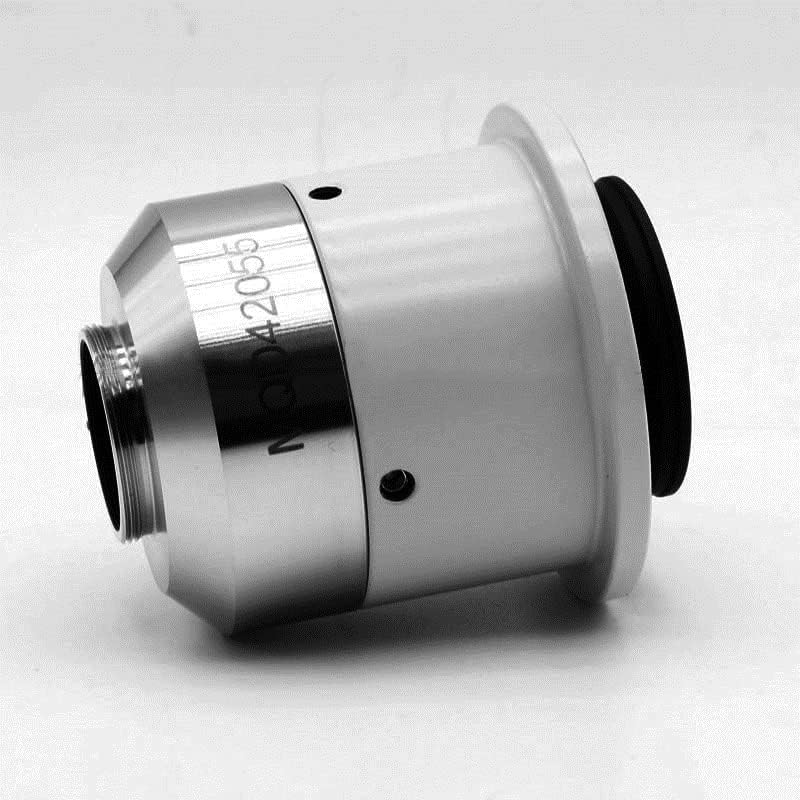

Focusable 0.35X 0.55X Microscope Camera Adapter C Mount Adapter for Trinocular Microscope

0.35X Sensor Size:1/2.5" 1/2.8" 1/3" 1/4"

0.55X Sensor Size:1/1.5" 1/1.8" 1/2" 1/2.5"

Suitable Microscopes:

(1).Specially designed for E100,E200,50i,55i,80i,90i, Ni series, Ti Series, SMZ800,SMZ1000, SMZ15000 biology microscopes and industrial microscopes.

It can not be used for LE50.

Adapter Features:

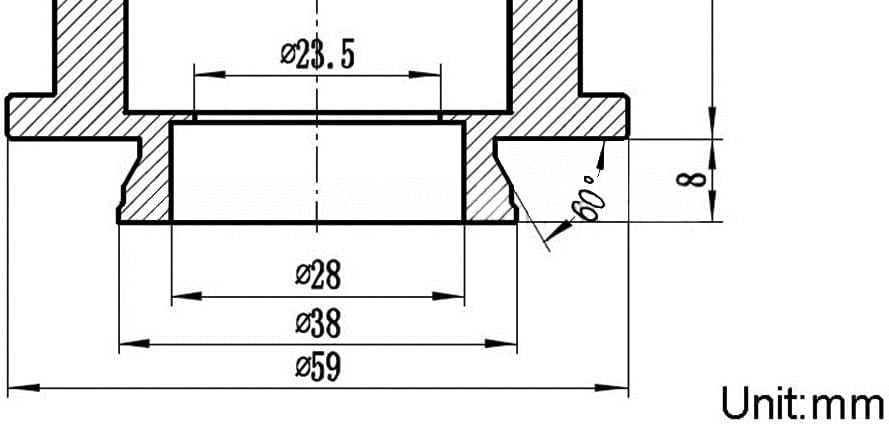

(1).Convert the trinocular microscope phototube/head/port (have standard 38 mm(1.50 inch) outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch);

(2).With built-in reduction lens 0.35X for achieving better field of view from microscope trinocular head(suitable for 1/2.5", 1/2.8", 1/3" or 1/4" inch CCD or CMOS sensor);

(3).Can be installed in UIS trinocular tube such as : E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti Series, SMZ800, SMZ1000, SMZ15000 biology microscopes and industrial microscopes;

(4).Build of material: stainless steel material for the C-Mount end and spray-painted aluminum for the phototube end ;

(5).Telecentric optics with low light deficiency;

(6).Parfocal with different microscope objective lenses;

(7).Focus knob could make fine focus to get better parfocal;

(8).Diffraction limited MTF;

(9).Aperture totally coupled with CFI microscope objective's exit pupil.

Package includes: 1 piece. According to your choice.
Note:
The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
