DB9 Connector Breakout Board with Spring Terminal Connectors for CAN and RS232 Serial Communication, Solderless Wiring (DB9ST-F-A)

SAR 94
ModelDB9ST-Female
– 1 +

Special Features

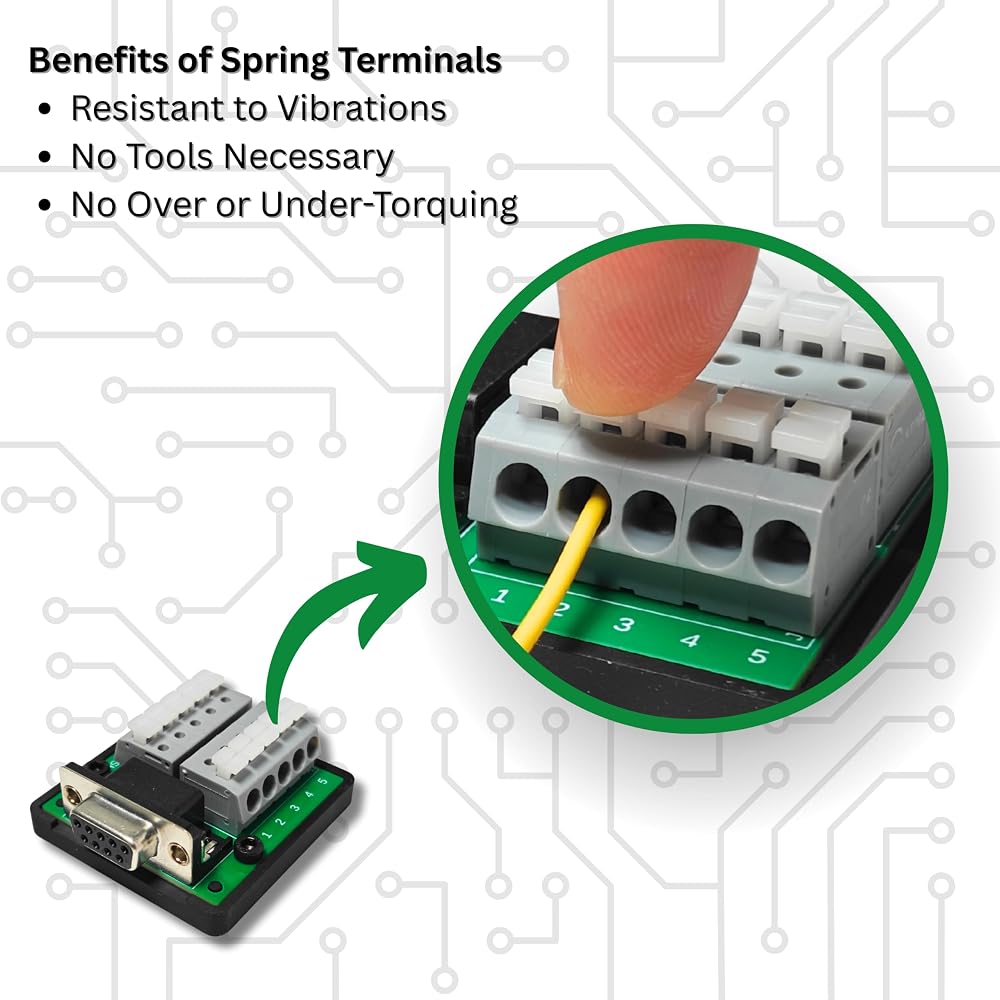

  • Spring Terminal Connectors for Easy Wiring: Offers a quicker, tool-free connection compared to traditional screw terminals, with a secure grip that eliminates the risk of loose or overtightened connections.
  • Premium ENIG Finish: Features a lead-free Electroless Nickel Immersion Gold (ENIG) coating for enhanced corrosion resistance, superior conductivity, and long-lasting performance.
  • Included Protective Mounting Base: Comes with a resin mounting base installed to prevent accidental short circuits and protect the PCB.

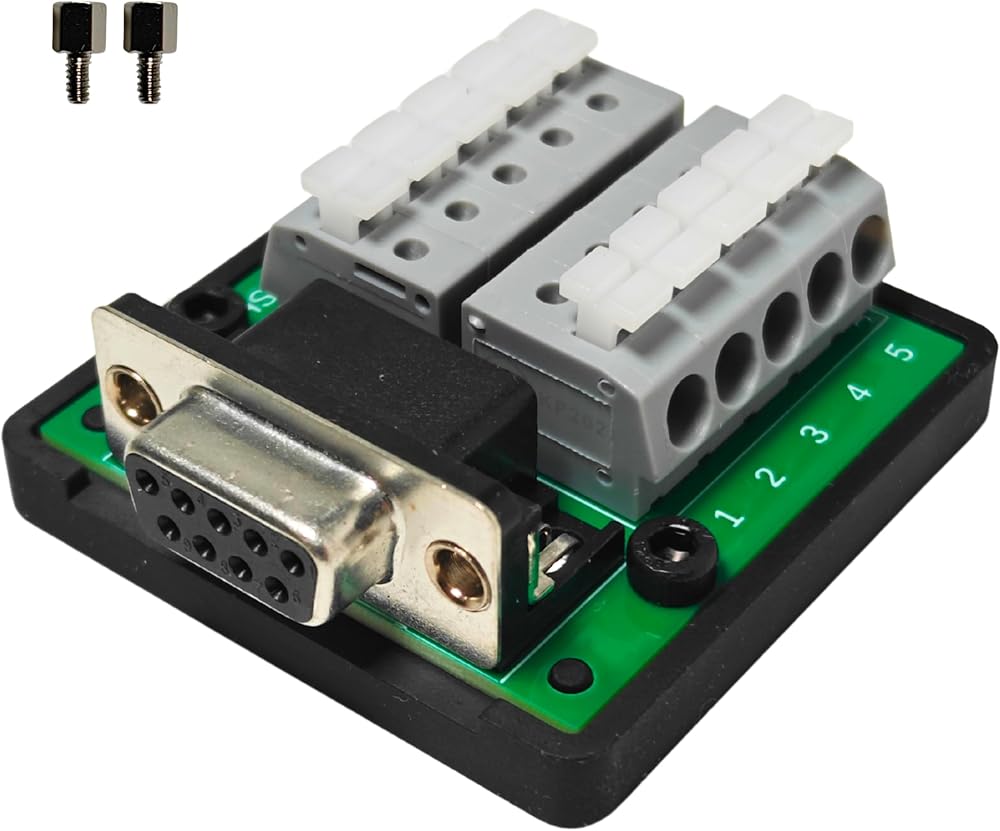

  • Included Jack Screws: Includes installable 4-40 jack screw standoffs for secure connections. Not installed by default to prevent interference with mating devices which have integrated standoffs.
  • Designed and packaged in USA

Description

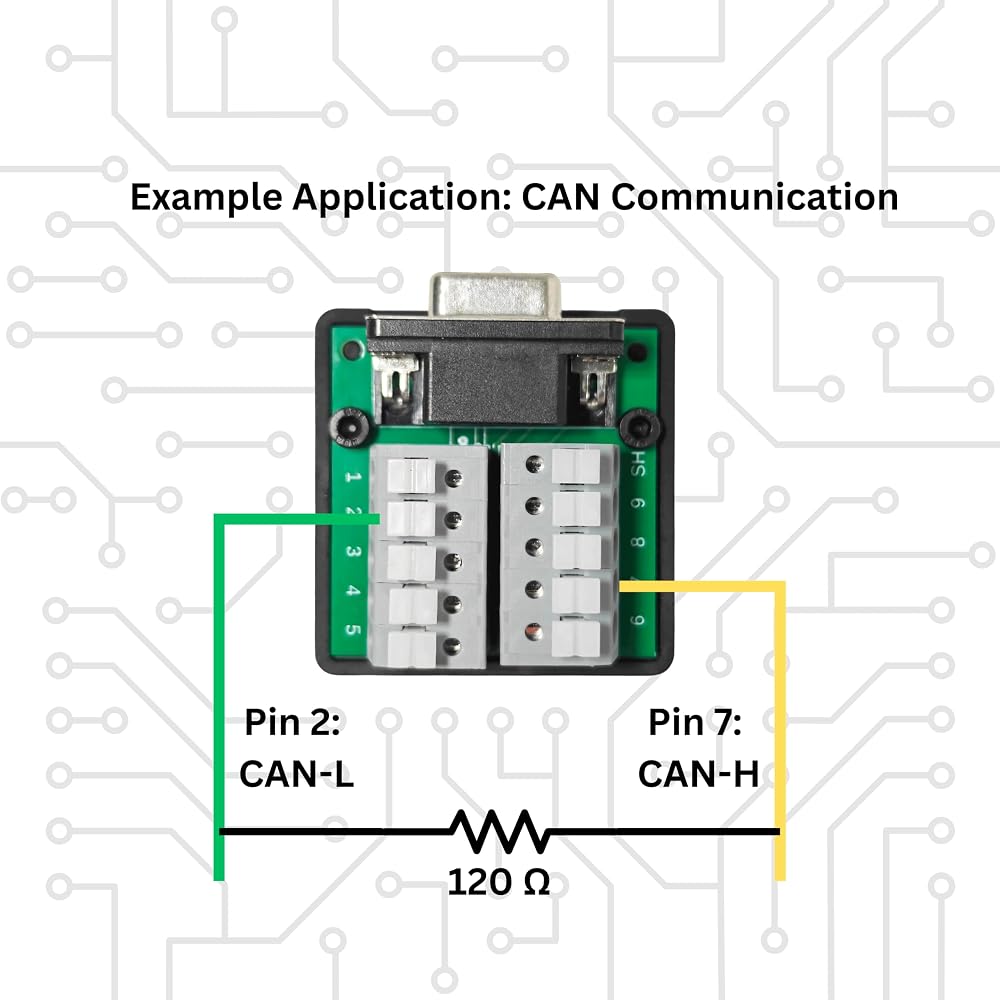

DB9 connector with spring terminal breakout board for CAN and RS232 serial communication projects. Ideal for R&D testing in automotive and robotics applications.

Specifications:

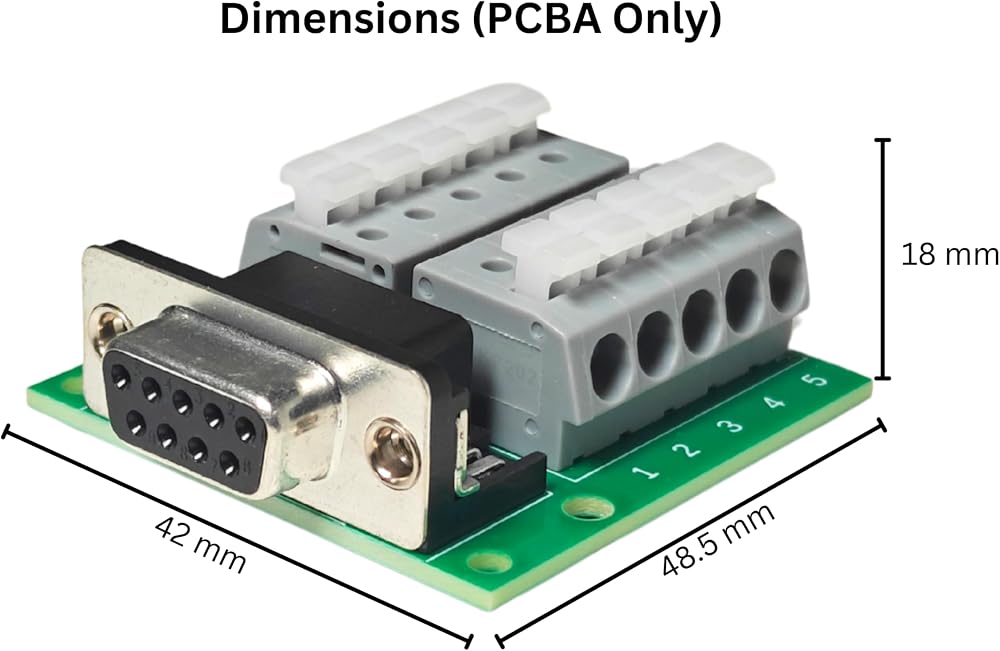

- PCB Dimensions: 48.5 mm x 42 mm x 18 mm (L x W x H)

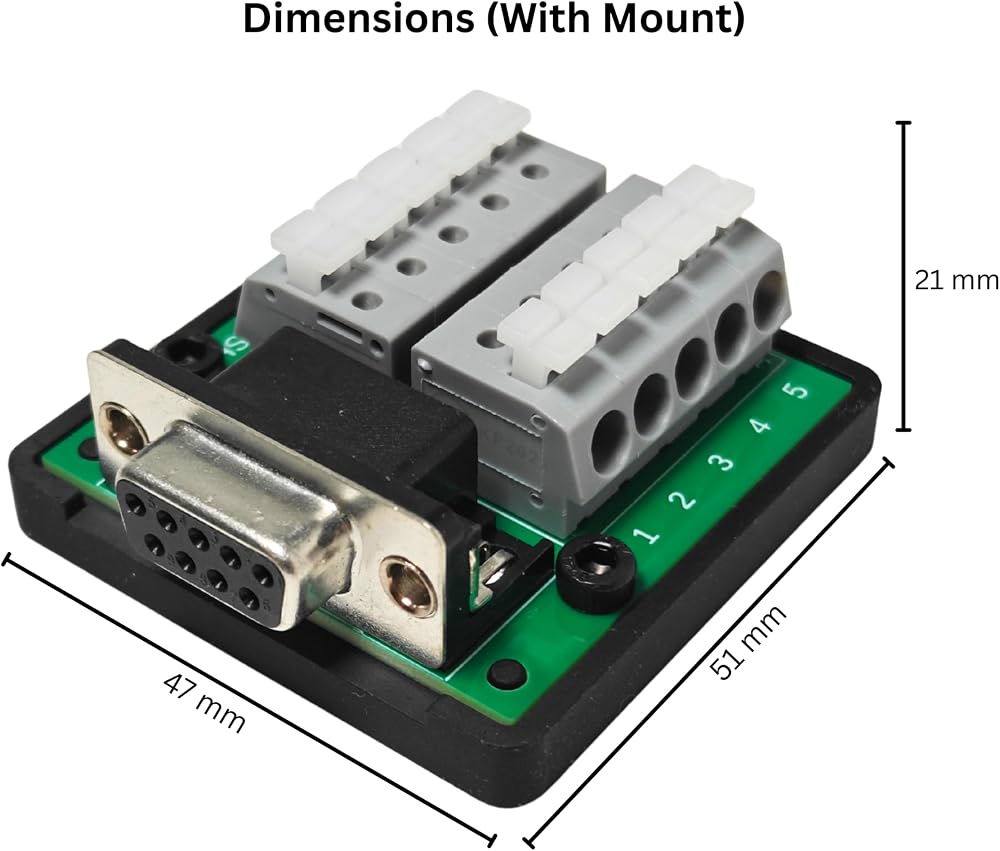

- PCB + Mounting Base Dimensions: 51 mm x 47 mm x 21 mm (L x W x H)
- PCB Weight: 1.2 oz
- PCB + Mounting Base Weight: 1.8 oz
- Spring Terminal Pitch: 5.00 mm
- Spring Terminal Wire Gauge: 12-24 AWG
- Voltage Rating: 50 V
- Current Rating: 1.5 A
- Max Operating Temperature (Without Mounting Base): 105 C
- Max Operating Temperature (With Mounting Base): 65 C
- DB9 Connector Mechanical Life Cycle: 500 Cycles
- Trace Copper: 1 oz
- PCB Material: FR-4
- PCB Finish: ENIG
- PCB Thickness: 1.6 mm

Package Includes:
- 1x DB9 Breakout Board
- 1x Mounting Base
- 2x M3x6 mm Socket Head Cap Screws
- 2x M3 Hex Nuts
- 2x 4-40 Jack Screws

Designed and Packaged in USA
