【DAC Dual Chip】 Dual low-power, high-performance DAC decoding chip CS43131
【In-Depth Analysis】 Supports PCM 384kHz/32bit and DSD64/DSD128/DSD256

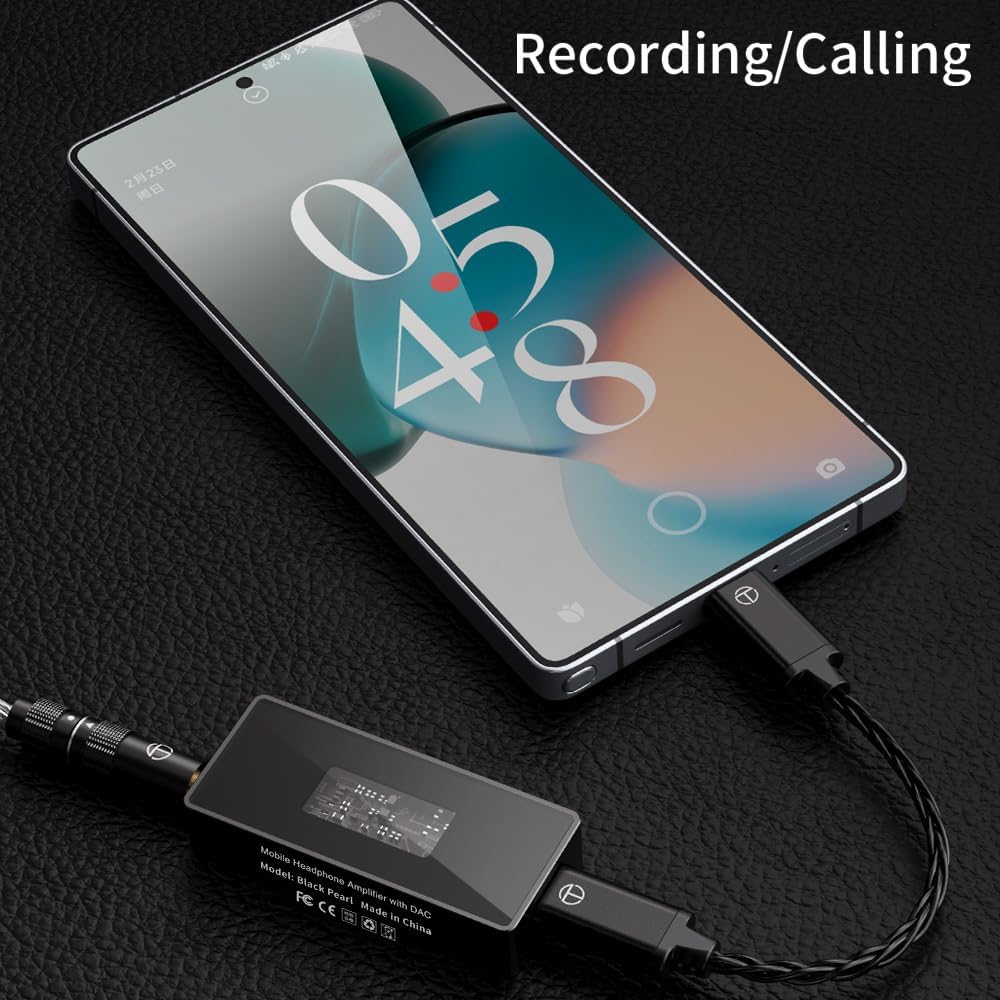

【Supports Recording】 Capture more audio details and provide a clearer sound experience

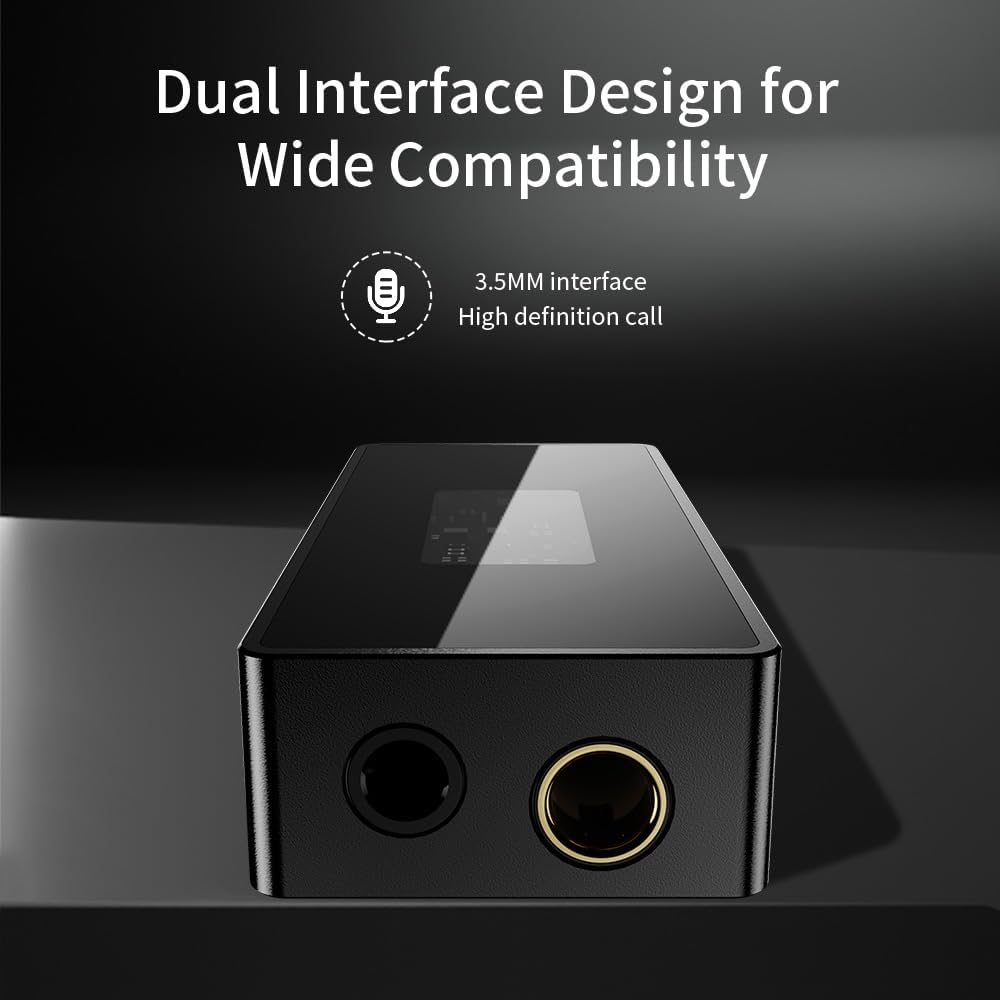

【3.5+4.4 Dual Output】 3.5mm single-ended and 4.4mm balanced output dual headphone jacks
【Multi-Function Buttons】 Simple operation, easy experience
【8-Band EQ Flexible Adjustment】Supports WALK PLAY APP EQ linkage

Parameter information
DAC Chip: CS43131*2 Chip
UsB Type: Type-c USB2.0

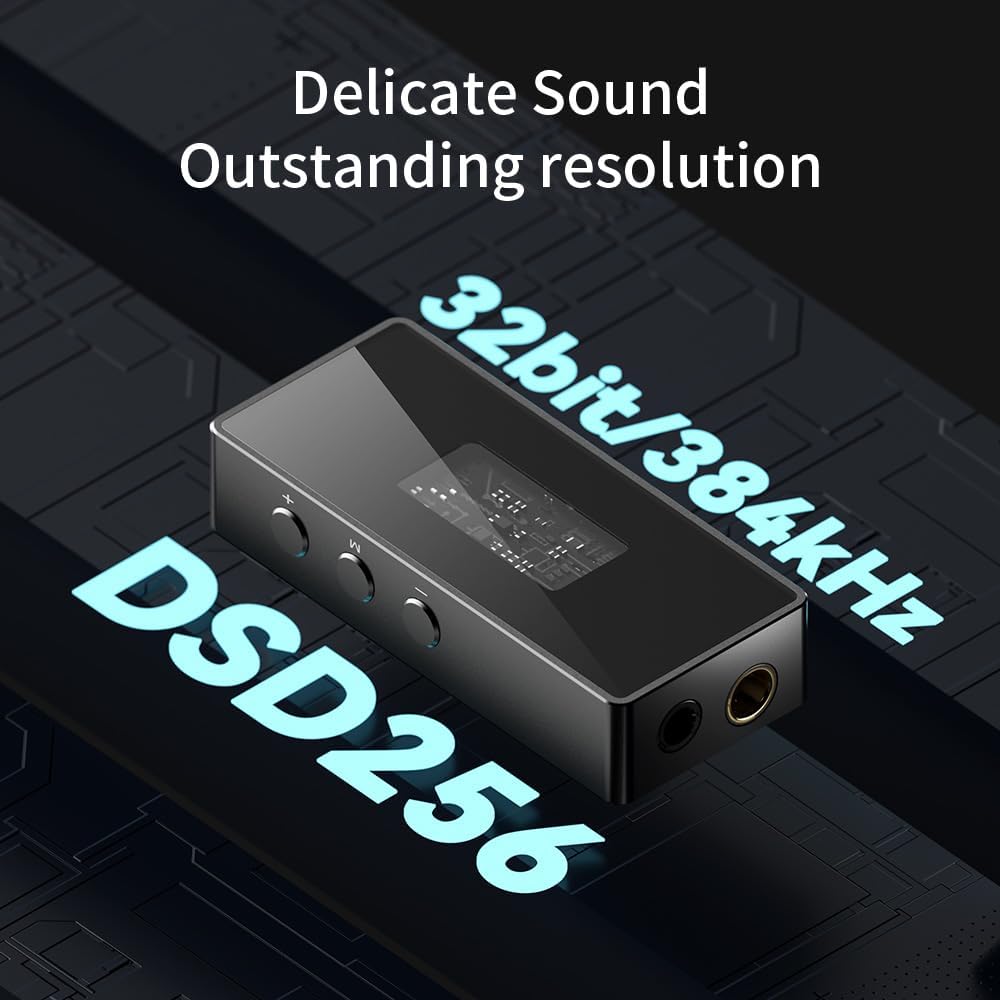

32bit/384kHz，DSD256

Supported Specifications
Dimensions:57mm*23mm*13mm
Weight:≈25g(Cable not included)

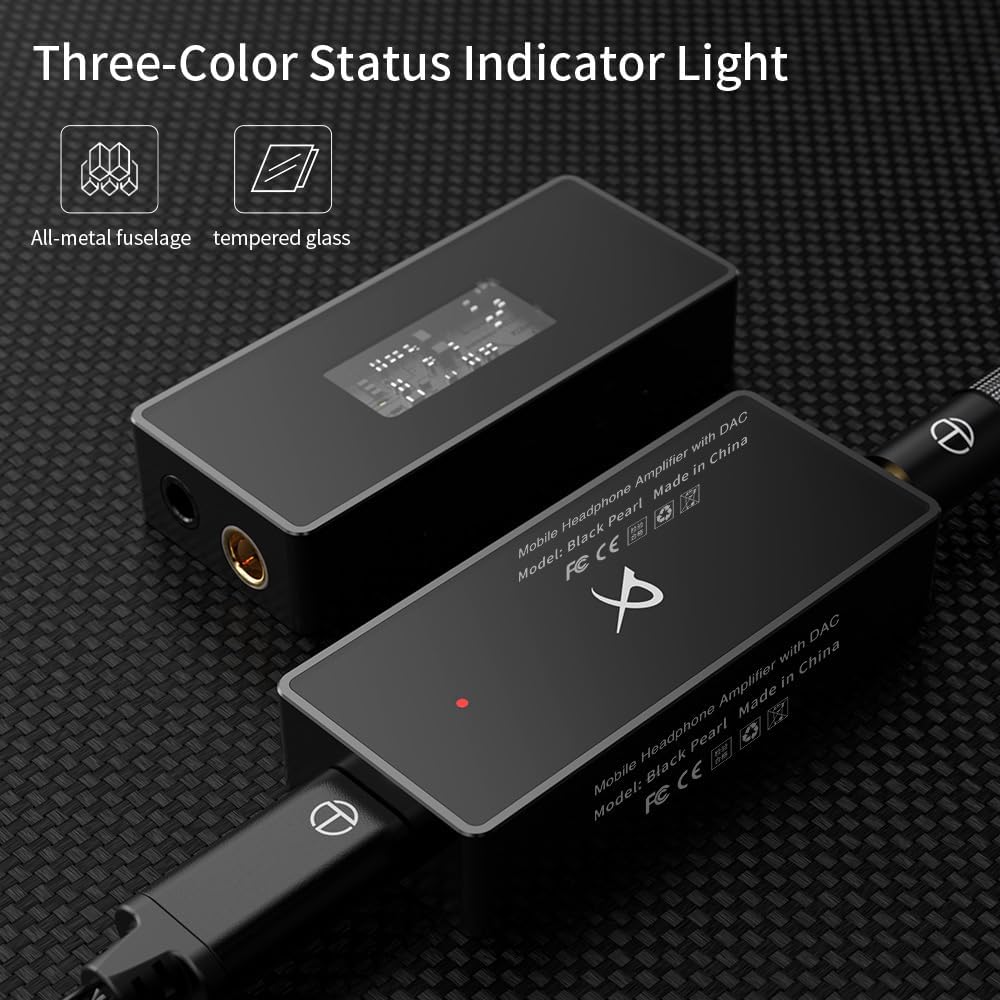

Indicator Light Color:Blue, green ,red

Output Level/load32ohm:
Typ:
4.4mm/320mW
3.5mm/125mW

THD+N/load600ohm:
Typ:
[email protected]/2Vrms
[email protected]/1Vrms

THD+N/load32ohm:
Typ:
[email protected]/2Vrms
[email protected]/1Vrms

Operating Voltage: 4.5v-5.25v

TotalHarmonic Distortion :-108db(RL=32Ωsingle end,100mw)
