1. The product has a large heat dissipation area, which can better maintain long?term operation.
2. Coated with anti? paint, smoothly surface and greatly improve service life.
3. One?piece without burrs, convenient to install and with good performance.
4. With great workmanship, made of aluminum alloy is strong and durable.
5. The maximum current consumption is 400 mA, the maximum operating power is 100W and the maximum possible power is 150W.

Spec:
Item Type: Antenna Tuner
Material: Aluminum alloy
Model: ATU-100
Allowable Supply Voltage Range: 10-15VDC
Maximum Current Consumption: 400 mA
Maximum Working Power: 100W
Maximum Possible Measurement Power: 150W
Minimum Power Required to Start Tuning: 5W
The Smallest Possible Measurement Power: 0.1W
Measurement Resolution for 10 Wh Power: 0.1W
Measurement Resolution for Power Greater Than 10 1W
Power Measurement Accuracy Error: ±10%
Maximum Installation Inductance: 8.53?H
Minimum Installation Step of Inductance: 0.05?H
Maximum Installed Capacity: 1869 pF
Minimum Capacitance Installation Steps: 10 pF
Typical Consumption: 100-200 mA
Frequency Range: 1.8-30Mhz (actually can get 1.8-50Mhz)

packing list:

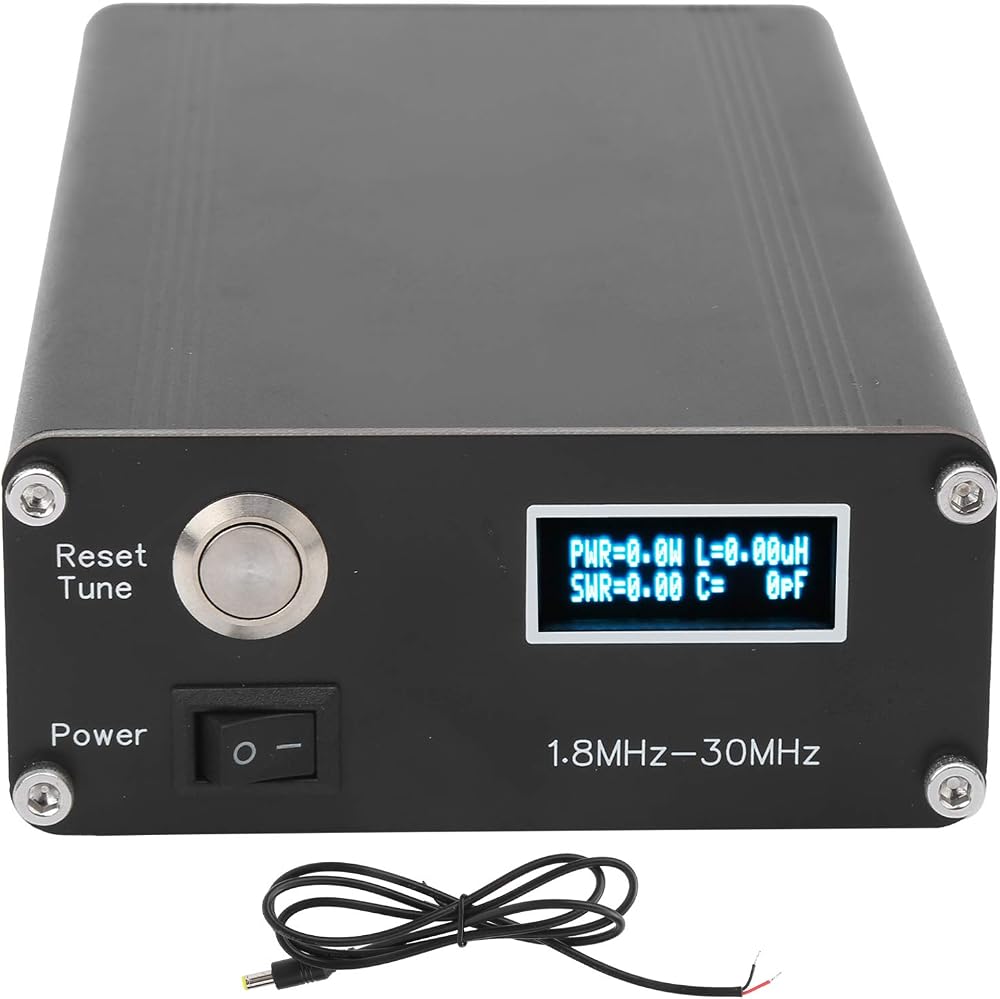

1 x Tester
1 x Connection Line

Note:

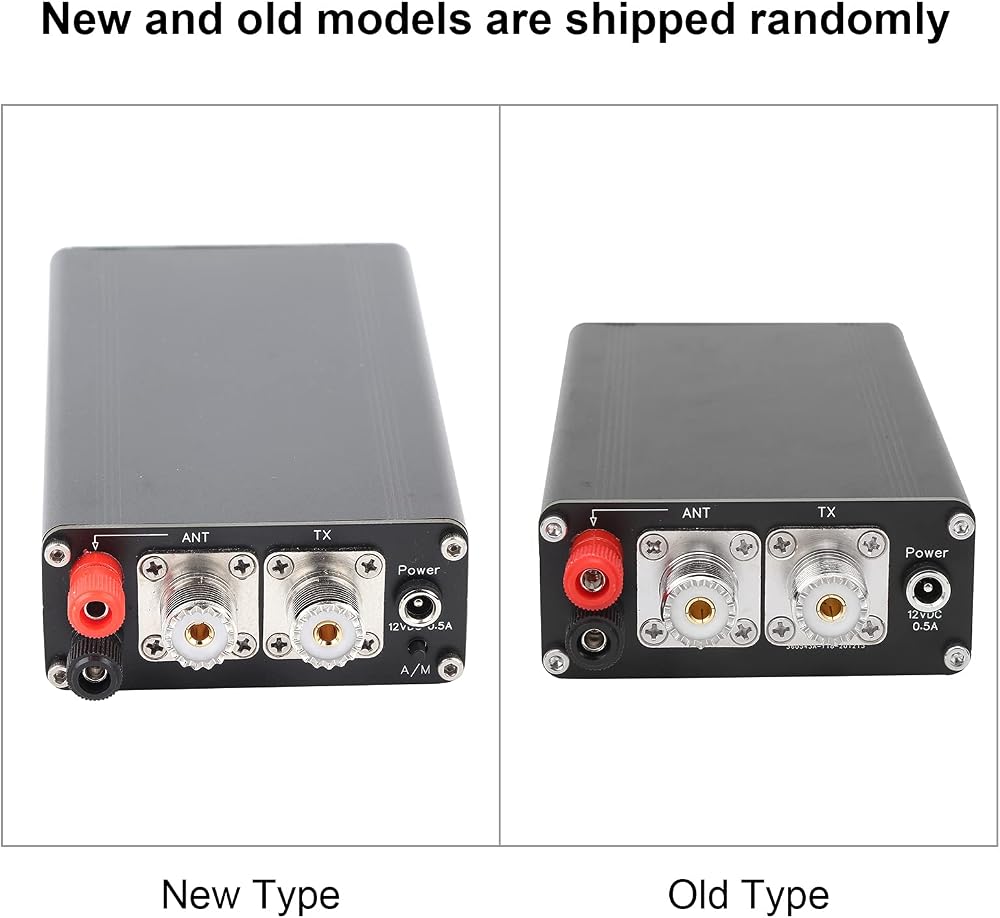

1.Hex screws and power switch colors are shipped randomly.2.Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
