G28U8FDTTL GPS Glonass Receiver Module QMC5883L Compass w/Flash Ceramic Antenna 9600bps 1Hz NMEA-0183 M8 Chip for Arduino Flight Control

SAR 94
SAR 99
Brand
DIYmalls
Weight
19 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • -g28u8fdttl gps module has built-in compass chip QMC5883L.
  • -The included ceramic antenna provides good signal reception, and the 9600bps baud rate at 1Hz ensures consistent data updates.
  • -The NMEA-0183 output format is compatible with a variety of software and applications, making it easy to integrate this gps module into different projects.
  • -Default GPS+Glonass, but it's possible to change it to be GPS+BeiDou or Glonass+Beidou in u center software

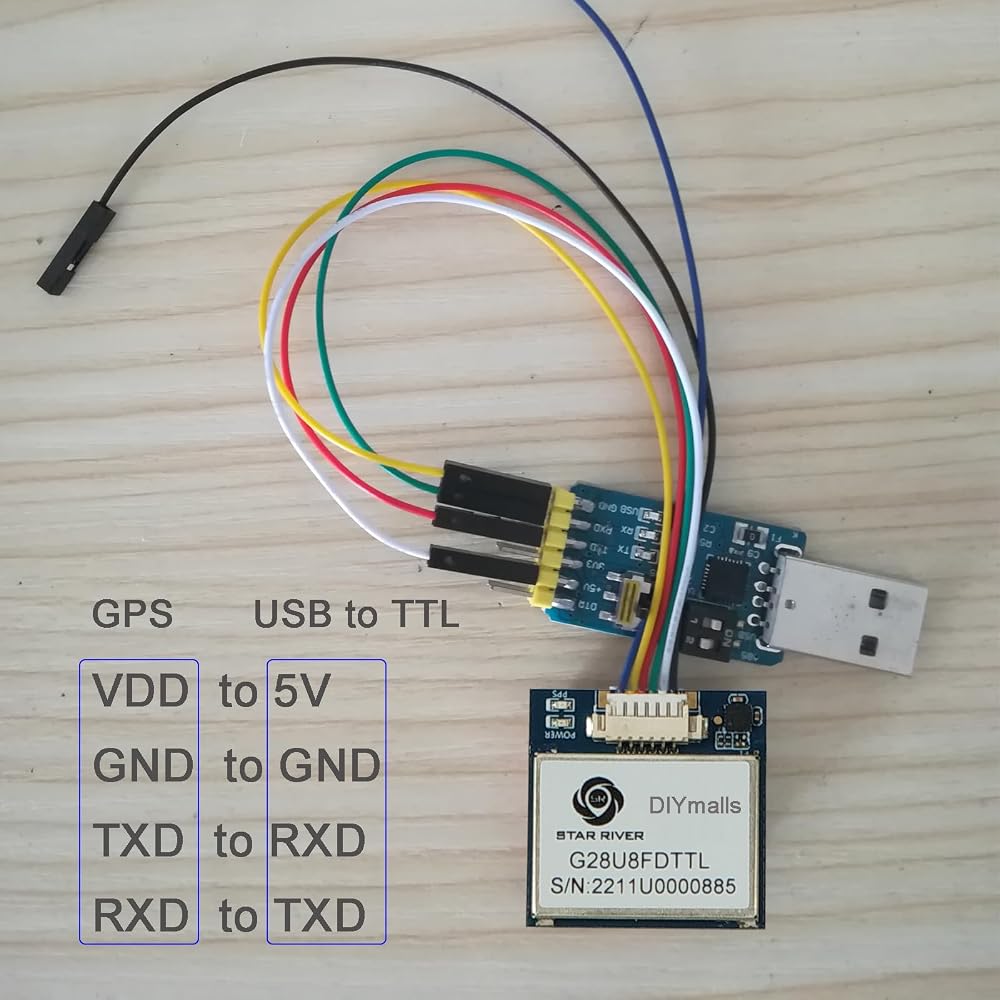

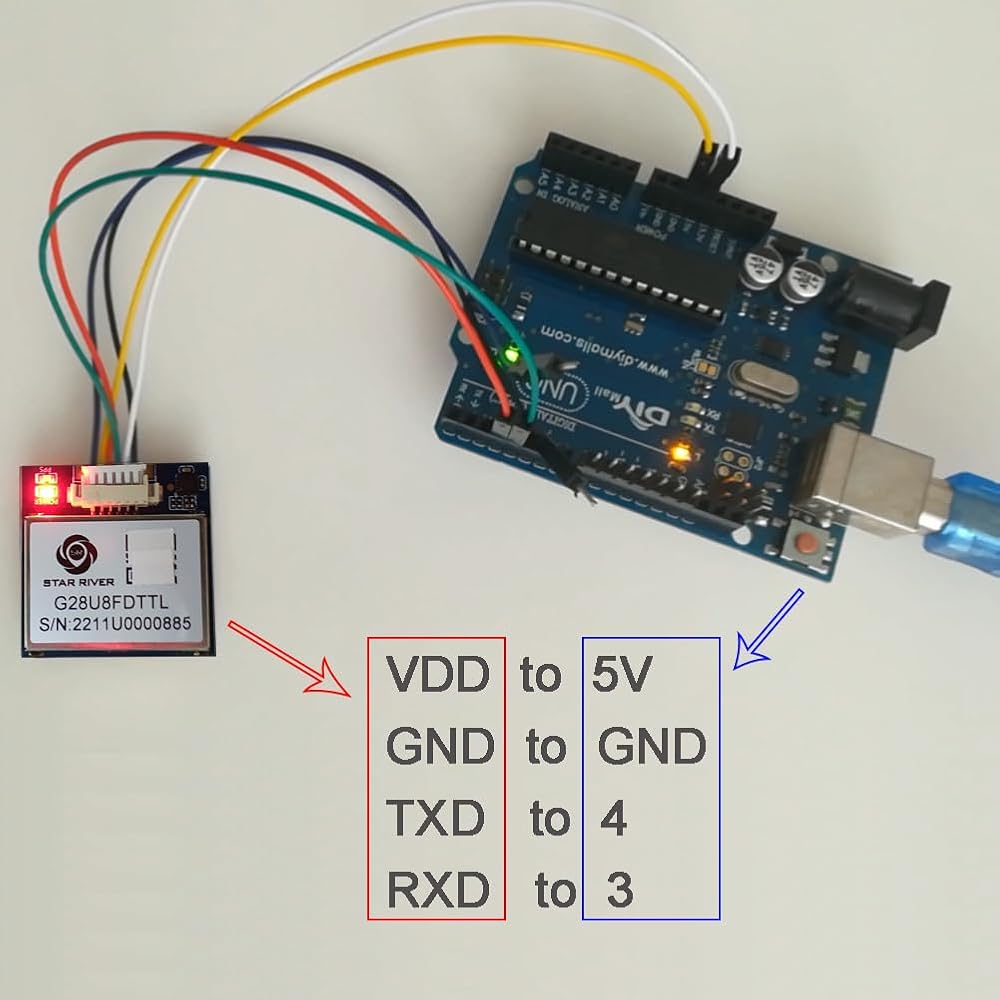

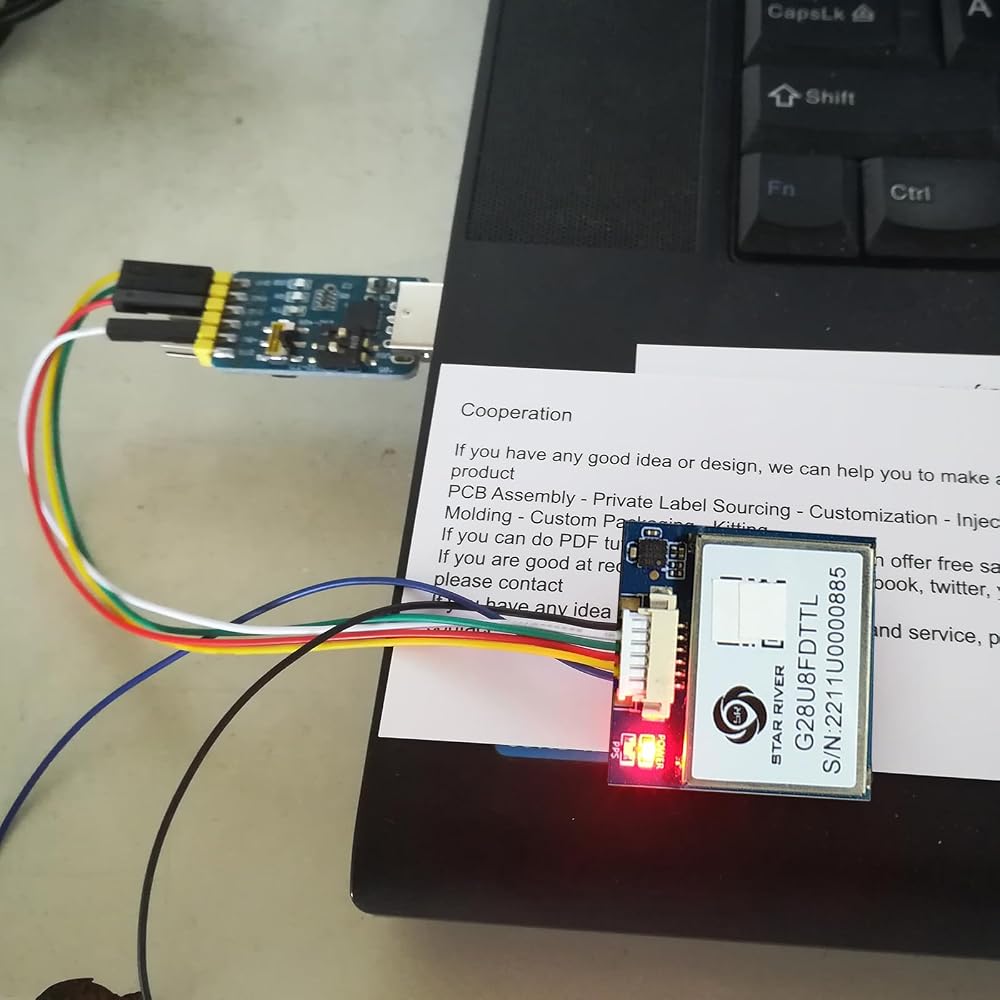

  • -g28u8fdttl gps module comes with 3 cables to connect with breadboard, usb to ttl module, pc etc.

Description

Description:
Chip: M8
Channel: 72

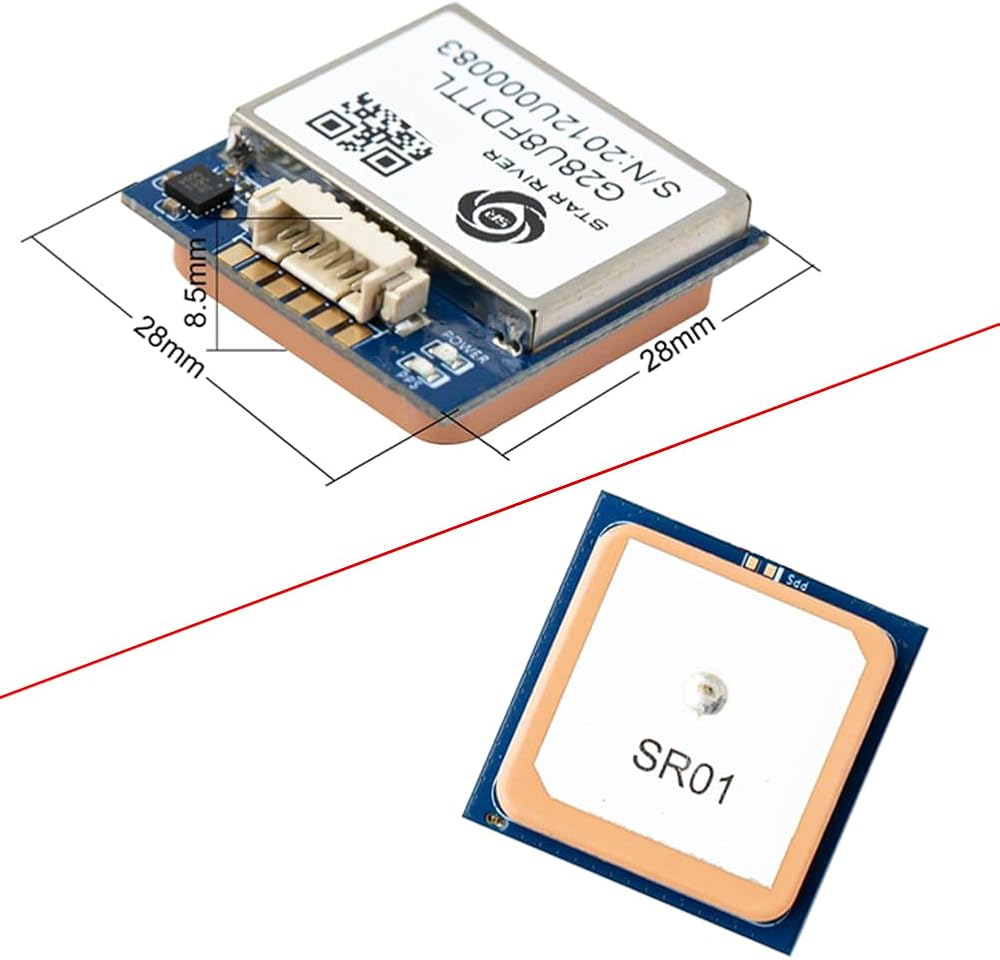

Dimensions 28 x 28 x 8.5 mm
Operation Voltage: 3.3V/5V
Data Level: TTL
Data Protocol: NMEA-0183
Baud Rate: 4800,9600,19200,38400,57600,112500bps (default 9600)
Update Rate: 1-10Hz (default 1Hz)
Connector: 6pin 1.25mm

Built-in LNA signal amplifier
Built-in Flash, free configuration of product parameters
Built-in TCXO crystal and Farah capacitor faster hot start

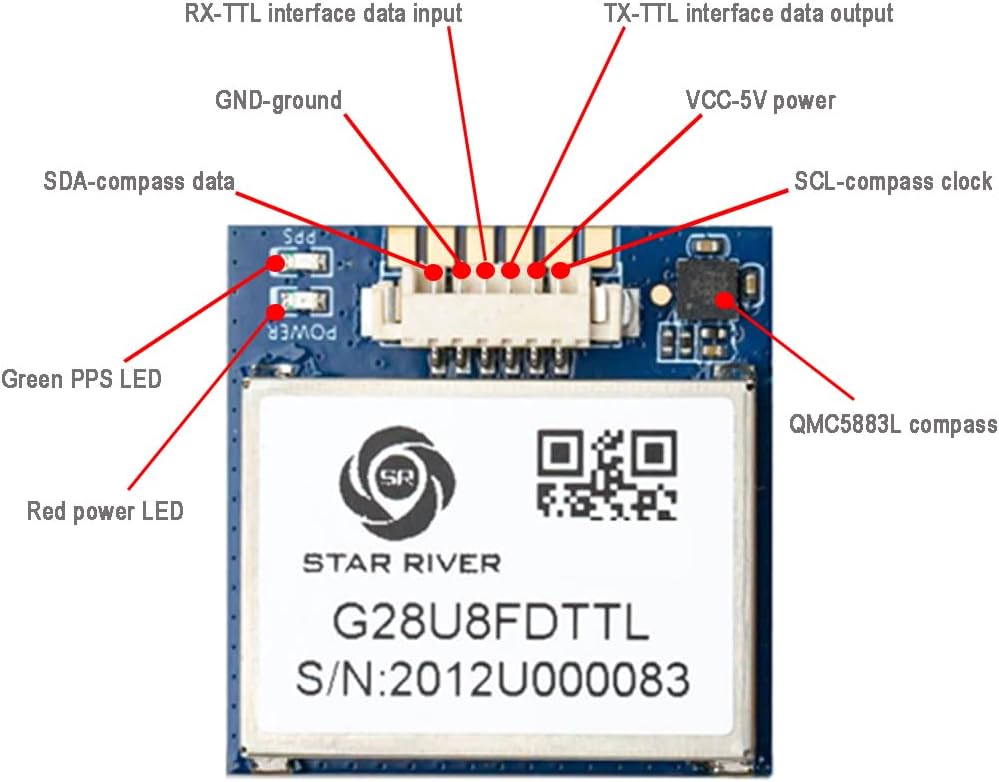

LED Indicator:
Power: Red LED light after powered
PPS: Green LED flash when GPS fixed

Application:
It can be used in vehicle monitoring, bus station, car guide
Navigation, ship navigation, notebook navigation and other products

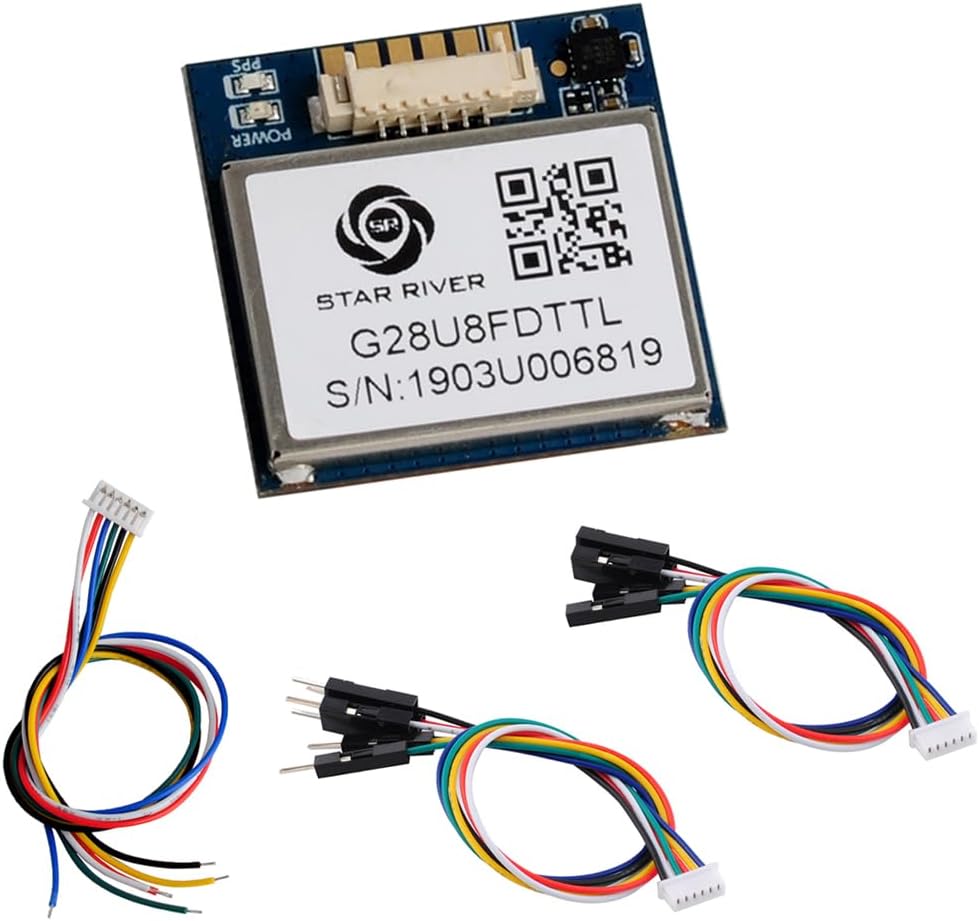

Package Included:
1 X G28U8FDTTL GPS Module with cables
