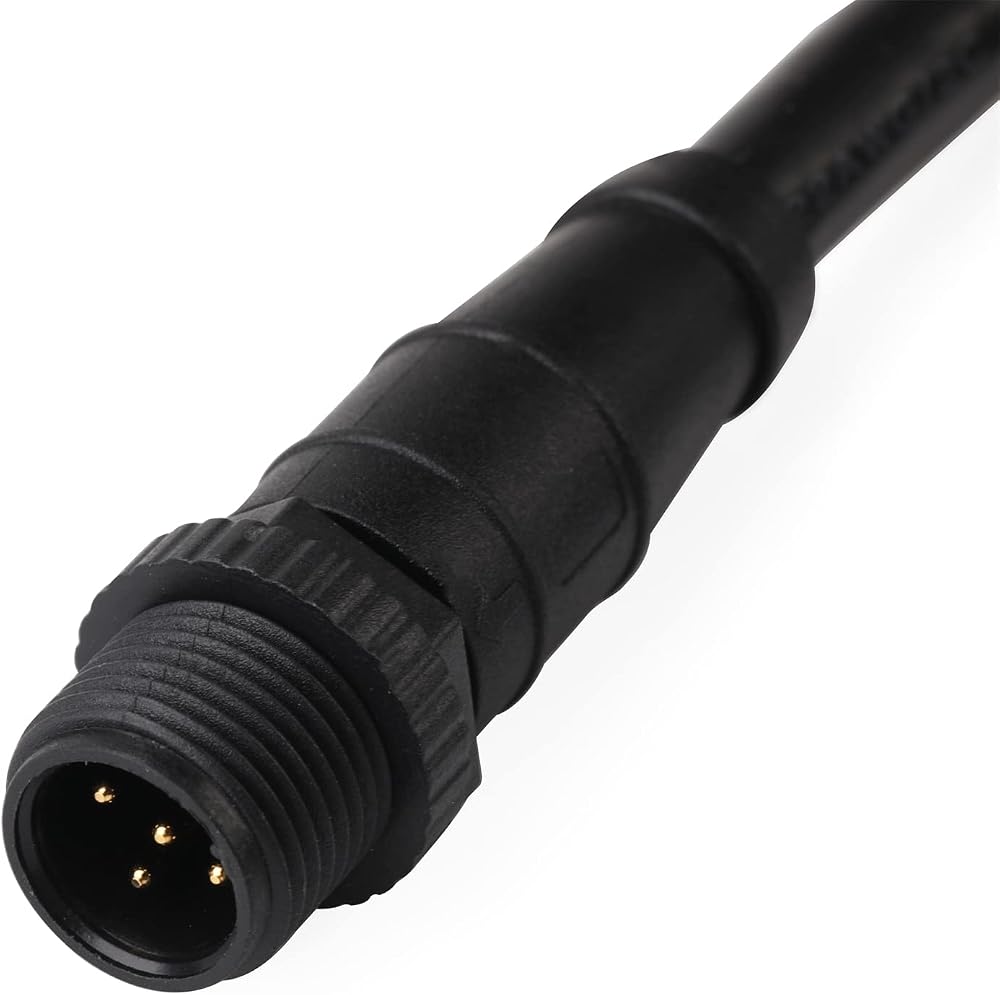

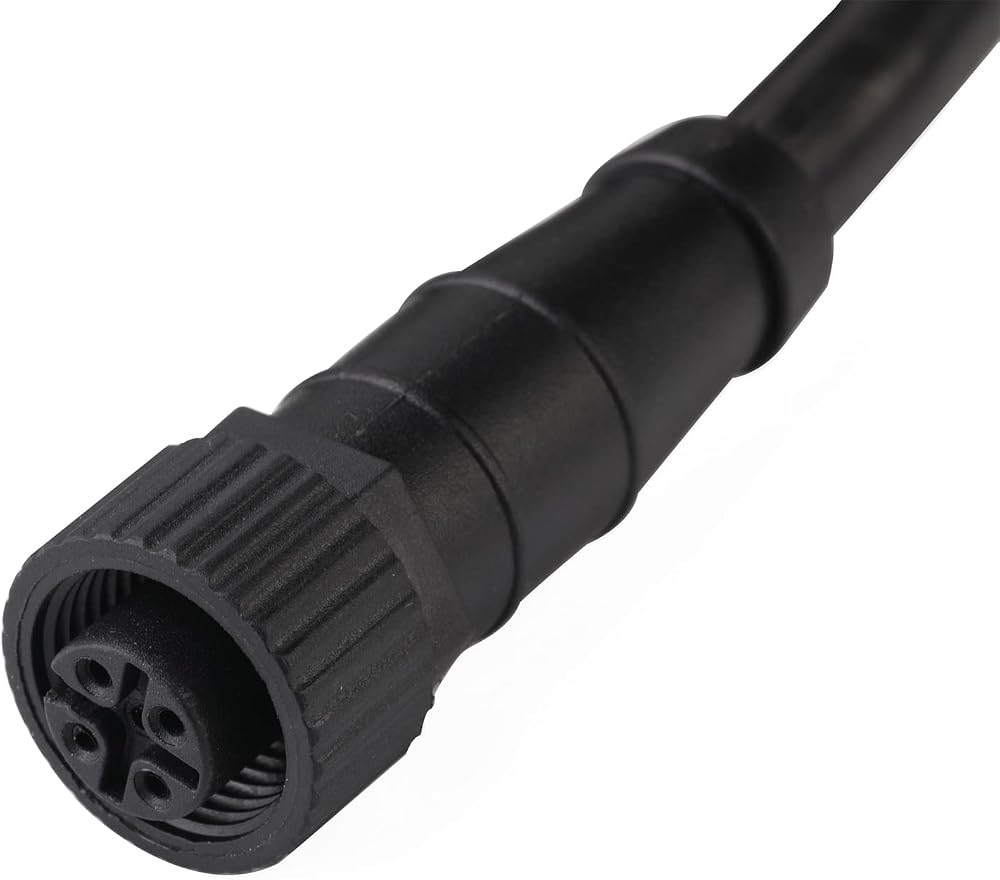

Connector:M12 5Pin,Male/Female
Code:A
Contacts:Brass,Gold Plated
Housing:Nylon+GF
Wire:AWG22*1P+AWG24*1P
Shield:Available
Jacket:PVC,black
OD:6.0mm
Length:customized
2)Electrical performance:
Rated current:4A
Rated voltage:60V
Insulation resistence:>30.5MΩ/KM
Test voltage:2000V
maximum resistence: 3)Environment temperature:
Ambient temperature for operation:-25…80℃
4)Waterproof Rating:IP65,IP67~68
Standards:IEC 61076-2-101
IEC 61076-2-104
Feature:

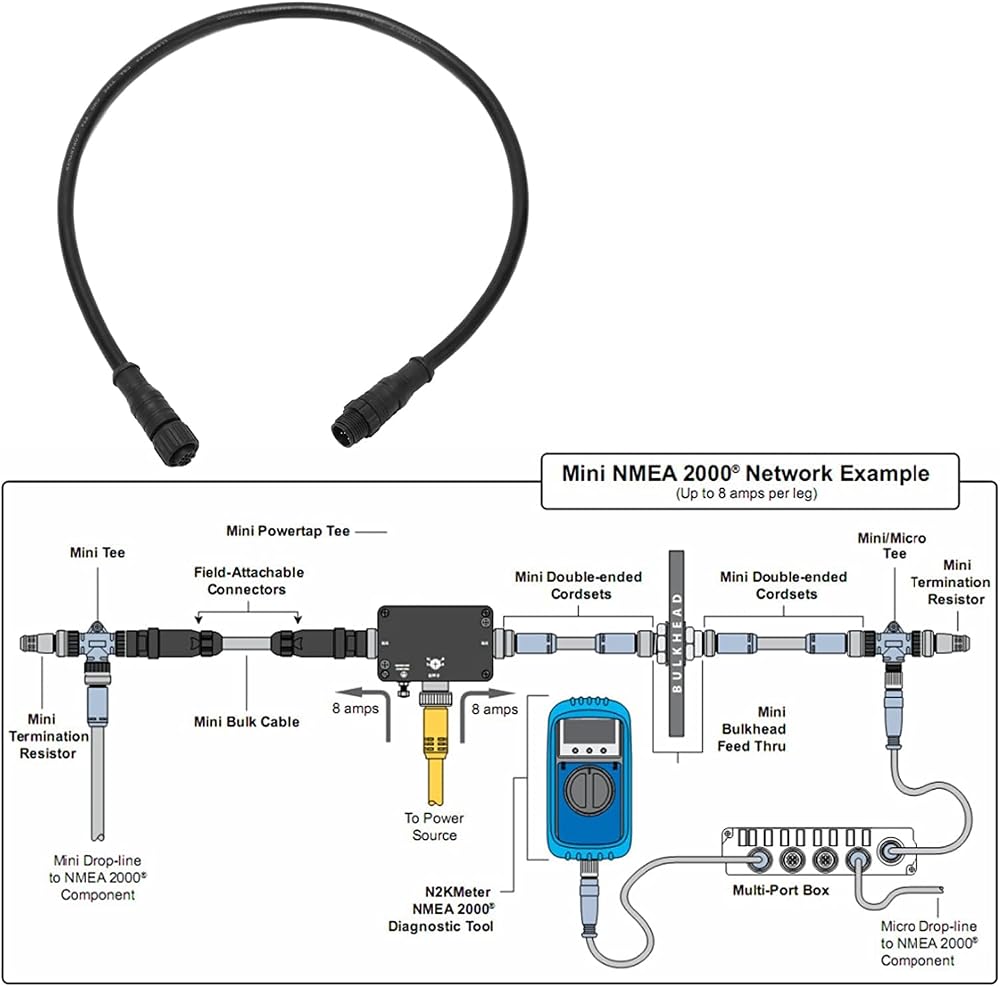

2. Main Function: Designed to power for NMEA 2000 backbone. Use these starter cable ?for proper termination for NMEA 2000 network.
3. IP67 Waterproof: For NMEA2000 backbone cable has good water resistance and has undergone strict water immersion experiments.
4. Universal: For NMEA 2000 Certified, compatible with other manufacturers' products. Installation is simple, no complicated operations are required.
5. Long Durability: Made of high quality ABS material, it is oil resistant, seawater resistant, resistant to pulling, and durable to use.
Specification:
Item Type: For NMEA2000 Cable
Material: ABS
Plug Core: 5Pin
Length: Approx. 0.5.64ft
Waterproof Grade: IP67
Fitment:

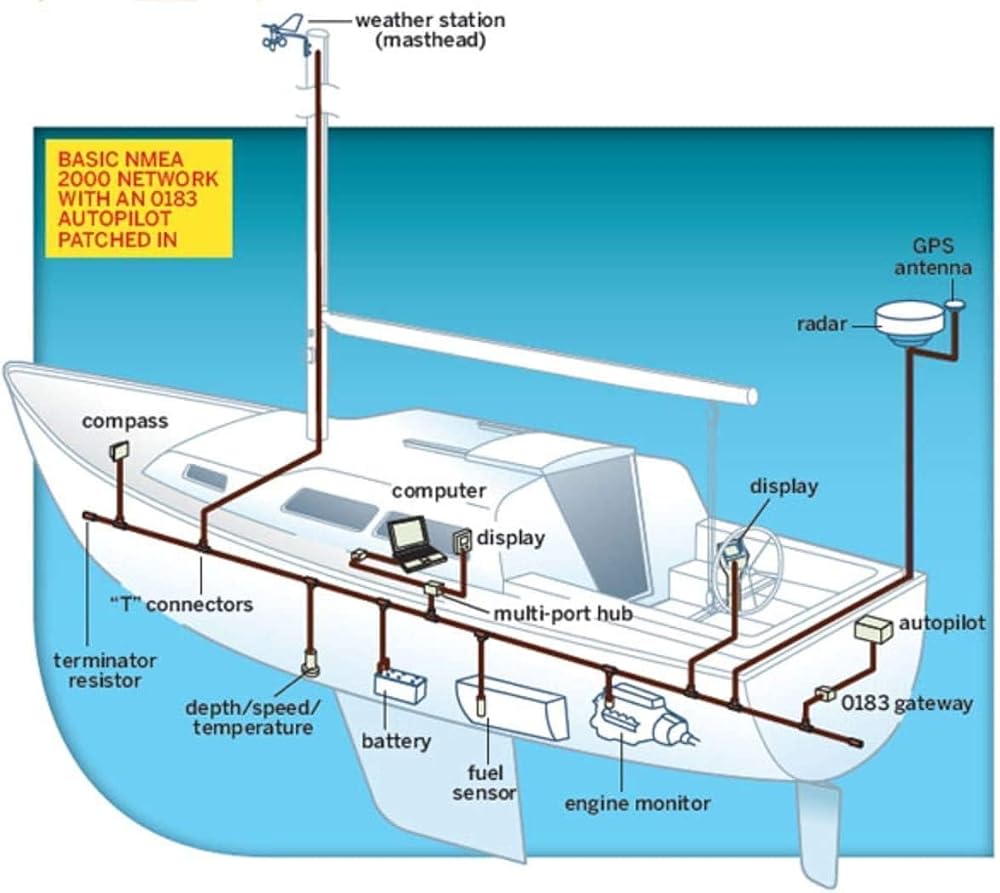

For NMEA 2000 Networks
For Lowrance Networks
For Simrad Networks
For B and G Networks
For Navico Networks
