Motors

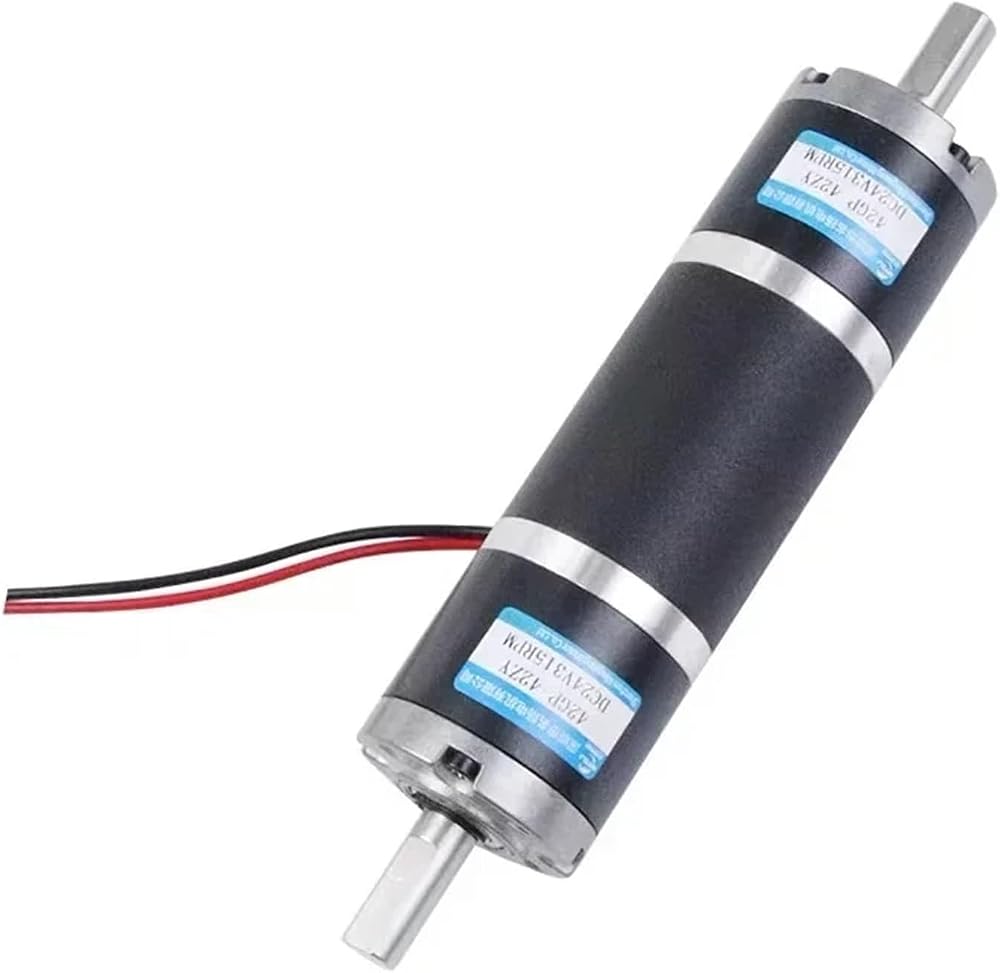

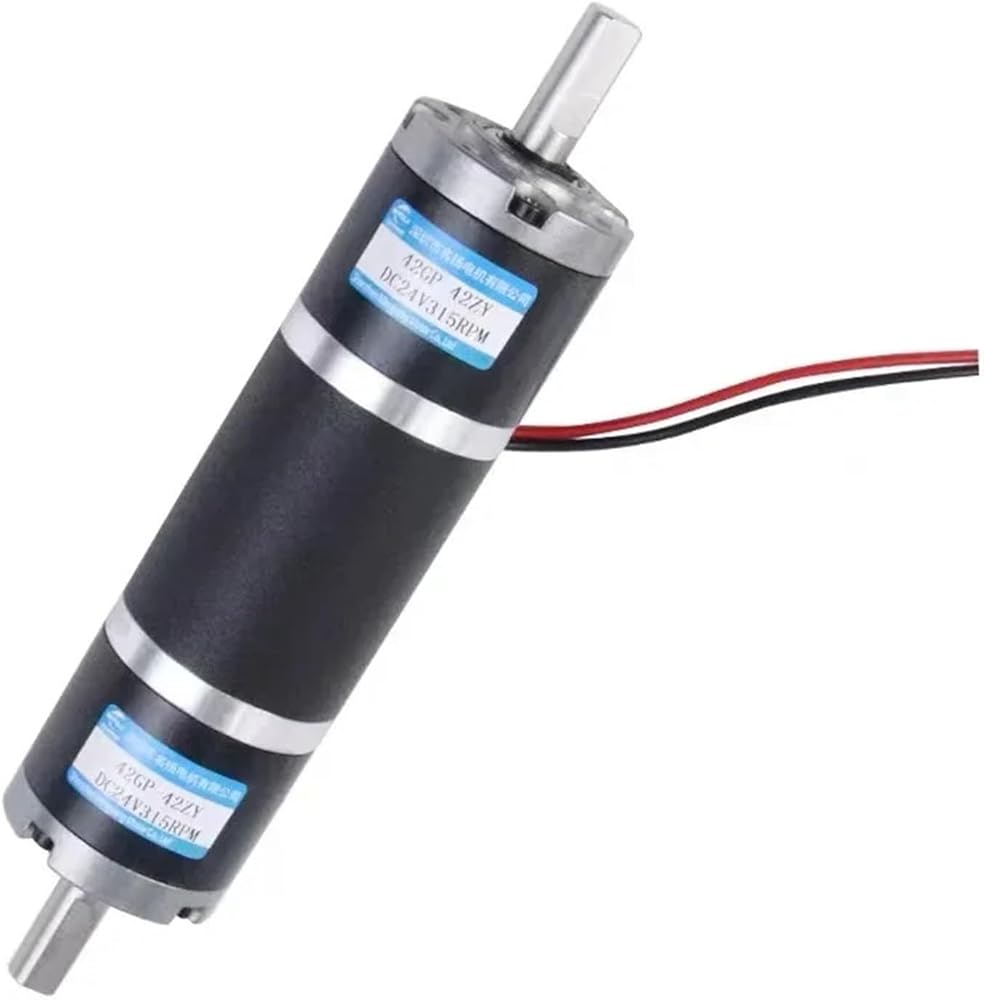

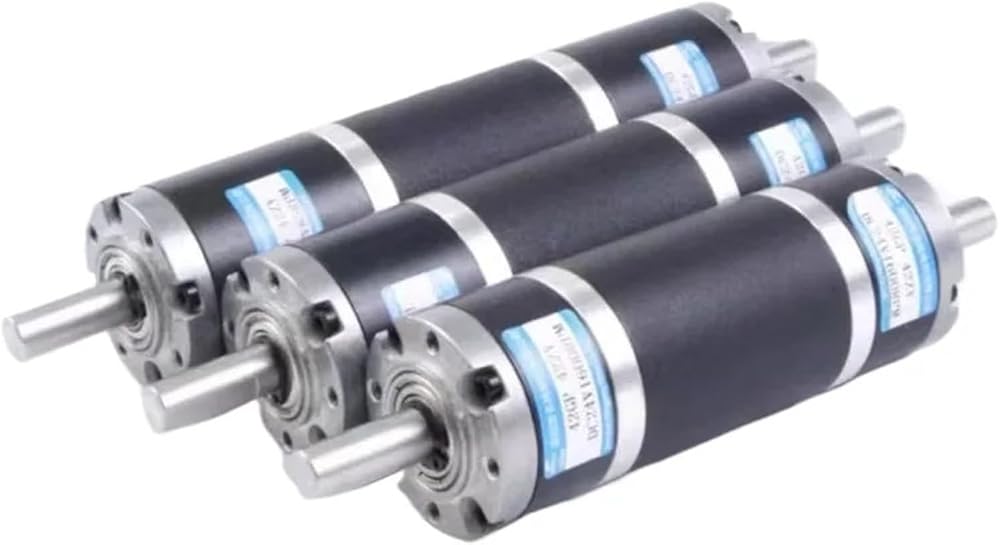

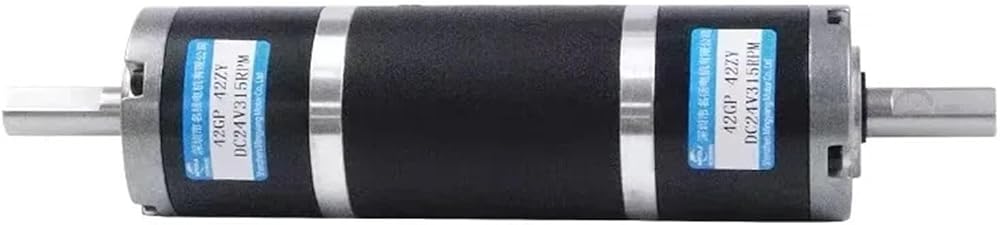

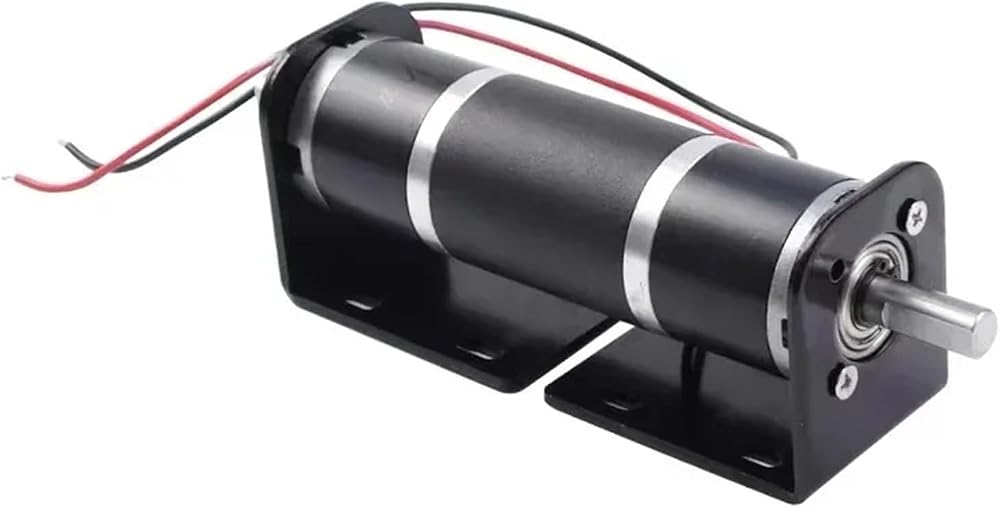

Product Name: 42mm Double Axis Planetary Reduction DC Motor
Model: 42GP-42ZY Dual Axis
Output shaft diameter: 10mm
Motor diameter: 42mm
Idle speed: 12rpm to 1622rpm
Load speed: 9.6rpm-1300rpm
Voltage: 12V
No load current: 0.8A
Rated : 1.2kgf.cm-120kgf.cm
Rated current: 2.5A
Rated input power: 35W
Voltage: 24V
No load current: 0.45A
Rated : 1.5kgf.cm-150kgf.cm
Rated current: 2A
Rated input power: 50W
==========
Hign-concerned Chemical : None
Color : black
: 150KG
Model Number : 42GP-42ZY Dual axis
Continuous Current(A) : 450ma
Construction : Permanent Magnet
Type : Gear Motor
Protect Feature : Drip-proof
Commutation : Brush
Efficiency : IE 1
Certification :
Output Voltage : 35W
Output shaft diameter : 10mm
Motor diameter : 42mm
Voltage : 12V/24V
