Number of Jaws : 3/4
Power : Pneumatic
Model Number : Lathe Chuck
Material : All Steel Parts
Description:
Specification:
Material: all steel parts
Machine tools: Lathe
Chuck structure: large through-hole chuck
Chuck aperture: M14x1 (mm)
Power type: Manual
Quantity: 1pcs

Type Model Chuck Type Chuck Diameter Chuck Aperture Clamping Size Range Holding Size Range Packaging Size
A K01-50 3 Jaws Chuck 50mm/1.97" 15mm/0.59" 1-33mm/0.04-0.13" 16-50mm/0.63-1.97" 14*6*6cm/5.51*2.36*2.36"

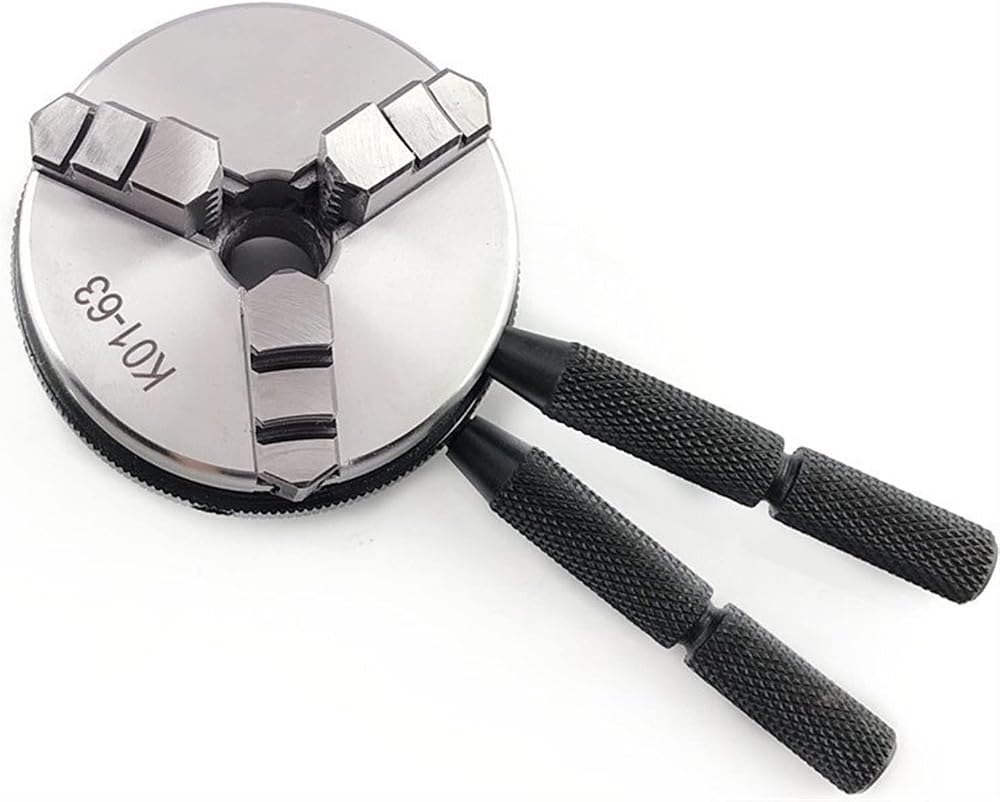

B K01-63 3 Jaws Chuck 63mm/2.48" 14mm/0.55" 1-50mm/0.04-1.97" 16-50mm/0.63-1.97" 13*7*7cm/5.12*2.76*2.76"
C K02-50 4 Jaws Chuck 50mm/1.97" 15mm/0.59" 1-33mm/0.04-0.13" 16-50mm/0.63-1.97" 13*6*6cm/5.12*2.36*2.36"

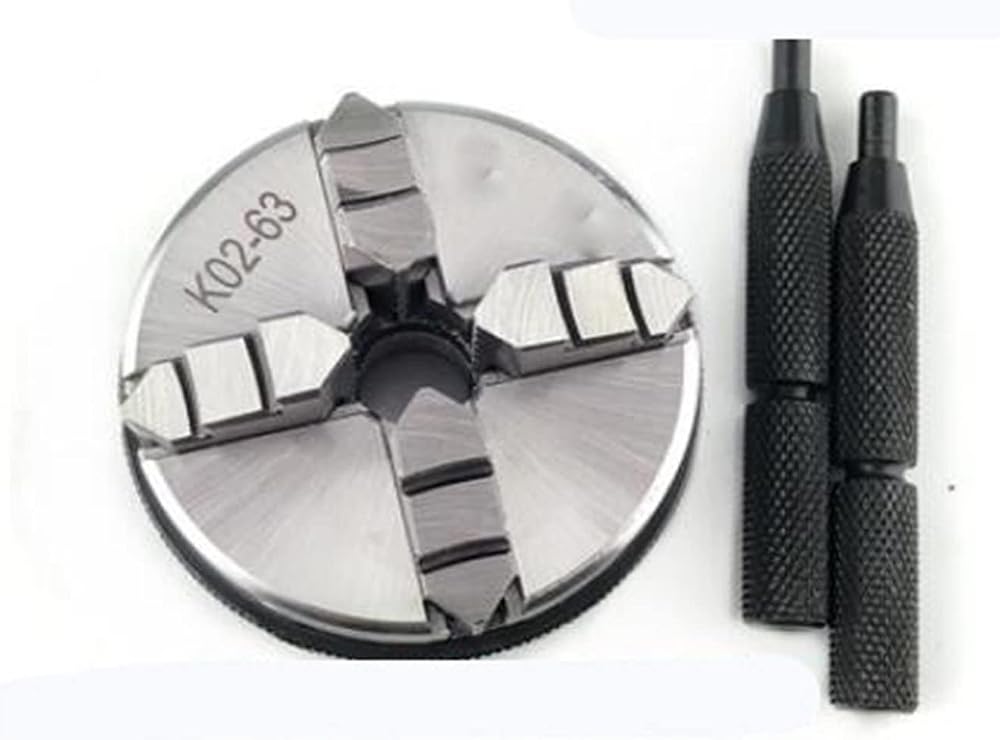

D K02-63 4 Jaws Chuck 65mm/2.56" 14mm/0.55" 1-50mm/0.04-1.97" 16-50mm/0.63-1.97" 13*7*7cm/5.12*2.76*2.76"

Features:
1. Made of steel, with high hardness, wear resistance and durability.
2. Small size and easy to use.
3. Centering accuracy is high, clamping range is large.
4. Chuck has two mounting types: short cylinder center mounting and thread mounting.
5. It is mainly used for processing non-ferrous metals and non-metal machine tools.

Package Included:
1 X Lathe Chuck
