مميزات خاصة

Aerial photography optimization: 427mm wheelbase design improves FPV aerial photography flight stability
TrueX structure: 3K full carbon fiber TrueX frame enhances the torsion resistance and durability of the fuselage
Dimensions: Designed to fit standard drone frames.
Unit: Optimized overall balance for smooth lift delivery.
Compatibility: Replacement parts support a wide range of models, simplifying installation.

وصف

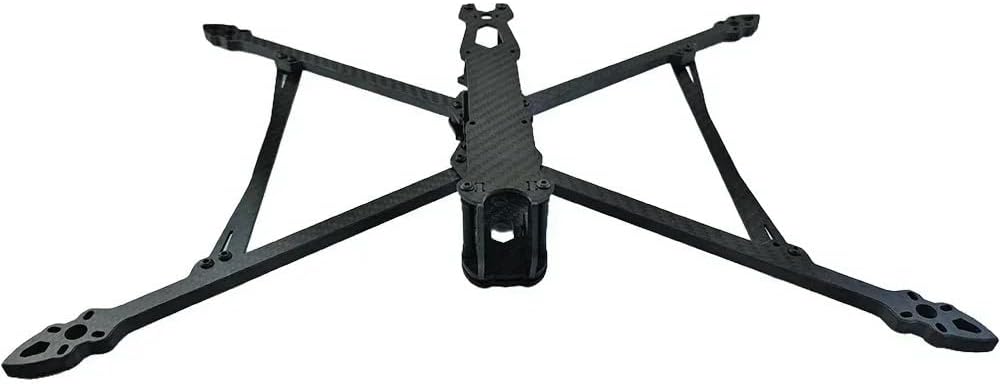

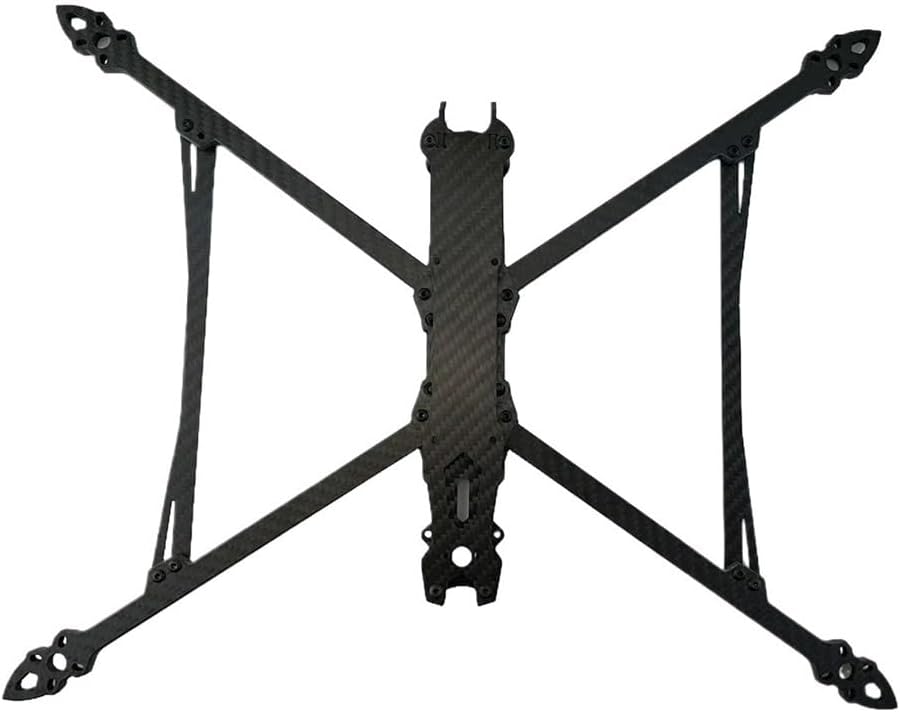

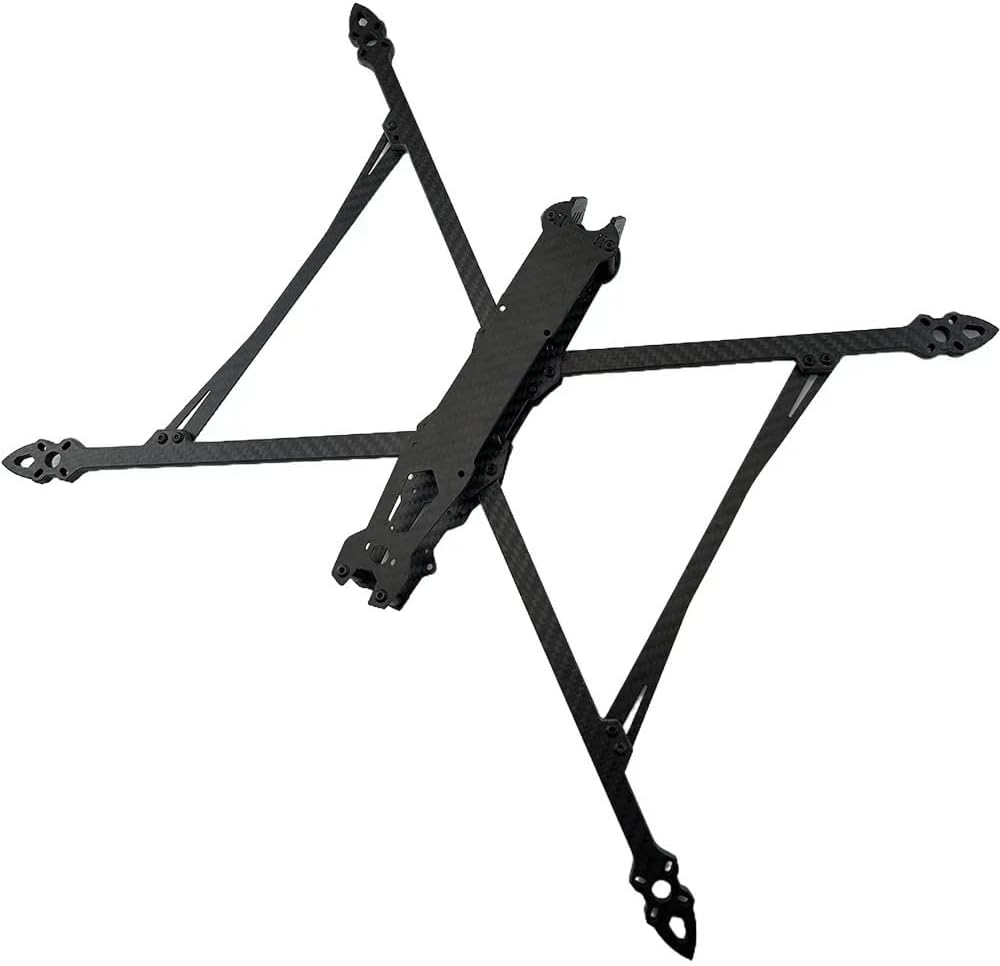

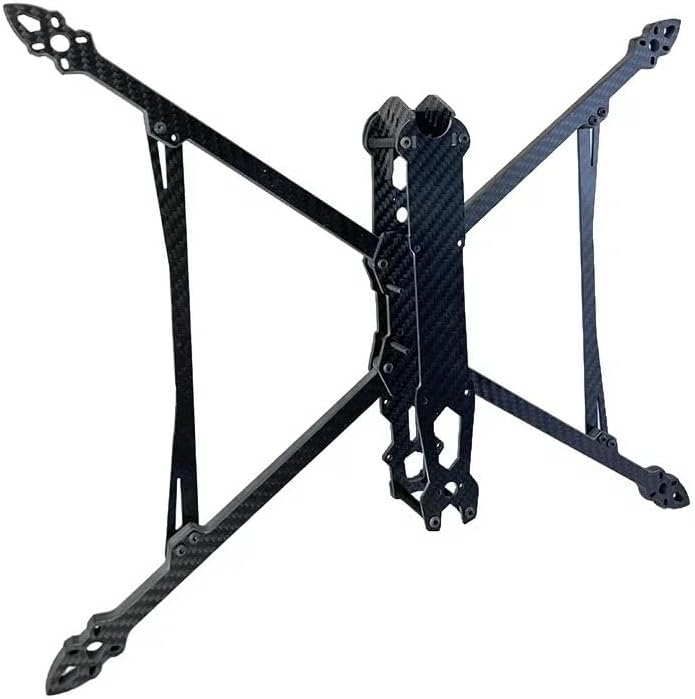

Mark4 V2 10-inch 427mm carbon fiber frame parameters:
Frame structure: X-type
Wheelbase: 427mm
Size: 268.18mm*332.07mm
Bottom plate thickness: 3.0mm
Middle plate thickness: 3.0mm
Upper plate thickness: 2.0mm
Arm thickness: 7.0mm
Connection plate thickness: 2.3mm
Camera side plate thickness: 2.5mm
Camera mounting hole distance: 19mm
Image transmission mounting hole distance: 20*20mm & 305*305mm
Flight control mounting hole distance: 20*20mm & 305*305mm
Internal space height: 35mm
Motor mounting hole position: 16*16mm & 19*19mm
Packing list
1 set of Mark4 V2 10-inch 427mm carbon fiber frame
Model: Mark4 10-inch
