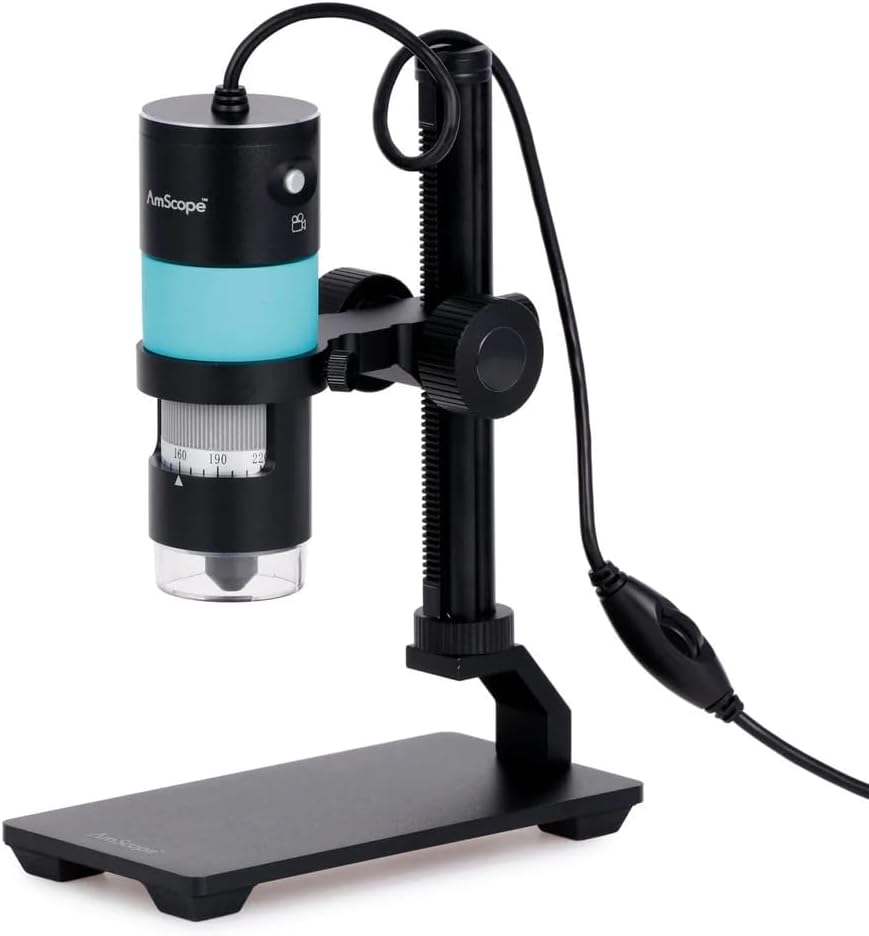

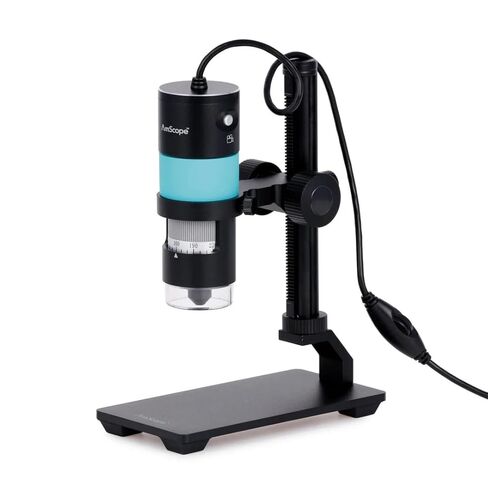

The HHD Professional Series Portable USB Microscopes are easy to use, high power scopes. With continuous magnifications from 10x to 280x, it's ideal for quality control inspectors, medical professionals, and scientific researchers in addition to hobbyists and beginners for viewing stamps, coins, bugs, plants, rocks, skin, gems, circuit boards, and more. With the higher power magnifications, you can even view traditional microscope slides under transmitted illumination.
Using the AmScope Software, you can capture your specimens using the built-in 1.3MP camera. Press the shutter to save images and high-resolution video directly to your PC via USB connection. The 8 LED illuminator ensures your specimens are clear and bright. Includes a basic metal stand as well as a gooseneck stand that allow for steady shots and come in handy when viewing at higher magnifications, minimizing shaking and keeping your specimen in sharp focus.
Camera Specifications
Sensor: 1.3M/IMX307(C), 1/2.8“(4.41x2.48)
Size (mm): 2.9x2.9
Dark Signal Sensitivity: 1300mv with 1/30s, 0.15mv with 1/30s
FPS/Resolution: 38@1520x856, 38@760x428
Binning: 1 X 1, 1 X 1
Exposure: 0.1-2000 ms
Technical Specifications
Spectral Range: 380-650nm (with IR-cut Filter)
White Balance: Auto White Balance
Capture/Control SDK: Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System: Still Image and Video
Cooling System*: Natural
Operating Temperature (in Celsius): -10 ~ 50
Storage Temperature (in Celsius): -20 ~ 60
Operating Humidity: 30-80%RH
Storage Humidity: 10-60%RH
Power Supply: DC 5V over PC USB Port

Optical Specifications
Optical Lens: 5G High Grade Optical Glass with Multi-layer Anti-reflection Coating
Optical Magnification: 0.1x~3.3x(33x)
Illumination: 8 LEDs
Magnification, Working Distance, Field of View
Magnification Working Distance Field of View (X) Field of View (Y)
10 134.63mm 48.09mm 27.07mm
50 33.51mm 9.62mm 5.41mm
100 20.32mm 4.81mm 2.71mm
150 15.97mm 3.21mm 1.80mm
200 13.75mm 2.40mm 1.35mm
250 12.42mm 1.92mm 1.08mm
280 11.85mm 1.72mm 0.97mm
Software
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 4GB RAM
Software Features
Windows Version
Live video preview
Captures still images and video
Time-lapse capture
Exposure and white-balance controls
Dark-field correction
Digital binning
Image processing
Measurement tools, including lines, arcs, polygons
Segmentation and counting tools
Image-stitching, extended depth-of-field, HDR
Fluorescence color-mapping
Mac/Linux Versions
Live video preview
Captures still images and video
Exposure control
Color adjustment
Measurement tools, including lines, arcs, polygons
Packing List
Handheld Digital Microscope
Removable Grip
Gooseneck Stand
Metal Stand
