Parameters:
1. Suction: 100~120 N / cm2

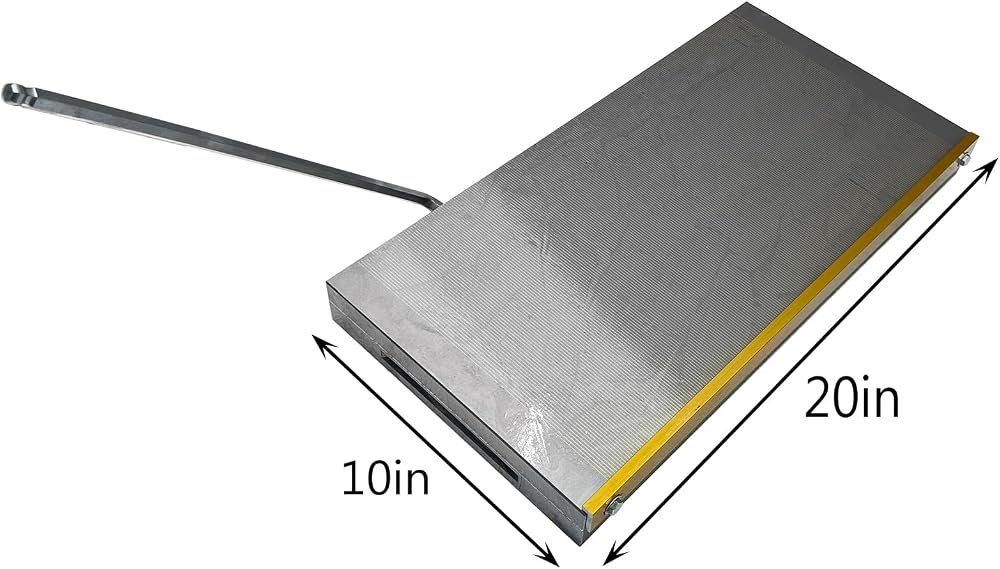

2. Size: 10 x 20 inch
Method of use：
Put the workpiece on the suction table, and then insert the wrench into the shaft hole to turn by 180 degrees clockwise, suck the workpiece to process.
The workpiece is completed, the wrench can be inserted into the shaft hole to turn by 180 degrees counterclockwise, you can remove the workpiece.
Maintenance：
Sucker should be wiped clean before use to avoid scratching the surface, after using, the surface should be coated with oil to prevent corrosion.
Ambient temperature of use: -40 ℃ -50 ℃.
Do not knock, to prevent magnetic reduction.

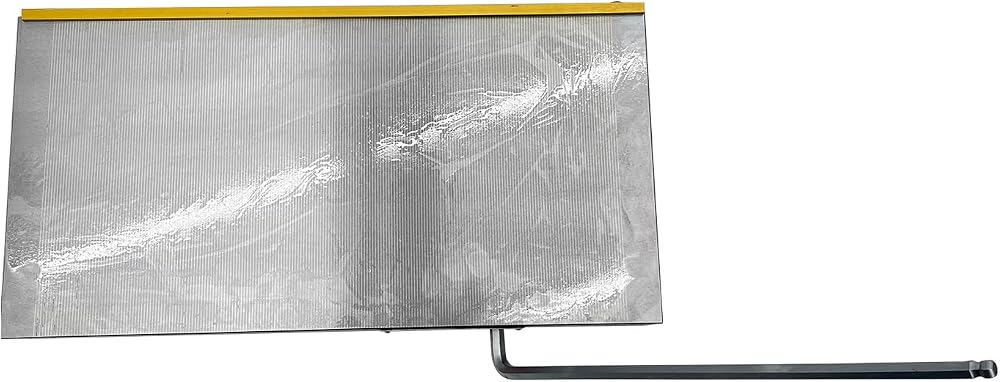

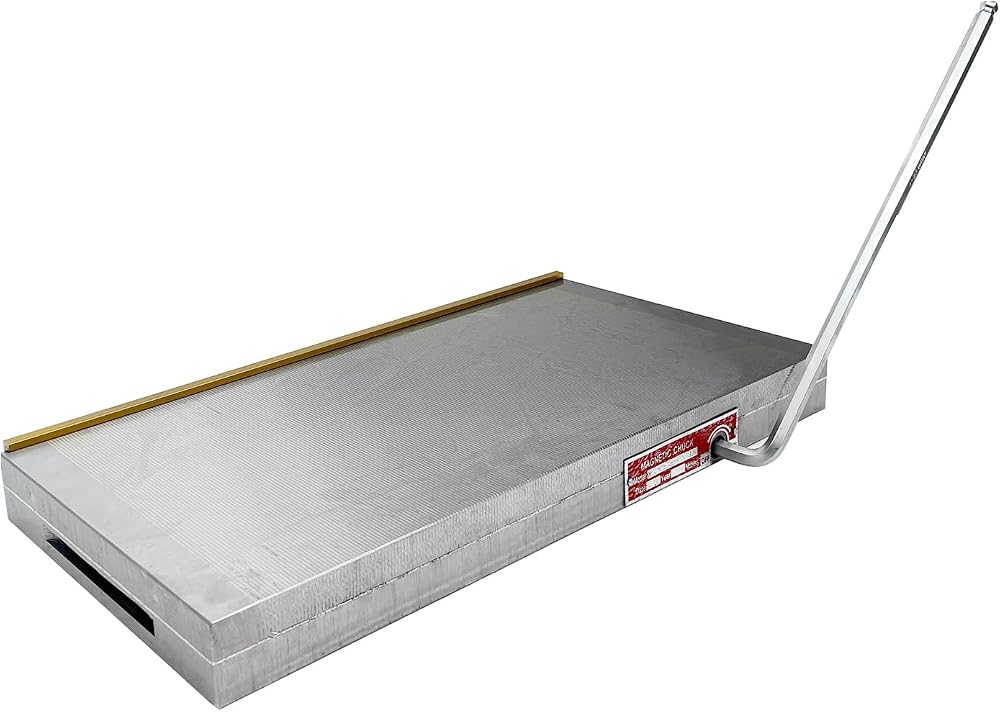

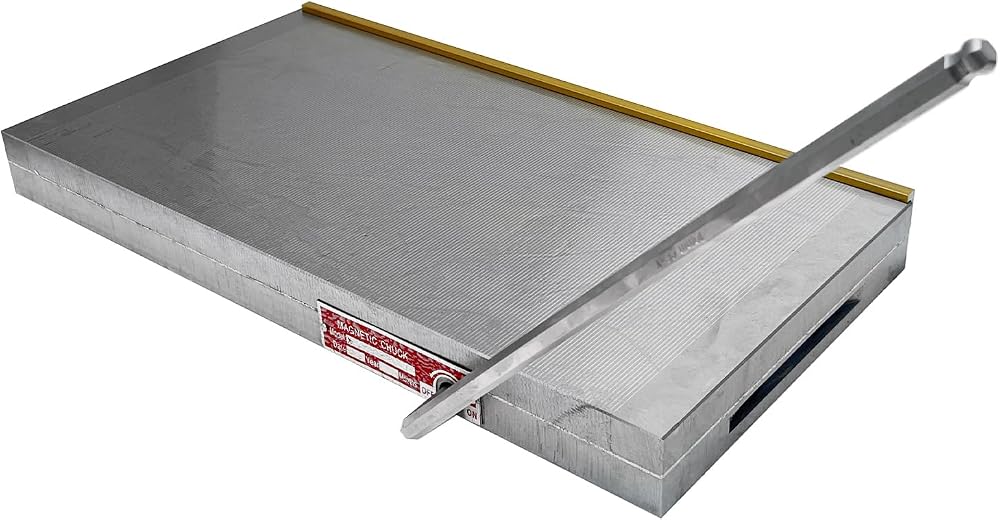

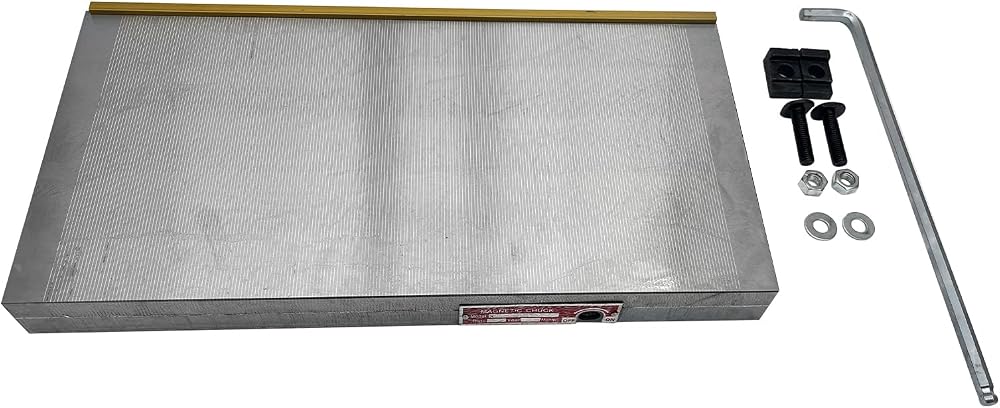

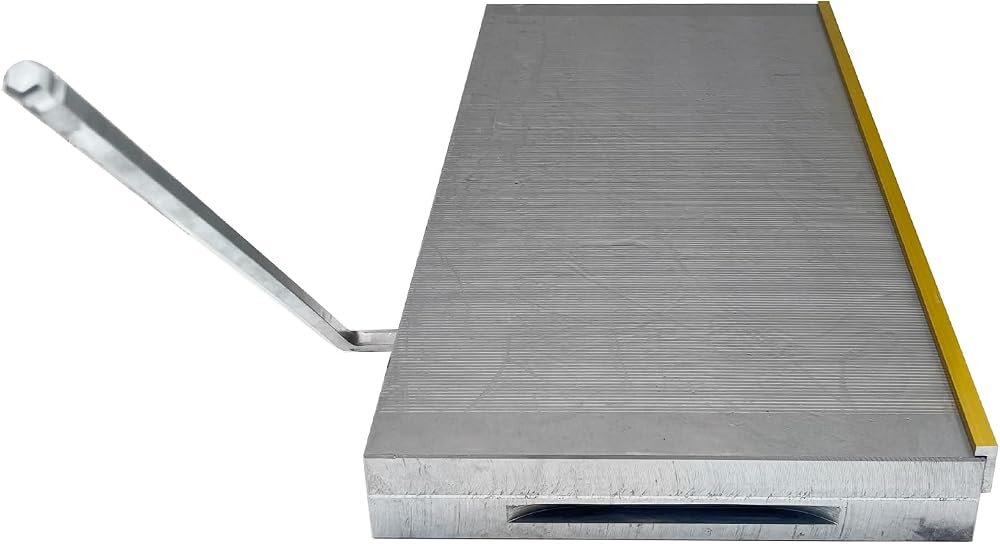

Strong dense pole permanent magnet sucker is for surface grinders, spark machines and WEDM.
Very fine spacing, uniform magnetic distribution, particularly for processing small thin parts.
Worktable precision is not changed while magnetizing and demagnetizing.
Panel with special treatment, no leakage, to prevent corrosion of cutting fluid. To prolong service life of the disk, it can be placed on the cutting fluid for storage. Six-surface fine grinding processing, the sucker can be used for cutting operation of wire cutting machines in the vertical direction.
High-performance magnetic steel disk, with suction, almost no remanence.
