Controls
Dear buyer, please contact me if you need instructions.
1.Output Power:0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW
2.Rated Frequency :50hz/60hz
3.Output Frequency Range:0~650Hz
4.Input Voltage Range:1phase 220V±15%
5.Output Voltage Range:3 phase 220V±15%
6.Control way: Open loop vector control(SVC) V/F control
7.Main function: Control and adjust the speed of the ac motor
Type
0.75kw 220v VFD
1.5kw 220v VFD
2.2kw 220v VFD
4kw 220v VFD
5.5kw 220v VFD
7.5kw 220v VFD
Input Voltage
220V(+/-15%)
220V(+/-15%)
220V(+/-15%)
220V(+/-15%)
220V(+/-15%)
220V(+/-15%)
OutputVoltage
220VAC
220VAC
220VAC
220VAC
220VAC
220VAC
Input Frequency
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
50/60Hz
Output Frequency
0~400Hz
0~400Hz
0~400Hz
0~400Hz
0~400Hz
0~400Hz
Rated current
4A
7A
10A
16A
20A
30A
Input Phase
1 phase
1 phase
1 phase
1 phase
1 phase
1 phase
Output Phase
3 phase
3 phase
3 phase
3 phase
3phase
3 phase
NFLIXIN Variable Frequency Drive 1 Phase(3 Phase) 220VAC Input 3-Phase 220VAC Output 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW Frequency Converter Motor Drive VFD
Specification:
IteItem Type: Variable Frequency Drive
: NFLIXIN
Model: 9600D-1T-00075G / 9600D-1T-00150G / 9600D-1T-00220G / 9600-1T-00400G / 9600-1T-00550G / 9600-1T-00750G
Input Voltage: AC 1PH(3PH) 220V ± 15% 50Hz-60Hz
Output Voltage: AC 3PH 0V-220V 0Hz-650Hz
Matching Motor Power: 0.75KW / 1.5KW / 2.2KW / 4KW / 5.5KW / 7.5KW
Rated Current: 4A / 7A / 10A / 16A / 20A / 30A
Voltage Type: AC220V to AC220V
Output Voltage Adjustment Mode: PWM control
Control Method: Current vector
Filter: Built-in filter
Protection Level: IP20
Machine Size: Approx. 155mm*82mm*135mm / 172mm*125mm*165mm / 220mm*152mm*179mm
Product Function:
Low frequency and large torsion
Sensorless vector control
Standard V / F control
Multi-speed adjustable
Built-in RS485 communication
Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower
Feature:
1. Humanized keyboard design, convenient and clear display
2. The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and
3. Double-layer board design, reasonable structure and safety, greatly reducing the failure rate
4. Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety
5. Good heat dissipation, super large all-aluminum base fan hot plate combined with powerful fan, super strong wind and super fast heat dissipation
6.Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

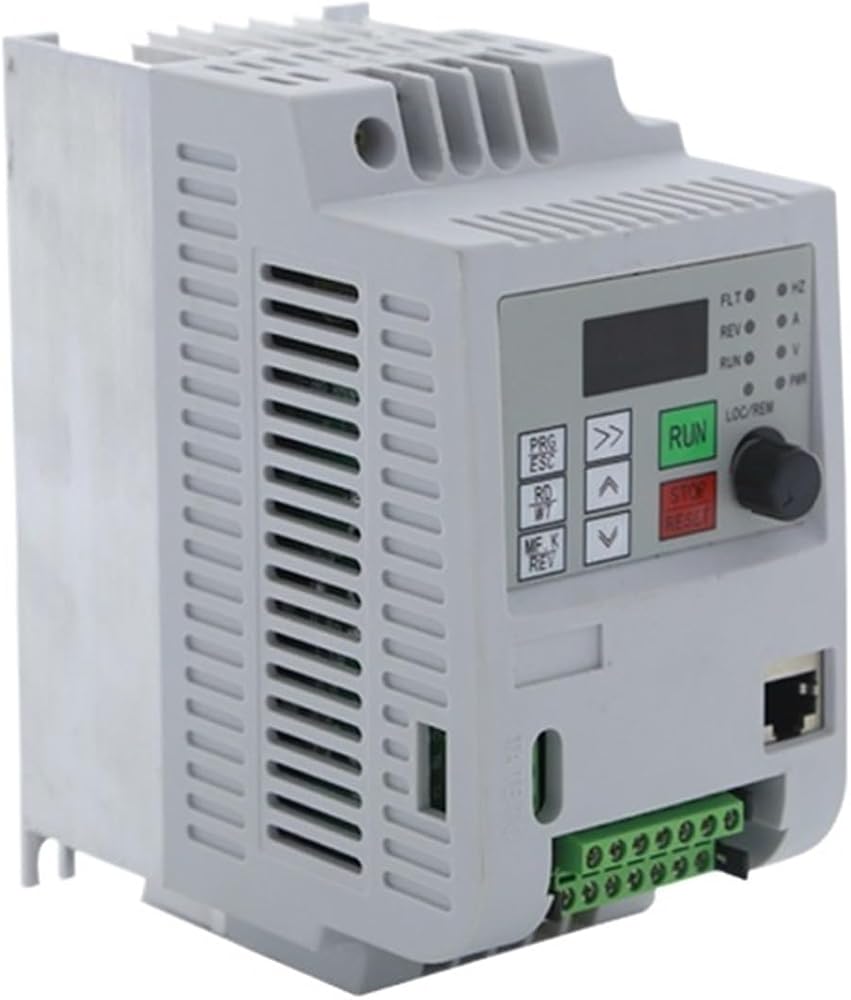

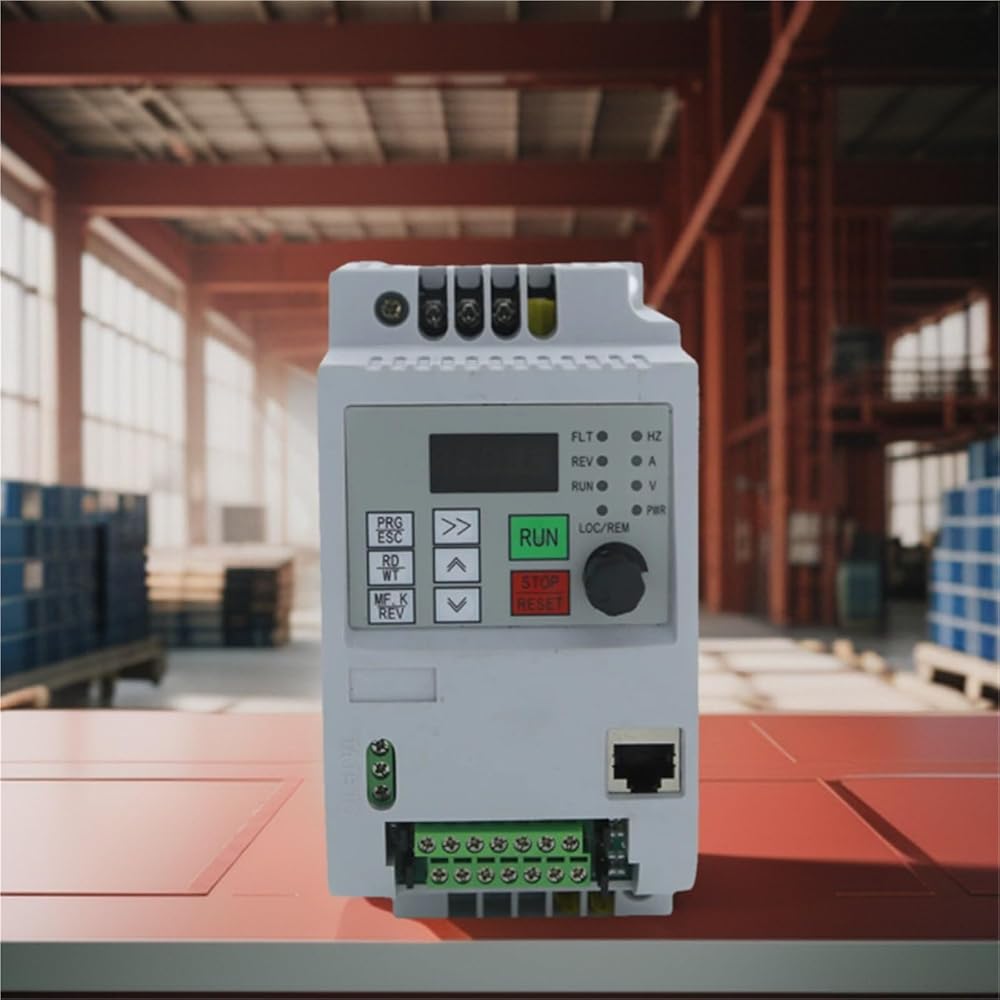

220V 0.75KW / 1.5KW / 2.2KW Frequency inverter
Size: 85mm*125mm*150mm

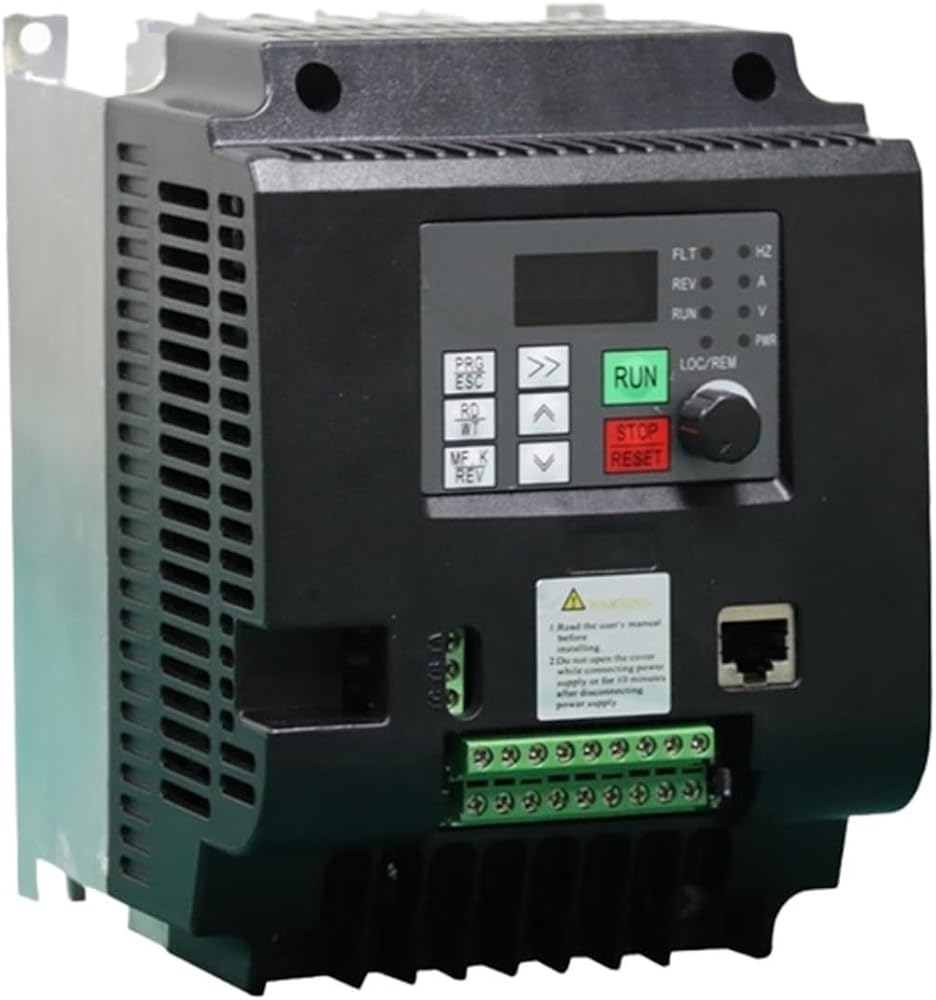

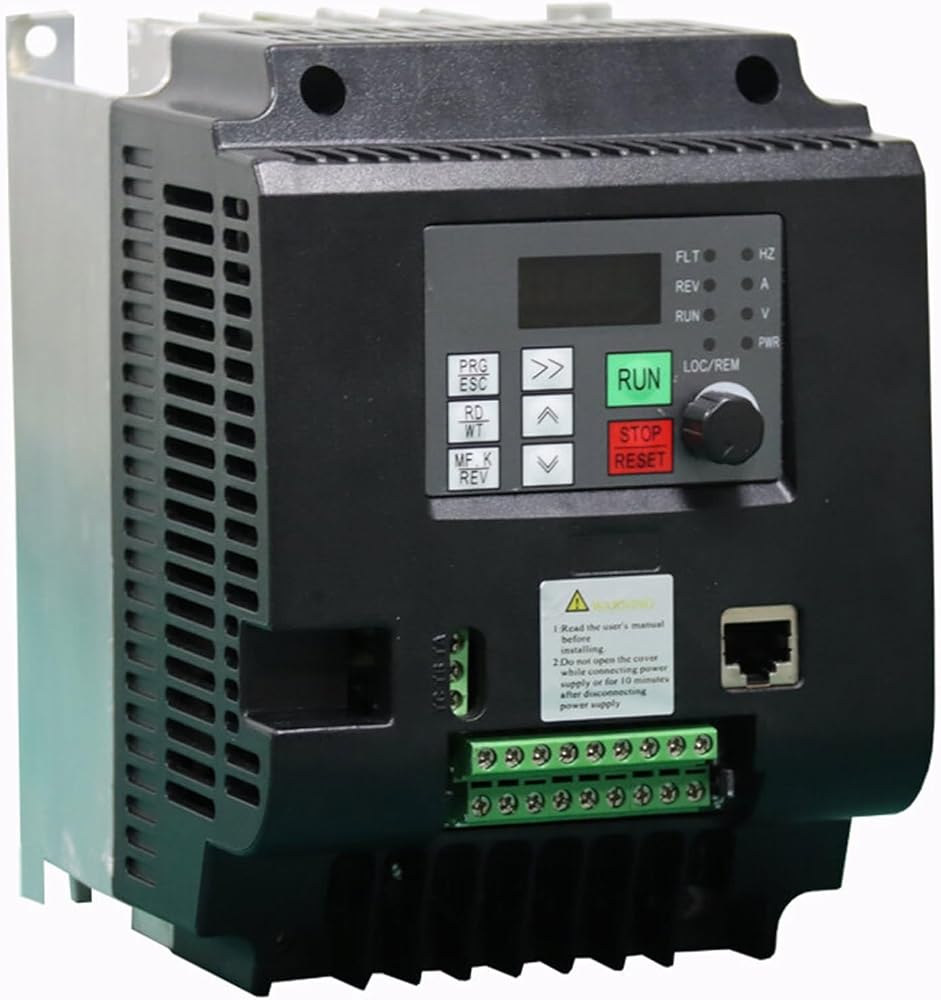

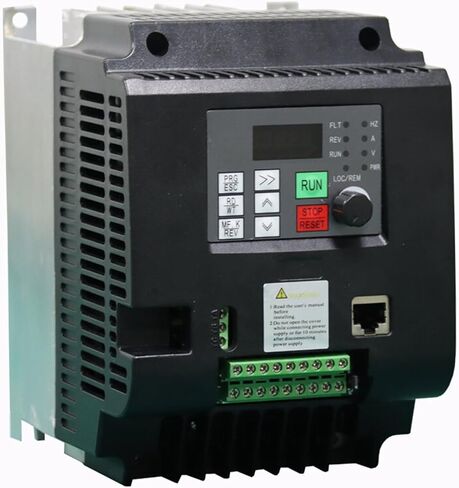

220V 4KW Frequency inverter
Size: 172mm*125mm*165mm

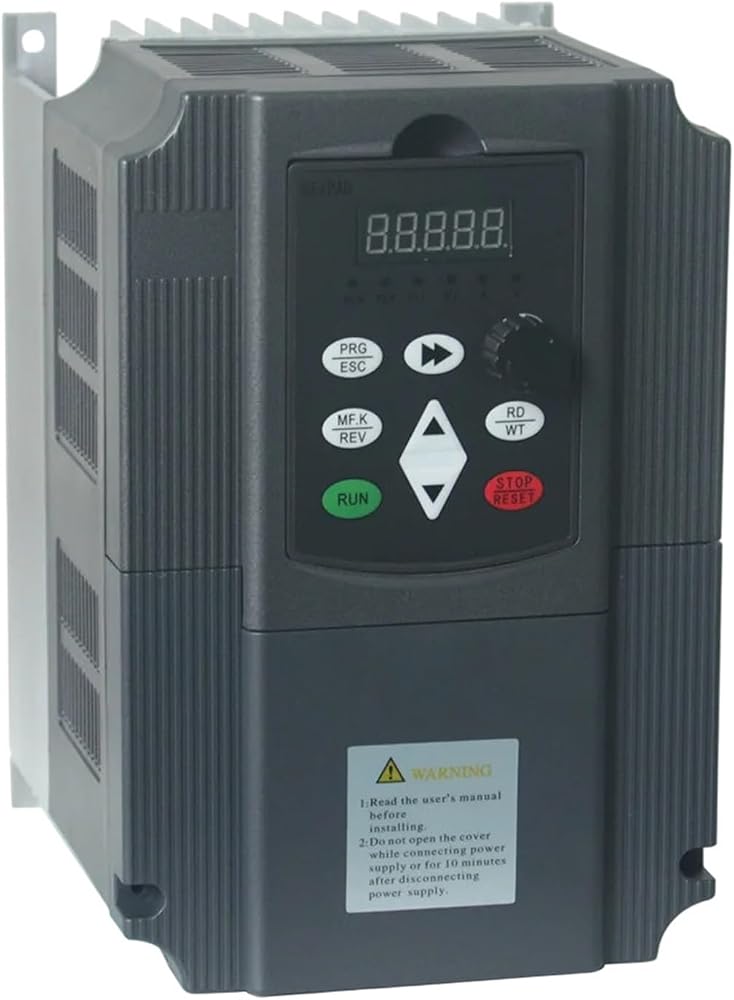

220V 5.5KW / 7.5kw Frequency inverter
Size: 220mm*152mm*179mm
We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems ,frequency inverter are equipped with advanced features as below:
01V/F control, vector controland output torque control;02Built-in RS-485 communication interface03Compact size, easy to install;04With aspeed potentiometer and external panel;05Built-in synchronous control and proportional synchronization control;0616 speed control modest,Can run automatically;07Can choice multiple running commands or frequency ;08Can be achieve Part or all of the keys locked(Analog potentiometer unlock);09Relay normally open or closed and two high configuration output have 100 kinds of ways optional;106 digital opto-isolated inputs, 100 kinds of ways optional;113 analog input, 1analog output ;12Having textile pendulum frequency function, It can be widely applications for many kinds of textileequipment;13Built-in user timer /counter;14Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,pressure and tension.15At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brakefunction,instead foreign inverter application on freight elevator and crane.
==========
Output Current : 4A/7A/10A/16A/20A/30A
Output Frequency : 0-400HZ
Model Number : 9600-1T
Type : DC/AC Inverters
Weight : 1.2KG / 1.7KG / 3KG
Output Type : triple
