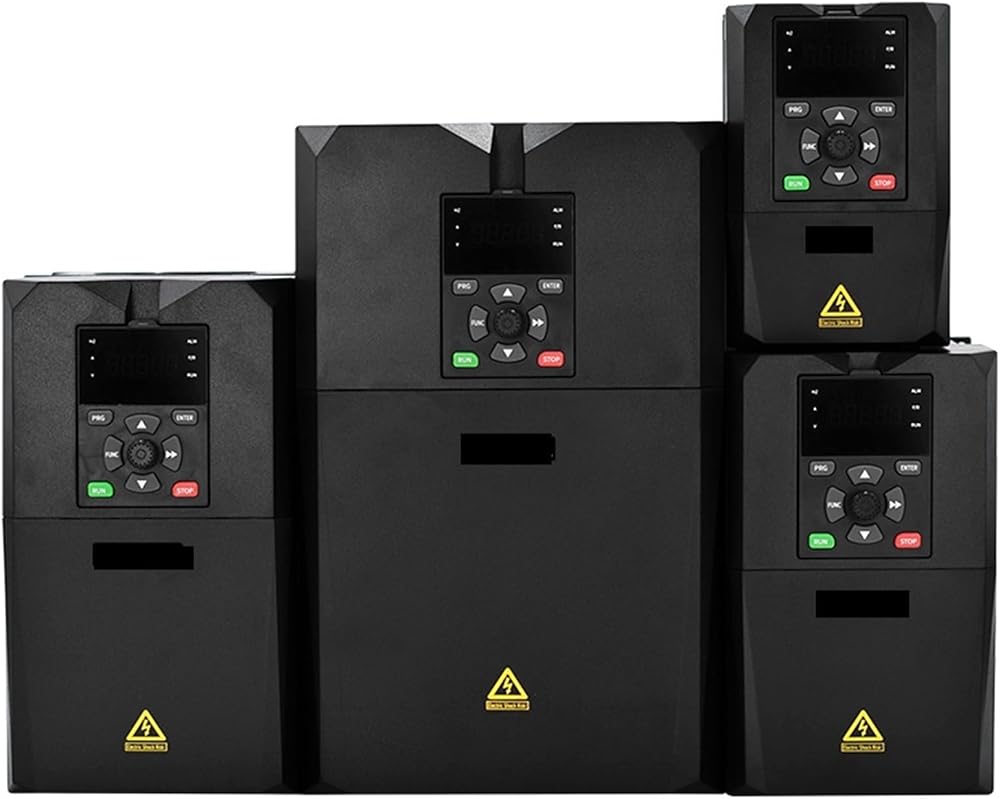

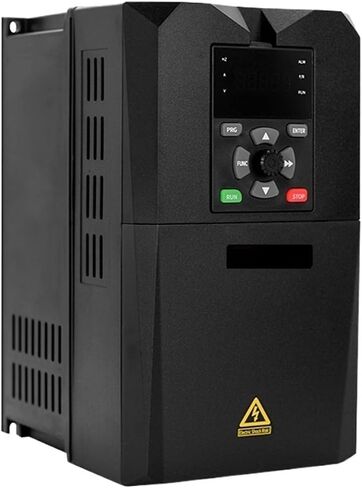

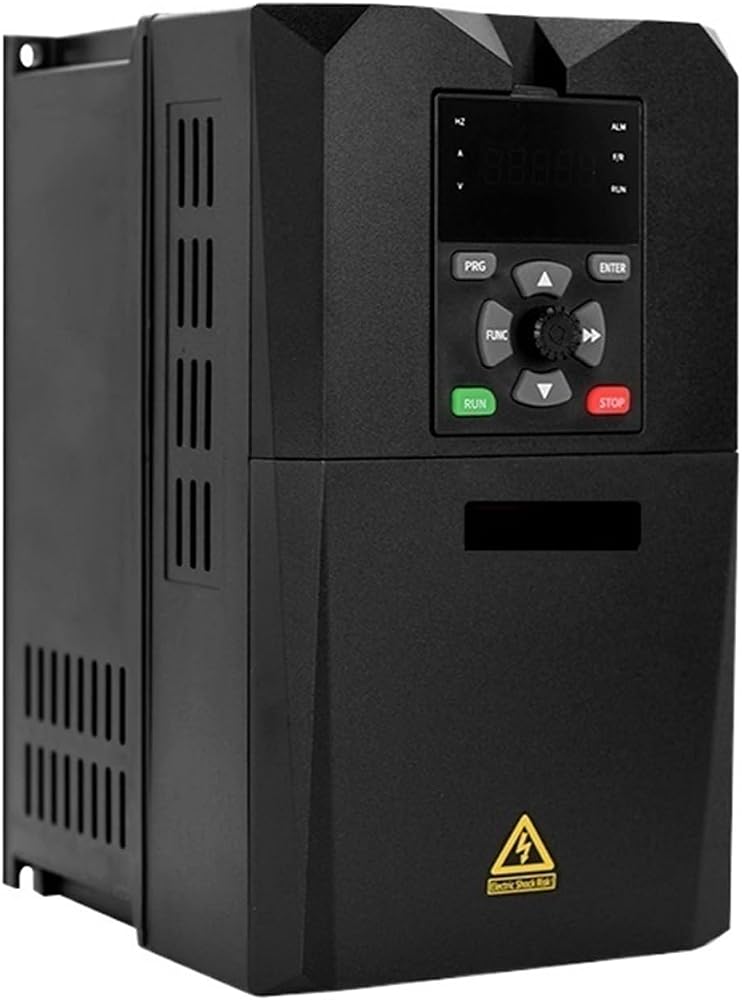

ES510 IGBT Module Heavy Duty VFD Voltage Range:
1>1PH 220V input, 3PH 220V output (0.75-5.5KW);
2>3PH 220V input, 3PH 220V output (0.75-55KW);
3>3PH 380V input, 3PH 380V output (0.75-500KW);
4>1PH 220V input, 3PH 380V output (0.75-22KW)
Characteristics:

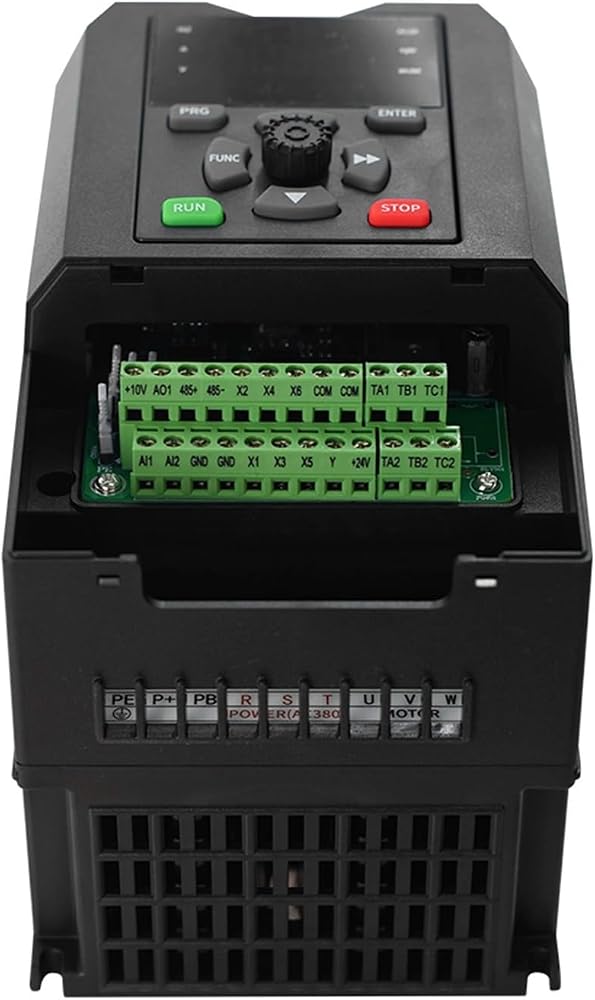

1> 6 Digital Inputs (X1-X6);
2> Modbus RS485;
3> Built-in brake unit (0.75-22KW);
4> 2 Analog Inputs (AI1: 0-10V or 0-20mA; AI2: 0-10V);
5> 1 Analog Output (AO1: 0-10V or 0-20mA);
6> 1 Relay Output (2 Relay Outputs optional);
7> Open Collector Output;
8> MPPT function
==========
Output Current : 17A/25A
Output Frequency : 0-3200Hz
Model Number : ES510
Weight : 3.8kg
Type : DC/AC Inverters
Output Type : triple
Size : 249*143*181mm
Input Voltage : 3phase 380-440V
Output Voltage : 3phase 380-440V
