Phase Monitoring Relays

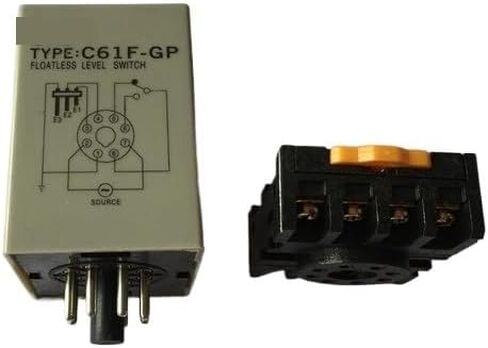

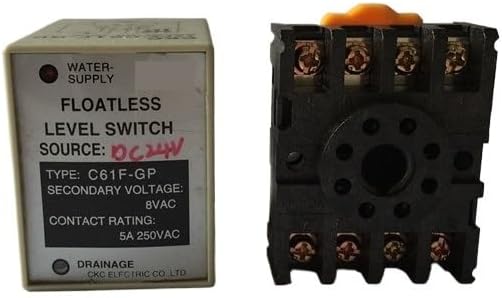

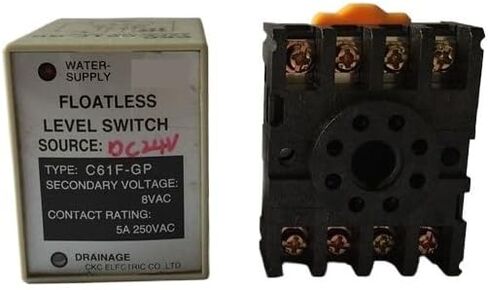

Model number C61F-GP
Rated supply voltage DC 24V, 50/60Hz
Operational voltage range 85% to 110% of rated voltage
Interelectrode voltage 8Vac
Interelectrode operate resistance 0 to approx. 4k
Interelectrode release resistance Approx. 15 k to
Response time Operate: 80 ms max; Release: 160 ms max.
Contact rating 5A at 250Vac
Matched socket PF083A
Life expectancy Mechanical-5x106; Electrical-1x105
Insulation resistance 100 M min. (at 500 Vdc)
Dielectric strength 1500Vac, 50/60 Hz for 1 min
Power consumption Approx. 3.2 VA max
==========
Theory : Time Relay
Size : Miniature
is_customized : Yes
Protect Feature : Epoxy
Usage : General Purpose
Contact Load : Low Power
Model Number : C61F-GP
