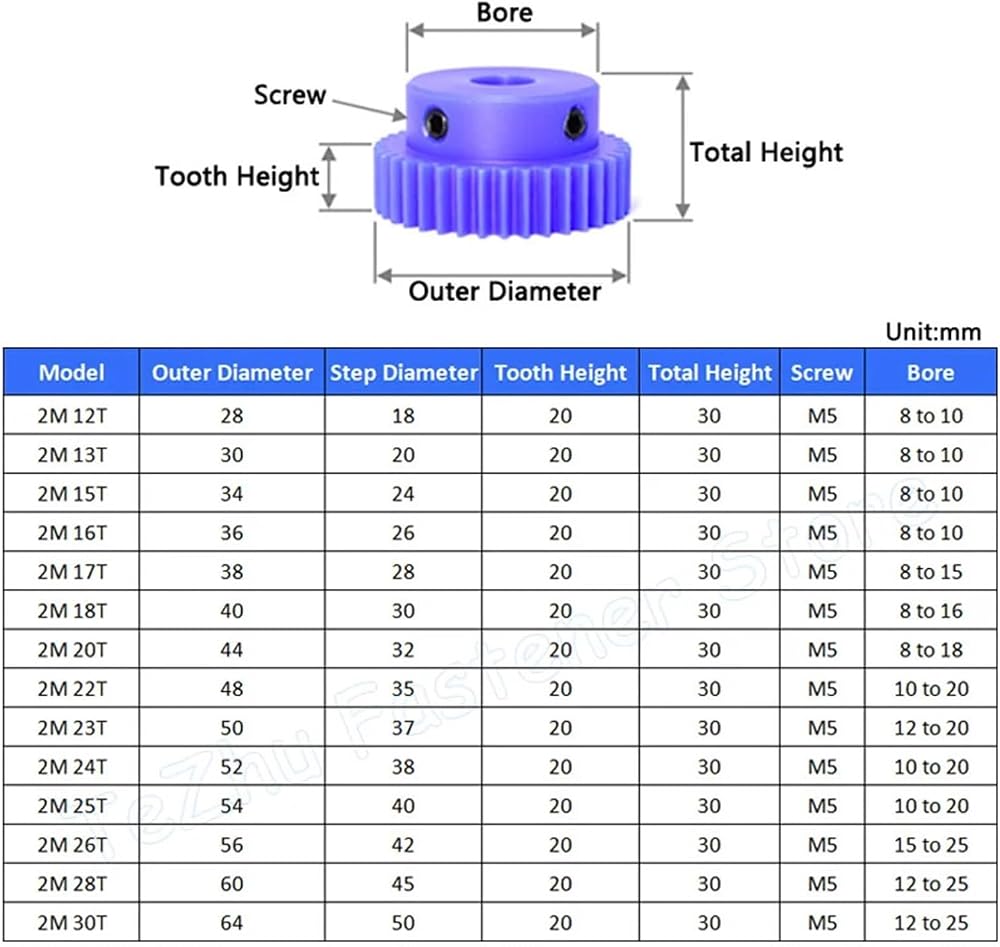

Specification:

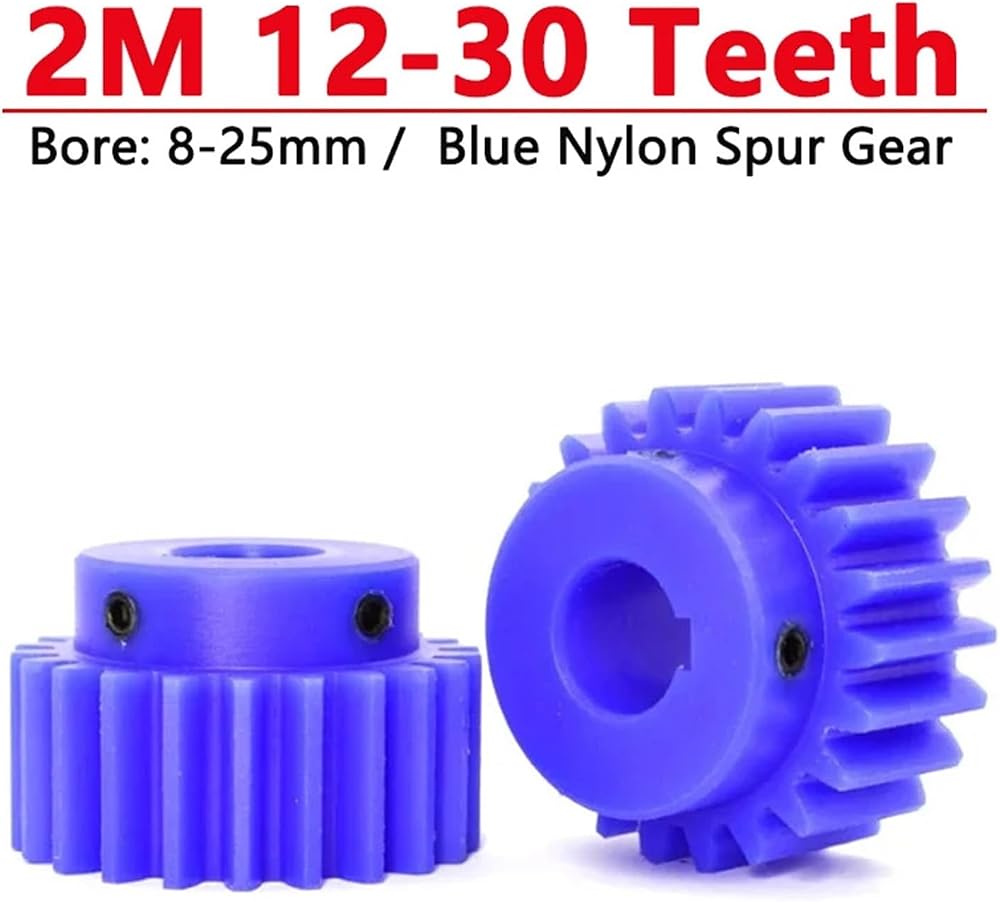

Name: Spur Gear with Step
Material: Blue Nylon (Plastic)
Model: 2M (2 Module)
Teeth:12 Teeth ~ 30 Teeth
Teeth Height: 20mm
Total Height: 30mm

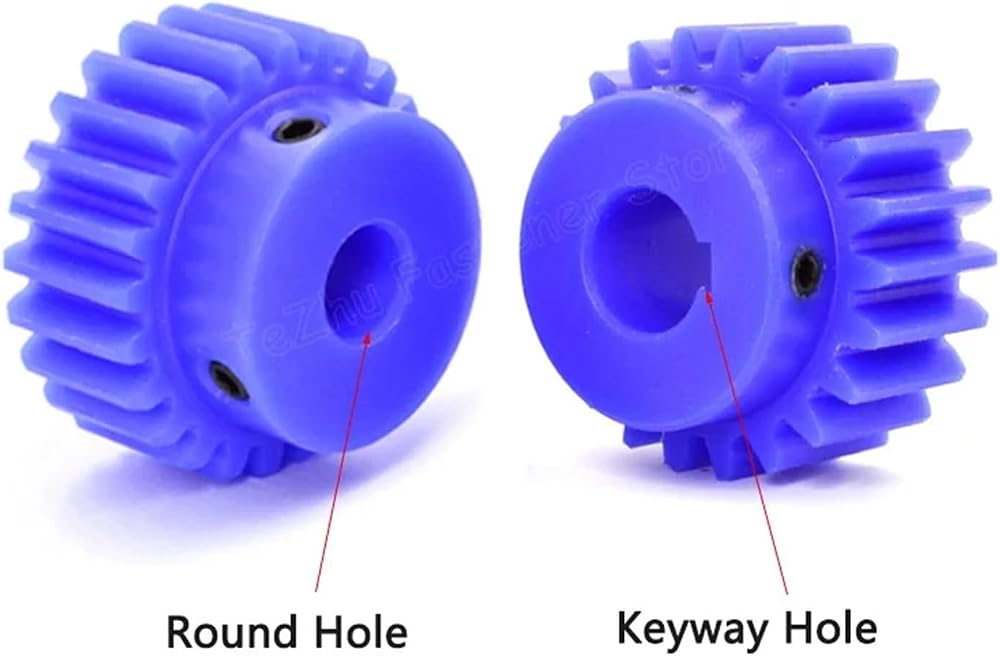

Round Bore: 8/10mm
Keyway Bore:
12mm (keyway 4mm)
14mm (keyway 5mm)
15mm (keyway 5mm)
16mm (keyway 5mm)
18mm (keyway 6mm)
20mm (keyway 6mm)
22mm (keyway 6mm)
24mm (keyway 8mm)
25mm (keyway 8mm)
Screw: M5
Shaft Hole: Machining completed
Tooth Surface Hardness: Soft tooth surface
Features:
Light weight, high strength, self-lubrication, good flexibility and low noise.
Note:
Individual gears may exist a little burr, and does not affect the actual use, please take care if you mind.
Quantity : 1pcs
