Phase Monitoring Relays
Description

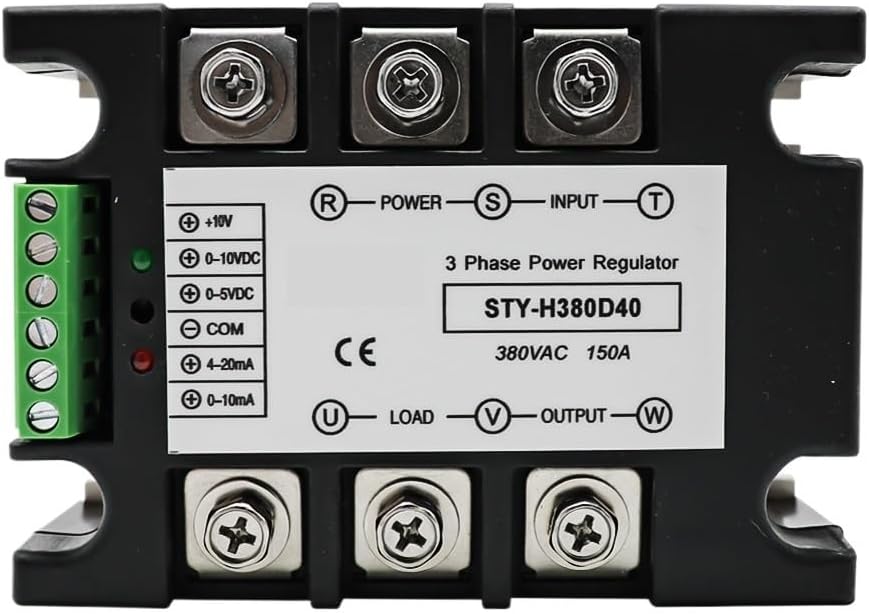

Three-phase intelligent AC voltage regulator module, containing three potential detection, constant current source, linear amplifier, phase shifter, PI control, power amplifier, pulse shaping, high frequency pulse transformer isolation trigger and three sets of inverse parallel controllable silicon chip integration, control loop (weak electric part) and the load loop (high voltage) implementation full isolation, you can use the 10K potentiometer or (1~5V)(4-20mA) voltage signal control, to change the conduction angle of the thyristor, can realize three-phase load voltage from 0V to full voltage adjustable stepless.
Technical Parameters
Circuit Voltage: 380VAC
Power Supply: 10VDC
Adjustment Range: 0~180 °
Potentiometer : 10K
input control: 0~5VDC 4-20mA
Note: The type of voltage regulating module is not suitable for inductive loads such as transformers and motors.
==========
Hign-concerned Chemical : None
Power Source : AC
Theory : Solid State Relay
Protect Feature : Sealed
is_customized : Yes
Usage : Protective
Contact Load : High Power
Model Number : STY-H380
Voltage : 380V
