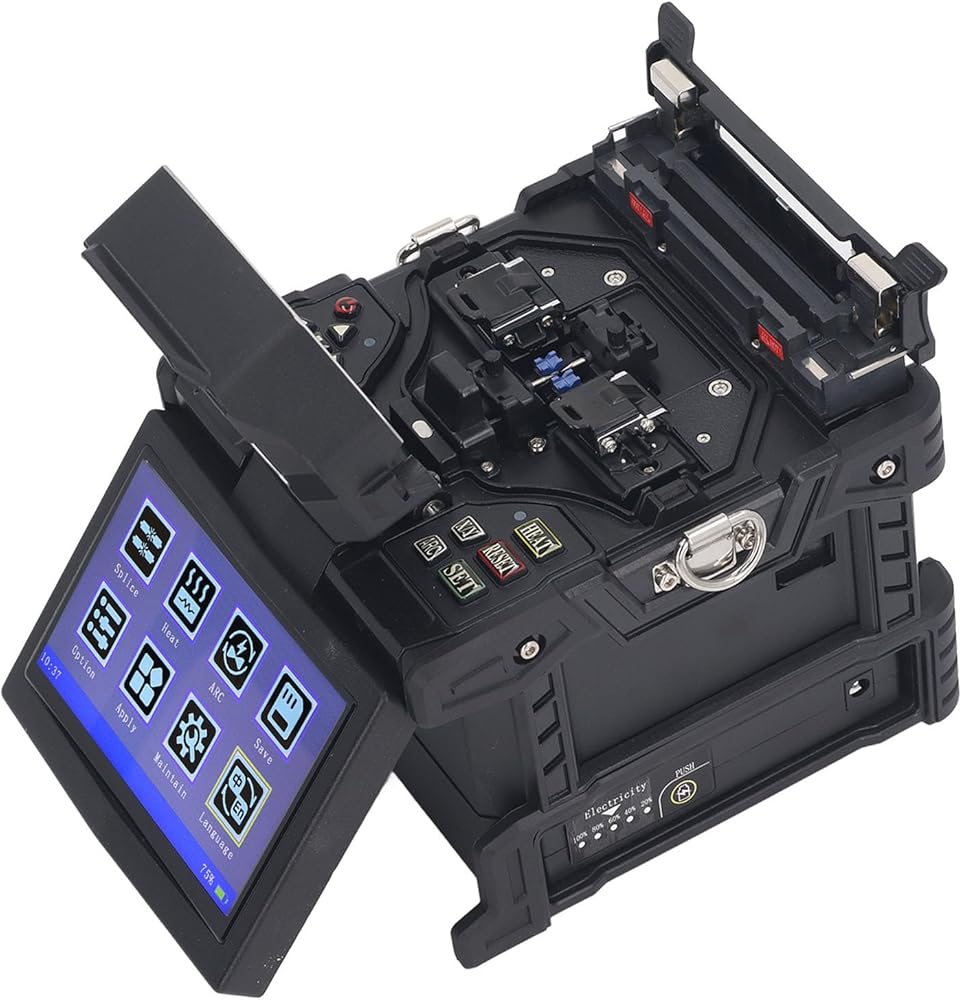

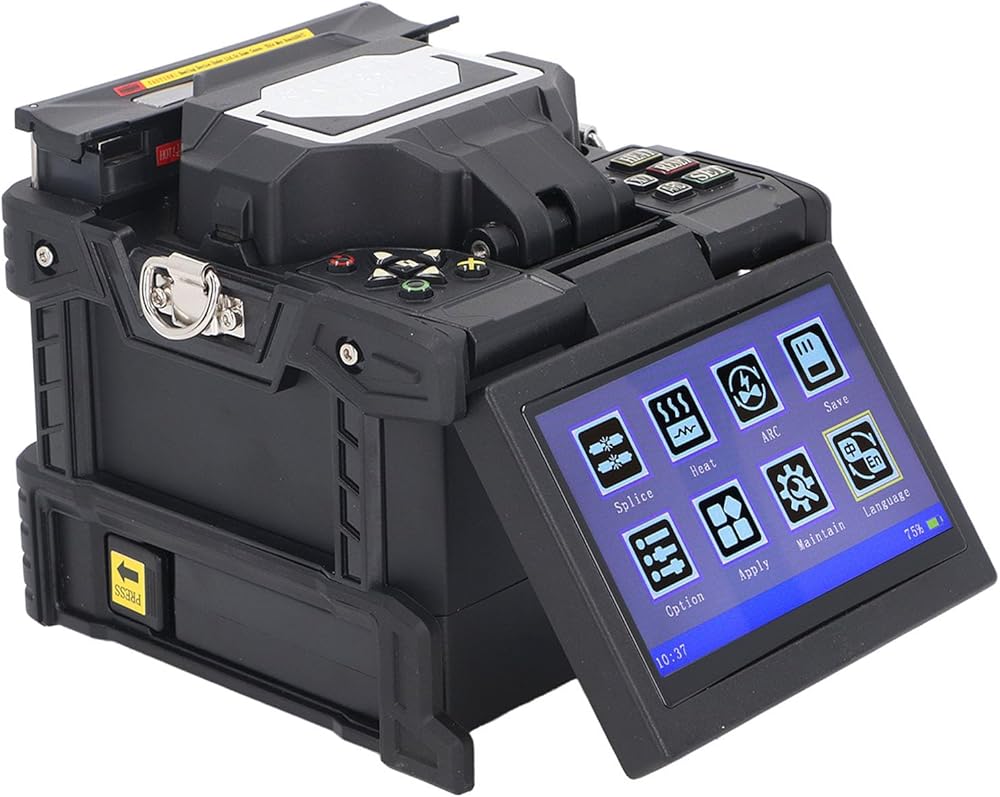

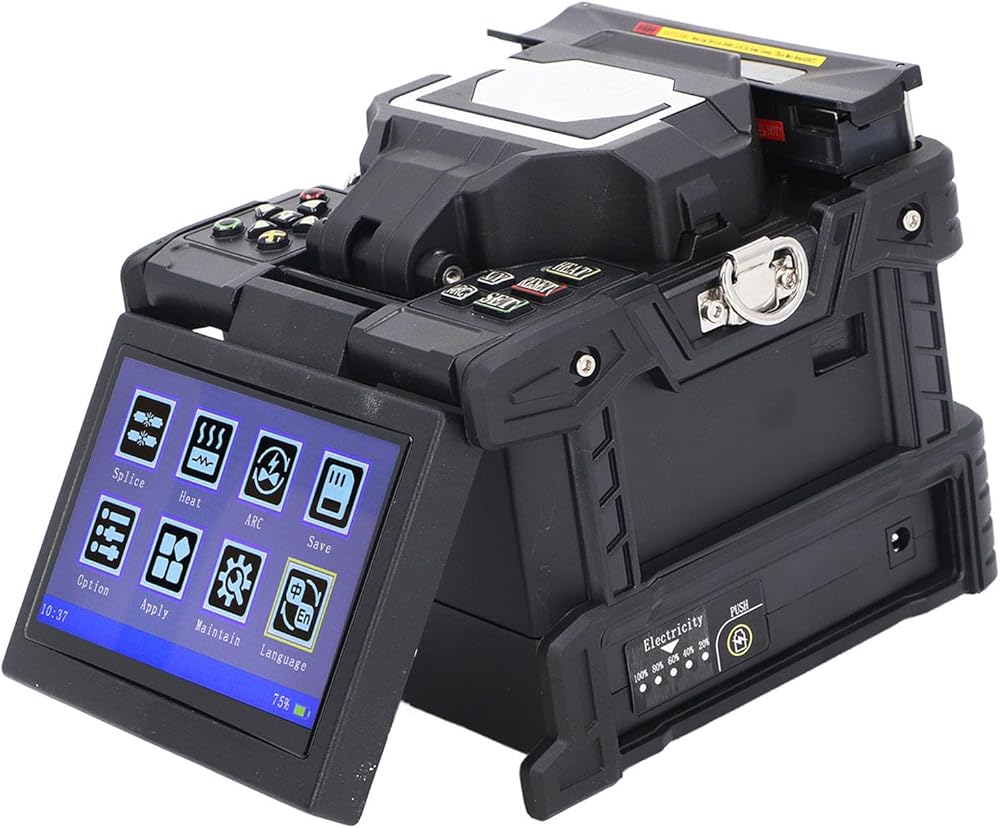

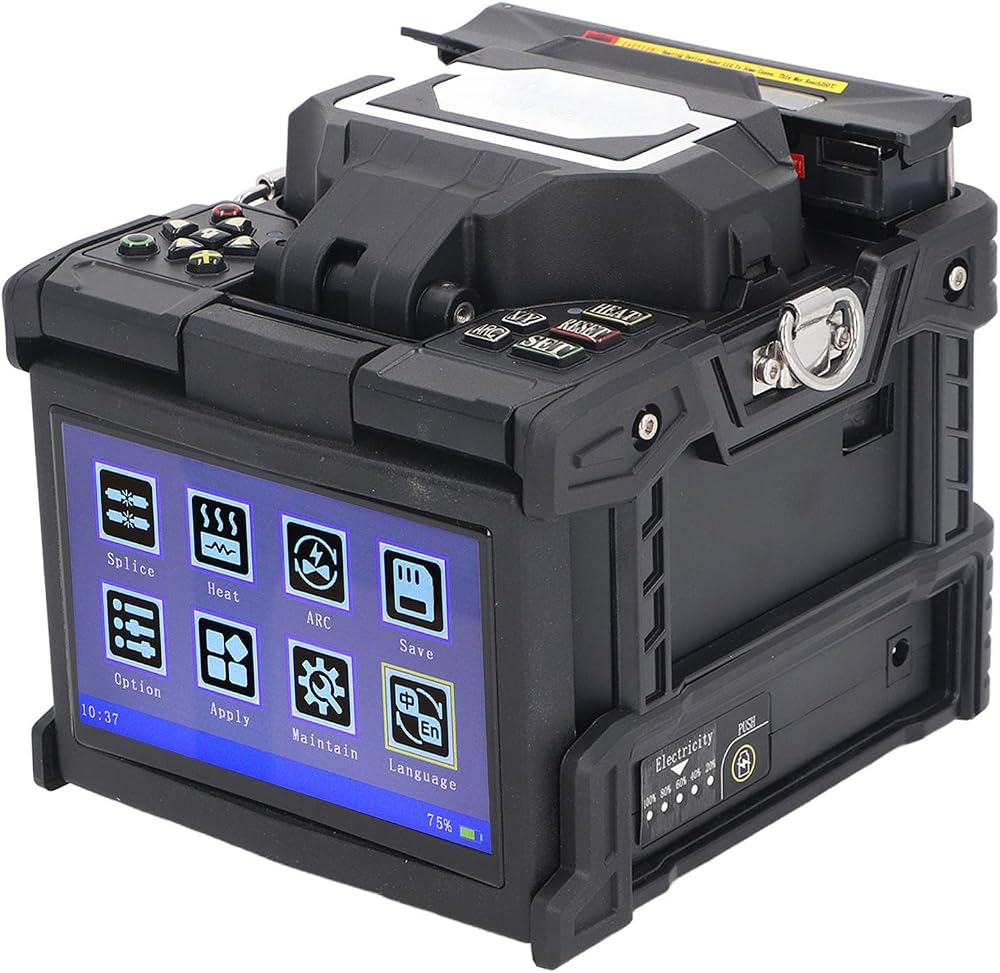

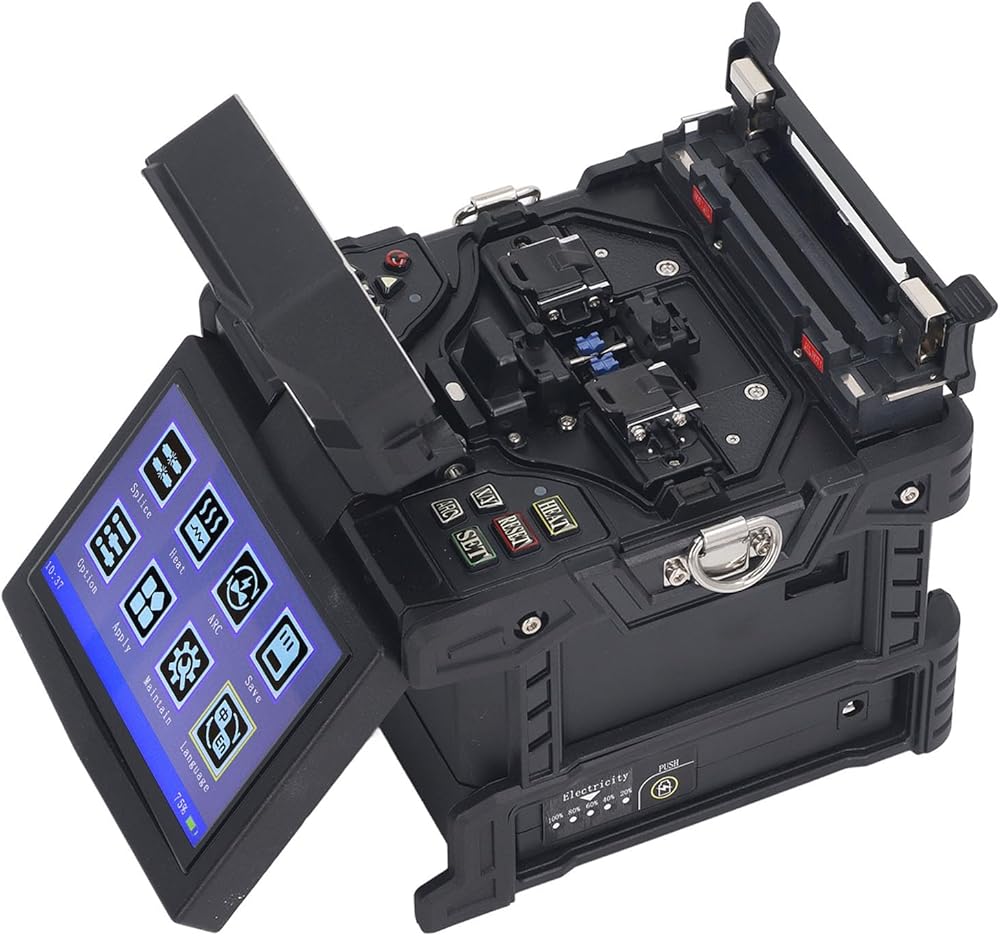

1. CONVENIENCE: Equipped with a 5 inch 800X480 high resolution screen, with a maximum magnification of 400 times, making the fiber splicer easy to observe loss and cutting angles at a .
2. LED LIGHT: Built in LED illumination at the position, allowing for easy fiber work in low light or nighttime conditions.
3. FOLDABLE STOOL AND LANGUAGES SUPPORT: Comes with a foldable stool to reduce work fatigue. The system supports multiple languages including Chinese, English, Spanish, Portuguese, French, Russian, and Italian.
4. FAST SPEED, LOW LOSS: Quick splice in 9 seconds, rapid heating in 26 seconds, with adjustable heating time and temperature. You can complete your work more accurately.
5. WIDE APPLICATION: Three in one fiber fixture, automatic for various fiber types including , MM, bare fiber, jumper fiber, rubber insulation, and multi core cables. Widely used in fiber to the home, monitoring, security, and fiber projects. Suitable for of single mode multi mode fibers, patch cords, jumpers, tail fibers, and optical cables.

Specification:

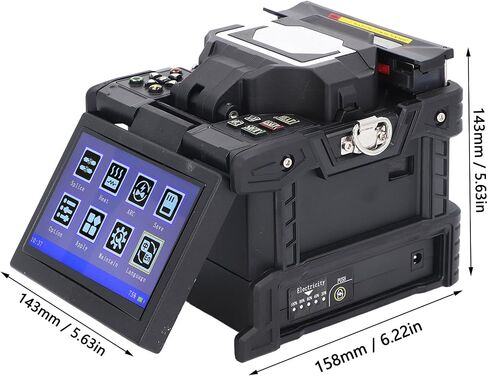

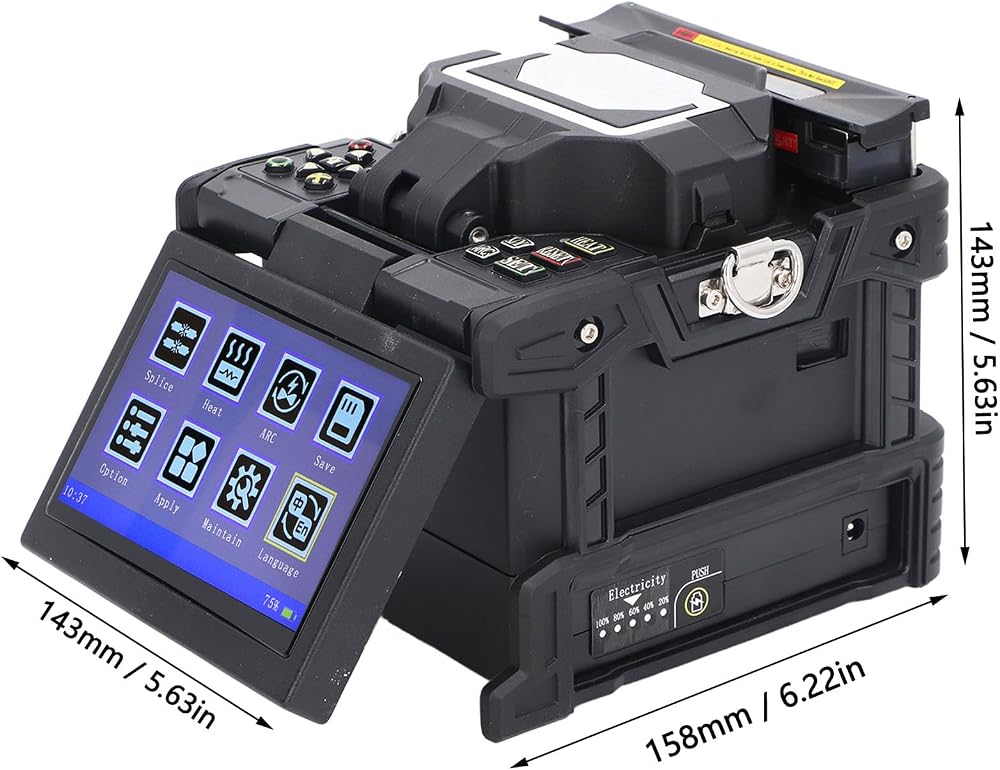

Item Type: Fiber Splicer
Material: Aluminum Alloy, ABS
Applicable Fiber: (G.652 and G.657), MM(G.651), DS(G.653), NZDS(G.655) and custom fiber types
Connection Loss: 0.02dB (), 0.01dB (MM) 0.04dB (DS/NZDS)
Return Loss: Better than 60dB
Typical Connection Time: 9 seconds
Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber Alignment: Fine alignment, core alignment, cladding alignment
Fiber Diameter: Cladding diameter 80 to 150μm, coating layer diameter 100 to 1000μm
Cutting Length:
Coating Layer below 250μm: Approx. 8 to 16mm / 0.31 to 0.63in
Coating Layer 250 to 1000um: Approx. 16mm / 0.63in
Tension Test: Standard 2N
Optical Fiber Jig: Multifunctional jig, applicable to bare fiber, pigtail, jumper, leather wire; The replacement fixture can be applied to SC and other connectors for various FTTx fiber optic cables
Magnification: 400x (X or Y axes)
Heat Shrink Bushing: 60mm, 40mm and a series of miniature bushing
Display: 5.0 inch TFT color LCD display with reversible contents for easy two way operating
External Interface: USB interface, easy to download data software update
Welding Mode: 17 groups of use mode
Heating Mode: 9 group use mode
Connection Loss Storage: 5000 latest connection results are stored in the internal memory
Battery Life: Continuous welding, heating not less than 200 times
Power Supply: 1 x 6700mAh rechargeable li battery, charging time ≤3.5H; (Shipped with battery)
Power Saving Function: Can save 15% li battery power under typical environment
Working Environment:
Temperature: -10 to +50℃
Temperature: Working Altitude: Approx. 0 to 5000m / 0 to 16404.2ft
Maximum Wind Speed: 15m/s
Lighting Function: Easy to place optical fiber at night

How to Use:
Install and use!

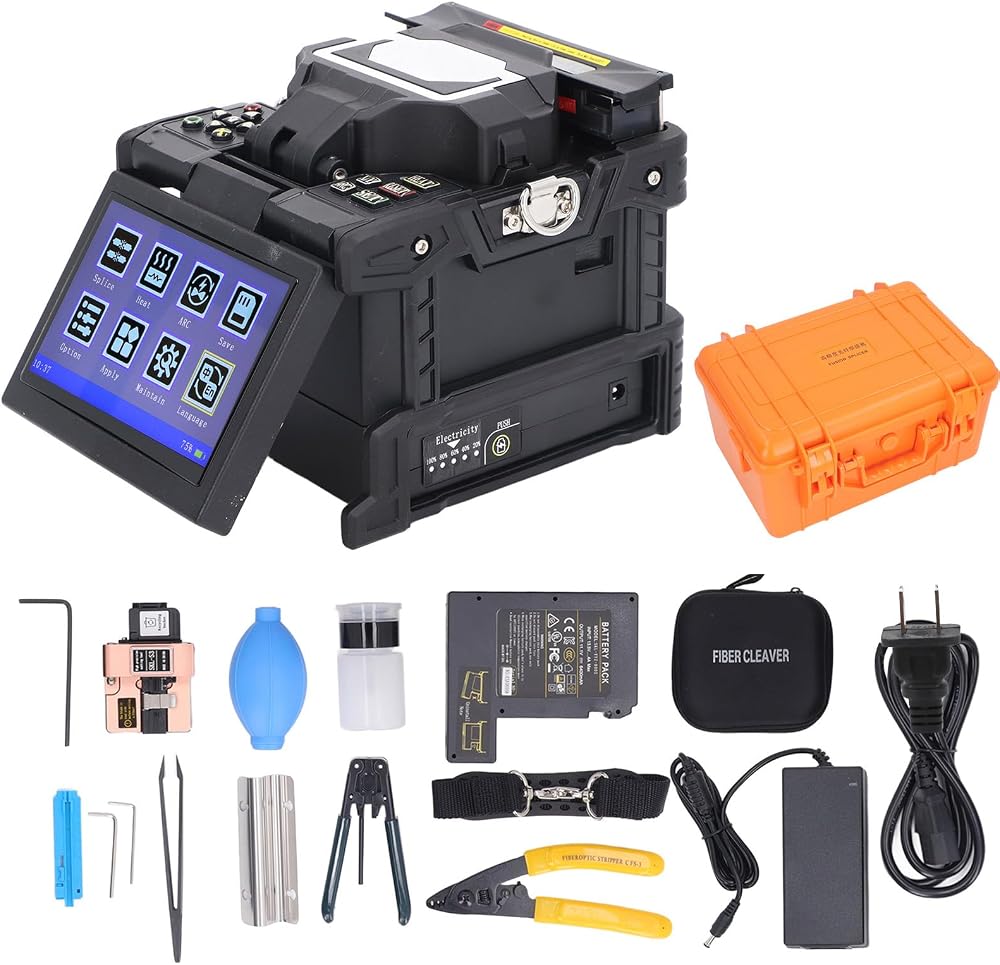

PackageList:
1 x Optical Fiber Splicer
1 x Battery for Optical Fiber Splicer
1 x User Manual for Optical Fiber Splicer
1 x Carrying Strap for Optical Fiber Splicer
1 x Fiber Cutting Knife (Random Color)
2 x Wrench for Fiber Cutting Knife
1 x Storage Box for Fiber Cutting Knife
1 x User Manual for Fiber Cutting Knife
1 x Green Wire Stripping Pliers
1 x Yellow Three Mouth Pliers
1 x Adjustment Wrench Pliers
1 x Fiber Length Fixer
1 x Power Adapter
1 x Power Cord
1 x Bottle
1 x Balloon
1 x Brush
1 x Tweezers
1 x Hanging Fiber Tray
1 x Storage Box
