1. Good machining makes it less rough and noisy than other gears, making it roll smoothly.
2. Small size, light weight, easy to carry, easy to install, with good performance.
3. Widely used in agricultural equipment, textile machinery, printing machinery, mechanical transmission and other industries that need to be driven by steering.
Specification:

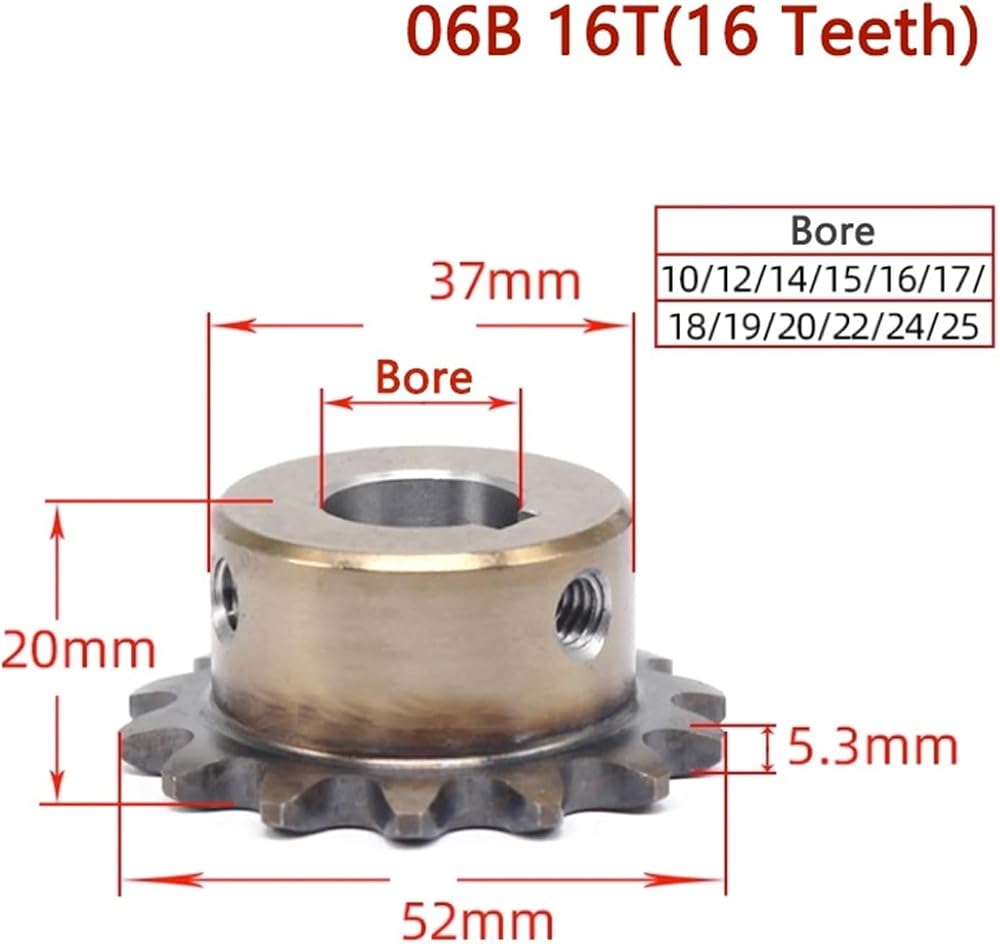

Name: 06B Precision Industrial Drive Sprocket Wheel
Type: Sprocket with Step
Material: 45# Steel
Tooth Surface Treatment: High Frequency Quenching and Tempering of Teeth
Tooth Surface Hardness: HRC40-50
Pitch: 9.525mm
Number of teeth: 16 Teeth
Keyway Bore: 10mm (keyway 3mm),12mm (keyway 4mm),14/15/16/17mm (keyway 5mm),18/19/20/22mm (keyway 6mm),25mm (keyway 8mm)
Application: Used in Various Mechanical Transmission Parts
Note:
1. Sprocket dimensions (such as bore, total thickness, step outer diameter, etc.) may vary slightly due to batch differences, and specific parameters prevail in kind.
2. Screws and key pins are purchased separately.
