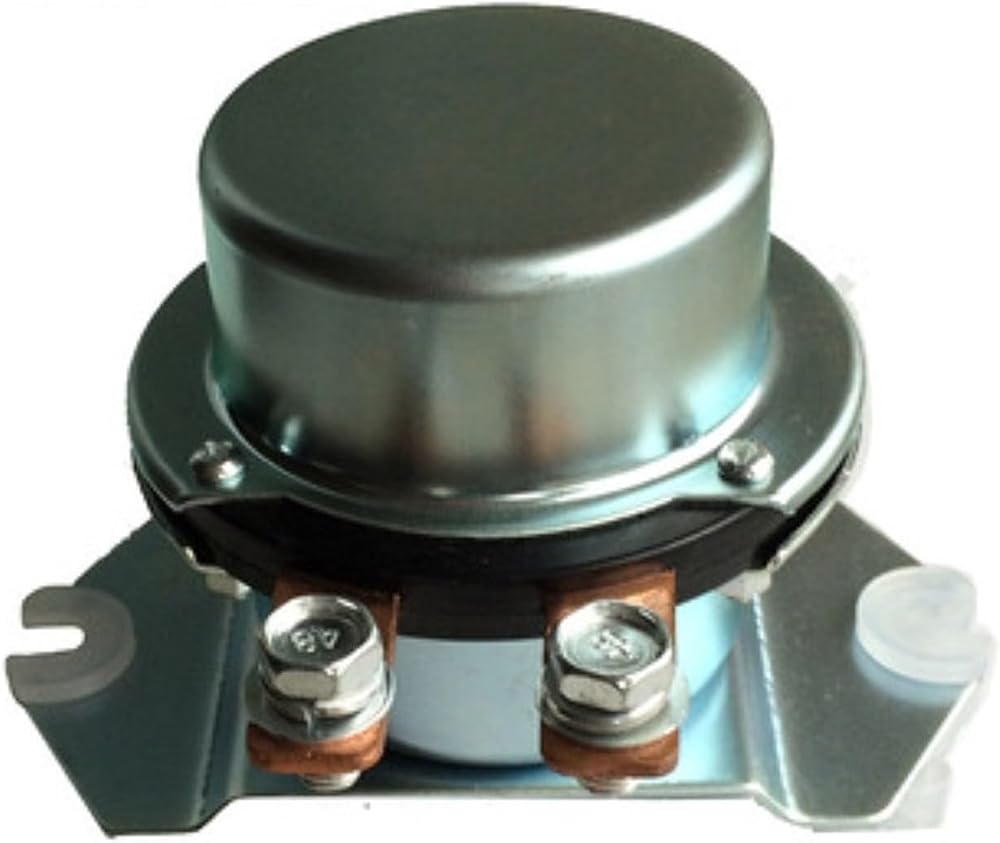

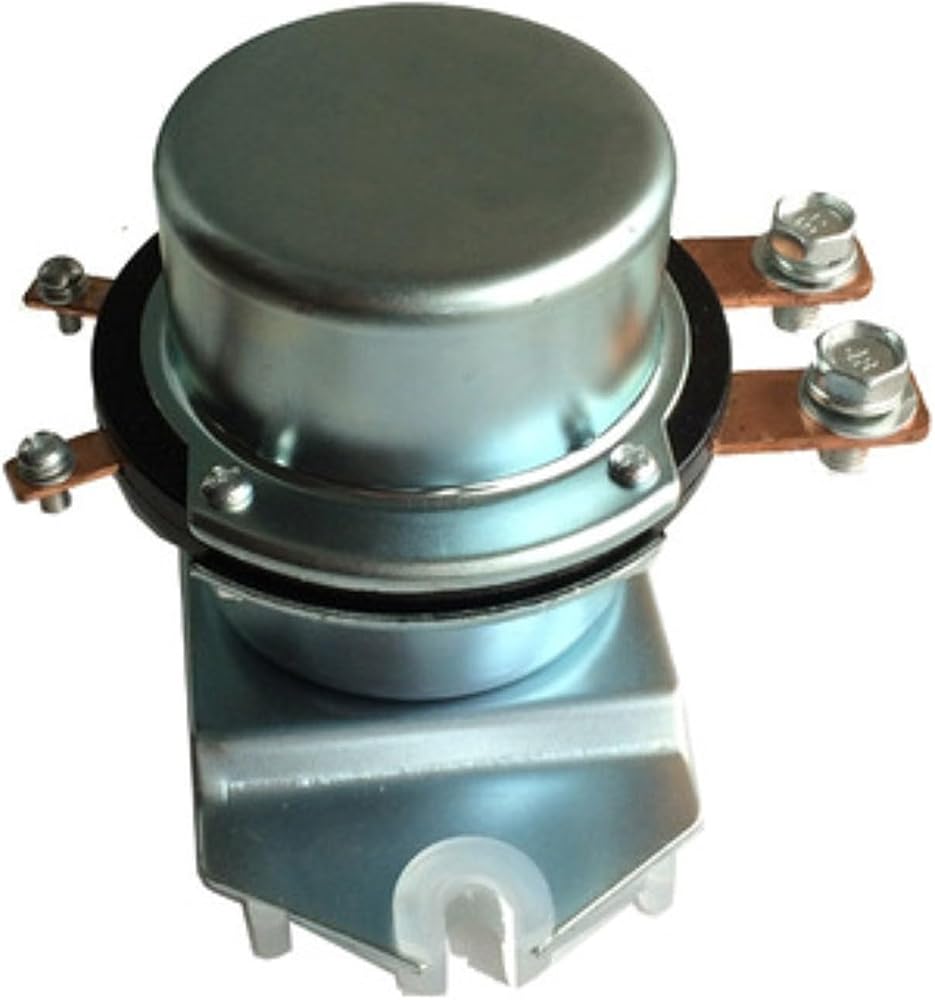

Product parameters
Main contact rated current: 100A/300A Main contact contact voltage drop: When passing 100A/300A load, 80mV Dielectric performance: 1000V, power frequency. 1min does not breakdown
Main contact rated voltage: 6~48V DC coil rated voltage (Us); 6~220V short-time overload capacity: 4le, 1min
Ambient temperature; (-25~50) °C Atmospheric pressure: 2000M Vibration: 2~10Hz, amplitude: 5mm; 10~50Hz, acceleration 2.5g
Work system: continuous installation; arbitrary
Electrical life; 50,000 times Main contact type: A set of normally open contacts
Mechanical life; 300,000 times
Coil parameter table
Specifications Coil current (A) Pull-in voltage ±5% (V) Release voltage ±5% (v) Whole temperature range pull-in (v) Release (V) Pull-in time Release time
12 0.8 7.5 2.1 8 1.2 30 30
24 0.45 15.2 3.8 16 2.4 30 30
