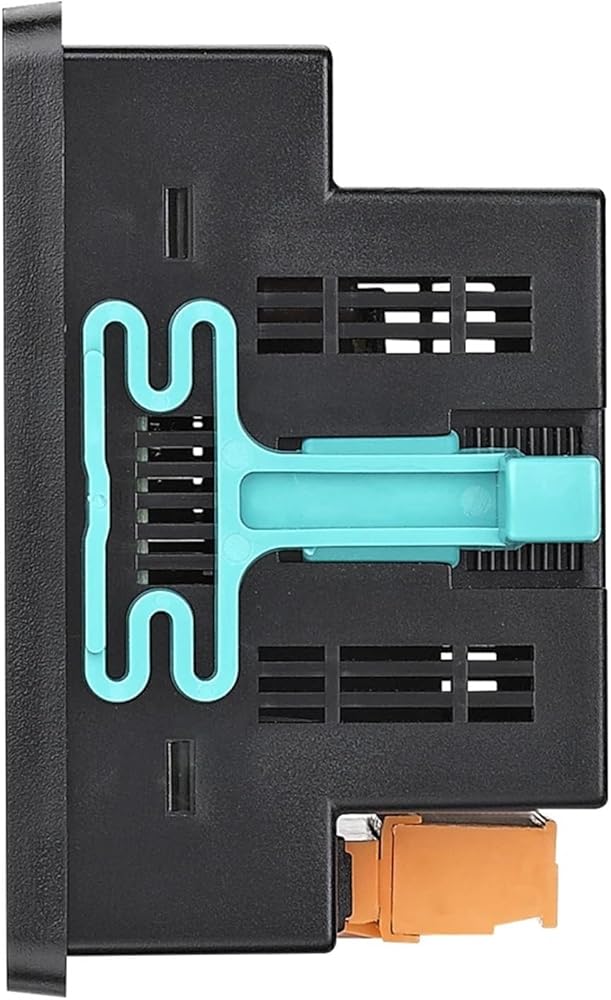

Relays / Phase Monitoring Relays
Operating Voltage(Un).......: 85V - 240V AC
Operating Frequency..........: 50/60 Hz.
Operating Temperature.....: -20°C.....+55°C
Voltage Input......................: 5V ~ 330V AC
Voltage Range..........: 5V ~ 330kV
Current Range...........:
50mA-10000A(EM-07/E)(With Standard C.T)

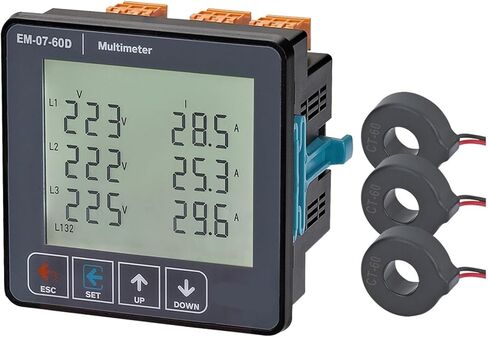

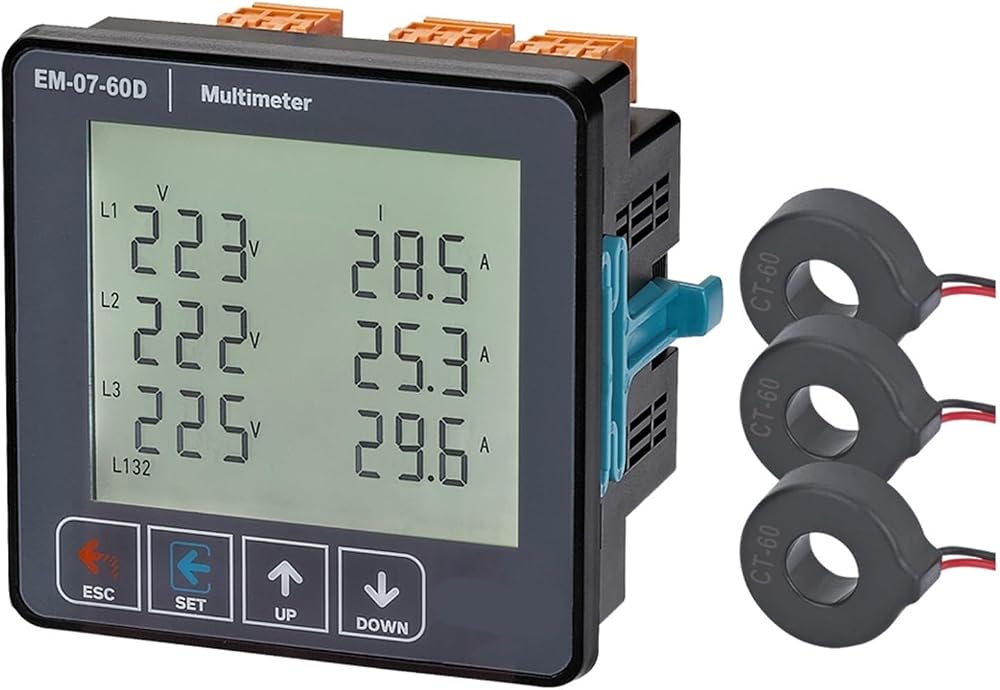

1~63A(EM-07-60D),

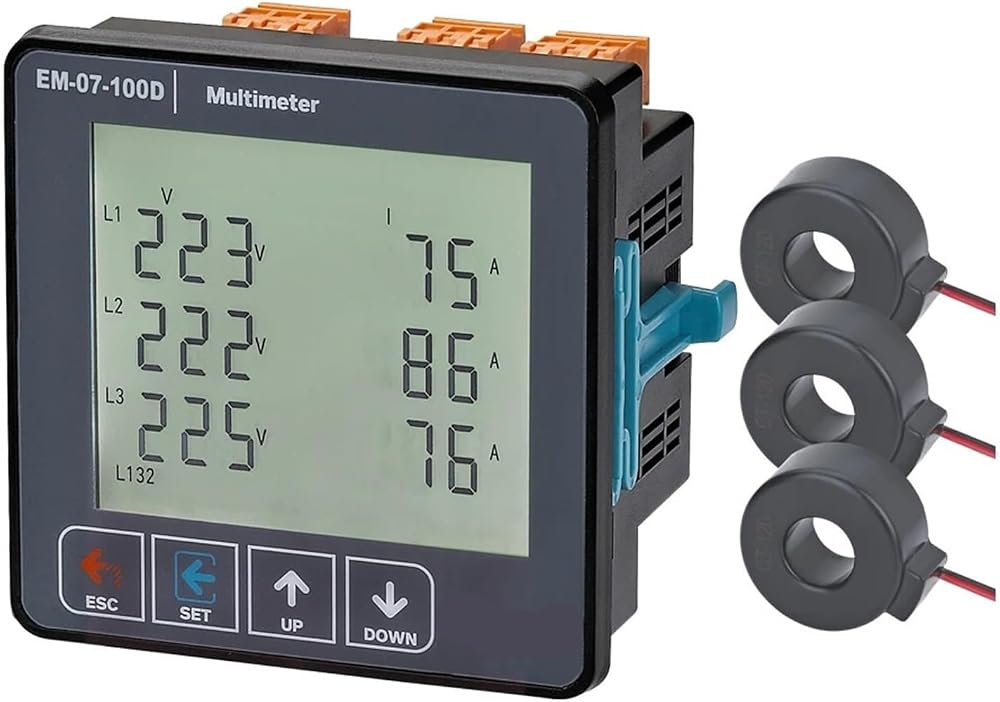

10~100A(EM-07-100D),

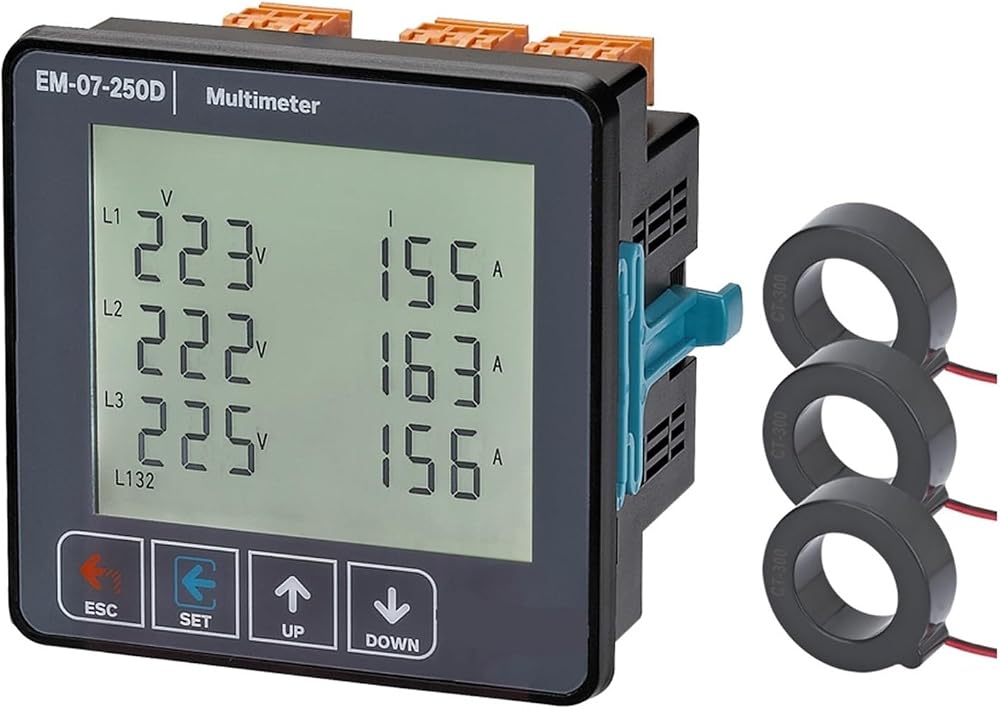

10~250A(EM-07-250D)
Voltage, Current Accuracy...:%±1
Supported Connection.........:3P4W
Current Transformer Ratio..:1,0...2000(EM-07/E)
Voltage Transformer Ratio....:1,0....999,9
Communication....:RS485 RTU
Display....:71.5 x 61.5mm Glass
Output..:2A / 250V AC(Resistive Load)
Protection Class..:IP41(Font Panel), IP20(Body)
Panel Hole Sizes....................:91mm x 91mm
Connection Type.................: Plug-in terminal
Cable Diameter....................: 1,5mm²
Mounting............: Mounting on panel front cover
Dimensions
Connection Diagram
