Relays / Phase Monitoring Relays
Specifications
Operating Voltage :(A1-A2)100-240VAC
(A2-A3)12VAC/DC(A2(-),A3(+))
Operating Frequency : 50/60 Hz.
Operating Temperature..: -20°C.....+55°C
Time interval. : 0.1sec, - 99min.(DRV-09D)
0.1hours - 99days(DRV-09)
Display:. 2x2 LED Display, 1x LED.
Connection Type..........: Terminal connection
Weight .: Max.80gr.
Contact.. 5A/250V AC (Resistive Load)
Mounting... : Assembled on the din rail
Cable Diameter. : 2,5mm²

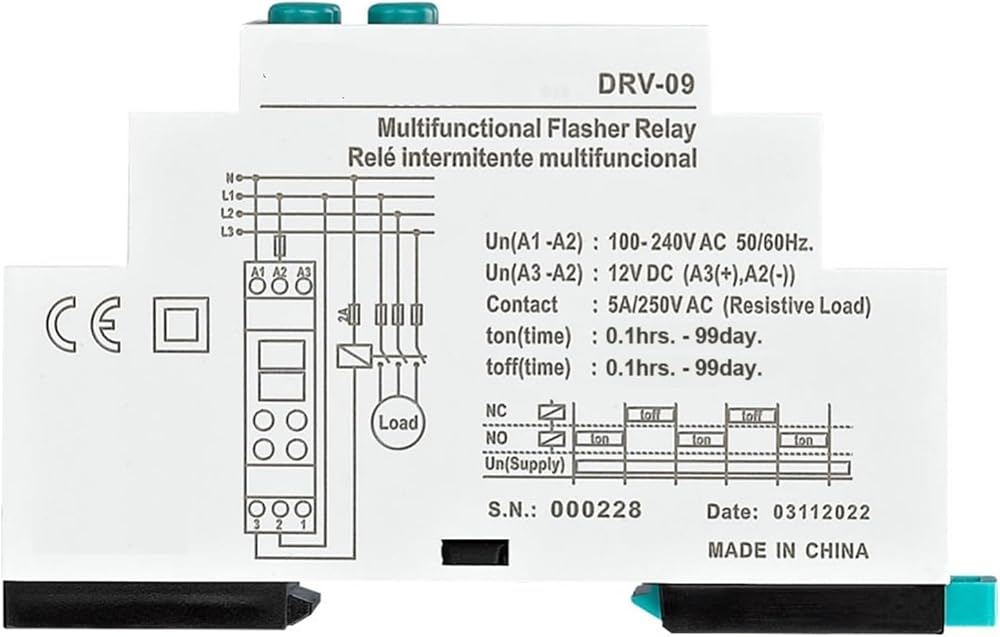

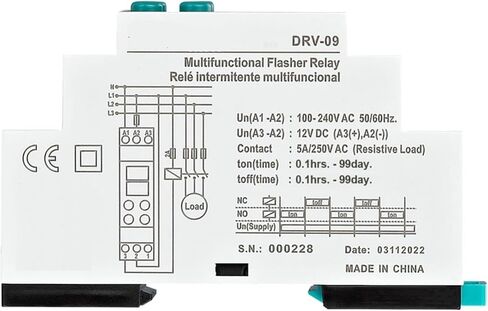

Connection diagram
Theory : Time Relay
Protect Feature : Sealed
Usage : General Purpose
Contact Load : Low Power

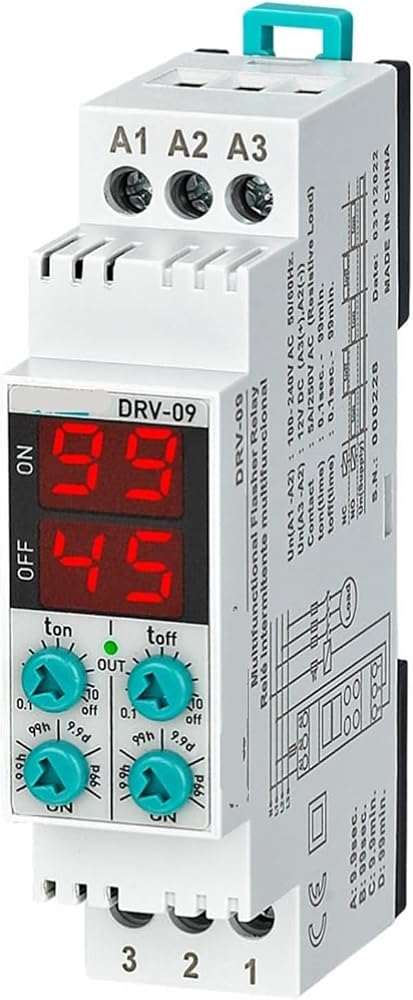

Model Number : DRV-09, DRV-09D
Mode : On/Off Delay
Tpye : Time relay
Display : Digital
Accuracy : ±1%
