Relays / Phase Monitoring Relays
Specifications
Operating Voltage(Un)....: 3 x 380V AC
Operating Frequency... .: 50/60 Hz.
High Voltage (U>). : 400V - 460V
Waiting (t)..... .: 0,1sec - 10sec.
Operating Temperature..: -20°C.....+55°C
Display.. .: Power led, Relay led, High volt
led, Low volt led, Three leds of phase to
phase.
Connection Type. .: Terminal connection
Contact.. .:5A/250V AC (Resistive Load)
Cable Diameter... .: 2,5mm²
Weight.. .: Max. 210gr.
Mounting : Vertical assembled in
the panel or assembled on the din rail
Power Source : AC
Theory : Voltage relay
Protect Feature : Sealed
Usage : Protective
Contact Load : High Power

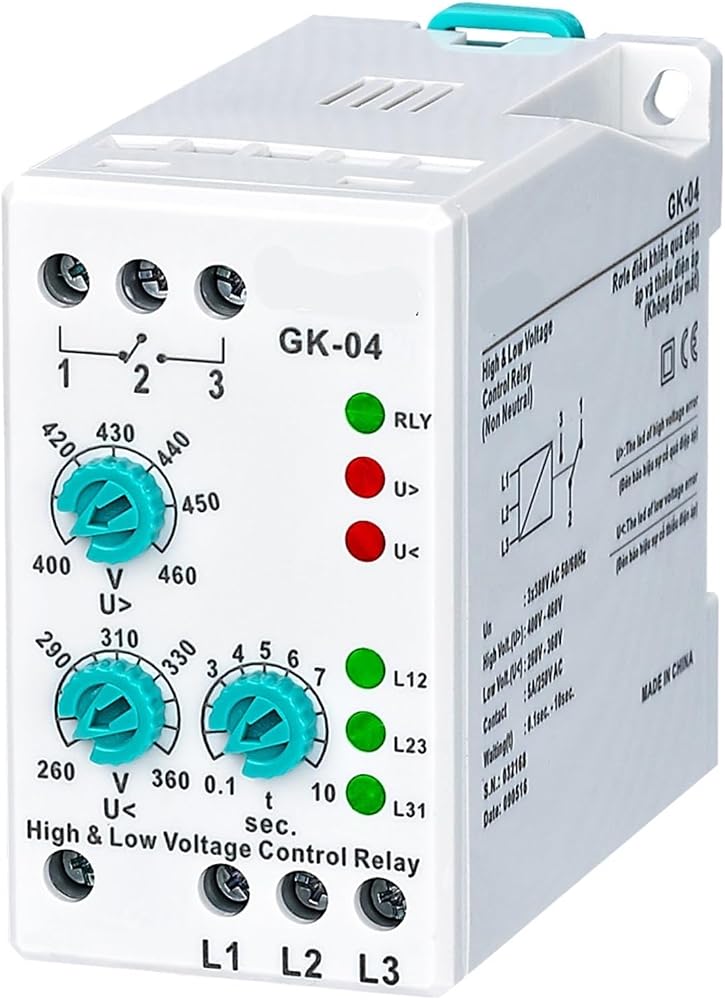

Model Number : GK-04
Voltage : 380V
Protection Item 1 : Overvoltage
Protection Item 2 : undervoltage
Protection Item 3 : Phase failure
