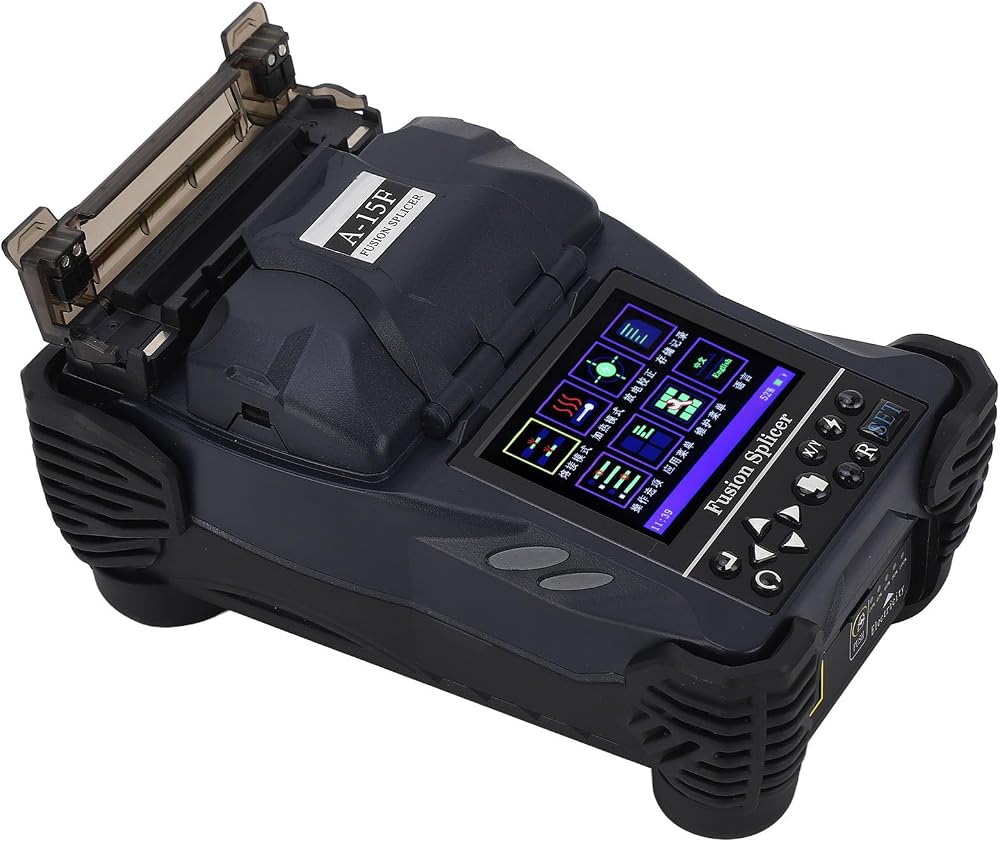

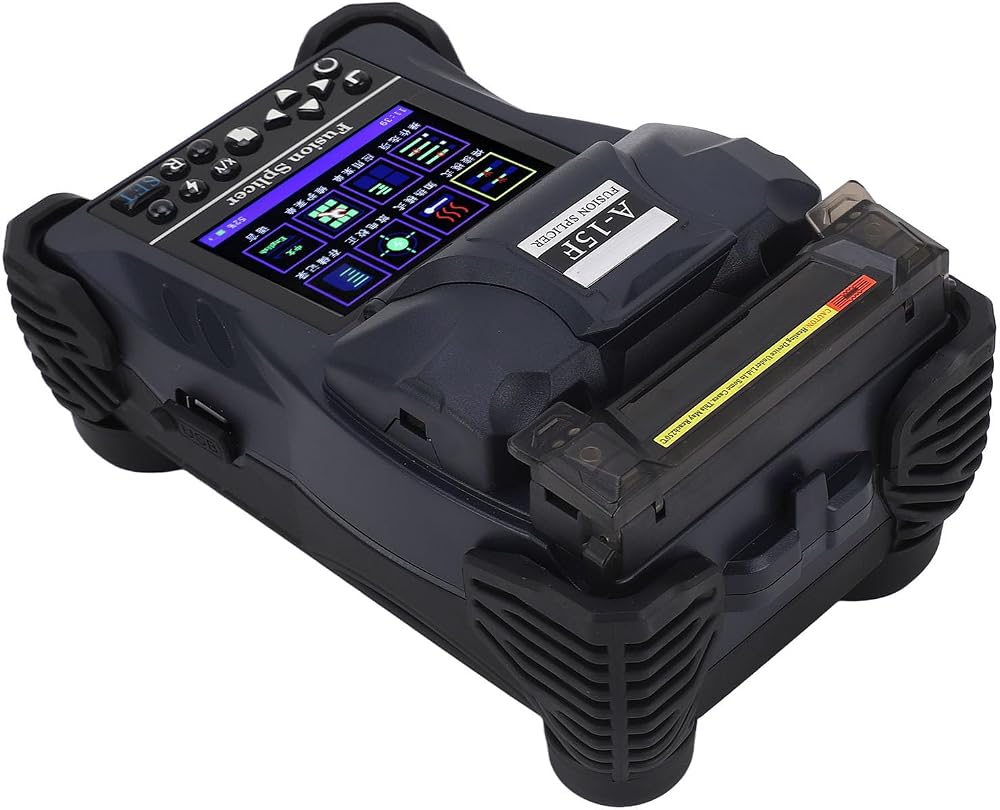

1. EASY USE: The mini optical fiber splicer is lightweight and portable, with fast splicing speed, low loss, simple controls and strong practicability.
2. MULTIPLE FUNCTION: Applicable fiber cladding diameter is 80‑150μm, coating diameter is 100‑1000μm, with 17 sets of modes and 9 sets of heating modes.
3. LCD DISPLAY: Adopt 3.5in TFT color LCD display screen, content can be flipped, convenient for dual way controls, focusing magnification up to 400 times.
4. ADJUSTABLE DESIGN: The heating time can be set, and the heating temperature can be adjusted, the optical fiber splicer is efficient and convenient in operation.
5. APPLICABLE SCENES: Used for optical fiber engineering, maintenance, scientific research and teaching in the fields of telecommunication, railway, petrochemical, public security, etc.

Spec:
Item Type: Fiber Optic Splicer
Material: ABS
Magnification: 400X (X axes or Y axes)
Return Loss: Better than 60dB
Typical Connection Time: 9 seconds

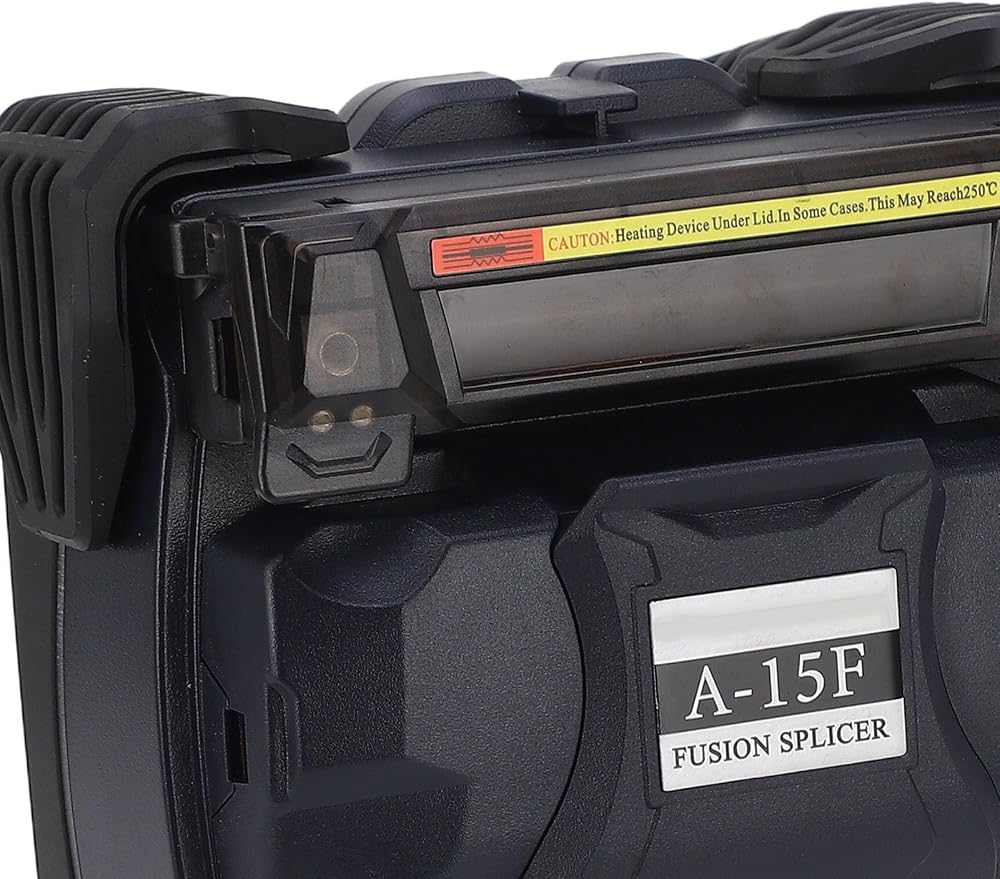

Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber Diameter:
Cladding Diameter: 80-150μm
Coating Diameter: 100-1000μm
Cutting Length:
Coating Layer Below 250μm: Approx. 8-16mm / 0.31-0.63in
Coating Layer 250μm-1000μm: Approx. 16mm / 0.63in
Heat Shrink Tubing: 60mm, 40mm and a range of micro shrink tubing

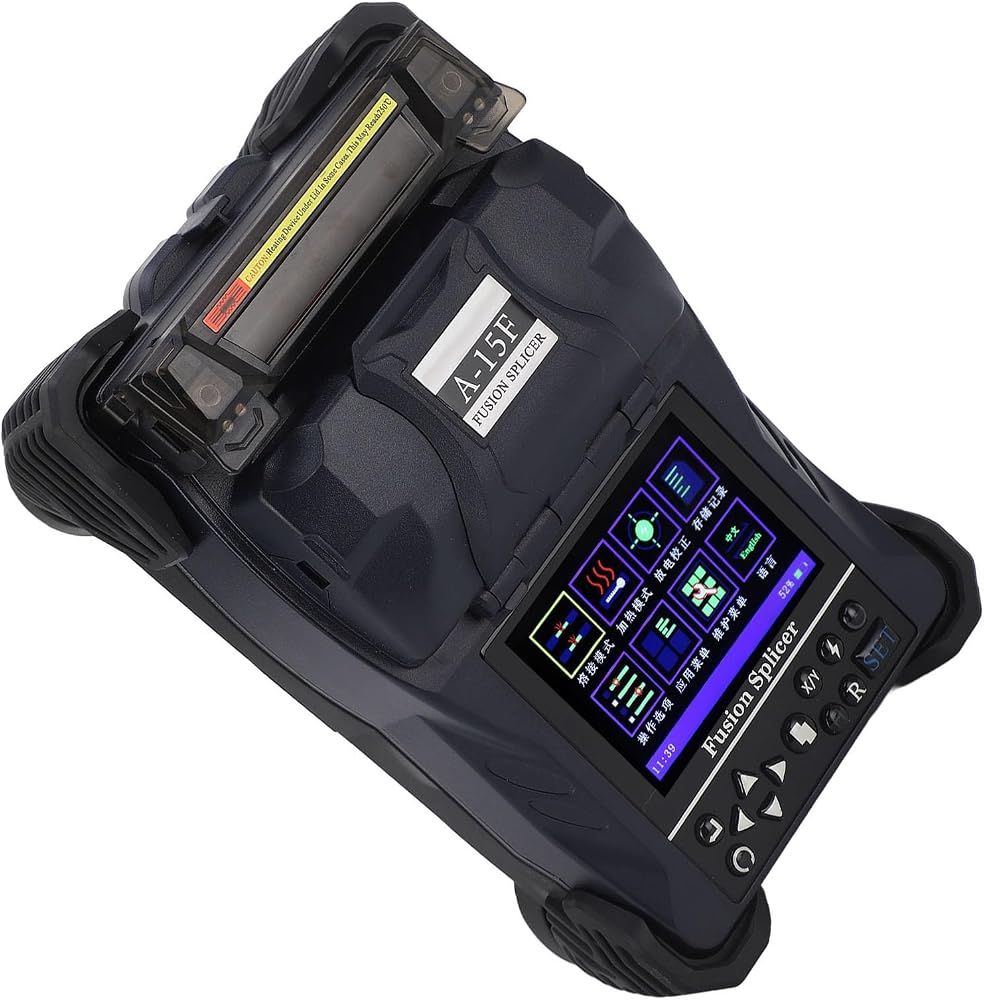

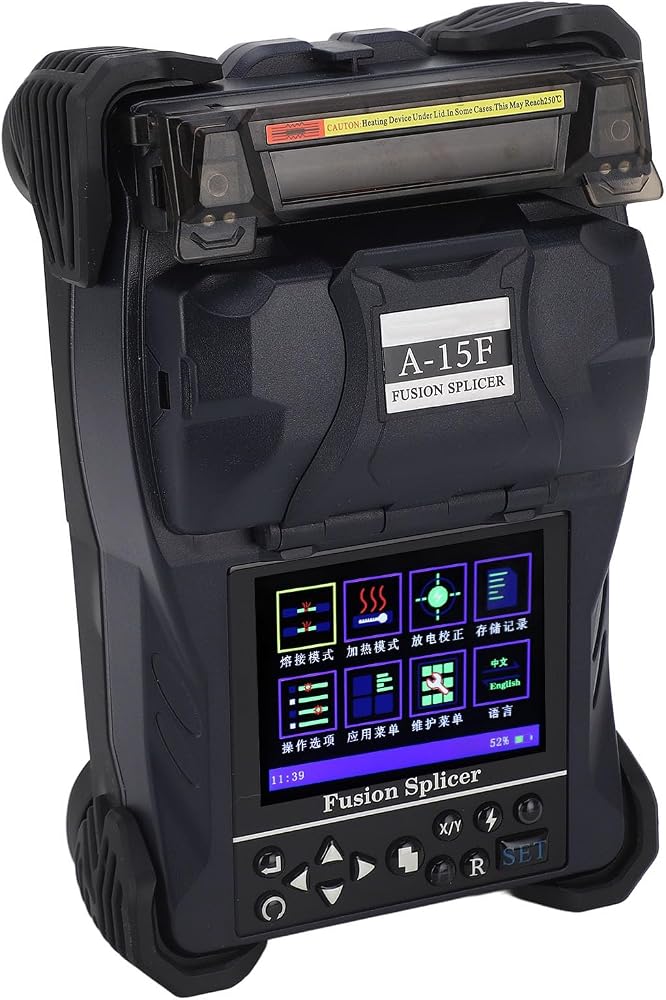

Display: 3.5in TFT color LCD display (content can be flipped, convenient for dual way control)
External Interface: USB interface, convenient for data download and software update
Splice Mode: 17 groups of use modes
Heating Mode: 9 groups of use modes
Connection Loss Storage: Internal memory saves 5000 updated connection results
Built In Battery: Model 11.1V 4800mah (capacity 4800mah) (with matching battery)
Power Supply: Built in lithium battery power supply, charging time ≤ 3.5 hours
Applicable Fibers: (G.652, G.657), MM (G.651), DS (G.653), NZDS (G.655) and custom fiber types
Optical Fiber Fixture: Multifunctional fixture, suitable for bare fiber, pigtail, jumper, leather cable; replacement fixture can be used for SC and other connectors for various FTTx fiber optic cables

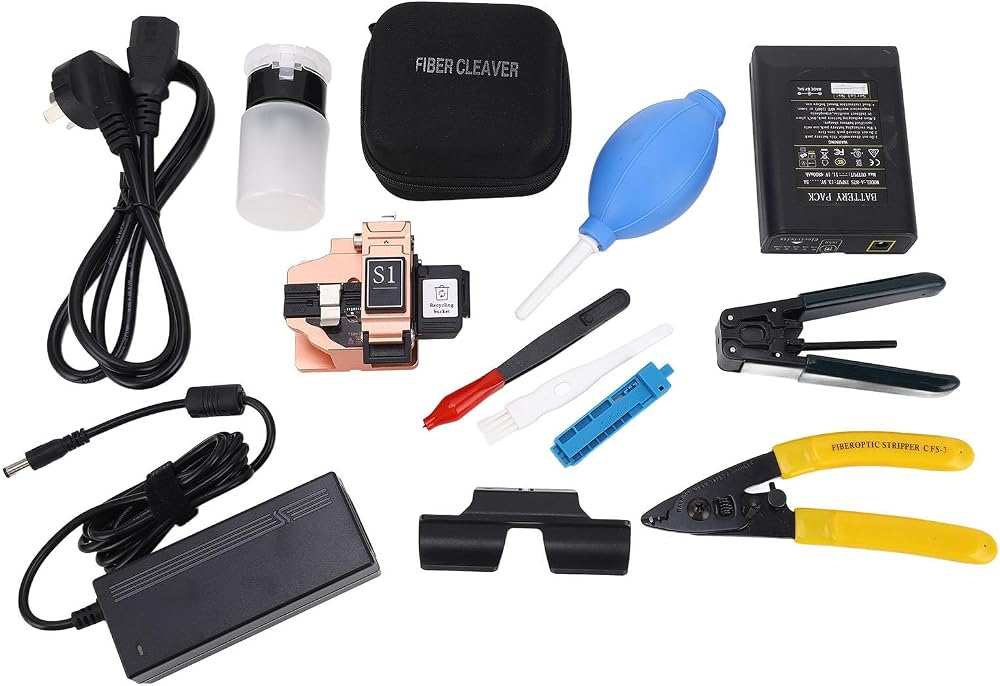

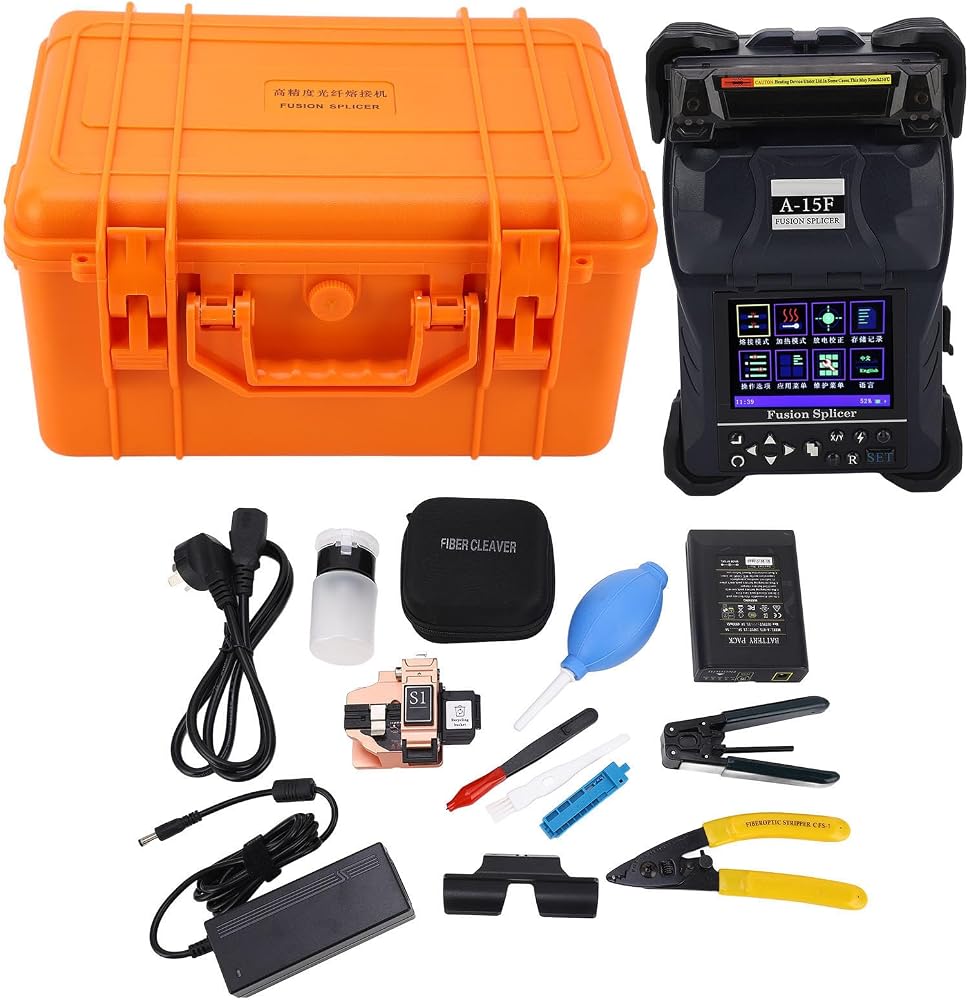

Package List:
1 x Optical Fiber Splicer
1 x Battery Pack
1 x Fiber Cleaver
1 x Stripping Pliers
1 x Pliers
1 x Plastic Length Fixer
1 x Charging Adapter
1 x Power Cord
1 x Empty Bottle
1 x Blowing Ball
1 x Brush
1 x Tweezers
1 x Splicer User Manual
1 x Cutter User Manual
1 x Drop Proof Bag
1 x Cooling Bracket
3 x Knife Adjustment Wrench

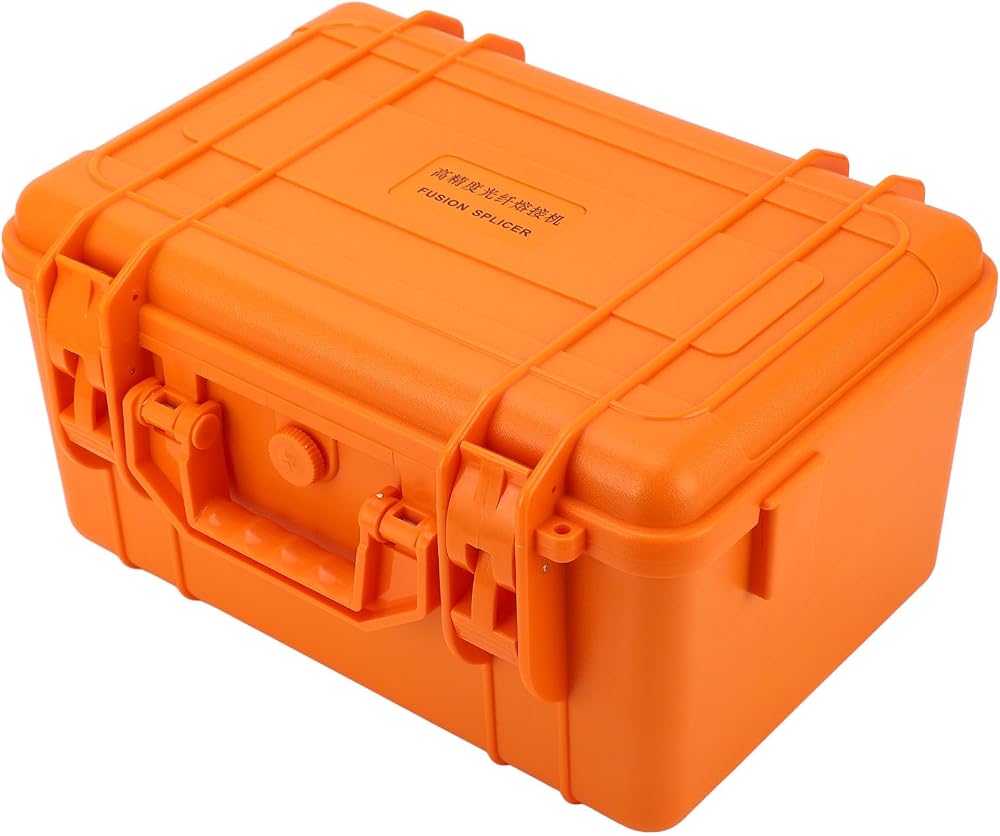

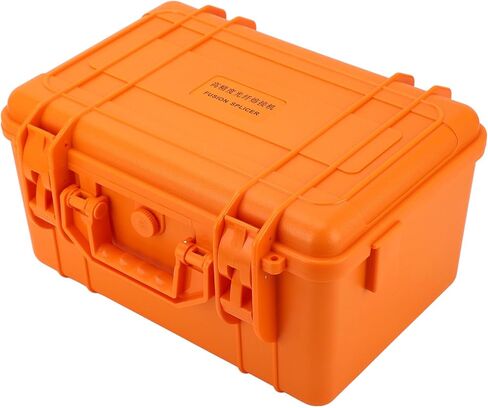

1 Box

Notice:

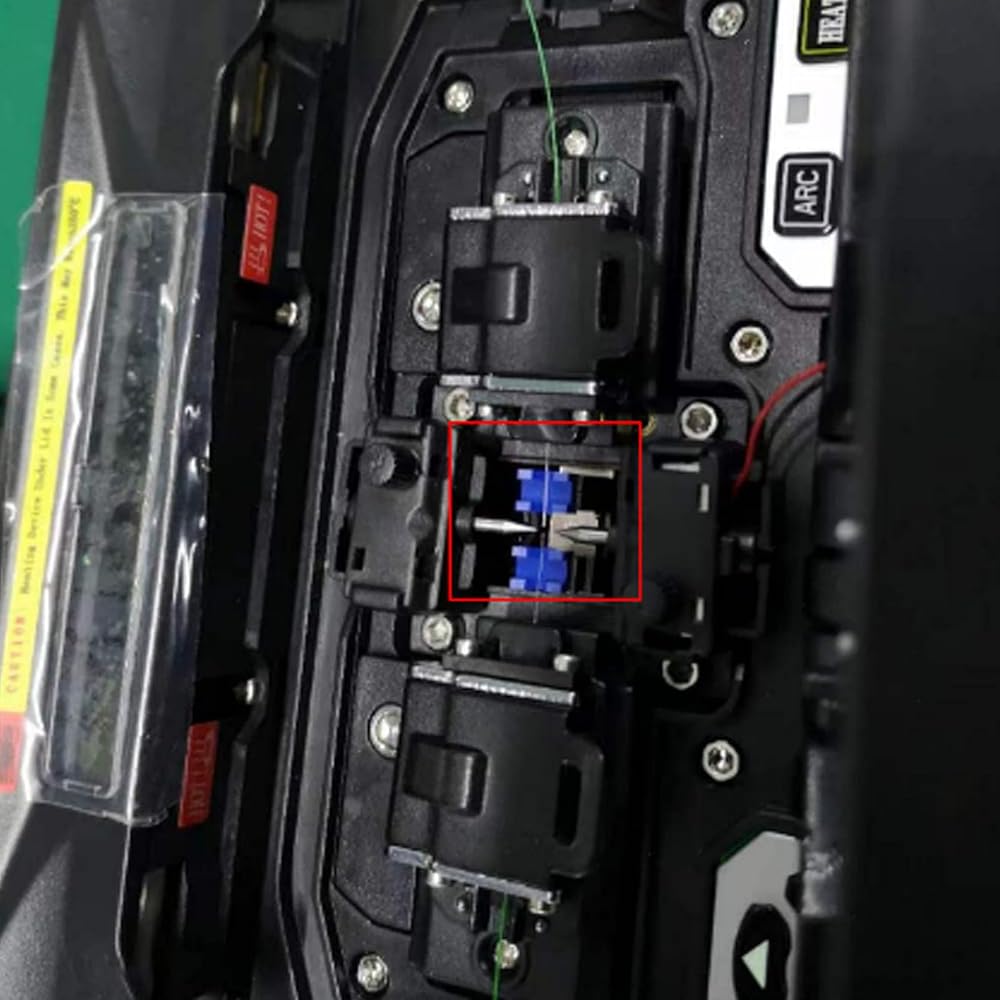

The product has a blue v groove after opening the cover, if there is dust inside the groove, it will block the amplifier to view the fiber optic, resulting in the inability to complete the welding.
Cleaning method: use tweezers to Clamp/Holder a piece of dust cloth moistened with alcohol, then repeatedly clean the blue v‑slot and the surrounding parts, wipe off the surface of the dust, then use a hobby knife to gently scrape the blue v‑slot of the accumulated dust, and finally use a clean rubber balloon to blow away all the dust.
