Stainless Steel ISO 2338/GB 119 Parallel Pins
Dowel Pins also referred to as Parallel Pins,are commonly used to retain parts in a fixed position or to preserve alignment. Accurately ground to plus 0.0002, minus 0.0000 of the stated diameter and + or -0.010 of the length, they are chamfered at both ends for easy insertion.
A selection of sizes and lengths is a useful addition to the well-equipped shop or laboratory.
Drawing for the GB 119 Parallel Pins
Item Name
ISO 2338/GB 119 Parallel Pins
Material
Stainless Steel
Surface Treatment
Plain
Head Type
Cylinder Head
Size
M0.6-M50, from 8mm to 200mm

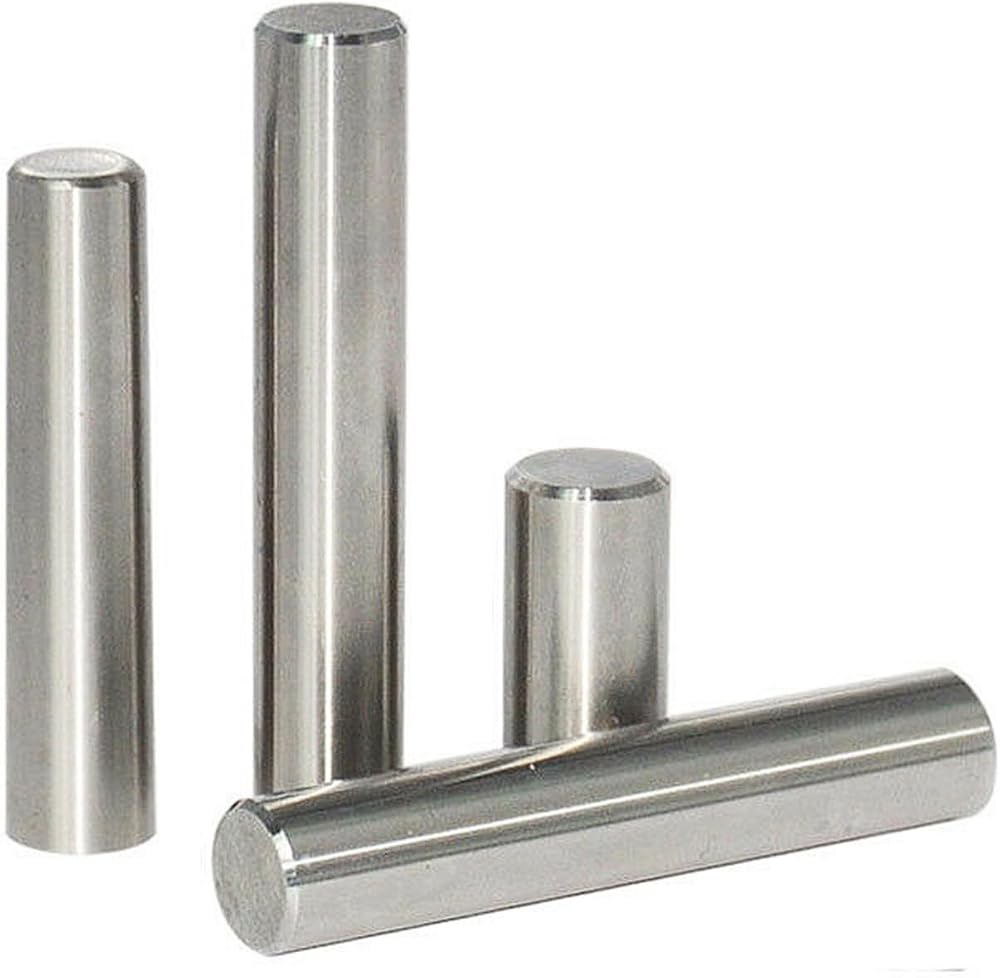

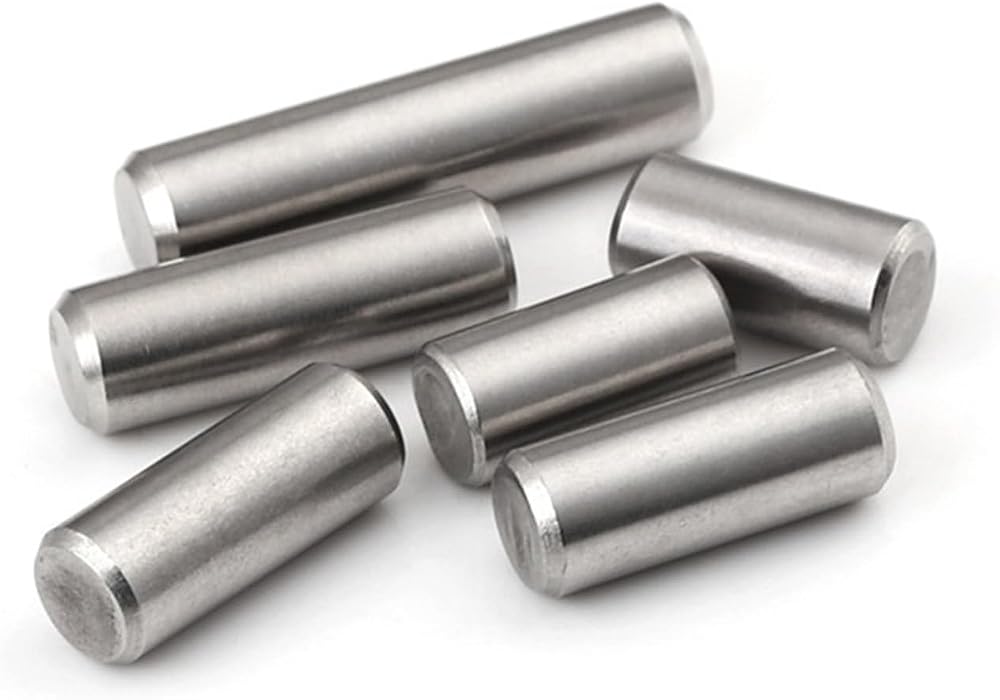

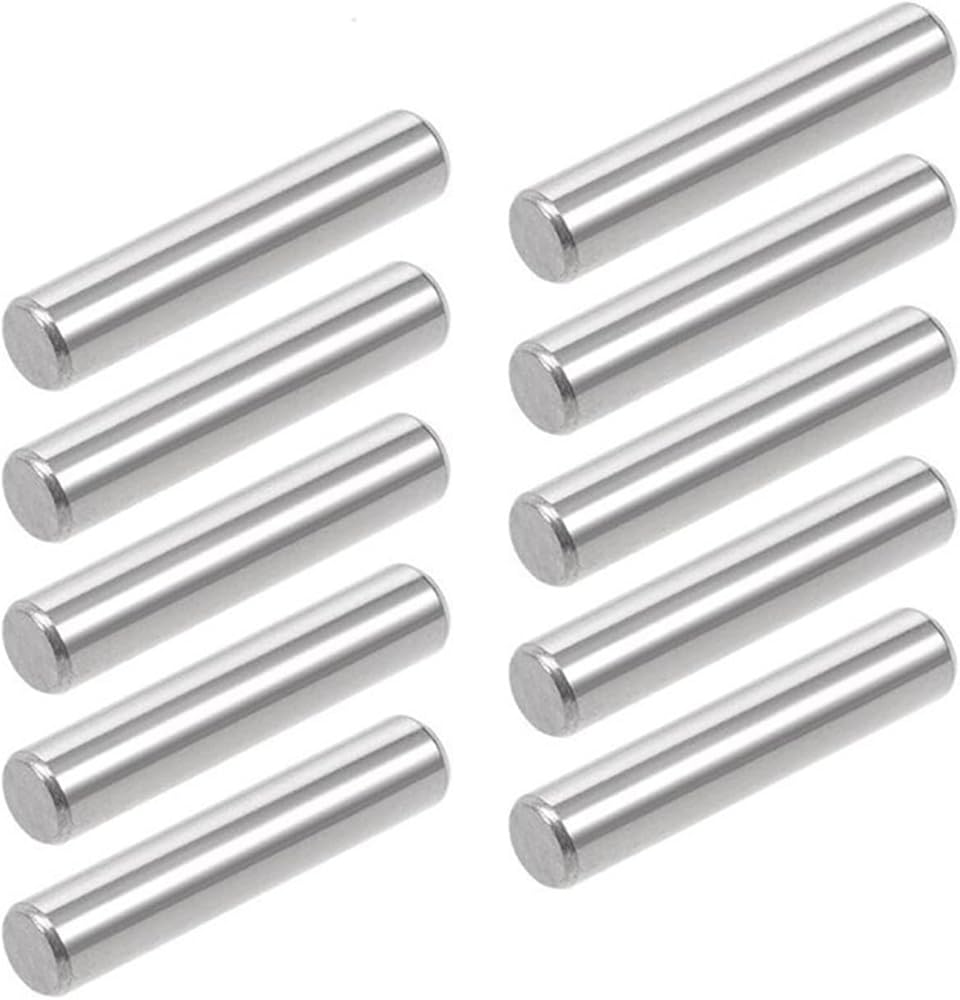

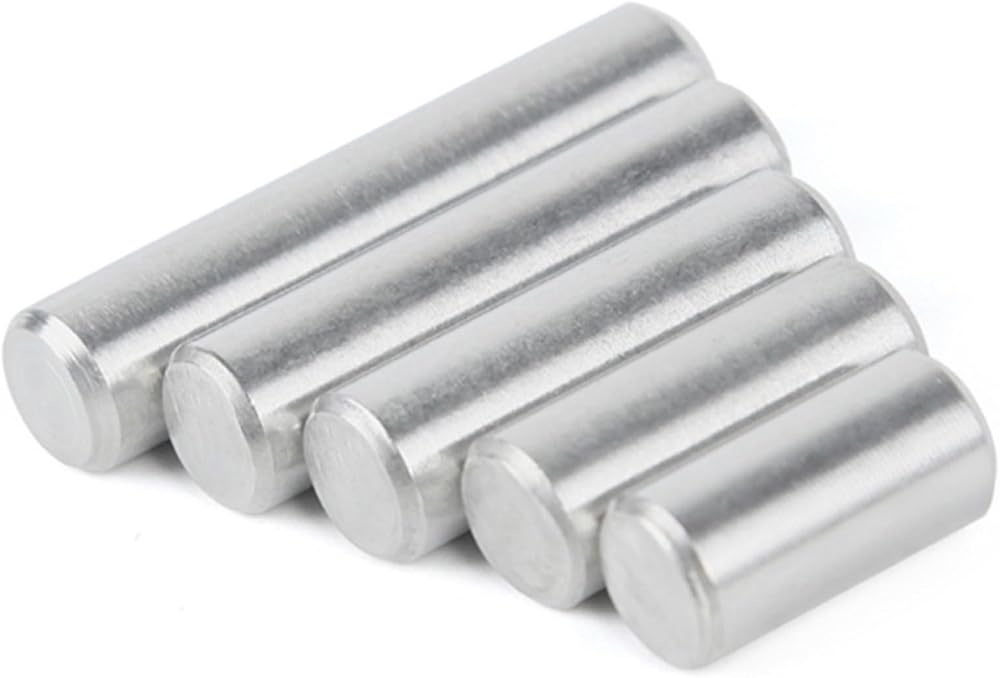

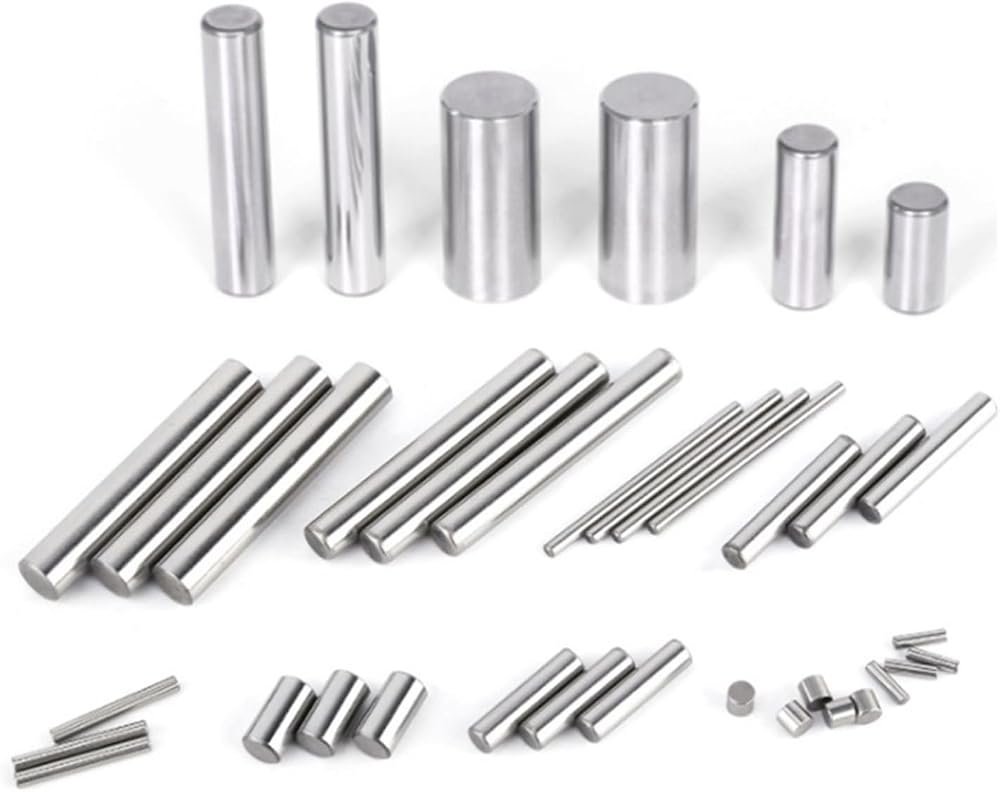

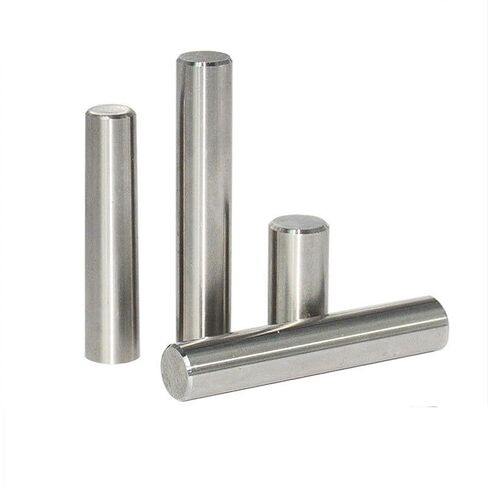

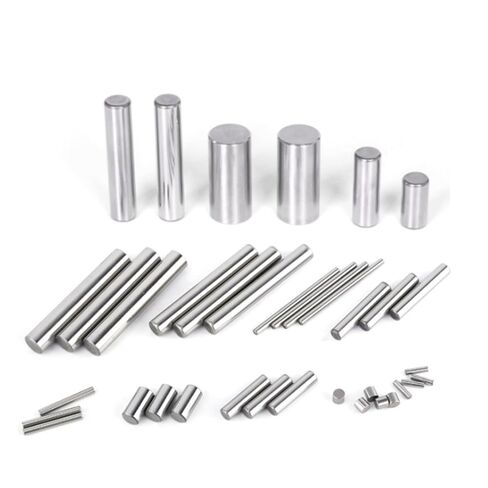

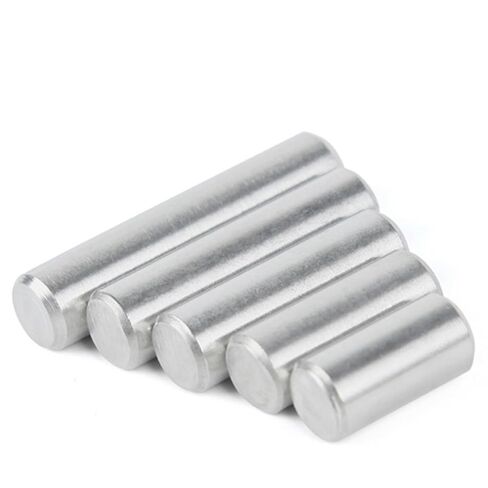

Pics for ISO 2338/ GB 119 Solid Parallel Pins
==========
Surface Roughness : Ra 0.05
Capacity : 35
Structure : Flexible
Model Number : 5*5 6 7 8 10 12 14 15 16 18 20 22 24 25 28 30 32 35 40 45 50 60 70 80
Coatings : Dowel Roll Pin1
Material : Bearing Steel
Origin : Mainland
Certification :
