Relays / Phase Monitoring Relays
Specifications
Operating Voltage(A1-A2)...: 220VAC Or 110VAC
Operating Voltage(A2-A3)....: 24V AC/DC
Operating Frequency.... : 50/60 Hz.
Operating Temperature..: -20°C.....+55°C
Ton Time(t)... ...: 1sec, - 100hours
Toff Time(t).. : 1sec, - 100hours
Display:. ...: Power,On and Off led
Connection Type : Terminal connection
Contact. .:5A/250V AC (Resistive Load)
Mounting... .: Assembled on the din rail
Protection Class.. .: IP20
Cable Diameter. .: 2,5mm²
Connection Diagram
Theory : Time Relay
Protect Feature : Sealed
Usage : General Purpose
Contact Load : Low Power

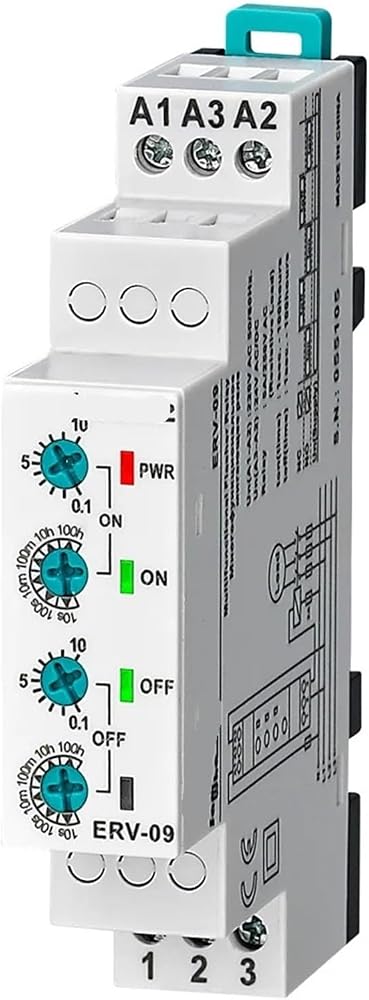

Model Number : ERV-09
Mode : On/Off Flasher Timer
Tpye : Time relay
