1PC 63/32 Hybrid Ceramic Bearing 32 * 75 * 20mm Race Bike Front Rear Wheel 63 32 2RS LUU Hybrids Si3N4 Ball Bearings 63/32RS Accessories in Saudi Arabia 1PC 63/32 Hybrid Ceramic Bearing 32 * 75 * 20mm Race Bike Front Rear Wheel 63 32 2RS LUU Hybrids Si3N4 Ball Bearings 63/32RS Accessories in Saudi Arabia 1PC 63/32 Hybrid Ceramic Bearing 32 * 75 * 20mm Race Bike Front Rear Wheel 63 32 2RS LUU Hybrids Si3N4 Ball Bearings 63/32RS Accessories in Saudi Arabia 1PC 63/32 Hybrid Ceramic Bearing 32 * 75 * 20mm Race Bike Front Rear Wheel 63 32 2RS LUU Hybrids Si3N4 Ball Bearings 63/32RS Accessories in Saudi Arabia 1PC 63/32 Hybrid Ceramic Bearing 32 * 75 * 20mm Race Bike Front Rear Wheel 63 32 2RS LUU Hybrids Si3N4 Ball Bearings 63/32RS Accessories in Saudi Arabia

1PC 63/32 Hybrid Ceramic Bearing 32 * 75 * 20mm Race Bike Front Rear Wheel 63 32 2RS LUU Hybrids Si3N4 Ball Bearings 63/32RS Accessories

SAR 564
Brand
XKHLQLPEF
Weight
349 g
– 1 +

Special Features

  • Bearings
  • WHAT IS A HYBEID CERAMIC BEARING? A ceramic hybrid bearing is a combination of ceramic balls and bearing quality steel rings.
  • Special Note: 1 Sometimes the cages will be different. eg.: 67 series thin-walled bearings because the inner wall is very thin will use the crown-shaped iron cage.
  • 2 so sometimes there are different colors of the rubber sealed.
  • 3 The standard clearance of bearings is ISO standard C0 the United States standard K25 the clearance value is 3-18um.

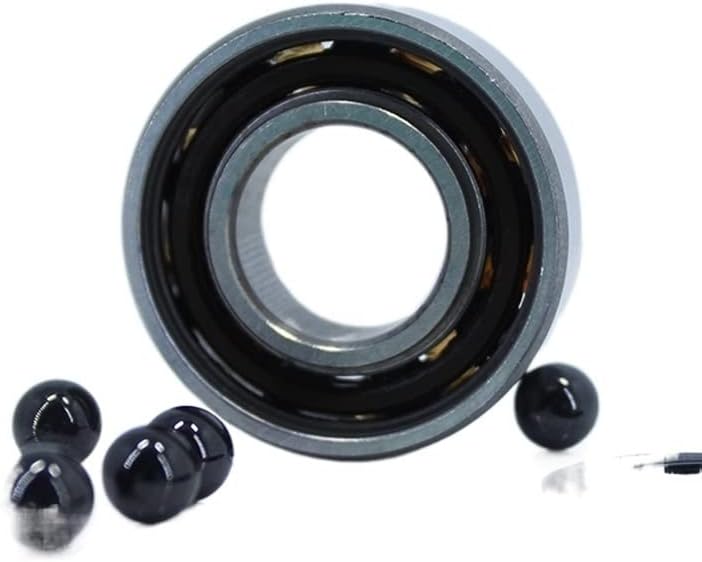

  • BEARING STRUCTURE: 52100 Chrome Steel Outer Ring & Inner Ring Si3N4 Ceramic Balls Nylon Cage Grease + Sealed = HYBID CERAMIC BEARINGS

Description

Bearings
TECHNICAL SPECS
Model: 63/32 RS
Structure: Deep Groove Ball
Material: Hybrid Ceramic
Bore Dia (d): 32 mm
Outer Dia (D): 75 mm
Width (B): 20 mm
Closures: Sealed (2RS)
Lubrication: Grease
Clearance: C0
Dynamic Load Rating (Cr) (Newtons): 30100
Static Load Rating (Cor) (Newtons): 16200
Weight: 0.437 kg
Quantity: 1 Lot = 1 PC
