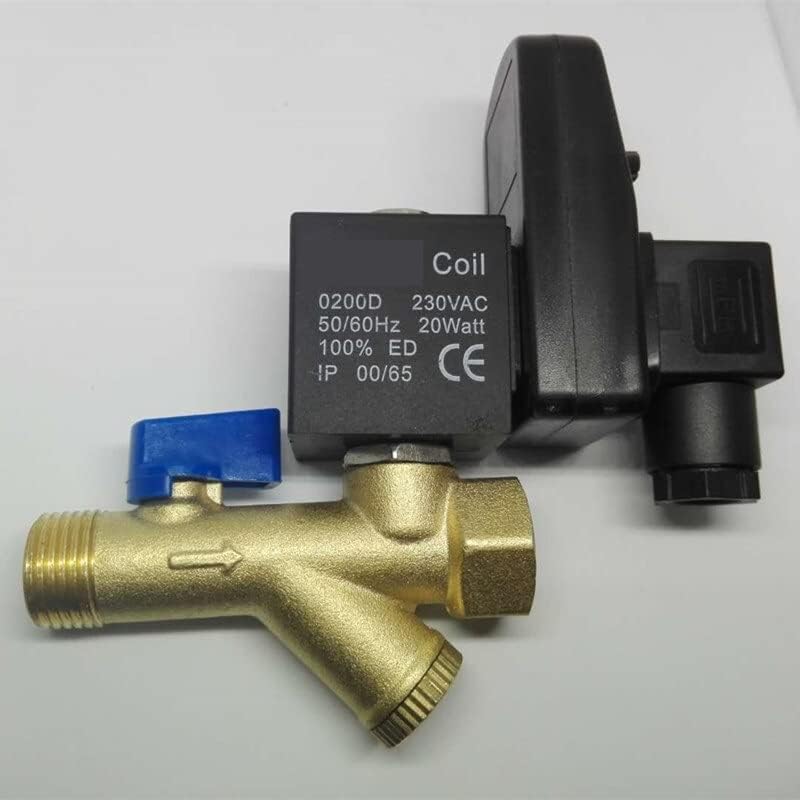

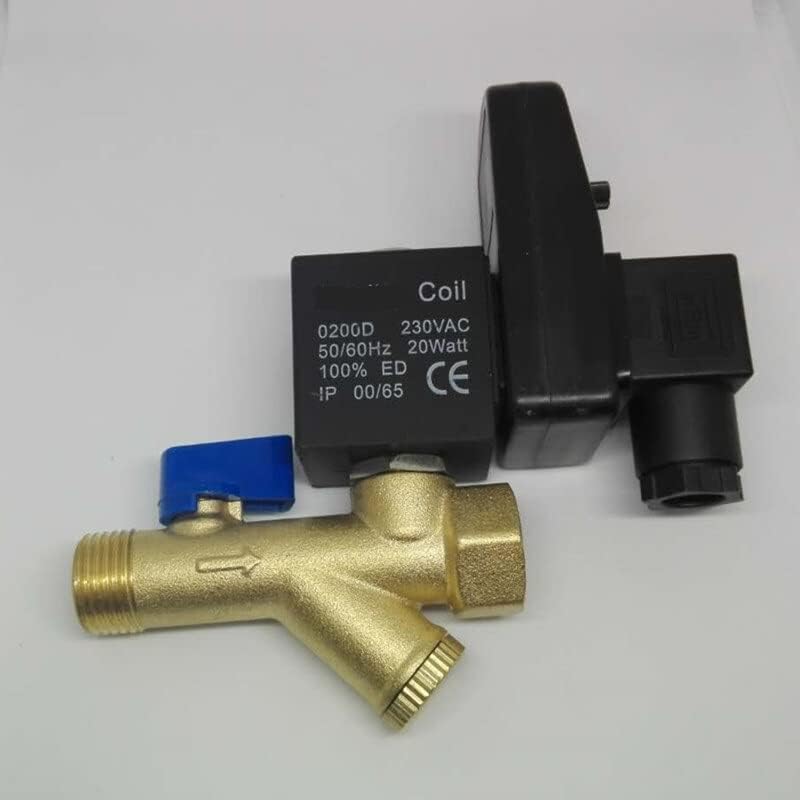

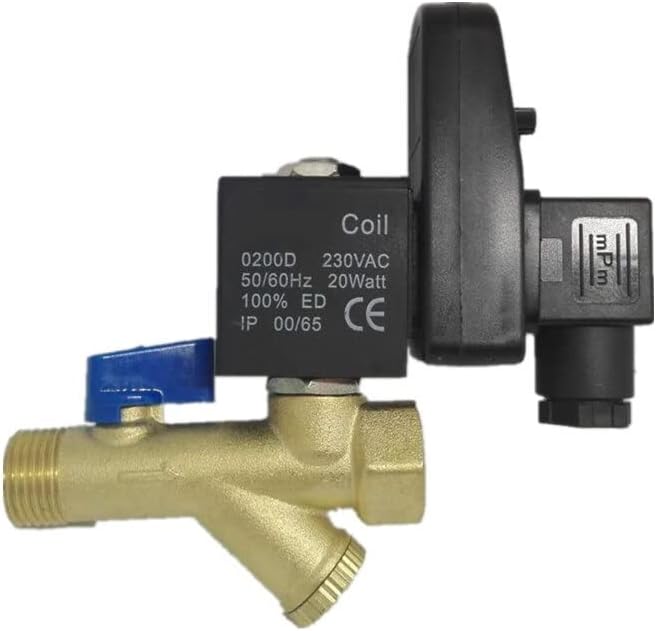

Name: Electronic drain valve
Indicator lamp: LED indicating power on / off
Voltage range: +/-10%
Protection grade: IP65
Insulation: class H
Maximum working pressure: 1.6Mpa
Maximum temperature: 90
Ambient temperature: -4 to60
The largest current consumption: 4mA
Power supply voltage: 24-240V AC/DC 50/60Hz
Discharge time : 0.5--10 seconds
Time interval : 0.5--45 minutes
Widely used in separators, dryers, gas tank, drip legs and other compressed air system components
Clean the compressed air system before installation.
Note the direction of the arrow when installing the valve: outlet do not use the hose that not against the impact of air.
Power supply voltage should be consistent with the drain valve voltage: the positive pole must be connected to connector "1" when using DC.
When leave the factory the drain valve has connected to the cable, brownness is fiery L,blue is the zero line N,yellow-green color is the ground wire GND.
Be sure to tighten the long screw on the terminal box to water from burning.
Warning! When installing the electronic drain valve, make sure that:
Compressed air has been emptied .
The power supply has been switched off.
colour: Gold + black
Material: metal
size: flow aperture: 5 mm
In / out port size: 1/2inch
