Specification:

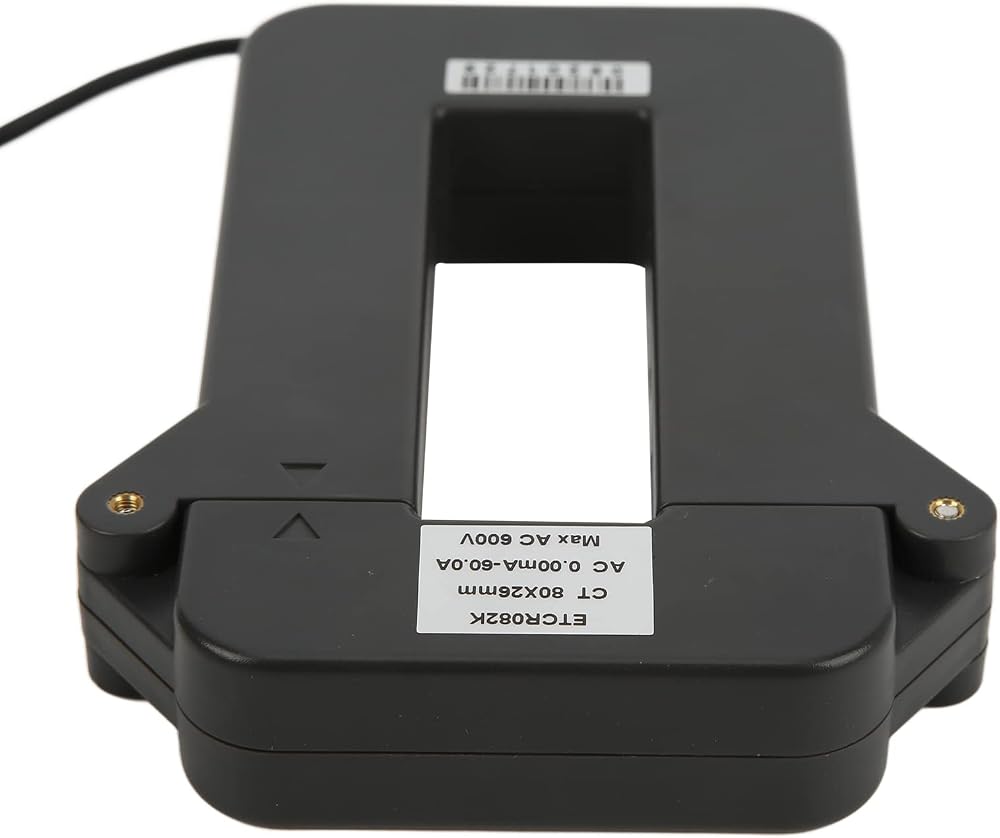

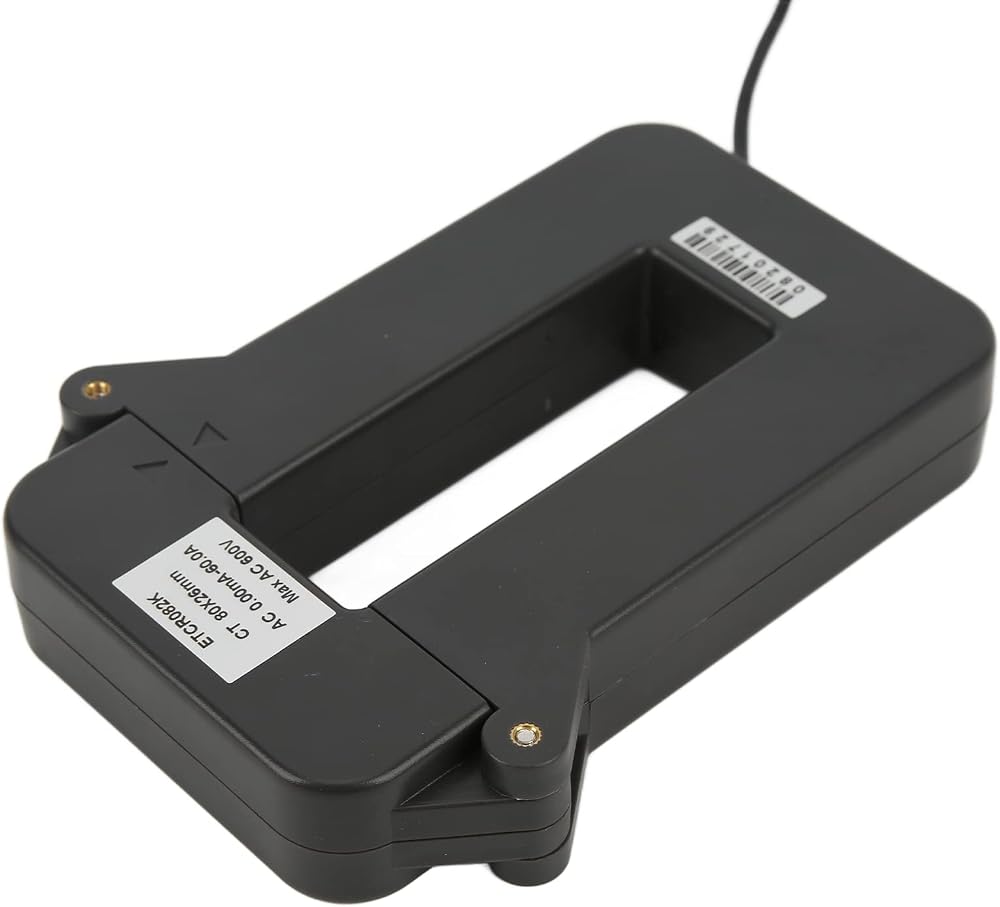

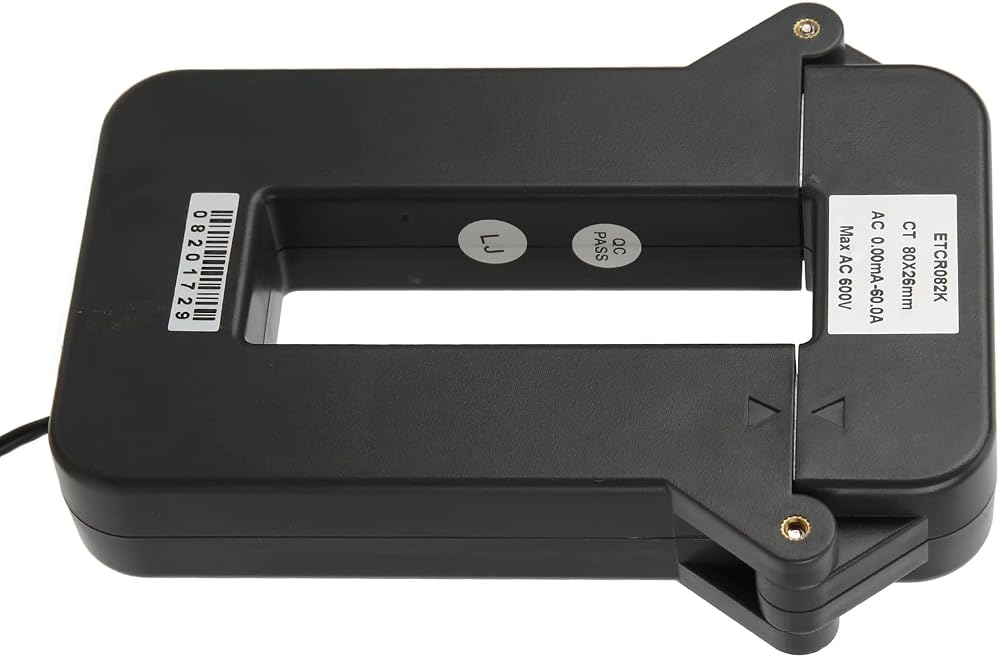

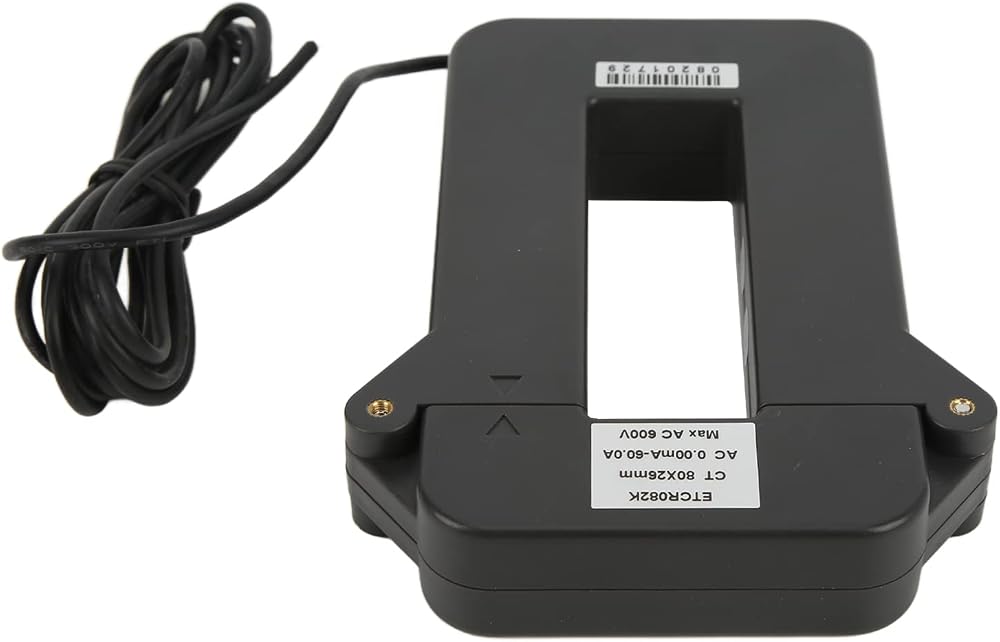

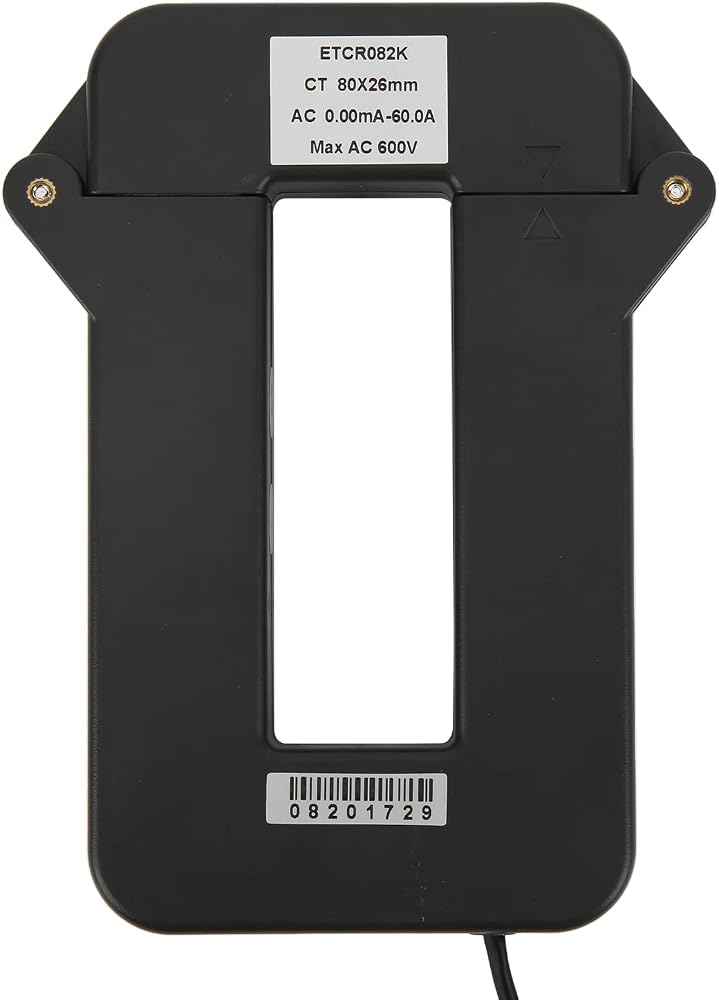

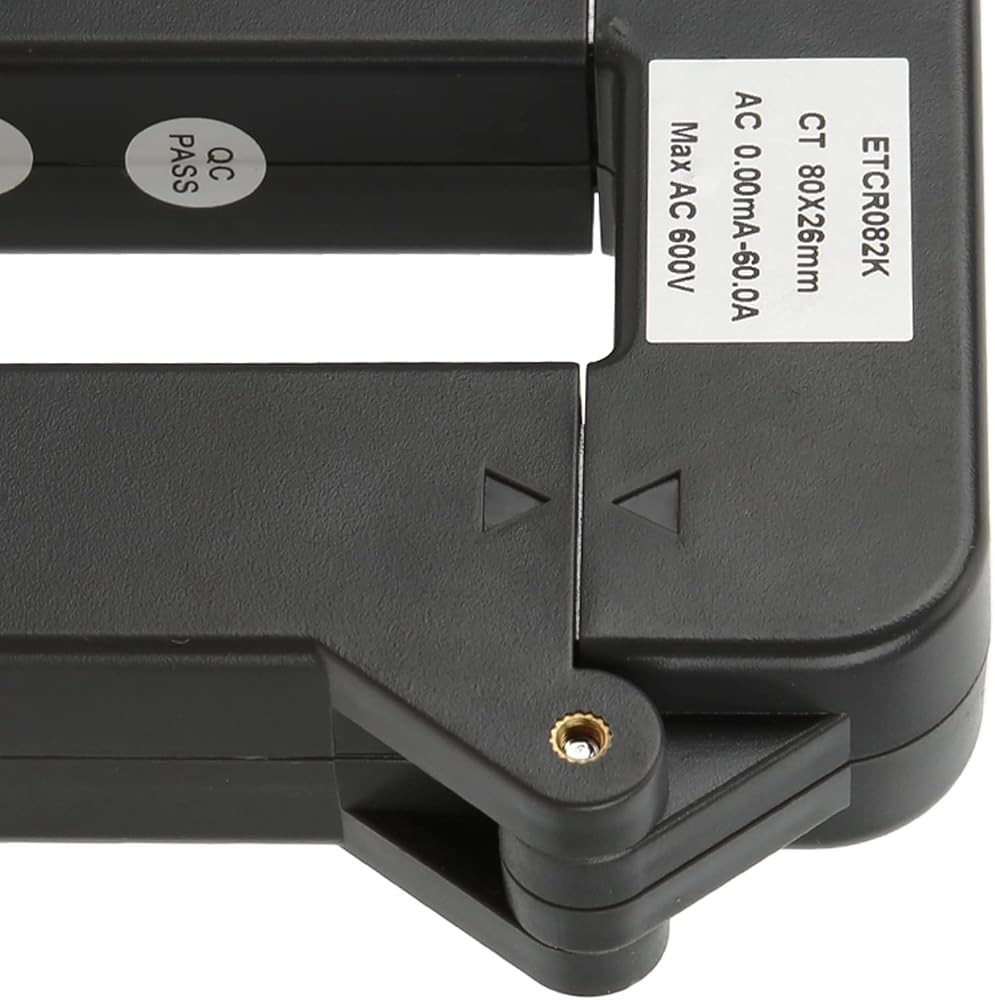

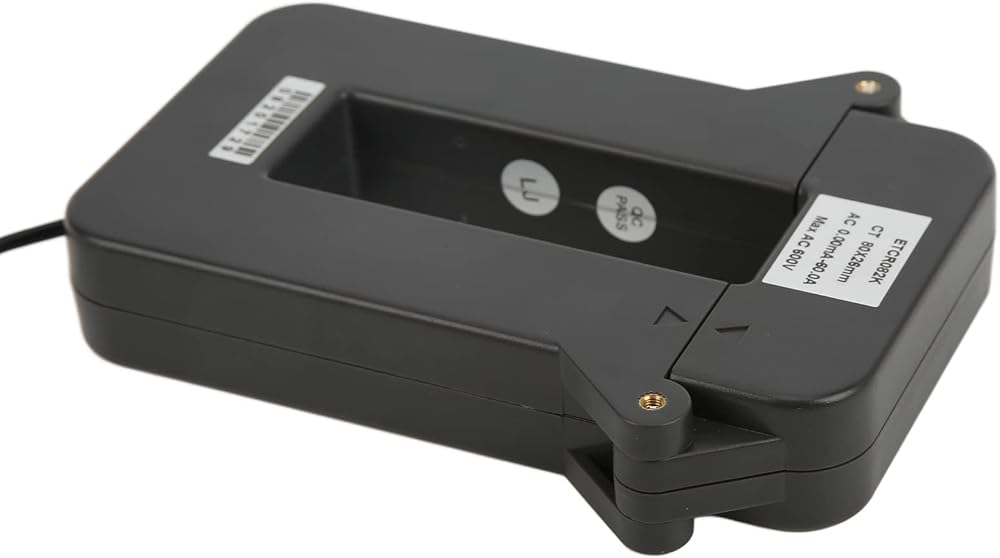

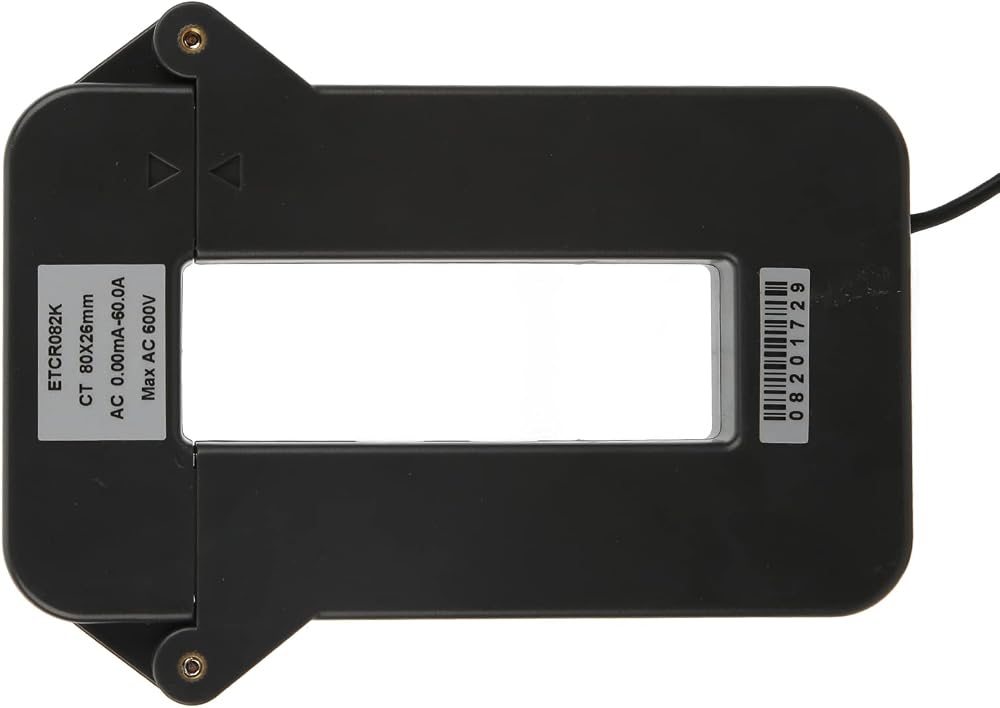

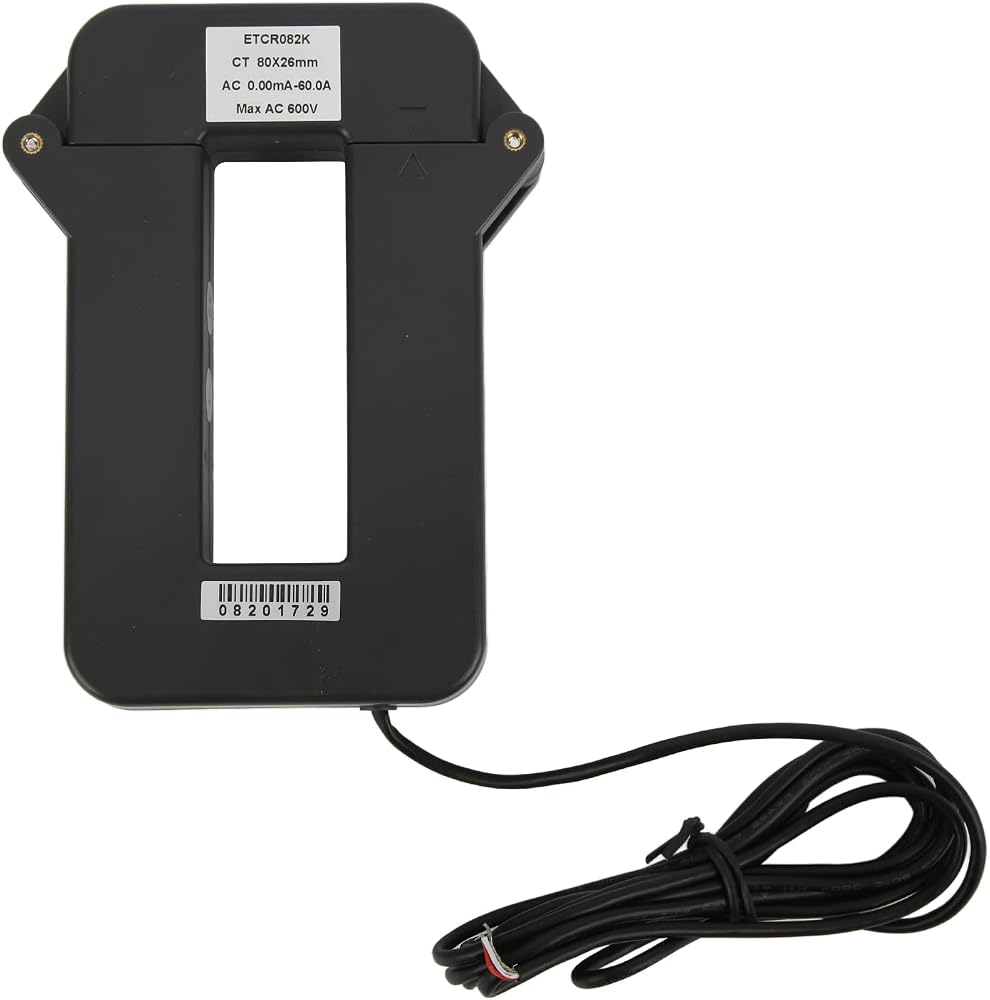

Item Type: Current Transformer
Material: ABS,Permalloy
Model: ETCR082K
Range and Accuracy:
Range:0.00mA～60A AC
Resolution: 0.01mA
Accuracy Class: 0.5
Phase Error: ≤1°
Rate of Turn: 1000:1
Other Parameters:
Function: AC Leakage Current, Current, High Order Harmonic Current, Frequency, Phase, Power and Electric Energy Measurement, Especially Suitable for Flat Steel Grounding Places
Way of Opening:Open and Close
Shielding Layer: Double Layer Shielding, the Influence of External Magnetic Field is Minimal
Jaw Size:
Approx. 80mm / 3.1in
Approx. 26mm / 1.0in
Turns Ratio:1:1000 (Primary and Secondary Current Ratio) (Can Be Customized According to Customer Requirements)
Input Range:0.00mA～60A AC
Output Method:Current Sensing Output: 1mA / 1A
Reference Load:≤15Ω
Output Interface:Wiring Terminal (S1, Coil Tap End, Gnd Shielding End) or Output
Working Frequency: 10Hz～100KHz
Operating Temperature: -15°C～50°C
Dielectric Strength:AC 3700V / rms (between Core and )
Security Level:CAT Ⅲ 600V
Output Method:Inductive Current Output
Working Temperature and Humidity: -15℃～50℃; Below 80%rh

How to Use:
1. Access plug
2. Insert the plug into the oscilloscope and other equipment to use

Package List:
1 x Current Transformer
