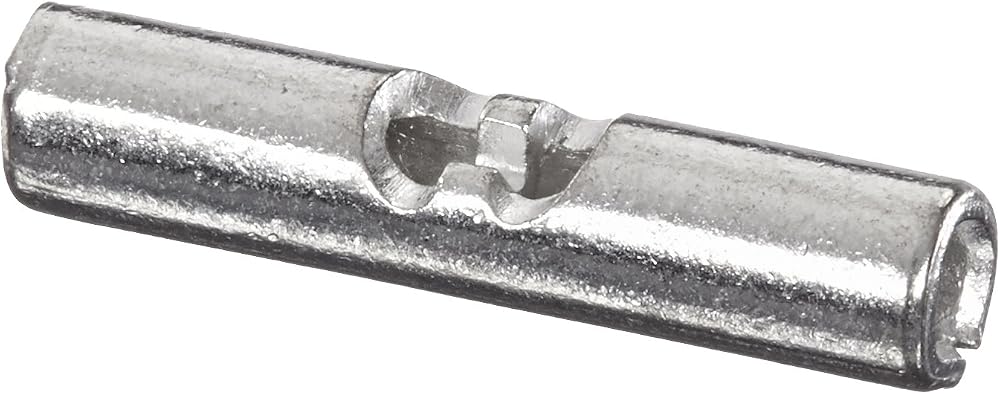

This Panduit BS18-C butt splice connector is suitable for repairing or extending solid or stranded copper wires from #22 to #18 AWG (0.5 to 1 sq. mm). It has a tin-plated copper body, a maximum voltage rating of 2,000V, and a maximum temperature rating of 302 degrees F (150 degrees C). This connector has a brazed seam for protecting the barrel from splitting during the crimping process and an internal wire stop for ensuring the proper insertion depth of stripped conductors. It is Restriction of Hazardous Substances (RoHS) compliant for hazardous substance regulations and is Underwriters Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance. This butt splice connector is suitable for use with solid and stranded copper wires from American Wire Gauge (AWG) #22 to #18 (0.5 to 1 sq. mm) in a wide range of industrial, automotive, and other electrical applications.
SpecificationsConnector typeButt splice, non-insulatedFor use with solid and stranded copper wire#22 to #18 AWG (0.5 to 1 sq. mm)Compatible with Panduit crimping toolsCT-100A, CT-200, CT-600-A, CT-1570, CT-2500Length0.62" (15.7 mm)Wire strip length9/32" (7.1 mm)MaterialTin-plated copperMaterial thickness0.032"Maximum voltage rating2,000VMaximum temperature rating302 degrees F (150 degrees C)Standards metUL Listed, CSA certified, RoHS compliant
Panduit manufactures electrical and networking products. The company, founded in 1955, is headquartered in Tinley Park, Il.
