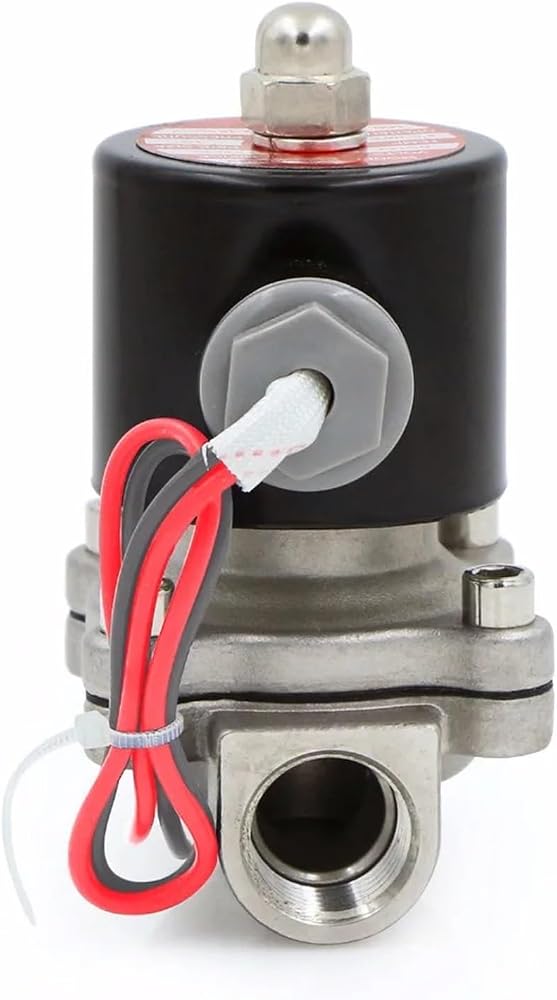

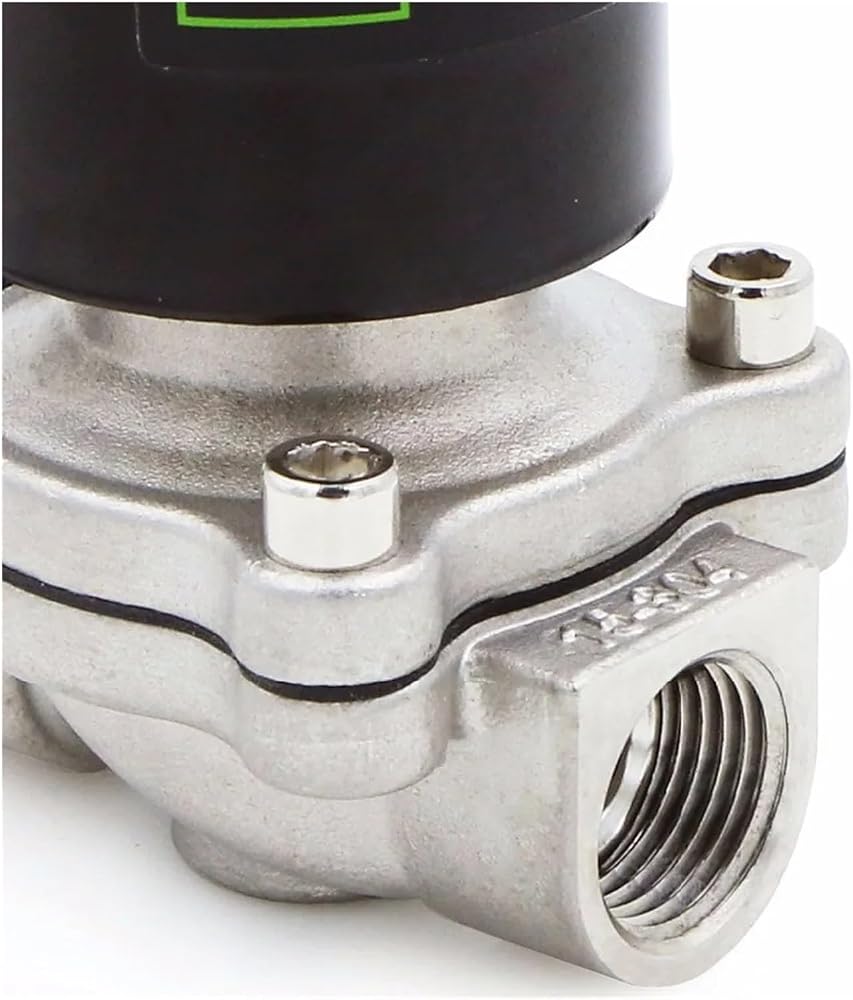

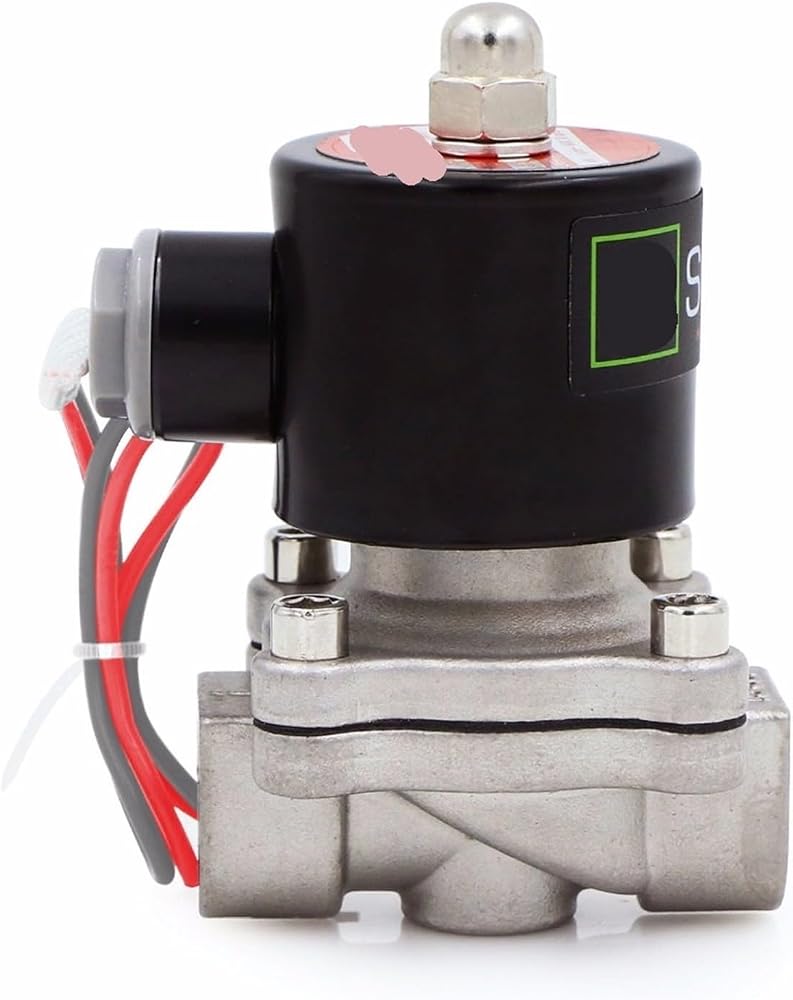

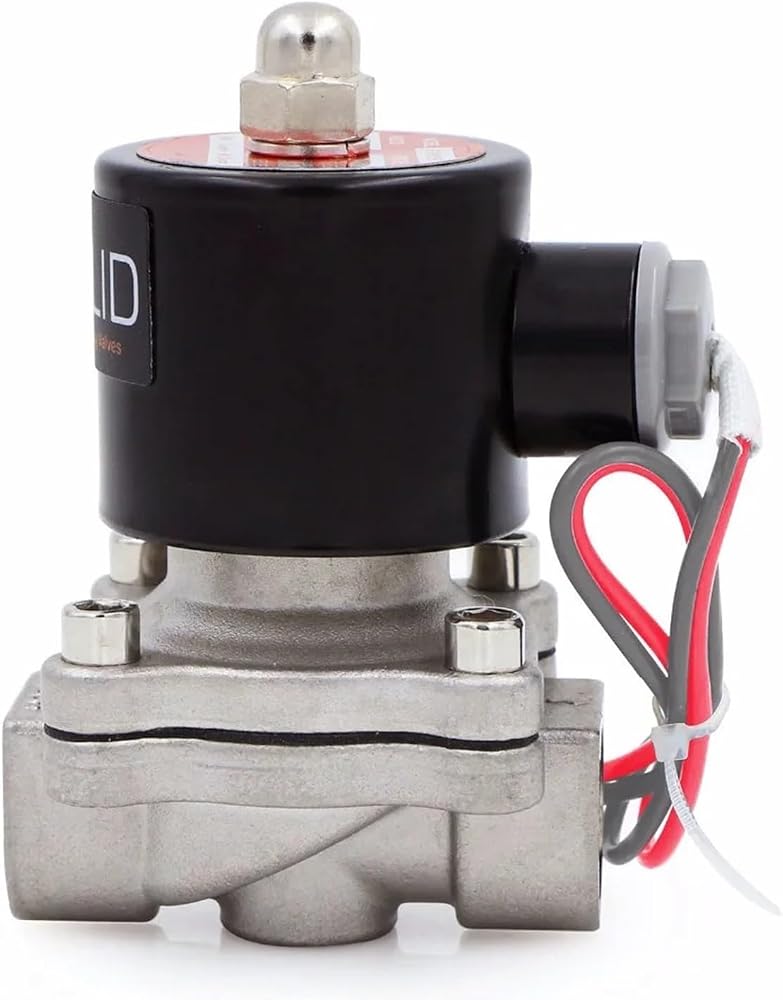

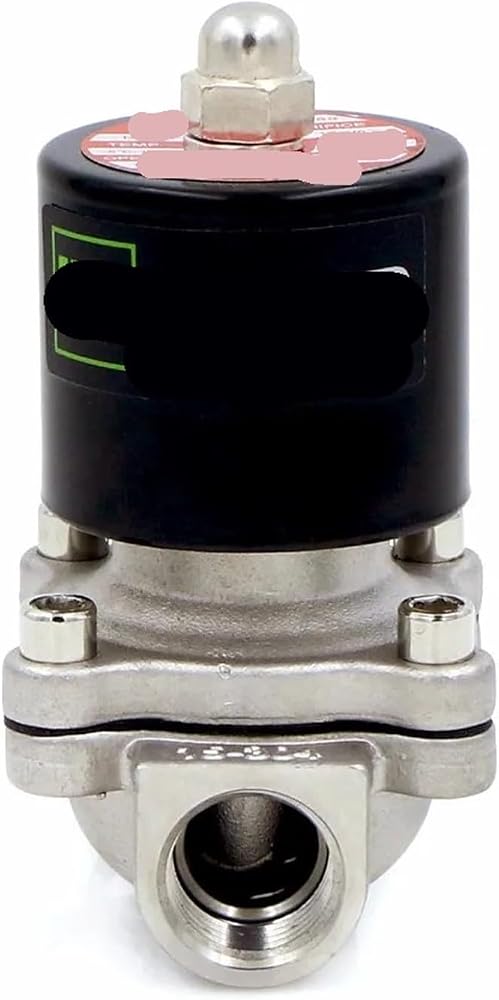

Solenoid
Ball Valves
Pipe size: 1/2"
Flow hole diameter: 16mm
Main material: stainless steel
Gasket/Diaphragm/Seal: Viton
Thread: NPT or G (optional)
Type of operation: semi-direct poppet valve
Operation mode: Normally closed
Current: AC
Voltage: 24 volts + or - 10%
Current: 0.833A
Rated power: 20 VA
Pressure flow temperature specifications
Operating pressure range: Air water gas: 0 to 101 PSI; Oil: 0 to 72 PSI
Flow: 4.8 gallons per minute (GPM) of water at 60 oF 1 PSI pressure drop
Flow value: 4.8 Cv
Minimum temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum temperature: 248 degrees Fahrenheit (120 degrees Celsius)
