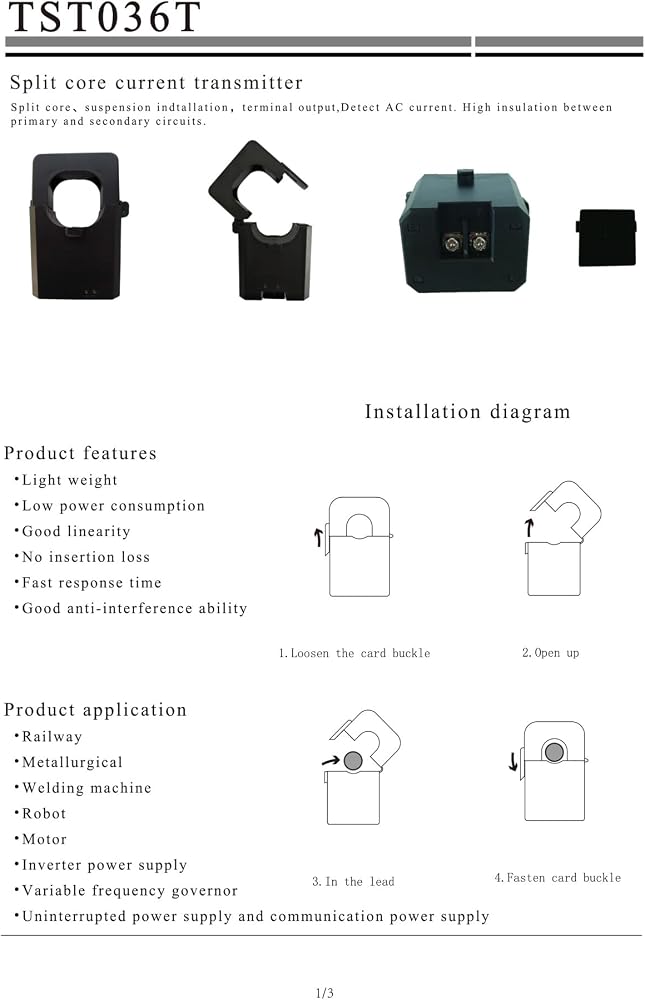

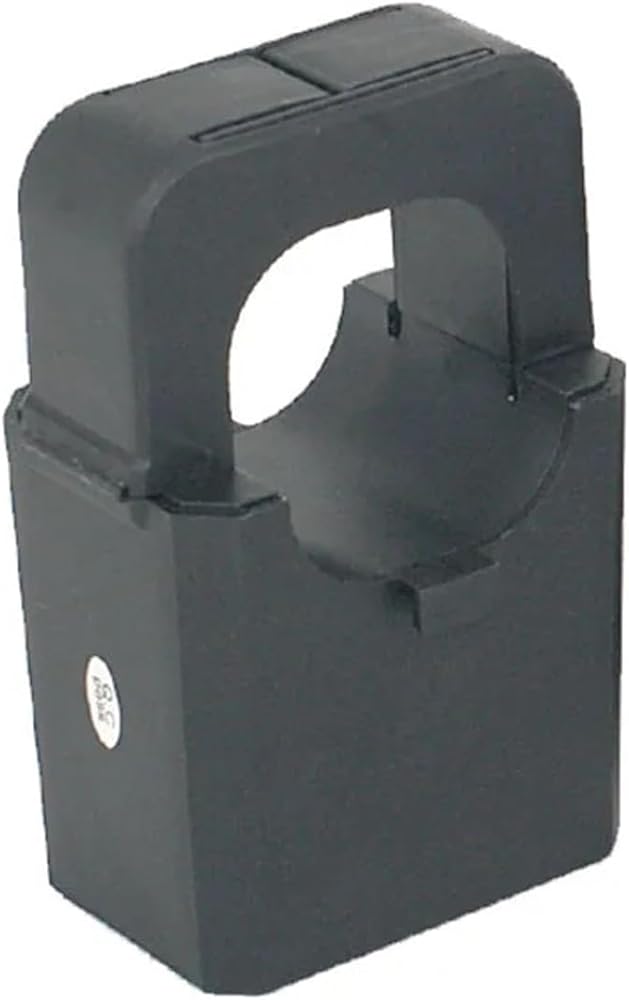

Split AC current sensor input current TST036T Input 300A/400/500A AC output DC 4-20mA current transmitter

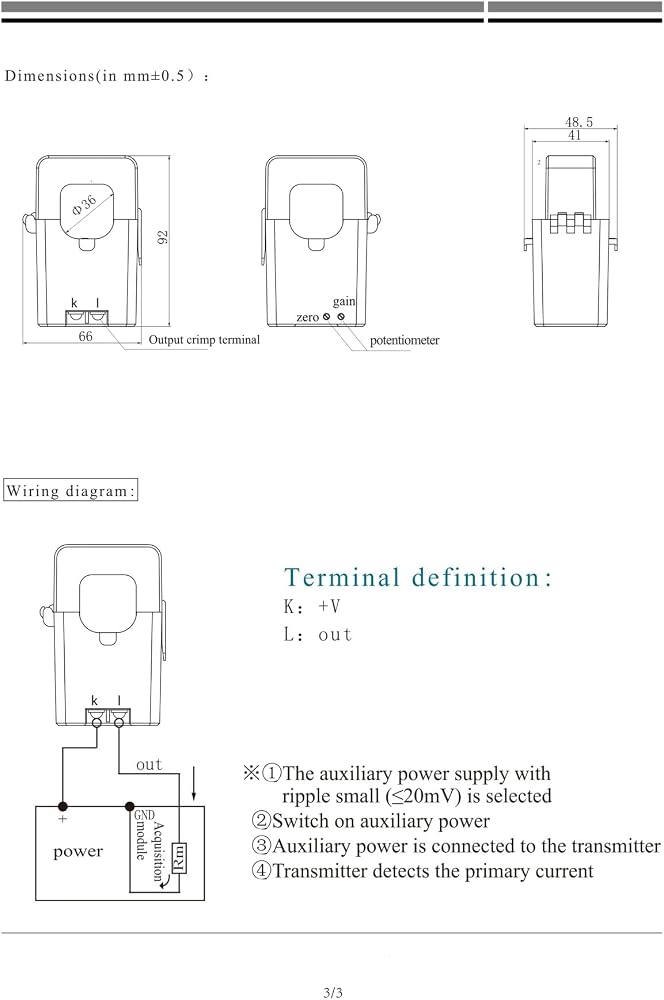

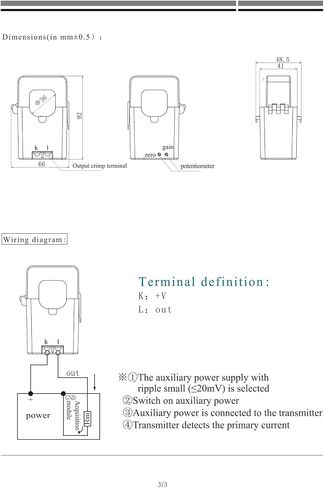

Locking type lead output hanging installation; Wiring error will cause product damage. The output is linear with the primary test current and the output signal can directly enter the automatic control equipment or PLC port.

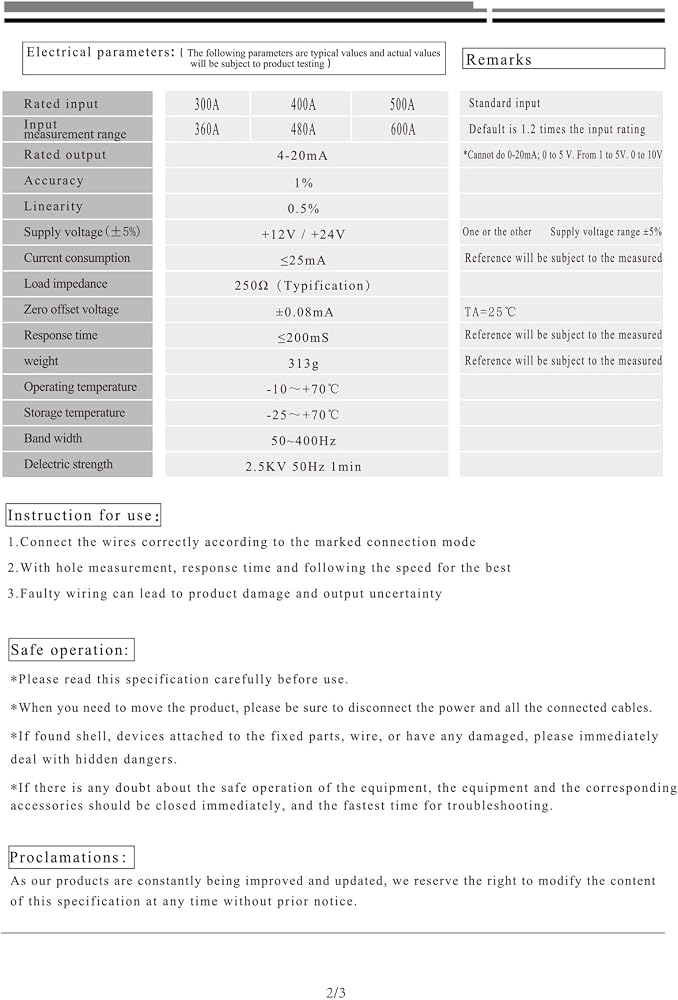

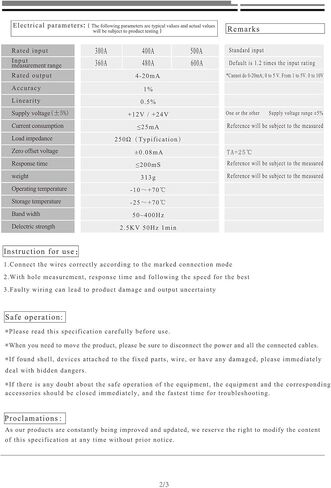

Technical indicators:
Rated input: 300A/400/500A AC
Measuring range: 360A/480A/600A
Related output: DC 4-20mA two-wire
Supply voltage (±5%): +12V +24V (default +24V please note if other parameters are required)
Accuracy: 1%
Linearity: 0.5%
Working temperature: -10℃～+70℃
Storage temperature: -25℃～+70℃
Dielectric strength: 2.5KV 50Hz 1min
Overload capacity: 8 times 0.1s
Waterproof grade: IP00
Power consumption: 25 mA
Load impedance: 250 (typical)
Zero offset TA = 25 ± 0.08 mA
Response time: 200 ms
Working frequency: 50-400Hz
Core material: Silicon steel sheet
- Weight: 313 g
