1. Good machining makes it less rough and noisy than other gears, making it roll smoothly.
2. Small size, light weight, easy to carry, easy to install, with good performance.
3. Widely used in agricultural equipment, textile machinery, printing machinery, mechanical transmission and other industries that need to be driven by steering.

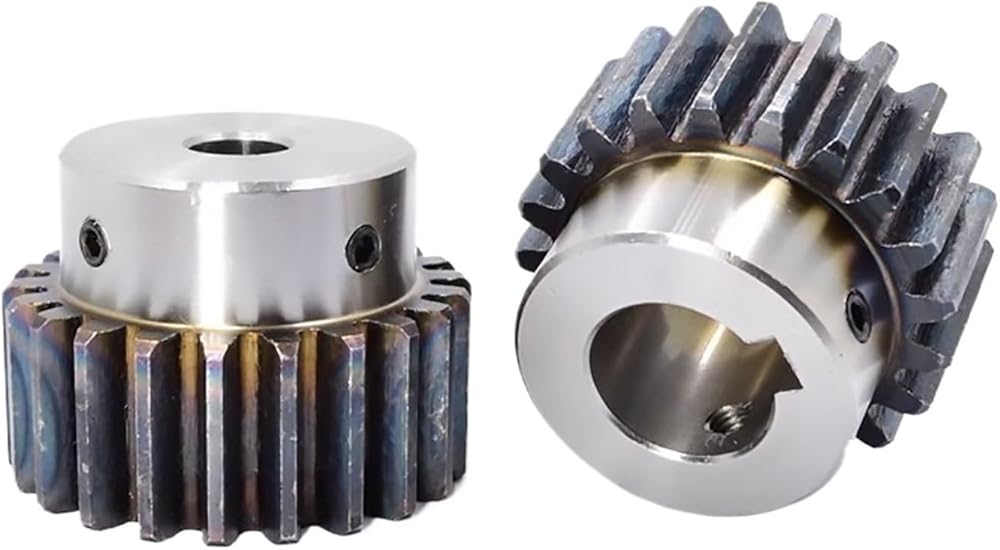

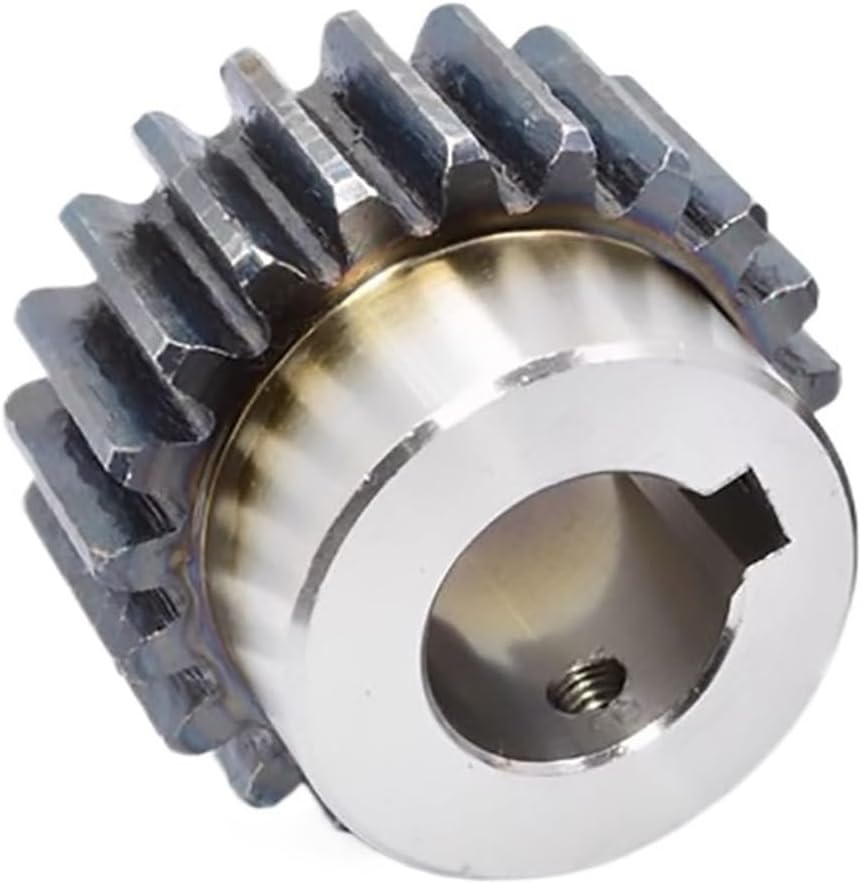

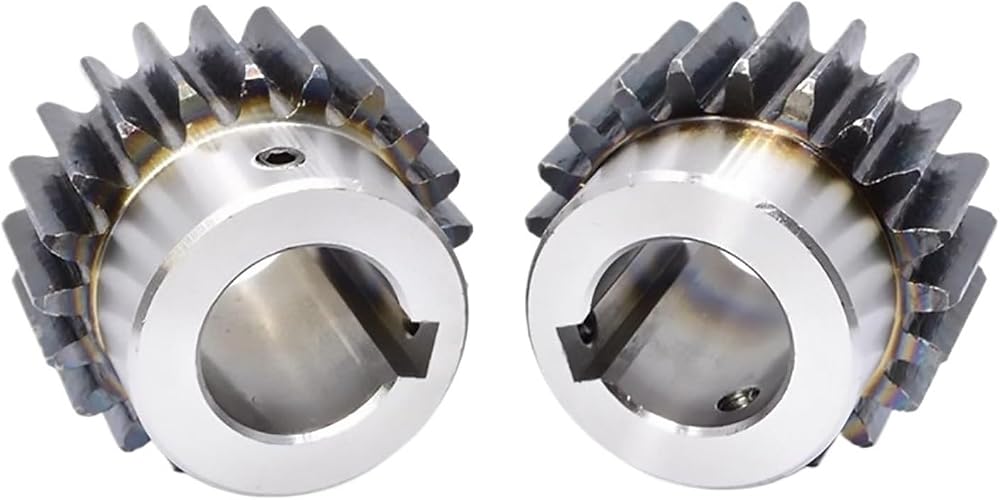

Name: 2M Spur Gear With Step
Material: 45# Steel
Surface Treatment: High frequency quenching of teeth
Teeth: 26 Teeth
Teeth Pitch: 6.28mm
Keyway Bore:
12mm (keyway 4mm)
14mm (keyway 5mm)
15mm (keyway 5mm)
16mm (keyway 5mm)
17mm (keyway 5mm)
18mm (keyway 6mm)
20mm (keyway 6mm)
22mm (keyway 6mm)
24mm (keyway 8mm)
25mm (keyway 8mm)
Teeth Height: 20mm
Total Height: 30mm / 34mm
Shaft Hole: Machining completed
Tooth Surface Hardness: Hardened tooth surface
Screw: M5*2
Pack Quantity : According to your Choose!
