مميزات خاصة

[High Resolution Display] Equipped with a 5 inch 800X480 high resolution screen, this fiber splicer offers clear visibility and up to 400X magnification, enabling easy observation of loss and cutting angles.
[Fast and Efficient Operation] With a quick splicing time of 9 seconds and a rapid heating time of 26 seconds (adjustable), this splicer ensures efficient workflow. It also minimizes splicing loss, with a low loss of 0.02dB (), 0.01dB (MM), and 0.04dB (DS NZDS).
[Versatile Fiber Fixture] Featuring a three in one fiber fixture, this splicer is compatible with various fiber types including , MM, DS, and NZDS fibers, supports a wide range of fiber diameters, from 80 to 150μm cladding diameter to 100 to 1000μm coating diameter.
[Built in LED Light] The fiber splicing machine is equipped with LED light at the splicing position, allowing for easy and convenient fiber splicing work even in low light or night time conditions.
[Long Lasting Battery] The 6700mAh lithium battery can be fully charged in just 3.5 hours, providing enough power for over 200 splicing or heating times. Additionally, it has USB interface for reverse charging convenience.

وصف

Specification:
Item Type: Fiber Optic Splicer
Material: Aluminum Alloy, ABS
Applicable Optical Fiber: (G.652 G.657), MM (G.651), DS (G.653), NZDS (G.655), and custom fiber types
Connection Loss: 0.02dB (), 0.01dB (MM), 0.04dB (DS, NZDS)
Return Loss: Better than 60dB
Typical Connection Time: 9 seconds
Typical Heating Time: 26 seconds (heating time can be set, heating temperature can be adjusted)
Fiber Optic Alignment: Fine alignment, core alignment, cladding alignment
Fiber Diameter: Cladding diameter 80-150μm, coating diameter 100-1000μm
Cutting Length: Coating layer below 250μm: 8-16mm; Coating layer 250-100μm: 16mm
Tension Test: Standard 2N

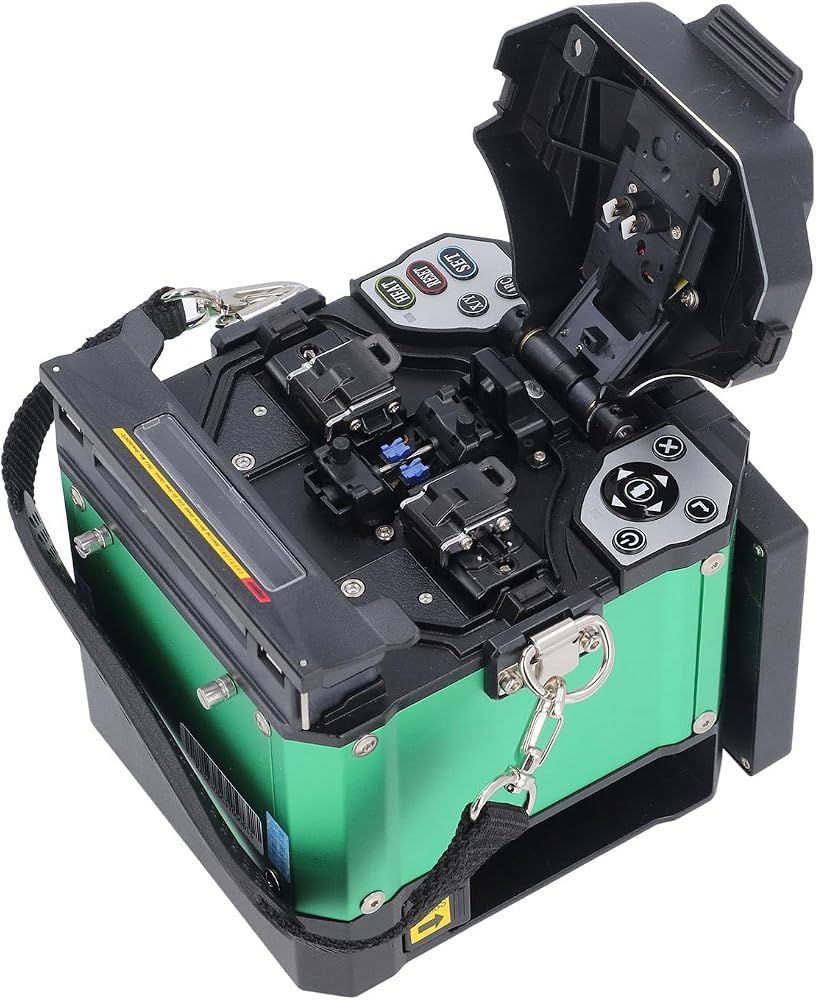

Fiber Optic Fixture: Multifunctional fixture suitable for bare fiber, tail fiber, jumper, leather wire; Replacing fixture can be used for SC and other connectors for various FTTx fiber optic cables
Magnification Factor: 400X (X or Y axes)
Heat Shrink Tubing: 60mm, 40mm, and a series of micro shrink tubing

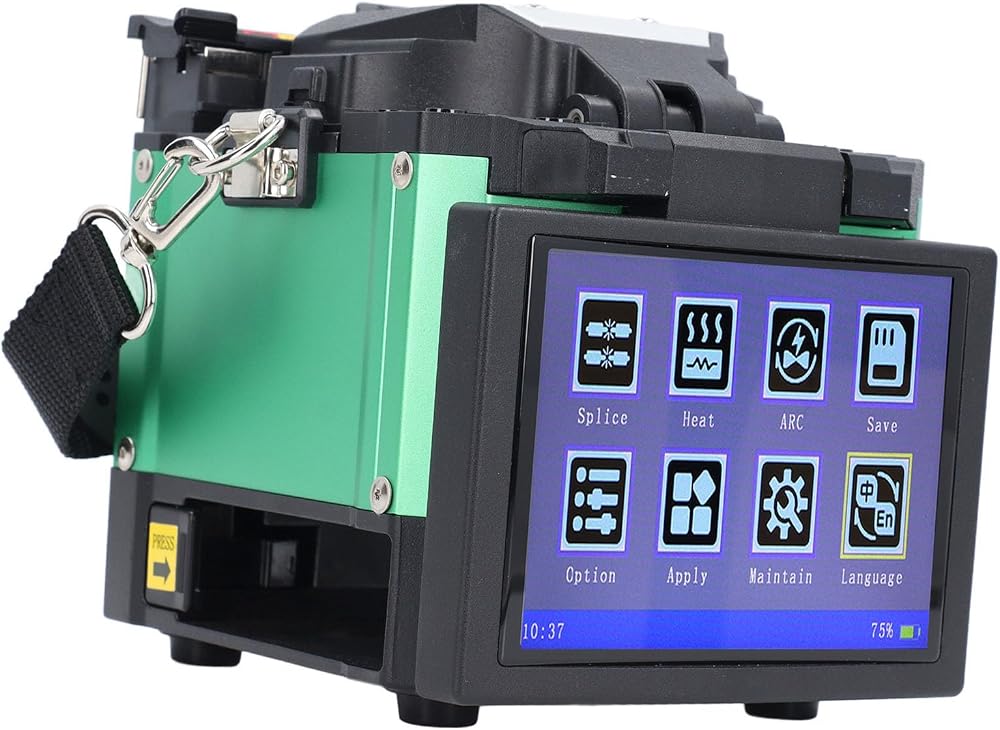

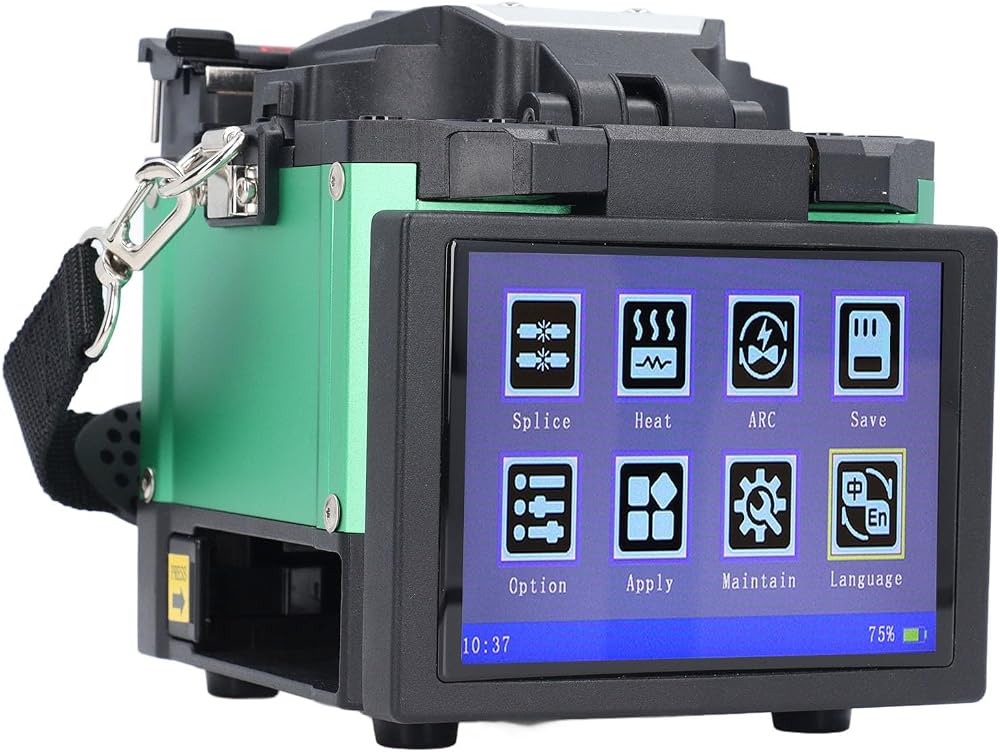

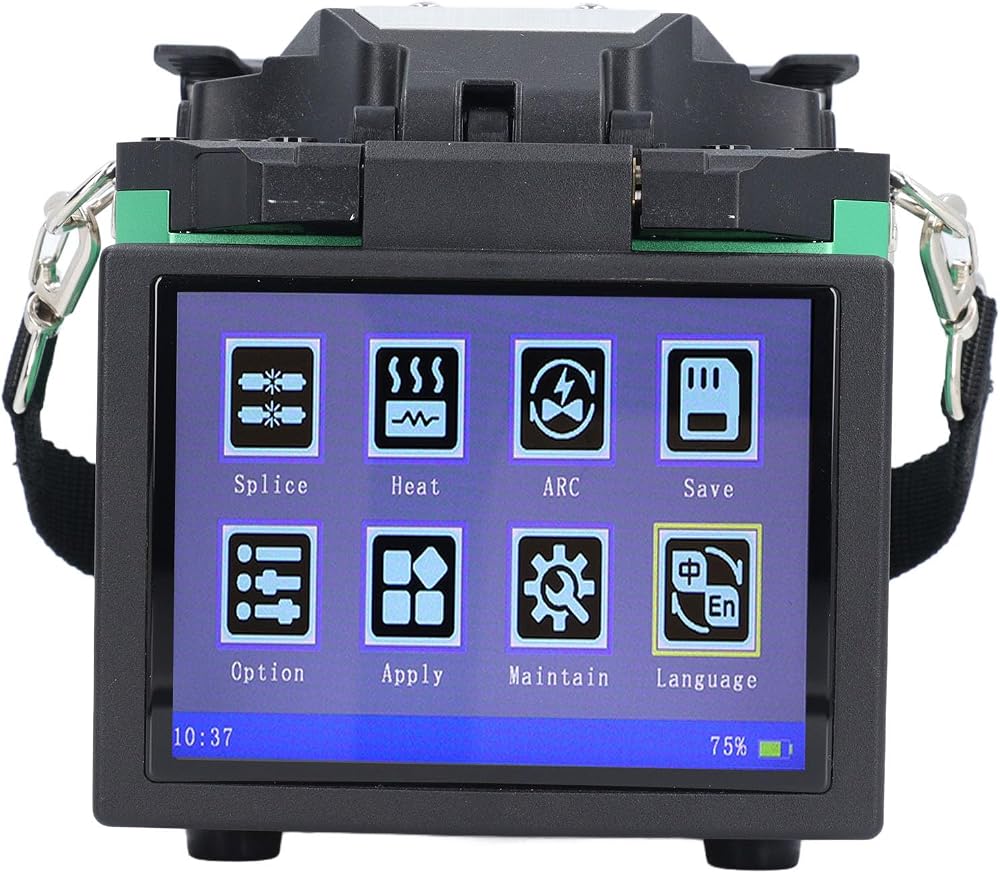

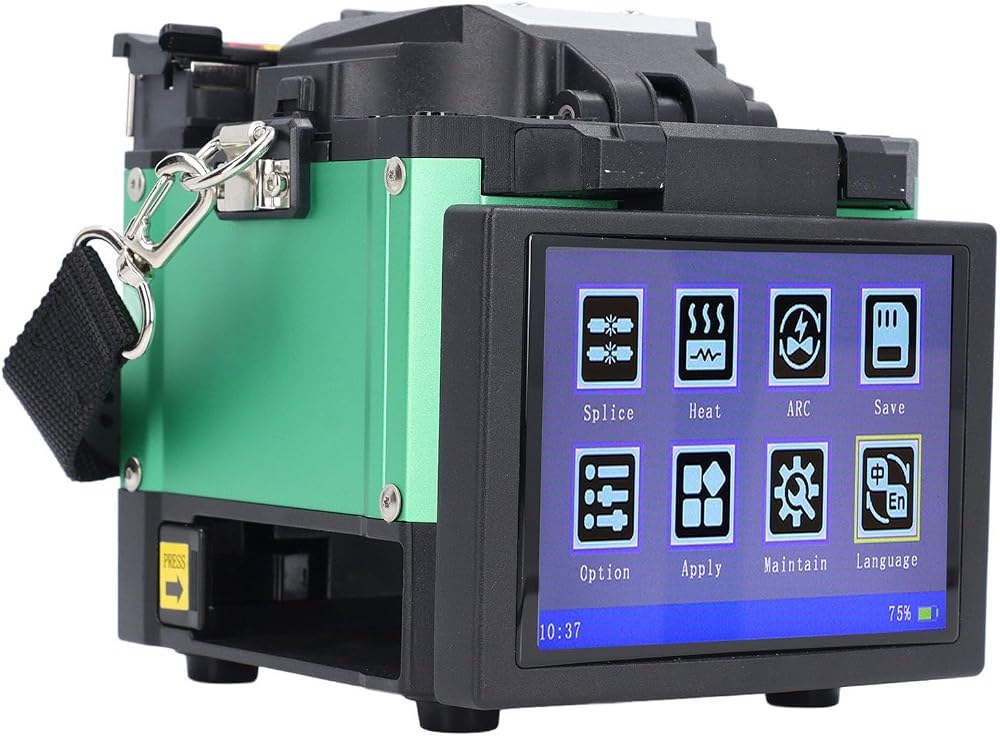

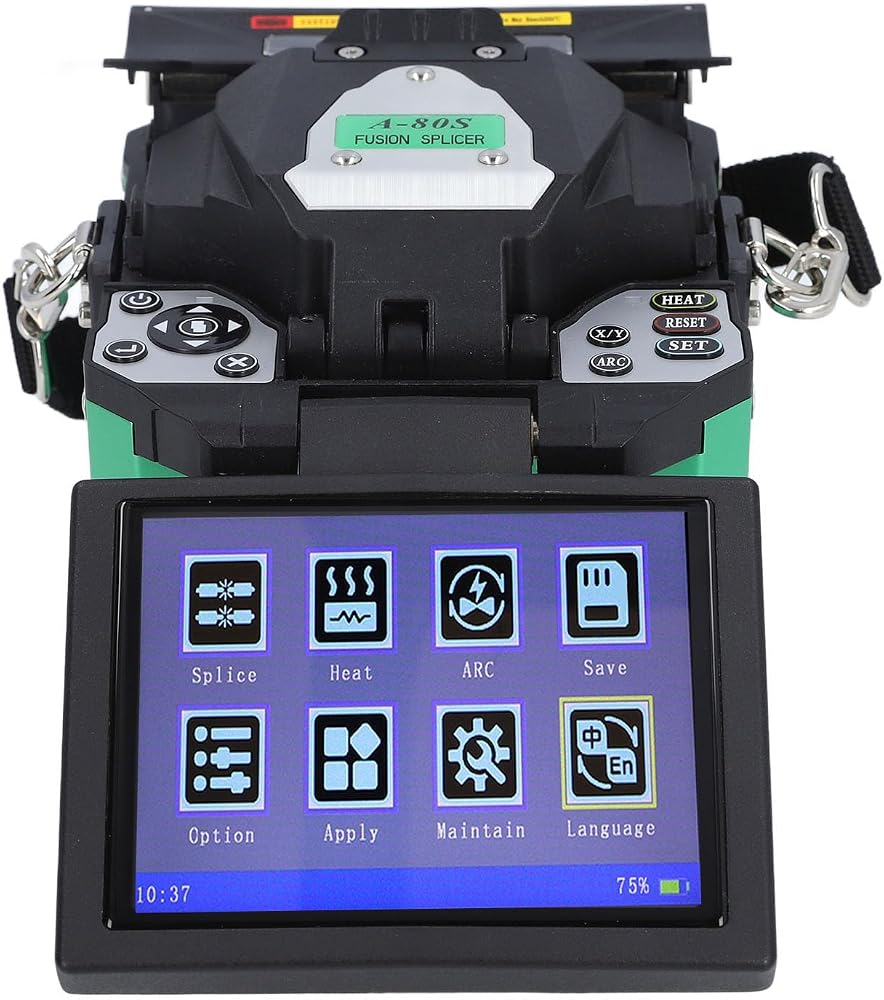

Display: 5.0 inch TFT color LCD display screen, content can be flipped, convenient for two way operation
External Interface: USB i
