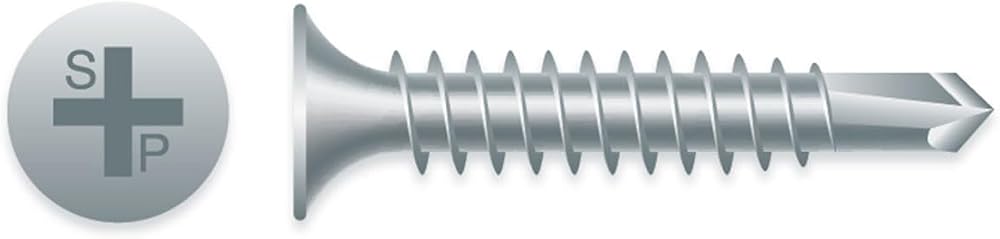

#10-16 x 5" Phillips Bugle Head Tek screws, Zinc Plated

Product image is a likeness. Actual screw is not shown. Some screw lengths beyond 1-5/8" may follow the industry standard 2/3 partial thread length rule. Contact us if Full Thread is required for lengths beyond 1-5/8".

Features:Self-Drilling point for metal applications
Low corrosion resistance

Details:Head Type: Bugle
Drive Type: #2 Phillips
Thread Diameter: #10
Thread Per Inch: #16
Thread Type: Fine
Length: 3-1/2"
Point: #2 Self-Drilling
Quantity: 500 pcs
Weight: 20 pounds [approx.]

Material Application:Attaches gypsum, insulation, wood to metal.
Use indoors for dry, non-corrosive applications.
Drill Capacity: .035 - .110
Drill Speed: 2500 RPM

Specifications:ICC-ES Evaluation Report: ESR-3528
Meets ASTM C 1513 for cold-formed steel framing connections
Meets F.I.P.-1000.7 for torsional strength & drill speed
Meets SAE J78 for performance & dimensional specifications
Meets ASTM C 954 for attaching gypsum board to steel studs
Zinc Plated

Zinc plated is a plating that is applied electrically to fasteners that prevents oxidation of steel by forming a protective barrier. Not recommended for ACQ Treated Lumber.

Disclaimer:
Country of origin subject to change based on availability.
