1. Smooth surface, can withstand slight wear, hardening treatment can improve work efficiency.
2. Widely used in agricultural equipment, textile machinery, printing machinery, mechanical transmission and other industries that require steering drive.
3. Not easy to deform, high tensile strength, stable performance, large load-bearing capacity, smooth surface and easy maintenance.

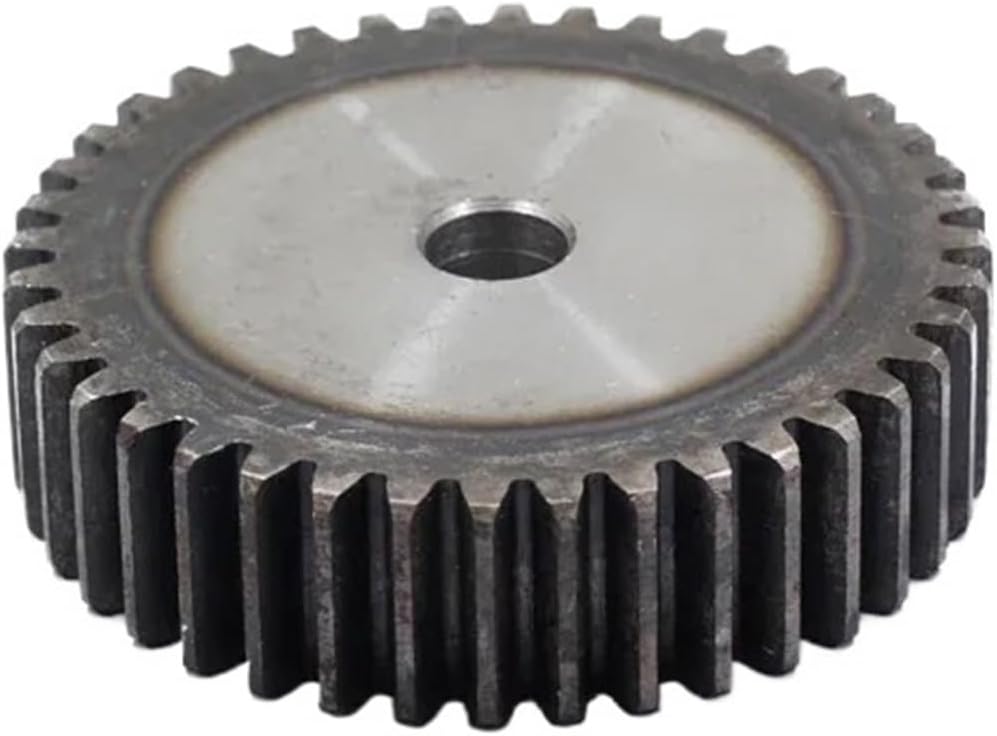

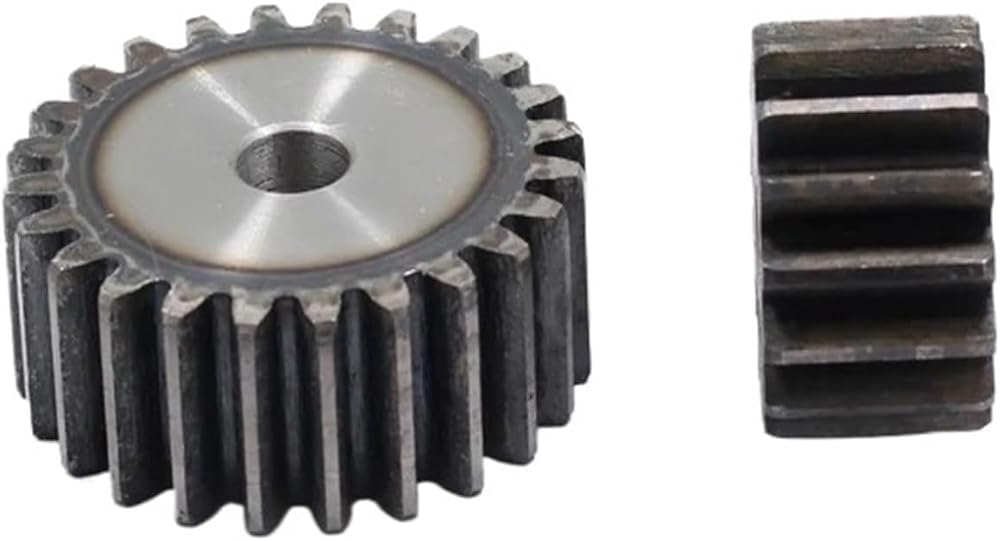

Name: 1.5M Spur Gear
Material: 45# Steel
Model: 1.5M 12-27 teeth
Appearance: Flat on both sides

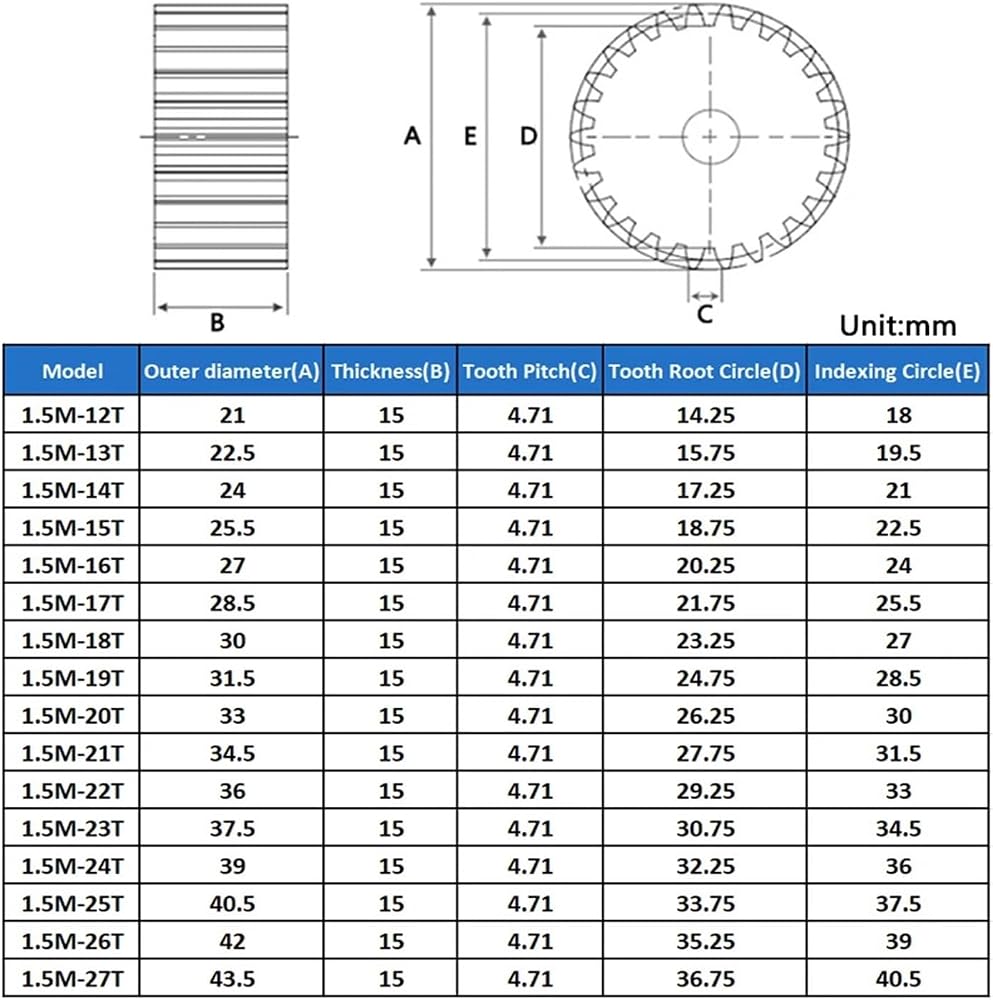

Thickness(B): 15mm
Tooth Pitch(C): 4.71mm
Outer Diameter(A): 21-43.5mm
Inner Hole: Rough Hole
Tooth Surface Hardness: Hardened tooth surface
