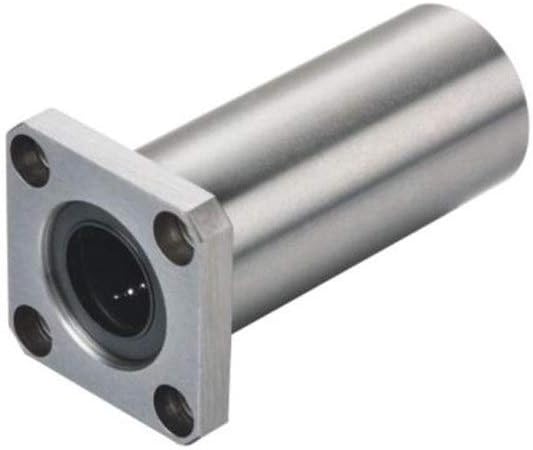

Linear Bearing LMK20LUU LMK25LUU LMK30LUU LMK35LUU LMK40LUU LMK50LUU LMK60LUU Long Linear Bearing ABEC-5 Square Flange Type Bearings Linear Ball Bearings(LMK20LUU)

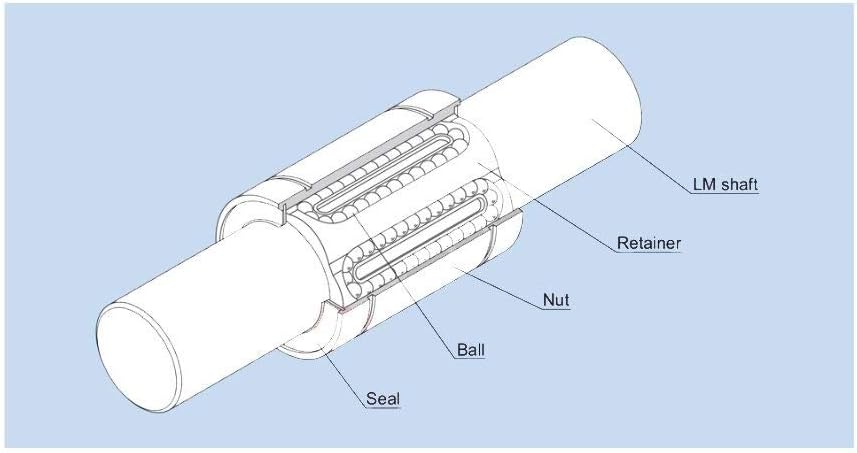

Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infinite straight motion.
The balls in the loaded area of the nut are in point contact with the LM shaft.
This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load.
Description
Bearings
Details

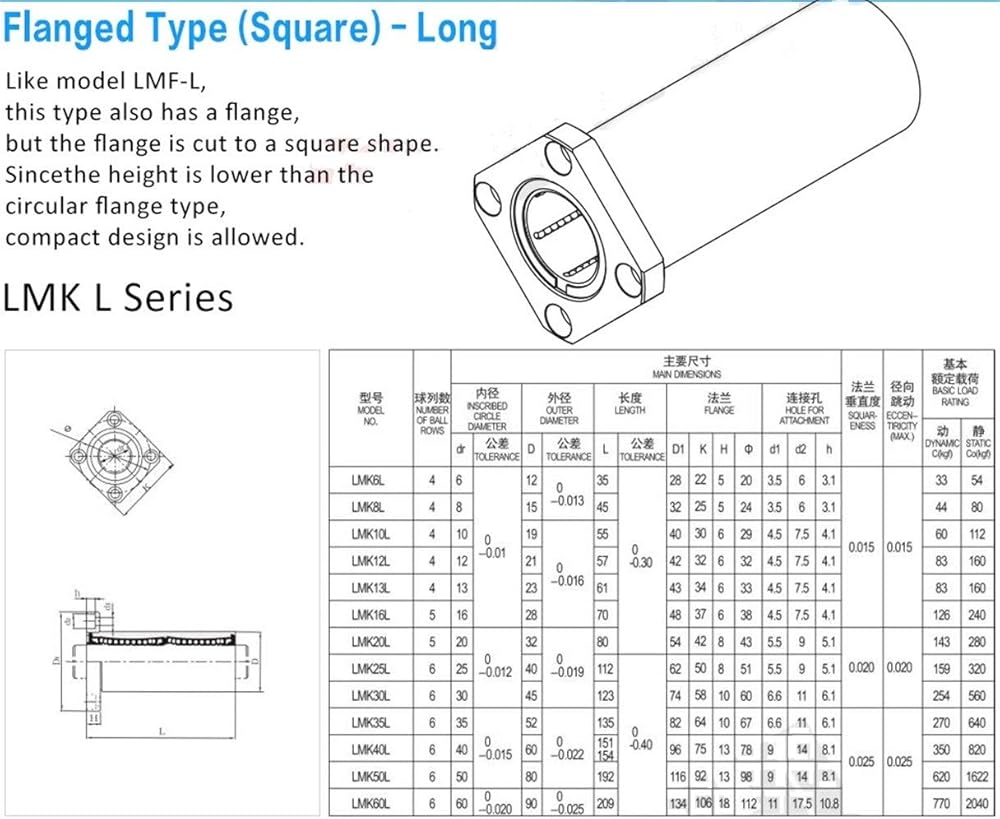

Model:LMK20LUU
Number of Ball Rows: 5
Inner diameter: 20 mm
Outside diameter: 32 mm
Length: 80 mm
Dynamic Cr: 143 kgf
Static Cor: 280 kgf
Grade:ABEC-5
Quantity: 1 PC
Model:LMK25LUU
Number of Ball Rows: 6
Inner diameter: 25 mm
Outside diameter: 40 mm
Length: 112 mm
Dynamic Cr: 159 kgf
Static Cor: 320 kgf
Grade:ABEC-5
Quantity: 1 PC
Model:LMK30LUU
Number of Ball Rows: 6
Inner diameter: 30 mm
Outside diameter: 45 mm
Length: 123 mm
Dynamic Cr: 254 kgf
Static Cor:560 kgf
Grade:ABEC-5
Quantity: 1 PC
