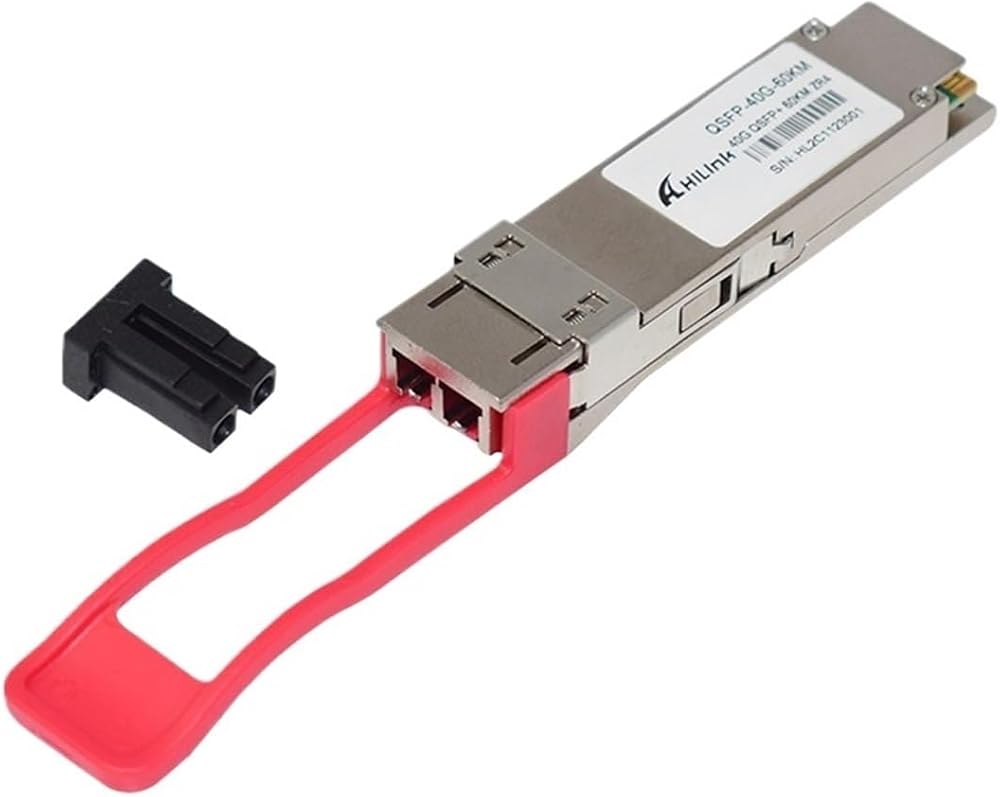

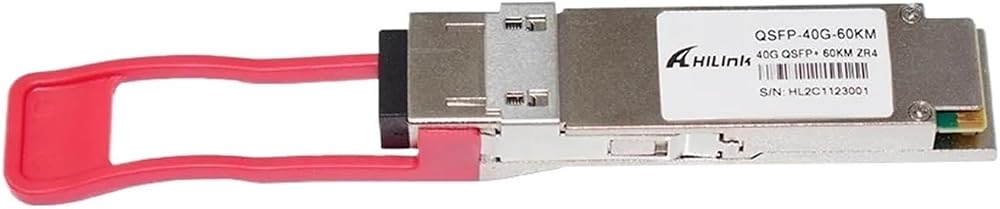

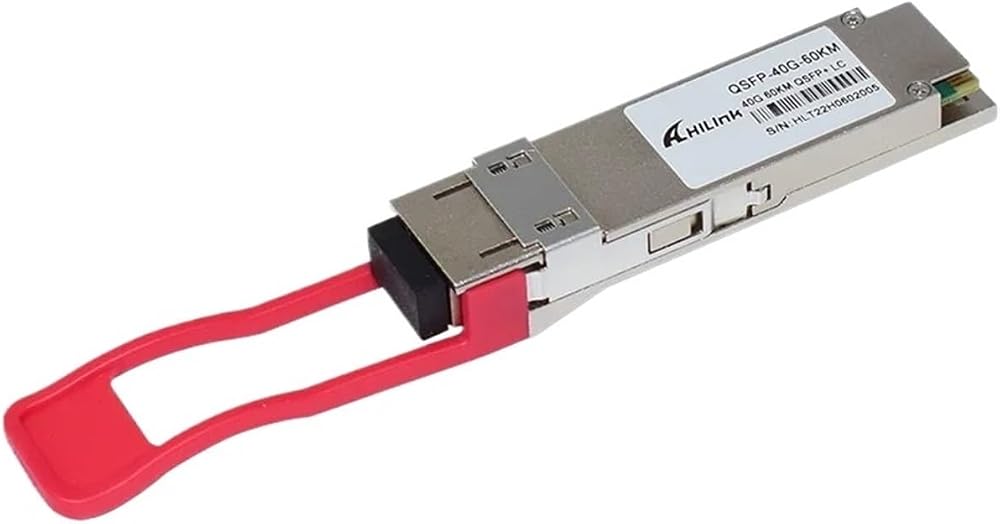

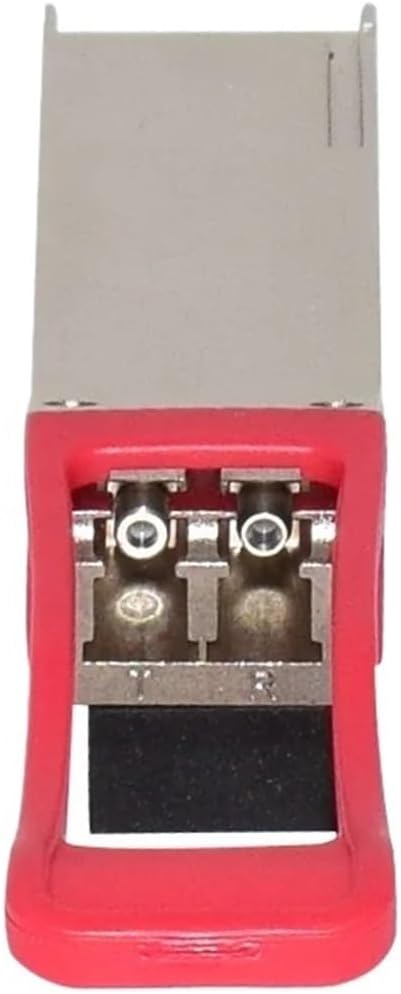

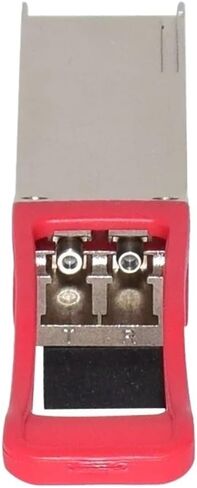

QSFP-40G-60KM Duplex LC 40GBASE-ZR4-Lite 60km 40G QSFP+ Transceiver
The 40G QSFP ZR4-Lite optical transceiver integrates the transmit and receive path onto one . Four electric-absorption modulated lasers (DFBs) with1271, 1291,1311 and 1331 nmcenter wavelengths, whichmultiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
Features:4 CWDM channels are 1271, 1291,1311 and 1331 nm
Single +3.3V power supply
QSFP+ compliant
Up to 60km transmission
Operating case temperature: 0~70C
Maximum 3.5W operation power
compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ : SFF-8436
Applications:40G Ethernet
4X SDR DDR QDR
40G Telecom connections
