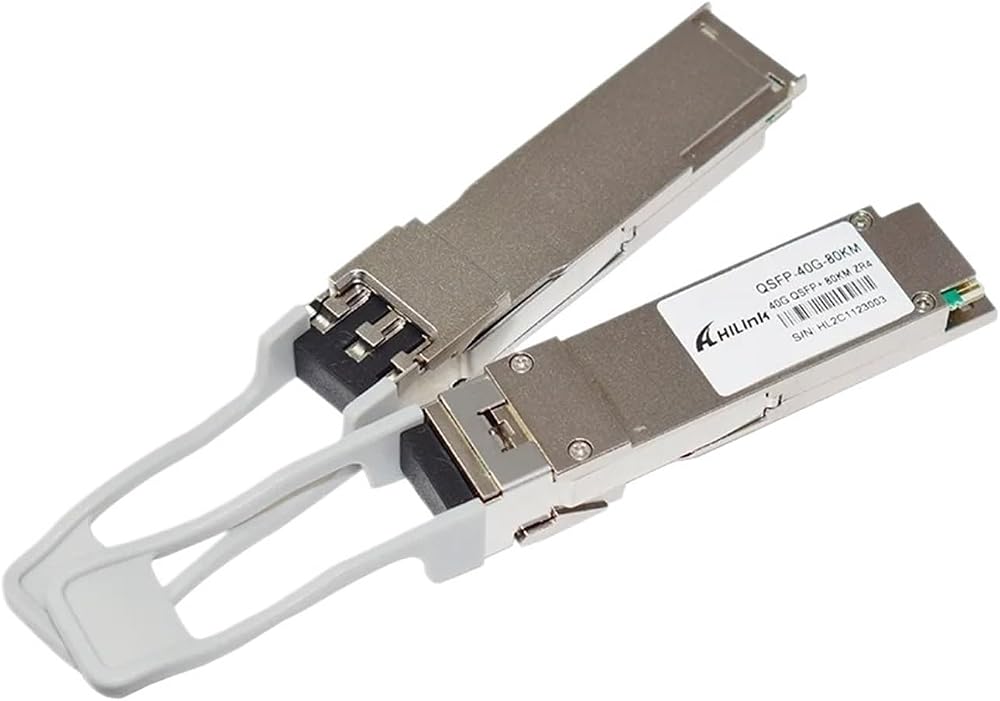

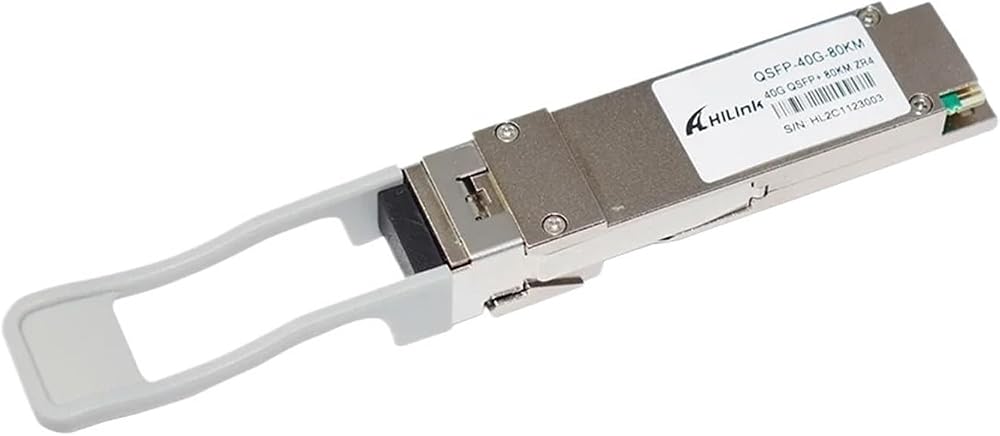

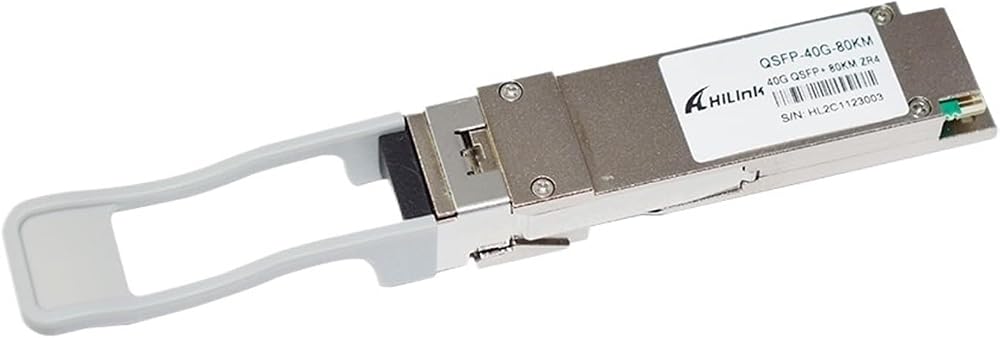

QSFP-40G-ZR4 Duplex LC 40GBASE-ZR4 80km 40G QSFP+ ZR4
The 40G QSFP ZR4 optical transceiver integrates the transmit and receive path onto one . Four electric-absorption modulated lasers (DFBs) with4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nmcenter wavelengths, whichmultiplexed/demutiplexed into a single-mode fiber through an industry-standard LC connector. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver.
Features:4 LAN-WDM channels are 1295.56nm, 1300.05nm, 1304.58nm and 1309.14nm
Single +3.3V power supply
QSFP+ compliant
Up to 80km transmission
Operating case temperature: 0~70C
Maximum 3.5W operation power
compliant
Compliant with IEEE802.3ba
Compliant with QSFP+ : SFF-8436
Applications:40G Ethernet
4X SDR DDR QDR
40G Telecom connections
