Valves
Port Size : DN15(1/2"),DN20(3/4"),DN25(1"),DN32(1-1/4"),DN40(1-1/2"),DN50(2")
Material : BRASS

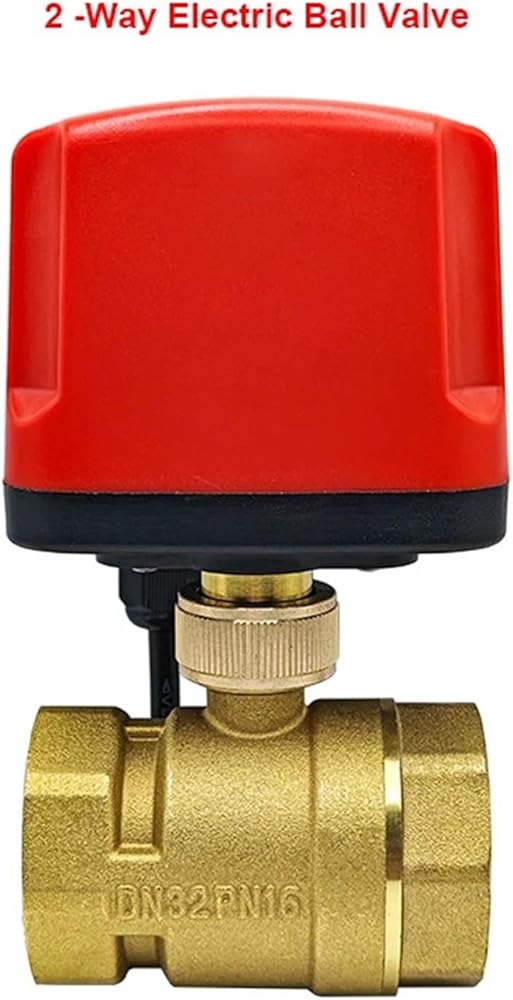

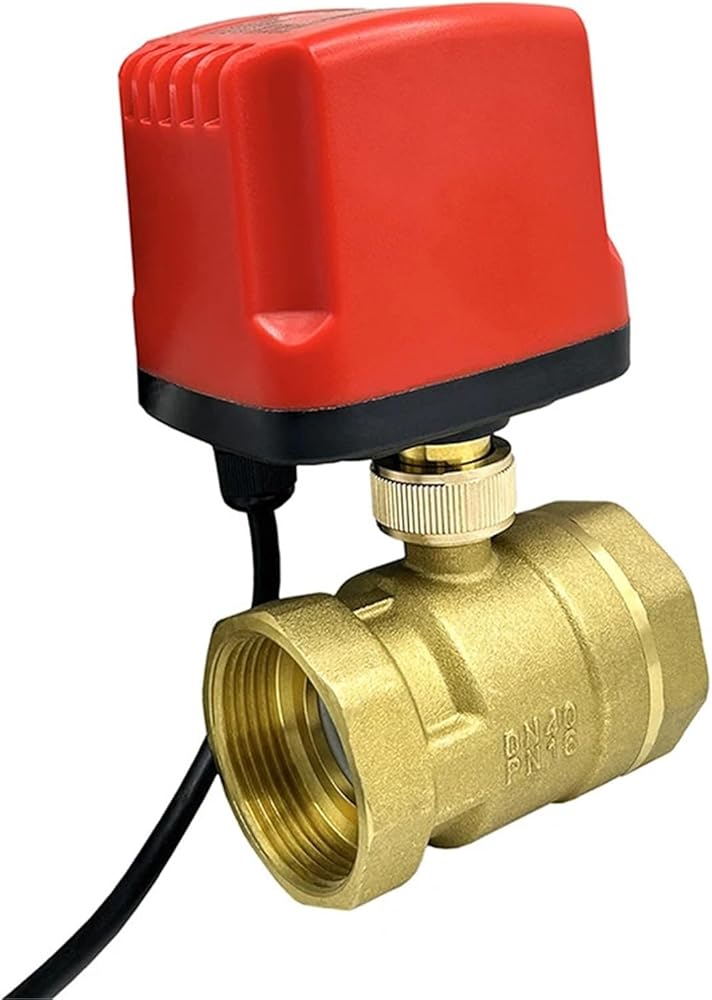

Model Number : Waterproof Electric Ball Valve
Power Source : AC
Wiring mode : CR02(Three wire two control), CR03(Three-wire one-control), CR04(Two-wire power-off reset)
Driving voltage : 220VAC 24VDC 12VDC

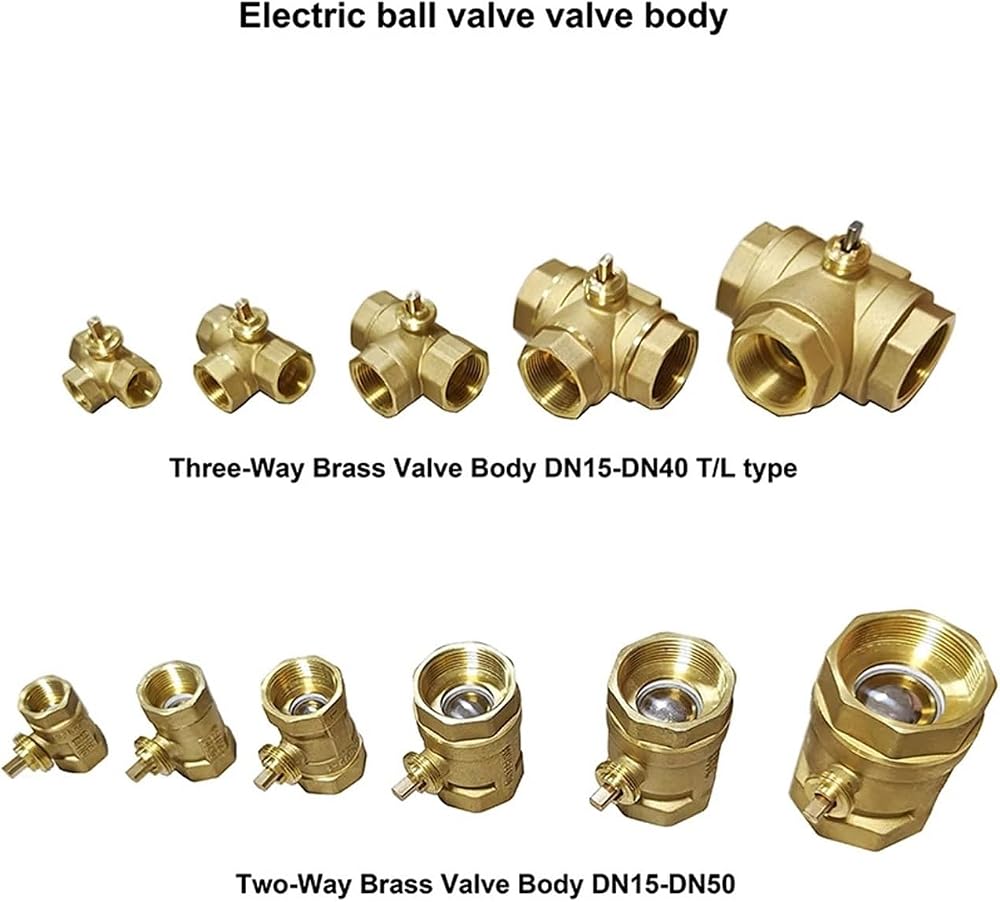

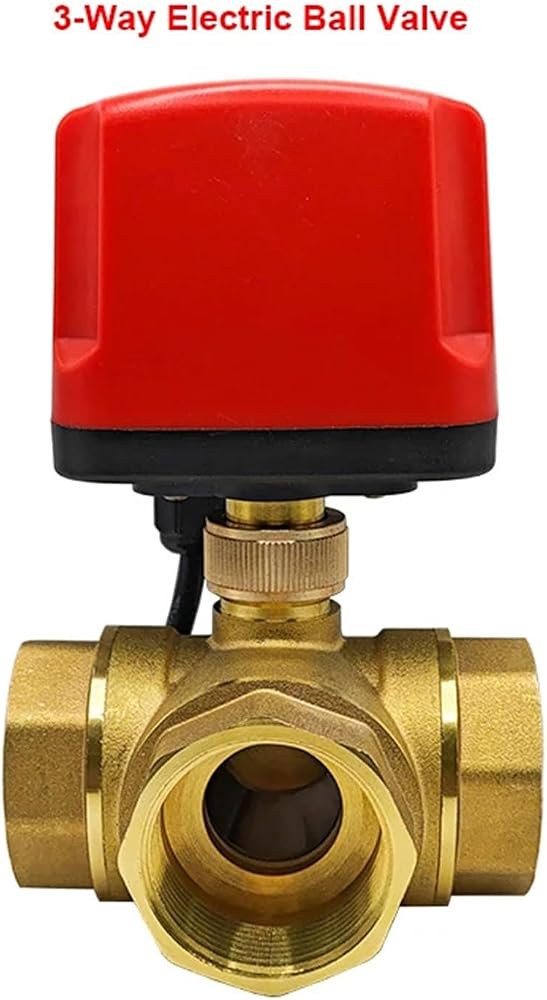

Structure Forms : Two-Way/Three-Way
Power consumption : 6 W (only when the valve is opened and closed)
Action time : 5-15 S
Nominal Pressure : 1.6 Mpa
Lead length : 30 CM
