مميزات خاصة

Fast Splicing and Heating: Experience unprecedented efficiency with our 6 motor splicing machine, achieving rapid splicing in just 8 seconds and heating in 18 seconds. With the capacity for nearly 260 continuous works, save valuable time for your engineering projects with its versatile automatic, semi automatic, and manual modes.
Accuracy Engineering: Featuring coring alignment technology with automatic focusing and six motors, our device minimizes splice lossing compared to traditional cladding alignment. This accuracy ensures effective measurement of connection lossing and enhances the assessment of fiber link transmission quality.

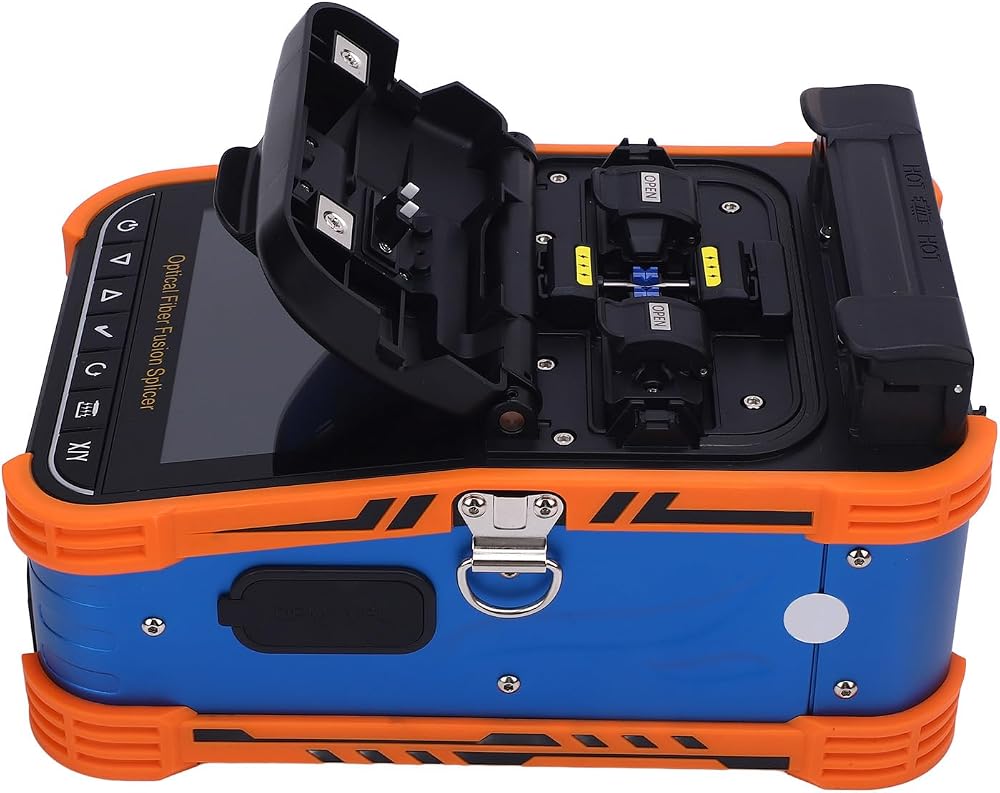

Versatile 3 in 1 Fiber Holder: Designed for multiple fiber types including SM, MM, DS, and NZDS, our 3 in 1 fiber holder guarantees splicing losses as low as 0.01dB. Utilize innovative ITU I cutting techniques to cater to various fiber requirements, ensuring professional performance across the board.

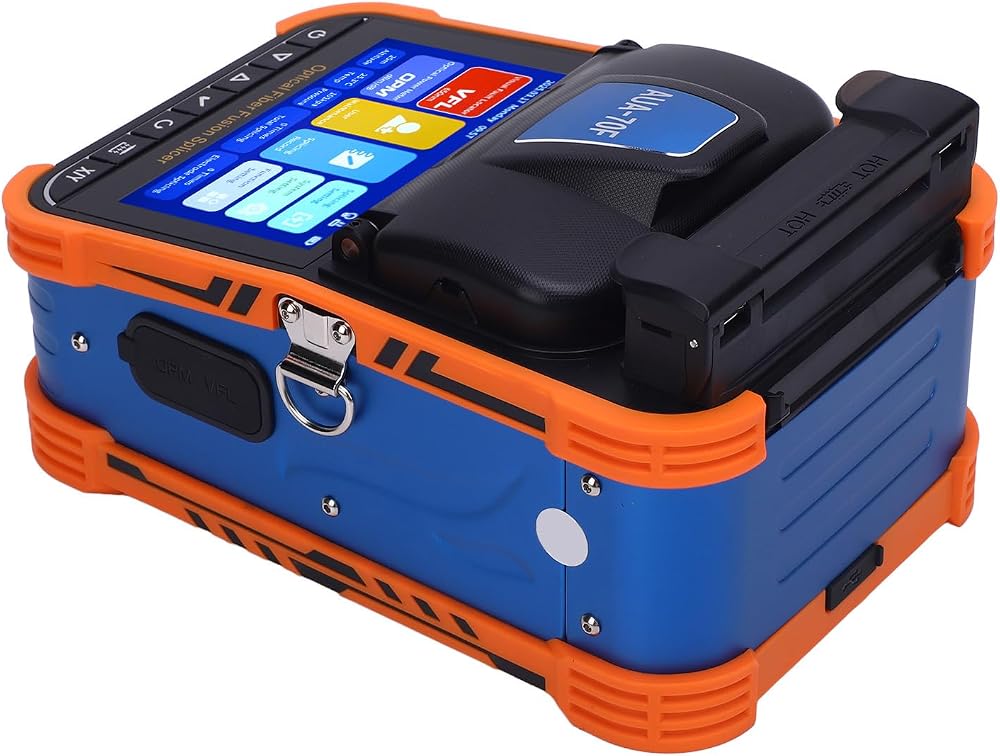

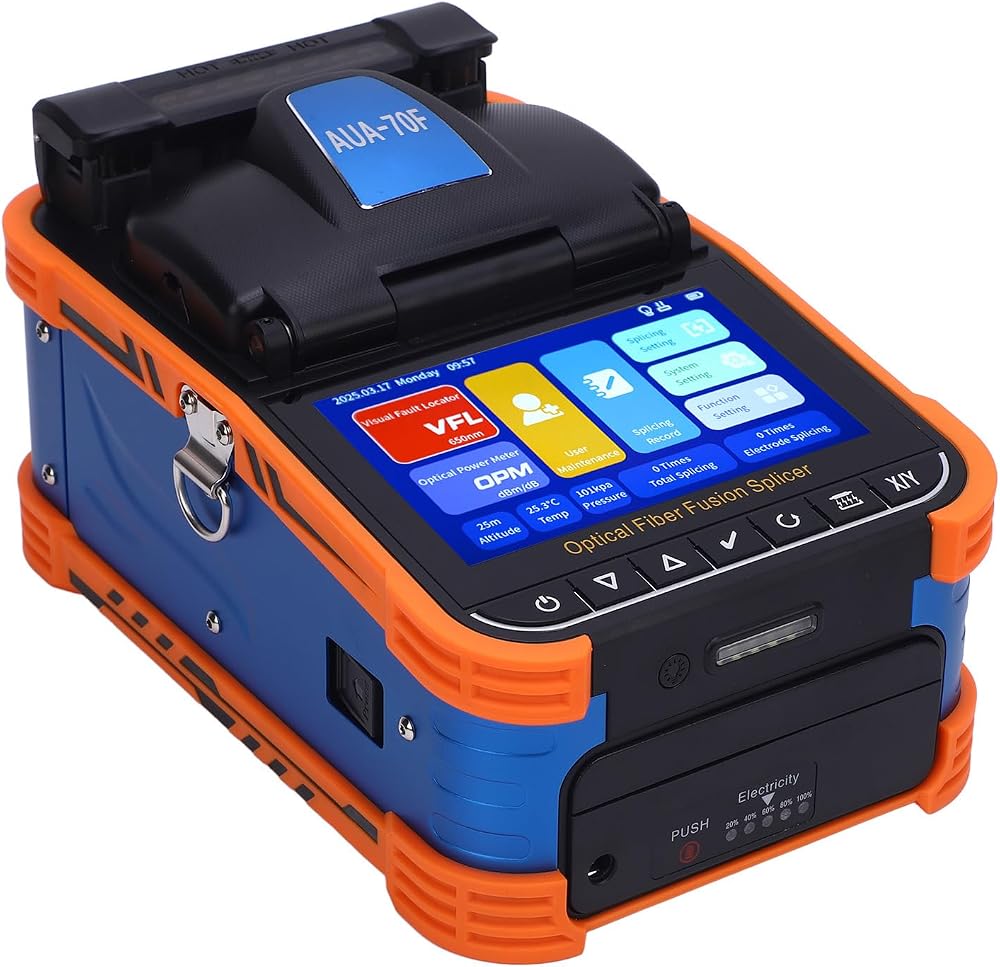

HD Display and Extended Standby: The 5 inch LCD touchscreen with a resolution of 800X480 allows for easy navigation and accurate control, with focusing magnification up to 300 times on the X Y axes. Equipped with a built in 6700 mAh li battery, enjoy approximately 260 successful splicing and heating cycles on a single charging, .
Automatic Fiber Cutting Capability: Our machine includes a fully automatic fiber cutting designed for both splicing and cold connections. With enhanced silicone gaskets for secure fiber clamping and a tungsten steel lasting up to 48,000 cuts, experience reliability and accuracy in every work.

وصف

Specification:
Item Type: Optical Fiber Splicer
Material: Aluminum Alloy, Tungsten Steel, ABS, Silicone
Compatible Fiber: SM (G.652 and G.657), MM (G.651), DS (G.653), NZDS (G.655) and types
Fiber Diameter: Cladding diameter 80-150μm, coating diameter 100-1000μm
Continuous Loss: 0.02dB (SMF), 0.01dB (MMF), 0.04dB (/NZDs) measured using ITU I shear method
Alignment Method: Coring, cladding
Focusing Method: Six motor automatic focusing
Method: Fully automatic, semi automatic, manual
Time: 8s (SMF typical value)
Tensile Test: 1.96N-2.1N
Image Display: 5 inch HD capacitive touch screen, button touch 2 work, content can be flipped in two directions
Magnification: 300x (X Y axes)
Splicing Records: 1000 sets
Typical Heating Time: 18s
Heating Mode: Heating time, temperature adjustable, supports automatic or manual heating

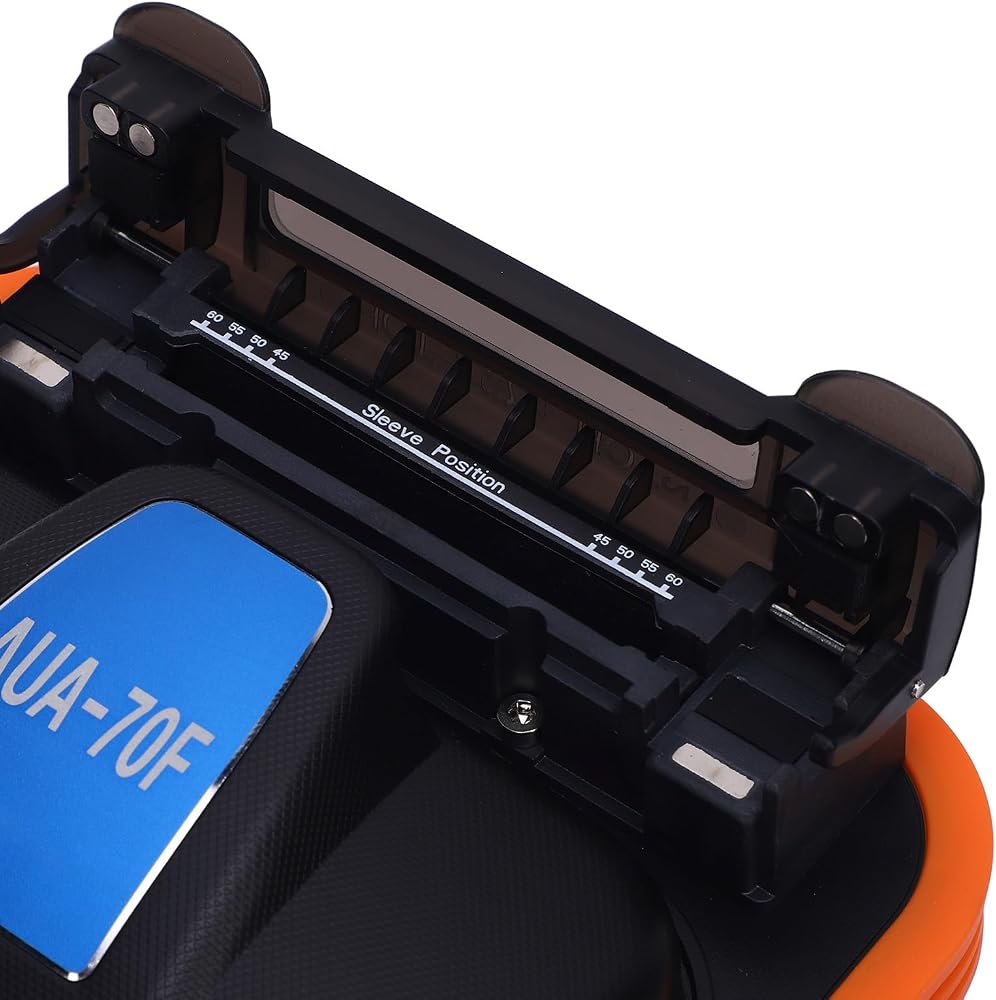

Heat Shrinkable Tube Sleeve: 20-60mm
OPM: Range (dBm): -70-+10dBm/wavelength 850-1650mm (10 bands)
VFL: ≥15km
Operating Interface: GUI graphical user interface
System Upgrade: USB (data export, function upgrade, power output)
Electrode L
